105490-5200 ZEXEL F 019 Z2F 404 BOSCH GOVERNOR f019z2f404 1054905200 me716683

Information governor

BOSCH F 019 Z2F 404 f019z2f404

ZEXEL 105490-5200 1054905200

MITSUBISHI ME716683 me716683

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105490-5200 zexel genuine, new aftermarket engine parts with delivery

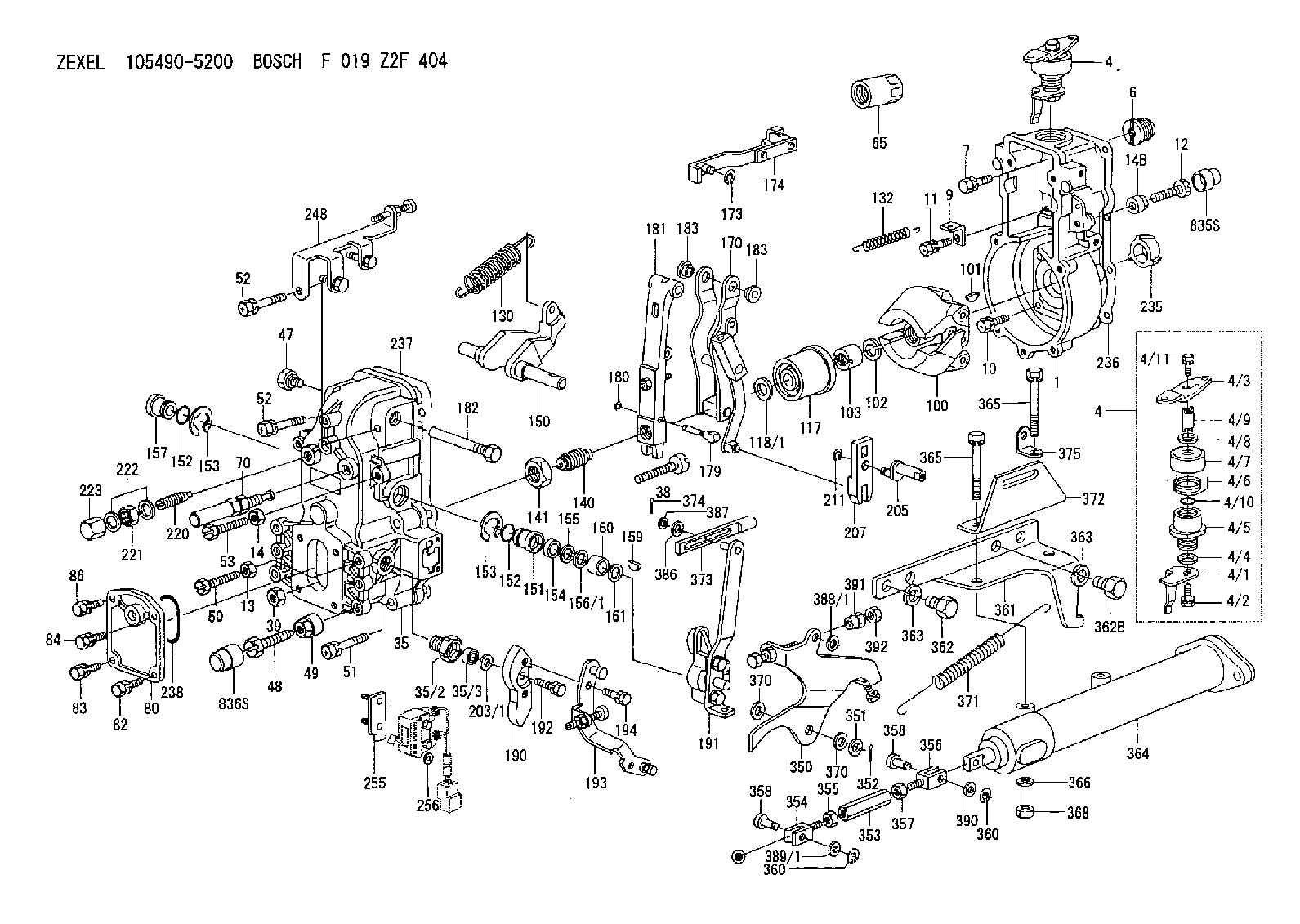

Scheme ###:

1.	[1]	154000-7000	GOVERNOR HOUSING
4.	[1]	154365-5620	CONTROL LEVER
4.	[1]	154365-5620	CONTROL LEVER
4/1.	[1]	154304-3500	CONTROL LEVER
4/2.	[1]	154352-2000	BLEEDER SCREW
4/3.	[1]	154365-5600	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-4600	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
4/11.	[1]	020006-1240	BLEEDER SCREW M6P1L12 4T
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1800	PLATE
10.	[5]	029010-6810	BLEEDER SCREW
11.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
12.	[1]	154010-7400	BLEEDER SCREW M8P1.25L55
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	013020-8040	UNION NUT M8P1.25H7
14B.	[1]	154011-2300	UNION NUT
35.	[1]	154513-2420	GOVERNOR COVER
35/2.	[1]	154321-1800	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3500	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
47.	[1]	154036-0300	CAPSULE
48.	[1]	154010-7100	BLEEDER SCREW M10P1.25L47
48B.	[1]	154010-7700	BLEEDER SCREW M10P1.25L51
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-1600	BLEEDER SCREW
51.	[4]	020106-3840	BLEEDER SCREW
52.	[2]	020106-5040	BLEEDER SCREW
52.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-7400	BLEEDER SCREW M8P1.25L55
65.	[1]	155404-5700	CAP
70.	[1]	154055-0520	HEADLESS SCREW
80.	[1]	154060-4900	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	029020-6210	BLEEDER SCREW
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-6200	GOVERNOR SPRING
132.	[1]	154154-0800	COILED SPRING
140.	[1]	154180-0720	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-3801	SWIVELLING LEVER
151.	[1]	154204-2001	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156/1.	[0]	029311-1110	SHIM D17&11T0.1
156/1.	[0]	029311-1120	SHIM D17&11T0.2
156/1.	[0]	029311-1130	SHIM D17&11T0.3
157.	[1]	154204-3400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-0900	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154216-2620	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-4720	STRAP
179.	[1]	154238-0301	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5300	TENSIONING LEVER
182.	[1]	154237-0900	BEARING PIN
183.	[2]	154237-0600	BUSHING
183.	[2]	154237-0600	BUSHING
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154345-3220	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154362-4221	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-4500	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-3520	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT M12P1.0H6
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154390-1300	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
248.	[1]	154359-7600	BRACKET
255.	[1]	154352-9420	BRACKET
256.	[2]	029300-4050	PLAIN WASHER
350.	[1]	154358-3420	CONTROL LEVER
351.	[1]	014010-8140	PLAIN WASHER D18&8.5T1.6
352.	[1]	015316-1290	SPLIT PIN
353.	[1]	154353-3300	UNION NUT M6P1H50
353B.	[1]	154351-9200	UNION NUT M6P1H40
354.	[1]	154351-9300	CLEVIS
355.	[1]	013020-6040	UNION NUT M6P1H5
356.	[1]	154351-9400	CLEVIS
357.	[1]	029200-6210	UNION NUT
358.	[2]	154604-2400	BEARING PIN
358.	[2]	154604-2400	BEARING PIN
360.	[2]	016010-0640	LOCKING WASHER
360.	[2]	016010-0640	LOCKING WASHER
361.	[1]	154353-5200	BRACKET
362.	[2]	010038-1440	BLEEDER SCREW M8P1.25L14
362B.	[2]	010038-1840	BLEEDER SCREW M8P1.25L18
363.	[4]	014110-8440	LOCKING WASHER
363.	[4]	014110-8440	LOCKING WASHER
364.	[1]	154352-8920	AIR CYLINDER
365.	[2]	010010-6540	BLEEDER SCREW
365.	[2]	010010-6540	BLEEDER SCREW
366.	[2]	014111-0440	LOCKING WASHER
368.	[2]	013021-0040	UNION NUT M10P1.5H8
370.	[0]	029310-8650	SHIM D10.5&8.5T0.5
370.	[0]	029310-8650	SHIM D10.5&8.5T0.5
371.	[1]	154314-8300	COILED SPRING
372.	[1]	154359-7500	BRACKET
373.	[1]	154352-4700	STRAP
374.	[1]	015316-1290	SPLIT PIN
375.	[1]	154359-7400	PLATE
386.	[8]	029310-8500	SHIM D15&8.4T1
387.	[1]	029310-7030	SHIM D14.5&7T0.5
388/1.	[0]	029300-6010	PLAIN WASHER D11&6.4T0.8
388/1.	[0]	029300-6020	PLAIN WASHER D11&6.4T0.35
388/1.	[0]	029300-6030	PLAIN WASHER D11&6.4T0.5
388/1.	[0]	029300-6040	PLAIN WASHER D11&6.4T1
389/1.	[0]	029300-6010	PLAIN WASHER D11&6.4T0.8
389/1.	[0]	029300-6020	PLAIN WASHER D11&6.4T0.35
389/1.	[0]	029300-6030	PLAIN WASHER D11&6.4T0.5
389/1.	[0]	029300-6040	PLAIN WASHER D11&6.4T1
390.	[1]	029300-8010	PLAIN WASHER D15&8T1.00
391.	[0]	154011-1400	UNION NUT M6P1H15
392.	[0]	013020-6040	UNION NUT M6P1H5
835S.	[1]	154062-1700	CAP D20L32
836S.	[1]	154062-1800	CAP D20L27

Include in #1:

101603-6700 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105490-5200

F 019 Z2F 404

ME716683 MITSUBISHI

GOVERNOR
* K
