105490-5090 ZEXEL F 019 Z1E 470 BOSCH GOVERNOR f019z1e470 1054905090 me723225

Information governor

BOSCH F 019 Z1E 470 f019z1e470

ZEXEL 105490-5090 1054905090

MITSUBISHI ME723225 me723225

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105490-5090 zexel genuine, new aftermarket engine parts with delivery

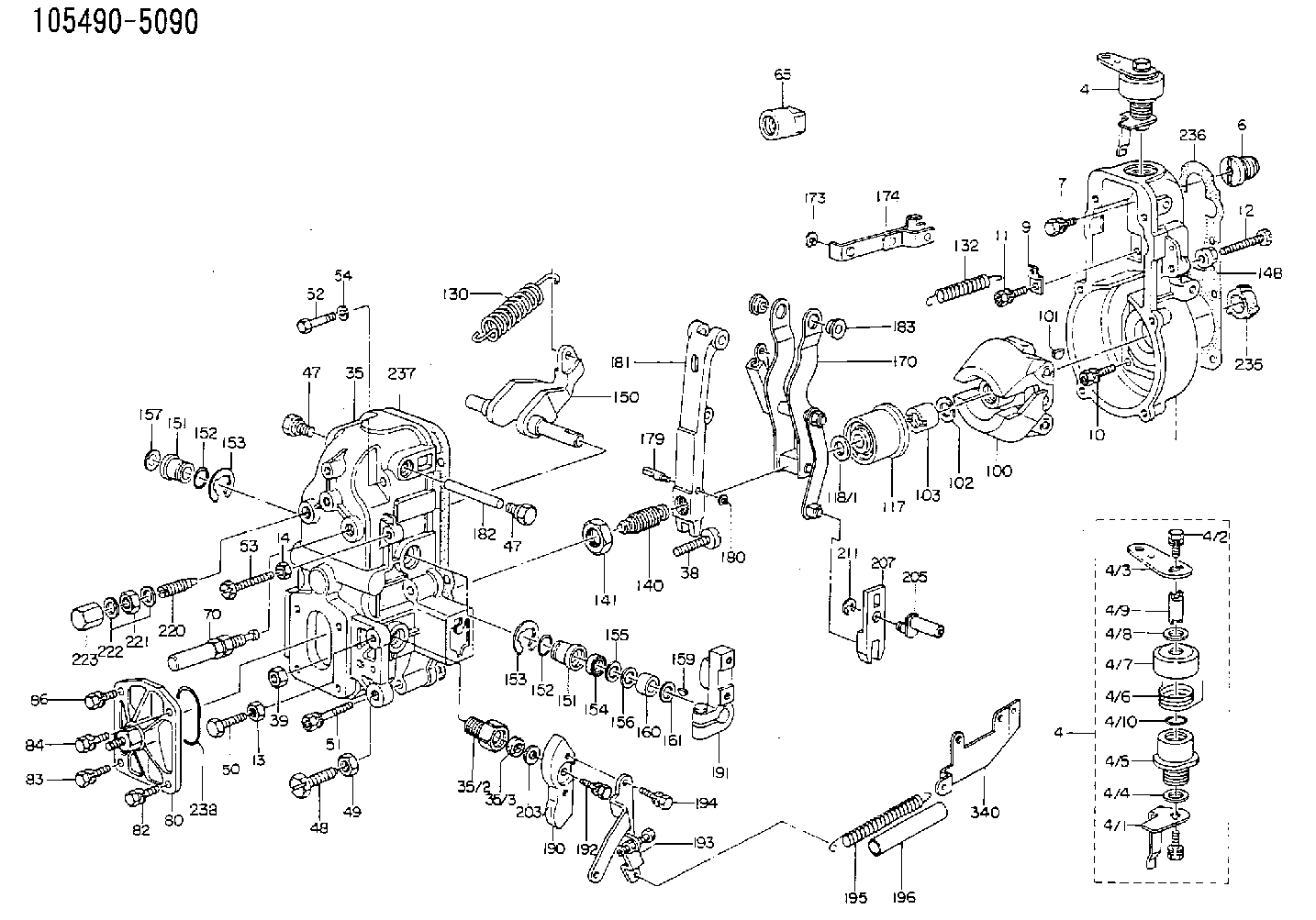

Scheme ###:

1.	[1]	154004-0800	GOVERNOR HOUSING
4.	[1]	154364-2620	CONTROL LEVER
4.	[1]	154364-2620	CONTROL LEVER
4/1.	[1]	154304-3500	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154364-2600	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-3500	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1800	PLATE
10.	[5]	029010-6810	BLEEDER SCREW
11.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
12.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
13.	[1]	029240-6010	UNION NUT M6P1.0H5*
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
35.	[1]	154513-2620	COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1800	CAPSULE
47.	[2]	154036-1800	CAPSULE
48.	[1]	154010-6500	BLEEDER SCREW
48B.	[1]	154010-8200	BLEEDER SCREW
49.	[1]	154011-2100	UNION NUT
50.	[1]	155615-1900	BLEEDER SCREW
51.	[5]	020106-4540	BLEEDER SCREW M6P1.0L45
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-2900	BLEEDER SCREW
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	155404-3800	CAP
70.	[1]	154055-1320	HEADLESS SCREW
80.	[1]	154063-3120	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	029020-6210	BLEEDER SCREW
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9320	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7900	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154183-2820	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
150.	[1]	154200-5701	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM D22.0&12.0T0.40
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2300	BUSHING
161.	[0]	154206-2400	PLAIN WASHER D20.5&12.2T1
170.	[1]	154216-3020	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-6820	STRAP
179.	[1]	154238-0201	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5200	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1300	BUSHING
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154340-1920	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154361-7800	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
195.	[1]	154314-8000	COILED SPRING
196.	[1]	154156-0500	TUBE
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-2900	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-1220	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT M12P1.0H6
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5300	IMPELLER WHEEL
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	139700-0100	O-RING
340.	[1]	154213-5800	BRACKET
835S.	[1]	154062-1700	CAP D20L32

Include in #1:

101603-6121 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105490-5090

F 019 Z1E 470
NP-EP/RFD200/1650AF56DSL

ME723225 MITSUBISHI

GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV
