105490-5070 ZEXEL F 019 Z5E 086 BOSCH GOVERNOR f019z5e086 1054905070 me716912




Information governor

BOSCH F 019 Z5E 086 f019z5e086
ZEXEL 105490-5070 1054905070
MITSUBISHI ME716912 me716912
105490-5070 GOVERNOR
Rating:
54
Buy GOVERNOR 105490-5070 zexel genuine, new aftermarket engine parts with delivery

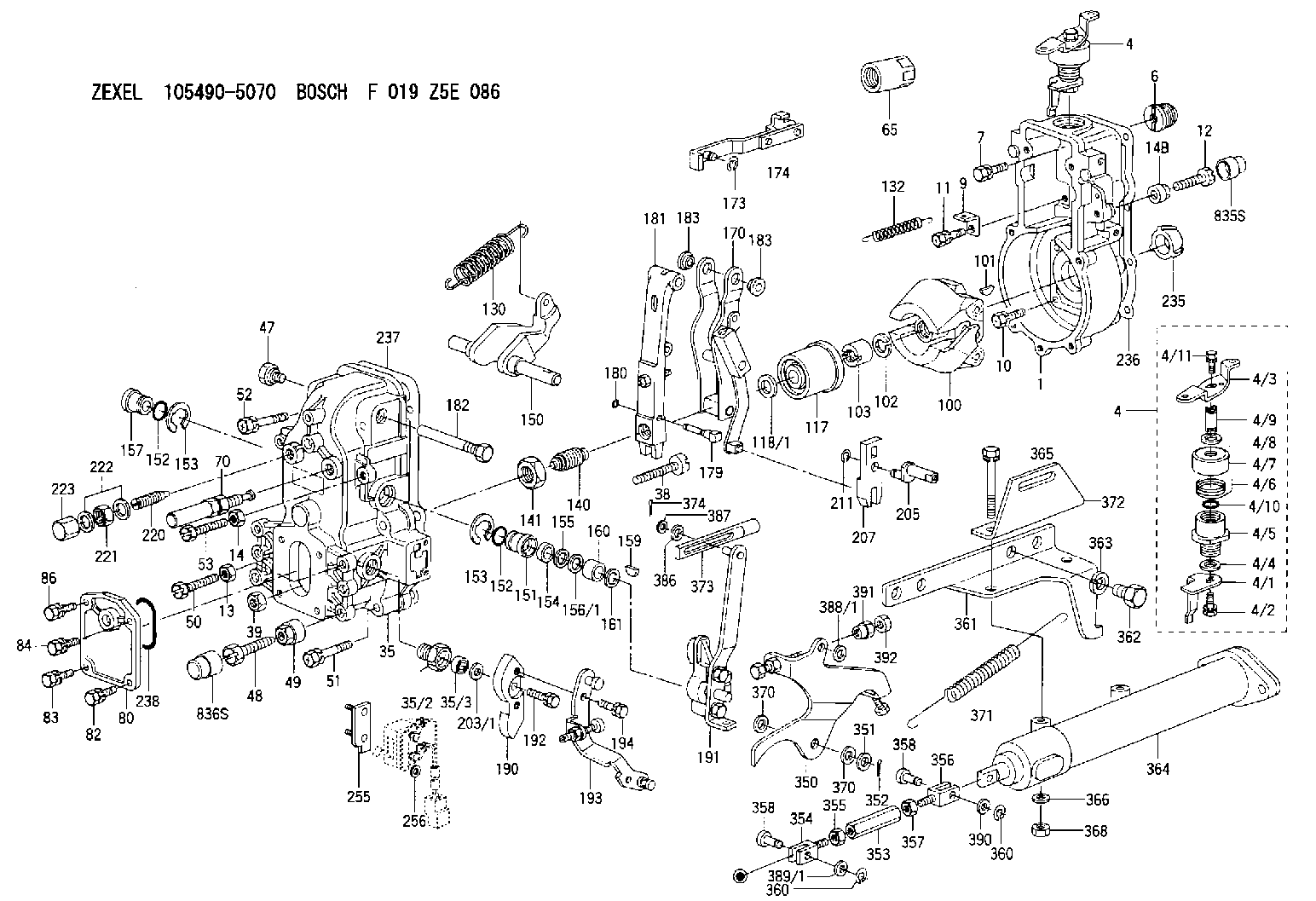

Scheme ###:

GOVERNOR HOUSING
1. [1] 154000-7000 GOVERNOR HOUSING
4. [1] 154365-6120 CONTROL LEVER
4. [1] 154365-6120 CONTROL LEVER
4/1. [1] 154304-3500 CONTROL LEVER
4/2. [1] 154352-2000 BLEEDER SCREW
4/3. [1] 154365-6100 CONTROL LEVER
4/4. [1] 029311-0230 SHIM D18&10.3T0.5
4/5. [1] 154321-1500 BUSHING
4/6. [1] 154327-4600 COILED SPRING
4/7. [1] 154322-0100 CAP
4/8. [1] 029311-0220 SHIM D18&10.3T0.2
4/9. [1] 154324-2700 LEVER SHAFT
4/10. [1] 029631-0030 O-RING &9.8W2.3
4/11. [1] 020006-1240 BLEEDER SCREW M6P1L12 4T
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1800 PLATE
10. [5] 029010-6810 BLEEDER SCREW
11. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
12. [1] 154010-7400 BLEEDER SCREW M8P1.25L55
13. [1] 013020-6040 UNION NUT M6P1H5
14. [1] 013020-8040 UNION NUT M8P1.25H7
14B. [1] 154011-2300 UNION NUT
35. [1] 154513-2420 GOVERNOR COVER
35/2. [1] 154321-1800 BUSHING
35/3. [1] 029621-0080 PACKING RING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3500 FLAT-HEAD SCREW
39. [1] 154011-1600 UNION NUT
47. [1] 154036-0300 CAPSULE
48. [1] 154010-7100 BLEEDER SCREW M10P1.25L47
48B. [1] 154010-7700 BLEEDER SCREW M10P1.25L51
49. [1] 154011-2200 UNION NUT
50. [1] 155615-1600 BLEEDER SCREW
51. [4] 020106-3840 BLEEDER SCREW
52. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-7400 BLEEDER SCREW M8P1.25L55
65. [1] 155404-5700 CAP
70. [1] 154055-0520 HEADLESS SCREW
80. [1] 154060-4900 COVER
82. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
83. [1] 029020-6210 BLEEDER SCREW
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
86. [1] 029020-6210 BLEEDER SCREW
100. [1] 154100-9520 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-6200 GOVERNOR SPRING
132. [1] 154154-0800 COILED SPRING
140. [1] 154180-0720 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-3801 SWIVELLING LEVER
151. [1] 154204-2001 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156/1. [0] 029311-1110 SHIM D17&11T0.1
156/1. [0] 029311-1120 SHIM D17&11T0.2
156/1. [0] 029311-1130 SHIM D17&11T0.3
157. [1] 154204-3400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-0900 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154216-2620 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-4720 STRAP
179. [1] 154238-0301 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-5300 TENSIONING LEVER
182. [1] 154237-0900 BEARING PIN
183. [2] 154237-0600 BUSHING
183. [2] 154237-0600 BUSHING
190. [1] 154360-2800 CONTROL LEVER
191. [1] 154345-3220 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154362-4221 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-4500 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-3520 HEADLESS SCREW
221. [1] 029201-2130 UNION NUT M12P1.0H6
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5200 IMPELLER WHEEL
236. [1] 154390-1300 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
255. [1] 154352-9420 BRACKET
256. [2] 029300-4050 PLAIN WASHER
350. [1] 154358-3420 CONTROL LEVER
351. [1] 014010-8140 PLAIN WASHER D18&8.5T1.6
352. [1] 015316-1290 SPLIT PIN
353. [1] 154353-3300 UNION NUT M6P1H50
353B. [1] 154351-9200 UNION NUT M6P1H40
354. [1] 154351-9300 CLEVIS
355. [1] 013020-6040 UNION NUT M6P1H5
356. [1] 154351-9400 CLEVIS
357. [1] 029200-6210 UNION NUT
358. [2] 154604-2400 BEARING PIN
358. [2] 154604-2400 BEARING PIN
360. [2] 016010-0640 LOCKING WASHER
360. [2] 016010-0640 LOCKING WASHER
361. [1] 154353-5200 BRACKET
362. [4] 010038-1440 BLEEDER SCREW M8P1.25L14
363. [4] 014110-8440 LOCKING WASHER
364. [1] 154352-8920 AIR CYLINDER
365. [2] 010010-6540 BLEEDER SCREW
366. [2] 014111-0440 LOCKING WASHER
368. [2] 013021-0040 UNION NUT M10P1.5H8
370. [0] 029310-8650 SHIM D10.5&8.5T0.5
370. [0] 029310-8650 SHIM D10.5&8.5T0.5
371. [1] 154314-8300 COILED SPRING
372. [1] 154354-1000 BRACKET
373. [1] 154352-4700 STRAP
374. [1] 015316-1290 SPLIT PIN
386. [8] 029310-8500 SHIM D15&8.4T1
387. [1] 029310-7030 SHIM D14.5&7T0.5
388/1. [0] 029300-6010 PLAIN WASHER D11&6.4T0.8
388/1. [0] 029300-6020 PLAIN WASHER D11&6.4T0.35
388/1. [0] 029300-6030 PLAIN WASHER D11&6.4T0.5
388/1. [0] 029300-6040 PLAIN WASHER D11&6.4T1
389/1. [0] 029300-6010 PLAIN WASHER D11&6.4T0.8
389/1. [0] 029300-6020 PLAIN WASHER D11&6.4T0.35
389/1. [0] 029300-6030 PLAIN WASHER D11&6.4T0.5
389/1. [0] 029300-6040 PLAIN WASHER D11&6.4T1
390. [1] 029300-8010 PLAIN WASHER D15&8T1.00
391. [0] 154011-1400 UNION NUT M6P1H15
392. [0] 013020-6040 UNION NUT M6P1H5
835S. [1] 154062-1700 CAP D20L32
836S. [1] 154062-1800 CAP D20L27

Include in #1:

101603-6400 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105490-5070
F 019 Z5E 086
NP-EP/RFD200/1650AF9CSL
ME716912  MITSUBISHI
GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV




Information:


Climbing equipment may be required to access this service point. Refer to the Operation and Maintenance Manual, "Mounting and Dismounting" topic for safety information.
Before servicing/performing maintenance on the machine, electrical power must be physically disconnected; battery plugs must be disconnected from the batteries, or the trailing cable must be unplugged, and warning tags and padlocks shall be applied by a certified electrician. Certified electricians shall perform or direct any electrical work, including any energized testing, repair work in controllers, motors, or other approved compartments, and shall insure that all compartments are properly closed and inspected prior to re-energization. All applicable lock out and tag out procedures must be followed.
Observe the safe working load limits of all lifting and blocking devices and keep a safe distance from suspended/blocked loads. Personnel may be seriously injured or killed by falling loads.
Required Parts
The LFI component PMMA surface characteristics are as follows
Cover Layer
Gloss
Scratch resistance
Weather resistance
Color Layer
Coloring
Ultraviolet resistance
Carrier Layer
Adhesion to backing foam
Heat deformation resistance
Backing Foam
Strength
Stability
Impact resistance
Heat deformation resistanceRepair Procedure
Illustration 1 g06509785
Simulated punch hole
Illustration 2 g06509787
Location to grind off backside
Grind material off from backside
Illustration 3 g06509788
Fiberglass mat and plastic filler
Place fiberglass mat and place plastic filler on backside
Illustration 4 g06509791
Location to grind off exterior side
Grind material off from exterior side
Illustration 5 g06509792
Location to add filler on exterior side
Fill hole on exterior side with plastic filler
Illustration 6 g06510059
Exterior surface to grind flat
Grind plastic filler on exterior to achieve flat surface
Illustration 7 g06510075
Area to apply plasticiser
Apply plastic filler with plasticiser to the exterior
Illustration 8 g06510079
Exterior area to grind plastic filler containing plasticiser
Grind plastic filler containing plasticiser and also area to be painted
Illustration 9 g06510084
Exterior plastic surface painted with primer
Paint exterior with primer for plastic surfaces
Illustration 10 g06510086
Exterior plastic surface painted with top coat
Paint exterior with top coat

Have questions with 105490-5070?





Group cross 105490-5070 ZEXEL

Mitsubishi

105490-5000

ME717260
GOVERNOR
105490-5010
F 019 Z5E 083
NP-EP/RFD200/1450AF23CSL
ME717255
GOVERNOR
105490-5020

105490-5021

ME717251
GOVERNOR
105490-5021

ME723759
GOVERNOR
105490-5030
F 019 Z5E 084
NP-EP/RFD200/1600AF33DS
ME71681
GOVERNOR
105490-5040



Mitsubishi

105490-5050

105490-5380
F 019 Z5E 085
NP-EP/RFD200/1450AF23CSL
ME716918
GOVERNOR
105490-5060

105490-5400
F 019 Z2F 165
ME723224
GOVERNOR
105490-5070
F 019 Z5E 086
NP-EP/RFD200/1650AF9CSL
ME716912
GOVERNOR
105490-5080



Mitsubishi

105490-5090
F 019 Z1E 470
NP-EP/RFD200/1650AF56DSL
ME723225
GOVERNOR
