105490-4580 ZEXEL GOVERNOR Cross 1054904580 me035912




Information governor

ZEXEL 105490-4580 1054904580
MITSUBISHI ME035912 me035912
105490-4580 GOVERNOR
Rating:
21
Buy GOVERNOR 105490-4580 zexel genuine, new aftermarket engine parts with delivery

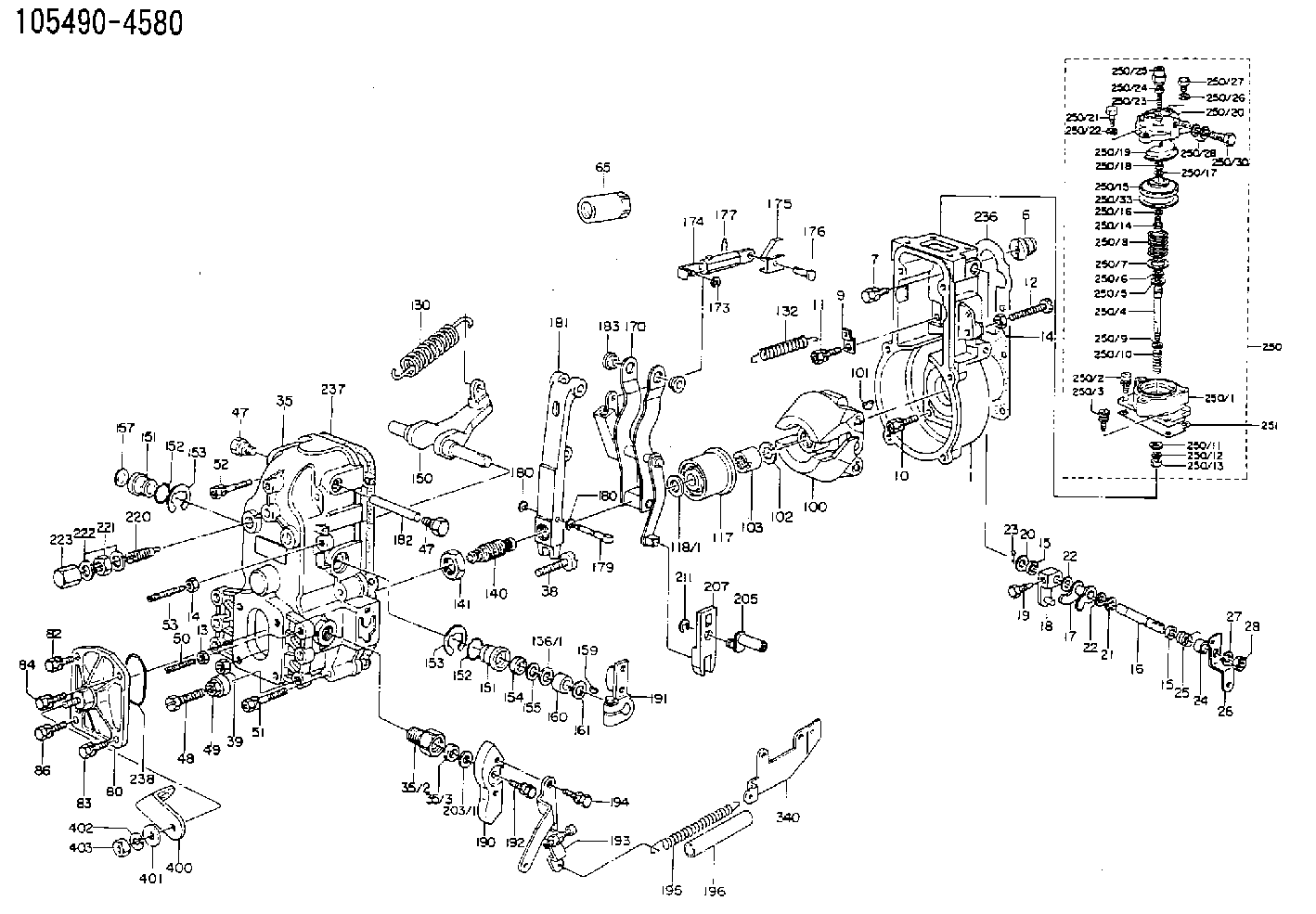

Scheme ###:

GOVERNOR HOUSING
1. [1] 154004-1520 GOVERNOR HOUSING
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW
9. [1] 154350-1800 PLATE
10. [5] 020006-1440 BLEEDER SCREW
11. [1] 020106-1640 BLEEDER SCREW
12. [1] 154010-7400 BLEEDER SCREW
13. [1] 029240-6010 UNION NUT
14. [1] 154011-0100 HEXAGON NUT
14. [1] 154011-0100 HEXAGON NUT
14B. [1] 154011-2300 UNION NUT
15. [2] 029620-8050 PACKING RING
15. [2] 029620-8050 PACKING RING
16. [1] 155004-3200 LEVER SHAFT
17. [1] 154408-1820 CONTROL LEVER
18. [1] 155003-2020 CONTROL LEVER
19. [1] 155006-0100 BLEEDER SCREW
20. [0] 029300-8010 PLAIN WASHER
20B. [0] 029300-8030 PLAIN WASHER
21. [1] 016010-0740 LOCKING WASHER
22. [0] 029310-8040 SHIM
22. [0] 029310-8040 SHIM
22B. [0] 029310-8050 SHIM
23. [1] 025520-1210 SPLIT PIN
24. [1] 154206-2000 BUSHING
25. [1] 154327-5200 COILED SPRING
26. [1] 154364-6000 CONTROL LEVER
27. [1] 014110-8440 LOCKING WASHER
28. [1] 013020-8040 UNION NUT
35. [1] 154513-4420 GOVERNOR COVER
35/2. [1] 154321-1800 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3500 FLAT-HEAD SCREW
39. [1] 154011-1600 UNION NUT
47. [1] 154036-0300 CAPSULE
47. [1] 154036-0300 CAPSULE
48. [1] 154010-5500 BLEEDER SCREW
49. [1] 154011-2100 UNION NUT
50. [1] 155615-1600 BLEEDER SCREW
51. [4] 020106-3840 BLEEDER SCREW
52. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-2900 BLEEDER SCREW
65. [1] 155404-3800 CAP
80. [1] 154063-5020 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 020006-1640 BLEEDER SCREW
84. [1] 029020-6210 BLEEDER SCREW
86. [1] 020006-1640 BLEEDER SCREW
100. [1] 154100-9520 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118. [1] 029998-1000 SHIM
118/1. [0] 029311-0010 SHIM
118/1. [0] 029311-0180 SHIM
118/1. [0] 029311-0190 SHIM
118/1. [0] 029311-0210 SHIM
130. [1] 154150-6200 GOVERNOR SPRING
132. [1] 154154-2601 COILED SPRING
140. [1] 154176-6320 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-3800 SWIVELLING LEVER
151. [2] 154204-2000 BUSHING
151. [2] 154204-2000 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [1] 029998-1130 SHIM
156/1. [0] 029311-1110 SHIM
156/1. [0] 029311-1120 SHIM
156/1. [0] 029311-1130 SHIM
157. [1] 029141-7010 CAPSULE
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-0900 BUSHING
161. [0] 154206-0200 PLAIN WASHER
170. [1] 154211-8320 FORK LEVER
170/5. [1] 026110-0510 LOCKING WASHER
170/8. [1] 154325-0600 SLOTTED WASHER
170/10. [1] 154325-0700 SLOTTED WASHER
170/11. [1] 016110-1010 LOCKING WASHER
170/12. [1] 154225-4720 FULCRUM LEVER
170/13. [1] 153313-0500 TAB WASHER
170/14. [1] 029200-8150 UNION NUT
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-8220 STRAP
175. [1] 154232-1500 CONNECTOR
176. [1] 154222-5800 BEARING PIN
177. [1] 155402-3800 SAFETY PIN
179. [1] 154238-0300 BEARING PIN
180. [2] 016010-0540 LOCKING WASHER
180. [2] 016010-0540 LOCKING WASHER
181. [1] 154236-5300 TENSIONING LEVER
182. [1] 154237-1400 BEARING PIN
183. [2] 154237-0600 BUSHING
190. [1] 154360-2800 CONTROL LEVER
191. [1] 154340-0820 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW
193. [1] 154361-3220 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW
195. [1] 154314-9800 COILED SPRING
196. [1] 154156-0500 TUBE
203. [1] 029998-1050 SHIM
203/1. [0] 029311-0640 SHIM
203/1. [0] 029311-0650 SHIM
203/1. [0] 029311-0660 SHIM
203/1. [0] 029311-0670 SHIM
203/1. [0] 029311-0680 SHIM
203/1. [0] 029311-0690 SHIM
203/1. [0] 029311-0700 SHIM
205. [1] 154324-3000 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-2320 HEADLESS SCREW
221. [1] 029201-2140 UNION NUT
222. [2] 026512-1540 GASKET
223. [1] 154159-1200 CAP NUT
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 154390-4300 GASKET
250. [1] 154407-5620 MANIFOLD-PRESSURE COMP.
250/1. [1] 154408-6220 DIAPHRAGM HOUSING
250/2. [3] 020106-1840 BLEEDER SCREW
250/3. [1] 029010-6590 BLEEDER SCREW
250/4. [1] 154400-5100 STOP PIN
250/5. [1] 153400-0700 SLOTTED WASHER
250/6. [1] 016010-0740 LOCKING WASHER
250/7. [0] 029312-0180 SHIM
250/7B. [0] 029312-0210 SHIM
250/8. [1] 154403-3700 COILED SPRING
250/9. [0] 029310-8010 PLAIN WASHER
250/9B. [0] 029310-8020 PLAIN WASHER
250/10. [1] 154411-0900 COILED SPRING
250/11. [1] 153400-0800 SPRING SEAT
250/12. [1] 014110-5440 LOCKING WASHER
250/13. [1] 013030-5240 UNION NUT
250/14. [1] 154400-5200 BLEEDER SCREW
250/15. [1] 154400-0720 DIAPHRAGM
250/16. [1] 029330-8050 GASKET
250/17. [1] 026506-1040 GASKET
250/18. [1] 023040-6040 UNION NUT
250/20. [1] 154404-3600 COVER
250/21. [3] 029010-6310 BLEEDER SCREW
250/22. [3] 014110-6440 LOCKING WASHER
250/23. [1] 154404-1100 FLAT-HEAD SCREW
250/24. [1] 023040-6040 UNION NUT
250/25. [1] 154406-7800 CAP NUT
250/26. [1] 026506-1040 GASKET
250/27. [1] 029010-6010 CAPSULE
250/28. [2] 026510-1340 GASKET
250/30. [1] 029731-0120 EYE BOLT
250/33. [1] 154413-2600 GASKET
251. [1] 154390-2000 GASKET
340. [1] 154355-9200 BRACKET

Include in #1:

101603-1220 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105490-4580
105490-4581

ME035912  MITSUBISHI
GOVERNOR
*




Information:

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
If the engine is stored for 6 months or more, the fuel injection pump linkage needs to be lubricated.Solution
Follow the procedure in this article to lubricate the fuel injection pump linkage.
Remove the fuel shutoff solenoid. Refer to Disassembly and Assembly, "Fuel Shutoff Solenoid - Remove and Install" for the correct procedure.
Spray the fuel control rack with a suitable lubricant spray.
Use a suitable magnet to operate the fuel control rack. The operation of the fuel control rack will disperse the lubricant.Note: If the fuel control rack does not move freely, then the fuel injection pump should be replaced. Refer to Disassembly and Assembly, "Fuel Injection Pump - Remove and Install" for the correct procedure.
Install the fuel shutoff solenoid. Refer to Disassembly and Assembly, "Fuel Shutoff Solenoid - Remove and Install" for the correct procedure.
Record the repair in the Service Information Management System (SIMSi), including the engine/machine serial number and the date of the repair.

Have questions with 105490-4580?





Group cross 105490-4580 ZEXEL

105490-4510



Isuzu

105490-4520
F 019 Z5E 071
NP-EP/RFD200/1650AF9BSLN262
1157203150
GOVERNOR

Mitsubishi

105490-4530
F 019 Z5E 072
NP-EP/RFD200/1350AF7CSLN29
ME069659
GOVERNOR
105490-4540



Isuzu

105490-4550

1157203220
GOVERNOR

Mitsubishi

105490-4560

ME068618
GOVERNOR
105490-4570
F 019 Z5E 073
NP-EP/RFD200/1450AF23CSLN34
ME056166
GOVERNOR
105490-4580

105490-4581

ME035912
GOVERNOR
105490-4581

ME723755
GOVERNOR
