105490-4370 ZEXEL F 019 Z1E 460 BOSCH GOVERNOR f019z1e460 1054904370 me035994




Information governor

BOSCH F 019 Z1E 460 f019z1e460
ZEXEL 105490-4370 1054904370
MITSUBISHI ME035994 me035994
105490-4370 GOVERNOR
Rating:
84
Buy GOVERNOR 105490-4370 zexel genuine, new aftermarket engine parts with delivery

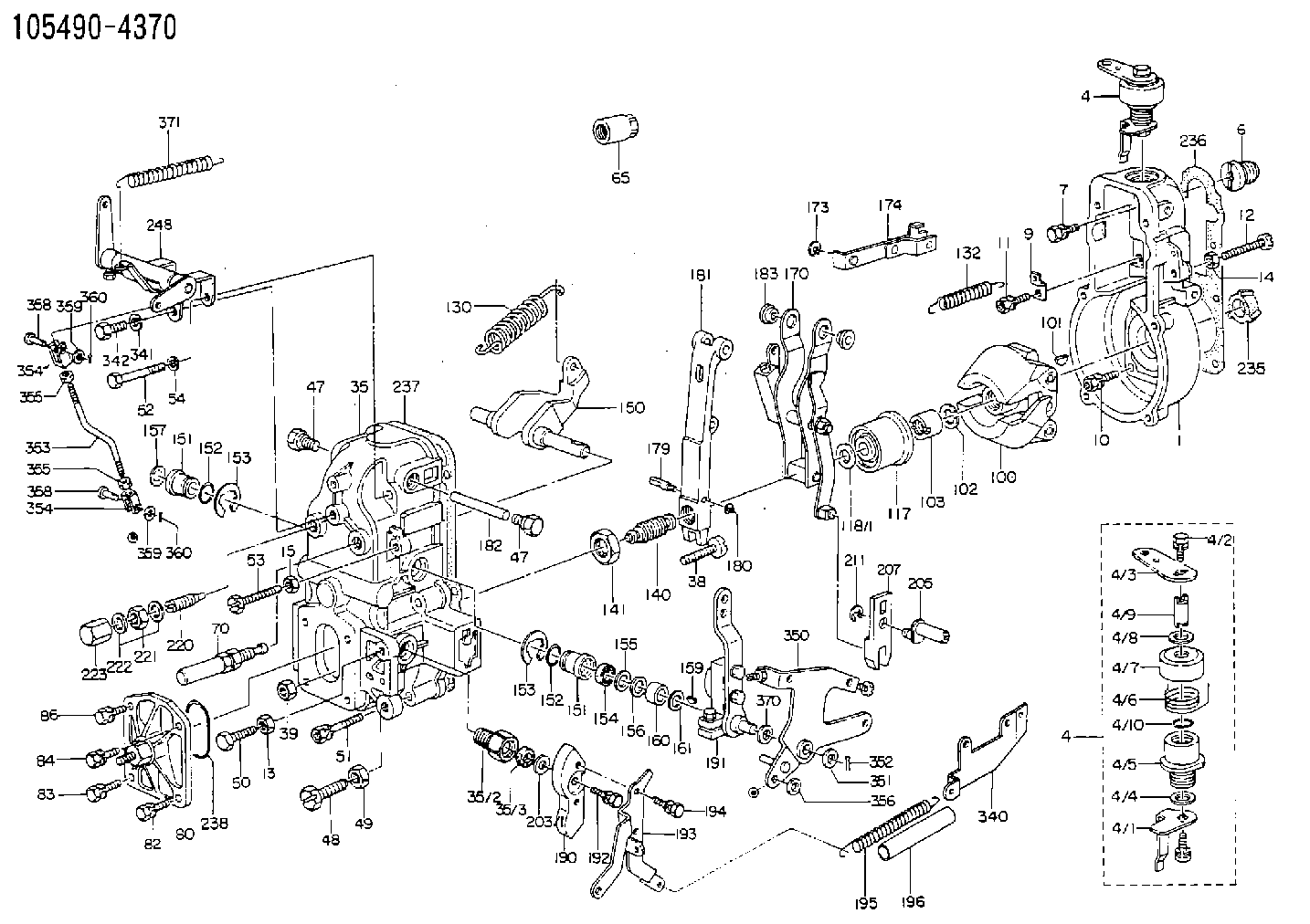

Scheme ###:

GOVERNOR HOUSING
1. [1] 154004-0800 GOVERNOR HOUSING
4. [1] 154364-2620 CONTROL LEVER
4. [1] 154364-2620 CONTROL LEVER
4/1. [1] 154304-3500 CONTROL LEVER
4/2. [2] 154352-2000 BLEEDER SCREW
4/3. [1] 154364-2600 CONTROL LEVER
4/4. [1] 029311-0230 SHIM D18&10.3T0.5
4/5. [1] 154321-1500 BUSHING
4/6. [1] 154327-3500 COILED SPRING
4/7. [1] 154322-0100 CAP
4/8. [1] 029311-0220 SHIM D18&10.3T0.2
4/9. [1] 154324-2700 LEVER SHAFT
4/10. [1] 029631-0030 O-RING &9.8W2.3
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1800 PLATE
10. [5] 029010-6810 BLEEDER SCREW
11. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
12. [1] 154010-7200 BLEEDER SCREW M8P1.25L62
13. [1] 013020-6040 UNION NUT M6P1H5
14. [1] 013020-8040 UNION NUT M8P1.25H7
15. [1] 154011-2300 UNION NUT
35. [1] 154513-2620 COVER
35/2. [1] 154321-2000 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3401 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [2] 154036-1800 CAPSULE
47. [2] 154036-1800 CAPSULE
48. [1] 154010-7100 BLEEDER SCREW M10P1.25L47
49. [1] 154011-2200 UNION NUT
50. [1] 155615-1900 BLEEDER SCREW
51. [5] 020106-4540 BLEEDER SCREW M6P1.0L45
52. [2] 020306-6340 BLEEDER SCREW
53. [1] 154010-7400 BLEEDER SCREW M8P1.25L55
54. [2] 014110-6440 LOCKING WASHER
65. [1] 155404-3800 CAP
70. [1] 154055-0220 HEADLESS SCREW
80. [1] 154063-3120 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
84. [1] 029020-6210 BLEEDER SCREW
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-9320 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 139212-0000 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-8400 GOVERNOR SPRING
132. [1] 154154-2601 COILED SPRING
140. [1] 154183-0620 HEADLESS SCREW
141. [1] 139218-0100 UNION NUT
150. [1] 154200-5701 SWIVELLING LEVER
151. [1] 154200-5501 BUSHING
151. [1] 154200-5501 BUSHING
152. [2] 139700-0000 O-RING
152. [2] 139700-0000 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139610-0101 PACKING RING
155. [1] 139411-0100 SHIM D22.0&12.0T0.40
156. [0] 139411-0200 SHIM D18.0&12.0T0.10
156B. [0] 139411-0300 SHIM D18.0&12.0T0.20
156C. [0] 139411-0400 SHIM D18.0&12.0T0.30
157. [1] 154204-3500 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2300 BUSHING
161. [0] 154206-2400 PLAIN WASHER D20.5&12.2T1
170. [1] 154216-3020 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-6820 STRAP
179. [1] 154238-0201 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-5200 TENSIONING LEVER
182. [1] 154237-1200 BEARING PIN
183. [2] 154237-1300 BUSHING
190. [1] 154360-2800 CONTROL LEVER
191. [1] 154355-3220 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154360-9500 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
195. [1] 154314-8000 COILED SPRING
196. [1] 154156-0500 TUBE
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-2900 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-2320 HEADLESS SCREW
221. [1] 029201-2130 UNION NUT M12P1.0H6
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5300 IMPELLER WHEEL
236. [1] 154390-0000 GASKET
237. [1] 154390-0200 GASKET
238. [1] 139700-0100 O-RING
248. [1] 154355-2921 BRACKET
340. [1] 154213-5800 BRACKET
341. [1] 014110-8440 LOCKING WASHER
342. [1] 010038-1440 BLEEDER SCREW M8P1.25L14
350. [1] 154355-3320 CONTROL LEVER
351. [2] 029311-0460 SHIM D18&10.3T0.35
352. [1] 015316-1290 SPLIT PIN
353. [1] 154355-3101 LEVER SHAFT
354. [2] 154352-6100 CLEVIS
354. [2] 154352-6100 CLEVIS
355. [2] 013020-6040 UNION NUT M6P1H5
355. [2] 013020-6040 UNION NUT M6P1H5
356. [2] 014010-6140 PLAIN WASHER D13&6.5T1
358. [2] 154351-9500 BEARING PIN
358. [2] 154351-9500 BEARING PIN
359. [2] 014010-6140 PLAIN WASHER D13&6.5T1
359. [2] 014010-6140 PLAIN WASHER D13&6.5T1
360. [2] 015316-0890 SPLIT PIN
360. [2] 015316-0890 SPLIT PIN
370. [0] 029310-8650 SHIM D10.5&8.5T0.5
371. [1] 154317-0000 COILED SPRING

Include in #1:

101603-1020 as GOVERNOR
101603-1021
101603-1560

Cross reference number

Zexel num
Bosch num
Firm num
Name
105490-4370
F 019 Z1E 460
ME035994  MITSUBISHI
GOVERNOR
* K




Information:


Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The new and former rocker arm base assembly is listed in Table 1.Note: The 568-8215 Rocker Arm Base As has the following serviceable components.
Table 1
Required Parts
Qty New Part Number Part Name Former Part Number(1)
1 568-8215 Rocker Arm Base As 121-2024
2 261-0195 Hollow Dowel 8N-4387
1 567-2901 Spacer N/A
1 567-2902 Spacer N/A
3 6V-6228 O-Ring Seal N/A
1 240-7032 Seal N/A
(1) The former part number listed is for reference only and may differ.
Illustration 1 g06562147
(1) 567-2901 Spacer
(2) 6V-6228 O-Ring Seal
(3) 567-2902 Spacer
Illustration 2 g06562161
(4) 240-7032 Seal
(5) 261-0195 Hollow Dowel
Illustration 3 g06562155
(6) 568-8215 Rocker Arm Base As
(7) 121-2024 Base AsNote: Refer to the Illustration 3 to see the differences between the new and former designs.
