105490-4220 ZEXEL F 019 Z1E 457 BOSCH GOVERNOR f019z1e457 1054904220 me056071

Information governor

BOSCH F 019 Z1E 457 f019z1e457

ZEXEL 105490-4220 1054904220

MITSUBISHI ME056071 me056071

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105490-4220 zexel genuine, new aftermarket engine parts with delivery

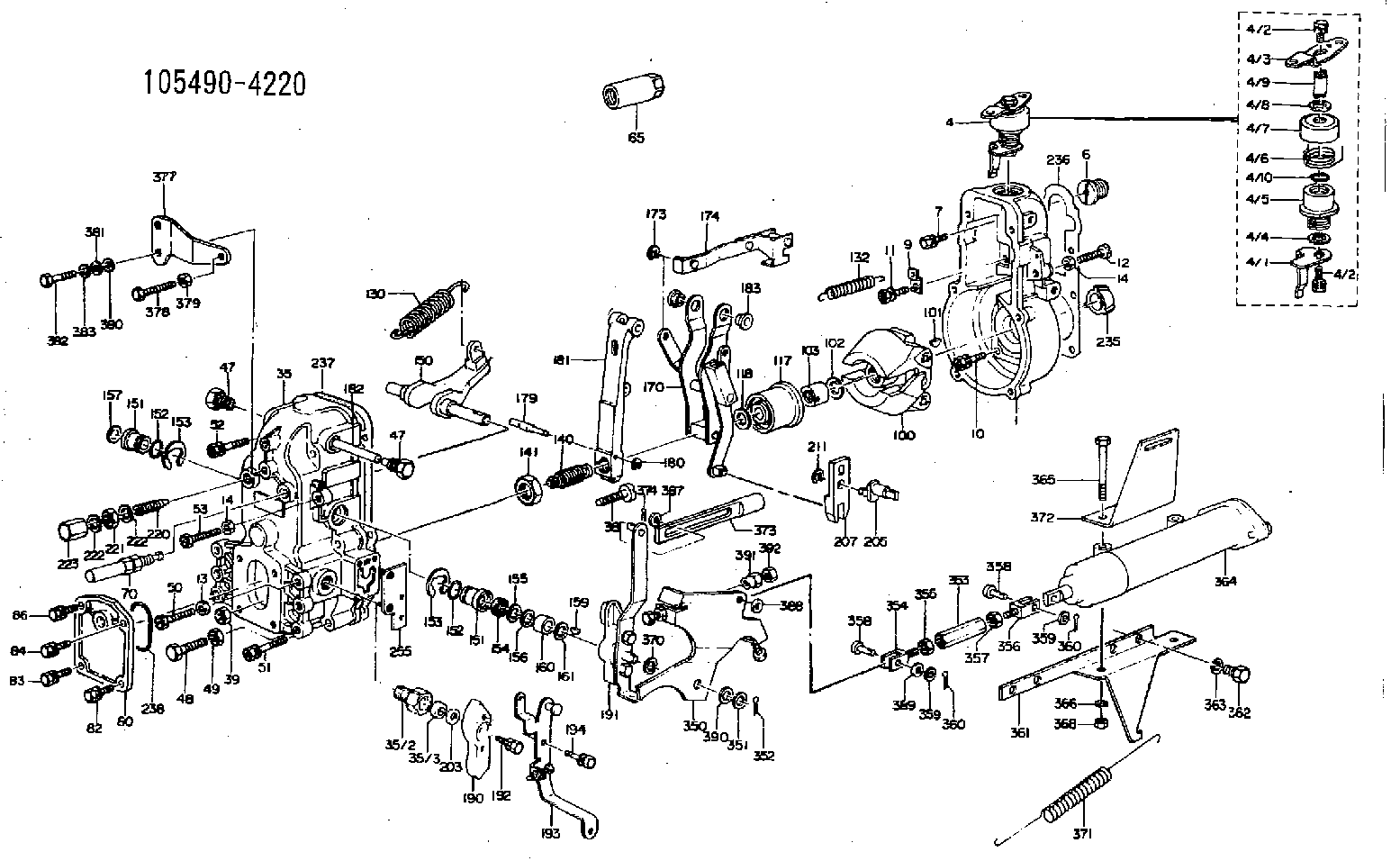

Scheme ###:

1.	[1]	154000-7000	GOVERNOR HOUSING
4.	[1]	154304-2020	CONTROL LEVER
4/1.	[1]	154304-3500	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154302-9600	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-4600	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1800	PLATE
10.	[5]	029010-6810	BLEEDER SCREW
11.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
12.	[1]	154010-7800	BLEEDER SCREW
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	013020-8040	UNION NUT M8P1.25H7
14.	[1]	013020-8040	UNION NUT M8P1.25H7
14B.	[1]	154011-2300	UNION NUT
35.	[1]	154513-2420	GOVERNOR COVER
35/2.	[1]	154321-1800	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3500	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
47.	[1]	154036-0300	CAPSULE
47.	[1]	154036-0300	CAPSULE
48.	[1]	154010-5500	BLEEDER SCREW M10P1.25L42
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-1600	BLEEDER SCREW
51.	[4]	020106-3840	BLEEDER SCREW
52.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-7400	BLEEDER SCREW M8P1.25L55
65.	[1]	155404-5700	CAP
70.	[1]	154055-0520	HEADLESS SCREW
80.	[1]	154060-4900	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	029020-6210	BLEEDER SCREW
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7000	GOVERNOR SPRING
132.	[1]	154154-0800	COILED SPRING
140.	[1]	154176-2120	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-3801	SWIVELLING LEVER
151.	[1]	154204-2001	BUSHING
151.	[1]	154204-2001	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156/1.	[0]	029311-1110	SHIM D17&11T0.1
156/1.	[0]	029311-1120	SHIM D17&11T0.2
156/1.	[0]	029311-1130	SHIM D17&11T0.3
157.	[1]	154204-3400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-0900	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154216-2620	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-4720	STRAP
179.	[1]	154238-0301	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5300	TENSIONING LEVER
182.	[1]	154237-0900	BEARING PIN
183.	[2]	154237-0600	BUSHING
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154345-3220	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154360-6220	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3000	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-3520	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154390-1300	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
255.	[1]	154352-9420	BRACKET
256.	[2]	029300-4050	PLAIN WASHER
350.	[1]	154353-2320	CONTROL LEVER
351.	[1]	014010-8140	PLAIN WASHER D18&8.5T1.6
352.	[1]	015316-1290	SPLIT PIN
353.	[1]	154351-9200	UNION NUT M6P1H40
354.	[1]	154351-9300	CLEVIS
355.	[1]	013020-6040	UNION NUT M6P1H5
356.	[1]	154351-9400	CLEVIS
357.	[1]	029200-6210	UNION NUT
358.	[2]	154351-9500	BEARING PIN
358.	[2]	154351-9500	BEARING PIN
359.	[2]	014010-6140	PLAIN WASHER D13&6.5T1
359.	[2]	014010-6140	PLAIN WASHER D13&6.5T1
360.	[2]	015316-1090	SPLIT PIN
360.	[2]	015316-1090	SPLIT PIN
361.	[1]	154353-5200	BRACKET
362.	[4]	010038-1440	BLEEDER SCREW M8P1.25L14
363.	[4]	014110-8440	LOCKING WASHER
364.	[1]	154352-8920	AIR CYLINDER
365.	[2]	010010-6540	BLEEDER SCREW
366.	[2]	014111-0440	LOCKING WASHER
368.	[2]	013021-0040	UNION NUT M10P1.5H8
370.	[0]	029310-8650	SHIM D10.5&8.5T0.5
371.	[1]	154314-8300	COILED SPRING
372.	[1]	154354-1000	BRACKET
373.	[1]	154352-4700	STRAP
374.	[1]	015316-1290	SPLIT PIN
386.	[8]	029310-8500	SHIM D15&8.4T1
387.	[1]	029310-7030	SHIM D14.5&7T0.5
388/1.	[0]	029300-6010	PLAIN WASHER D11&6.4T0.8
388/1.	[0]	029300-6020	PLAIN WASHER D11&6.4T0.35
388/1.	[0]	029300-6030	PLAIN WASHER D11&6.4T0.5
388/1.	[0]	029300-6040	PLAIN WASHER D11&6.4T1
389/1.	[0]	029300-6010	PLAIN WASHER D11&6.4T0.8
389/1.	[0]	029300-6020	PLAIN WASHER D11&6.4T0.35
389/1.	[0]	029300-6030	PLAIN WASHER D11&6.4T0.5
389/1.	[0]	029300-6040	PLAIN WASHER D11&6.4T1
390.	[1]	029300-8010	PLAIN WASHER D15&8T1.00
391.	[0]	154011-1400	UNION NUT M6P1H15
392.	[0]	013020-6040	UNION NUT M6P1H5
836S.	[1]	154062-1800	CAP D20L27

Include in #1:

101601-6672 as GOVERNOR

101601-6771

101603-1251

Cross reference number

Zexel num

Bosch num

Firm num

Name

105490-4220

F 019 Z1E 457
NP-EP/RFD200/1450AF23CSLN9

ME056071 MITSUBISHI

GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV

Information:

Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
New DEF sensor kits are available. The new sensor kit allows the DEF sensor to be repaired on DEF manifold assemblies.Note: If troubleshooting procedures indicate a replacement of the DEF manifold, do not replace the DEF Manifold. Repair the DEF Manifold using the DEF manifold sensor kit.Refer to Table 1 for the appropriate DEF sensor kit for the DEF manifold installed.
Table 1
DEF manifold Part Number Part Description Repair with DEF Sensor Kit
462-3219 11 inch (279mm) Manifold 593-0641
462-3610 13 inch (330mm) Manifold 593-0642
462-3232 18 inch (457mm) Manifold 593-0643
Illustration 1 g06508474New disassembly and assembly instructions are available. Refer to Disassembly and Assembly, Manifold (DEF Heater) - Disassemble and Disassembly and Assembly, Manifold (DEF Heater) - Assemble for the correct procedures.
