105490-4200 ZEXEL 9 420 610 075 BOSCH GOVERNOR 9420610075 1054904200 me036908




Information governor

BOSCH 9 420 610 075 9420610075
ZEXEL 105490-4200 1054904200
MITSUBISHI ME036908 me036908
105490-4200 GOVERNOR
Rating:
69
Buy GOVERNOR 105490-4200 zexel genuine, new aftermarket engine parts with delivery

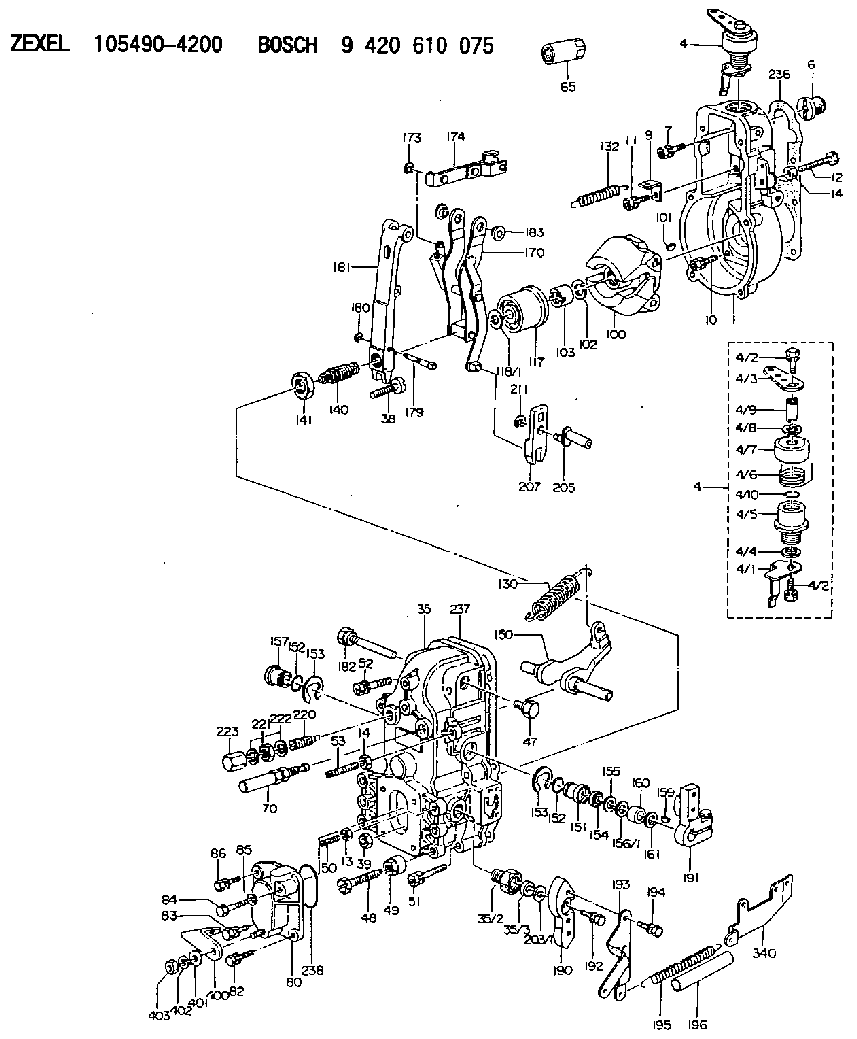

Scheme ###:

GOVERNOR HOUSING
1. [1] 154000-8300 GOVERNOR HOUSING
4. [1] 154364-2620 CONTROL LEVER
4. [1] 154364-2620 CONTROL LEVER
4/1. [1] 154304-3500 CONTROL LEVER
4/2. [2] 154352-2000 BLEEDER SCREW
4/2. [2] 154352-2000 BLEEDER SCREW
4/3. [1] 154364-2600 CONTROL LEVER
4/4. [1] 029311-0230 SHIM D18&10.3T0.5
4/5. [1] 154321-1500 BUSHING
4/6. [1] 154327-3500 COILED SPRING
4/7. [1] 154322-0100 CAP
4/8. [1] 029311-0220 SHIM D18&10.3T0.2
4/9. [1] 154324-2700 LEVER SHAFT
4/10. [1] 029631-0030 O-RING &9.8W2.3
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1800 PLATE
10. [5] 029010-6810 BLEEDER SCREW
11. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
12. [1] 154010-2900 BLEEDER SCREW
13. [1] 029240-6010 UNION NUT M6P1.0H5*
14. [2] 154011-0100 HEXAGON NUT
14. [2] 154011-0100 HEXAGON NUT
35. [1] 154513-2220 GOVERNOR COVER
35/2. [1] 154321-1800 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3500 FLAT-HEAD SCREW
39. [1] 154011-1600 UNION NUT
47. [1] 154036-0300 CAPSULE
48. [1] 154010-5500 BLEEDER SCREW M10P1.25L42
49. [1] 154011-2100 UNION NUT
50. [1] 155615-1100 FLAT-HEAD SCREW M6P1.0L37
51. [4] 020106-3840 BLEEDER SCREW
52. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-1100 FLAT-HEAD SCREW
65. [1] 155404-3800 CAP
70. [1] 154055-0220 HEADLESS SCREW
80. [1] 154060-0020 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
84. [1] 029020-6220 BLEEDER SCREW
85. [1] 014110-6440 LOCKING WASHER
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-9520 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-6200 GOVERNOR SPRING
132. [1] 154154-2601 COILED SPRING
140. [1] 154176-6320 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-3801 SWIVELLING LEVER
151. [1] 154204-2001 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156/1. [0] 029311-1110 SHIM D17&11T0.1
156/1. [0] 029311-1120 SHIM D17&11T0.2
156/1. [0] 029311-1130 SHIM D17&11T0.3
157. [1] 154204-3400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-0900 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154216-2620 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-4720 STRAP
179. [1] 154238-0301 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-5300 TENSIONING LEVER
182. [1] 154237-0900 BEARING PIN
183. [2] 154237-0600 BUSHING
190. [1] 154360-2800 CONTROL LEVER
191. [1] 154340-0820 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154360-6100 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
195. [1] 154314-6900 COILED SPRING
196. [1] 154156-0500 TUBE
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-3000 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-2320 HEADLESS SCREW
221. [1] 029201-2140 UNION NUT
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
340. [1] 154213-5800 BRACKET
400. [1] 154353-7300 STOP BLOCK
401. [1] 139310-0000 PLAIN WASHER
402. [1] 014111-0440 LOCKING WASHER
403. [1] 013111-0040 UNION NUT M10P1.25H8

Include in #1:

101601-6780 as GOVERNOR
101601-6781
101601-6790

Cross reference number

Zexel num
Bosch num
Firm num
Name
105490-4200
9 420 610 075
NP-EP/RFD200/1650AF9CSLN7
ME036908  MITSUBISHI
GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV




Information:

Tooling, Test, and Bulk Ground Fill Support Equipment
Diesel Exhaust Fluid (DEF)
Two container sizes of DEF are available through the Cat® dealers in North America. DEF must meet ISO 22241-1 specifications.
Table 1
Tool Part Number Description
350-8733 Diesel Exhaust Fluid 9.5 L (2.5 US gal) bottle
350-8734 Diesel Exhaust Fluid 1378 L (364 US gal) tote
443-0955 Removal Tool DEF filter removal tool Dispensing Equipment
Three different dispensing kits are offered to protect DEF quality. Optional flow meter and coupler are also available.
Table 2
Tool Part Number Description
422-1185 Pump Adapter (DEF DISPENSER) 12 V dispenser unit
423-7843 Pump Adapter (DEF DISPENSER) 110 V dispenser unit
423-7844 Pump Adapter (DEF DISPENSER) 230 V dispenser unit with"smart start"tote base
423-7795 Flow Meter In line DEF flow meter
423-7799 Coupler MicroMatic coupler Dispenser Unit Repair Parts
Table 3
Tool Part Number Description
436-6643 Repair Kit 12 V dispenser unit
436-6646 Diesel Exhaust Fluid Pump 12 V repair group
436-6642 Hose 20'/4'
436-6644 Swivel
436-6645 Repair Kit 1/2 hp pump
436-6647 Nozzle (DIESEL EXHAUST FLUID) Dispensing nozzle Storage and Transportation
Preventing DEF contamination does not stop at the pump. Protect your DEF supply with climate-specific enclosures and transportation tanks.
Table 4
Part Number Description
435-8671 Dispenser Warm-weather enclosure
435-8672 Dispenser Cold-weather enclosure
460-4077 Tank 121 L (32 US gal)
460-4078 Tank 269 L (71 US gal) Fast Fill Vehicle Interface
Illustration 1 g06516654
584-9979 Nozzle As
Table 5
584-9979 Nozzle As
Repair parts for 584-9979 Nozzle As
- 587-3371 Rear Cap
- 587-3372 Handle
- 587-3373 Hose (3/4")
- 587-3374 O-Ring Seal
- 587-3375 Handle (optional)
459-9296 Receiver As (Permanently mounted on vehicle)
For heated DEF hose repair connectors, kits, and instructions , refer to Service Magazine, M0103829, "Repair Kits for Quick Connect Diesel Exhaust Fluid (DEF) Line Fittings Are Now Available for Certain Cat® Machine Engines". Testing Equipment
Test your DEF supply and DEF injector with DEF-specific testing equipment. Complete kits or individual testing components are available for your needs.
Table 6
441-0451 Tool Gp (includes hard case, foam insert, and hardware)
- 441-0454 Container
- 443-7055 Test Kit
- 398-4985 Probe
- 398-4987 Probe
- 398-5080 Lead
- 398-5081 Lead
- 398-5083 Plug
450-1515 Tool Gp (DIESEL EXHAUST FLUID) (includes hard case, foam insert, and hardware)
- 441-0454 Container
- 398-4985 Probe
- 398-4987 Probe
- 398-5080 Lead
- 398-5081 Lead
- 398-5083 Plug
441-0454 Container
443-7055 Test Kit
431-7087 Tool Gp (REFRACTOMETER (DEF))
360-0774 Refractometer
372-5260 Test Lead Tool Group
576-6134 Test Strip

Have questions with 105490-4200?





Group cross 105490-4200 ZEXEL

Mitsubishi

105490-4200
9 420 610 075
NP-EP/RFD200/1650AF9CSLN7
ME036908
GOVERNOR
105490-4210
F 019 Z5E 067
NP-EP/RFD200/1450AF23CSLN8
ME056072
GOVERNOR
105490-4220
F 019 Z1E 457
NP-EP/RFD200/1450AF23CSLN9
ME056071
GOVERNOR
105490-4230
9 420 610 031
NP-EP/RFD200/1450AF23CSLN10
ME056070
GOVERNOR
105490-4240
F 019 Z5E 068
NP-EP/RFD200/1450AF23CSLN11
ME056069
GOVERNOR
105490-4260

ME036939
GOVERNOR
105490-4270

ME036914
GOVERNOR
105490-4290

ME066124
GOVERNOR
