Information governor
BOSCH
F 019 Z1E 451
f019z1e451
ZEXEL
105490-3270
1054903270

Rating:

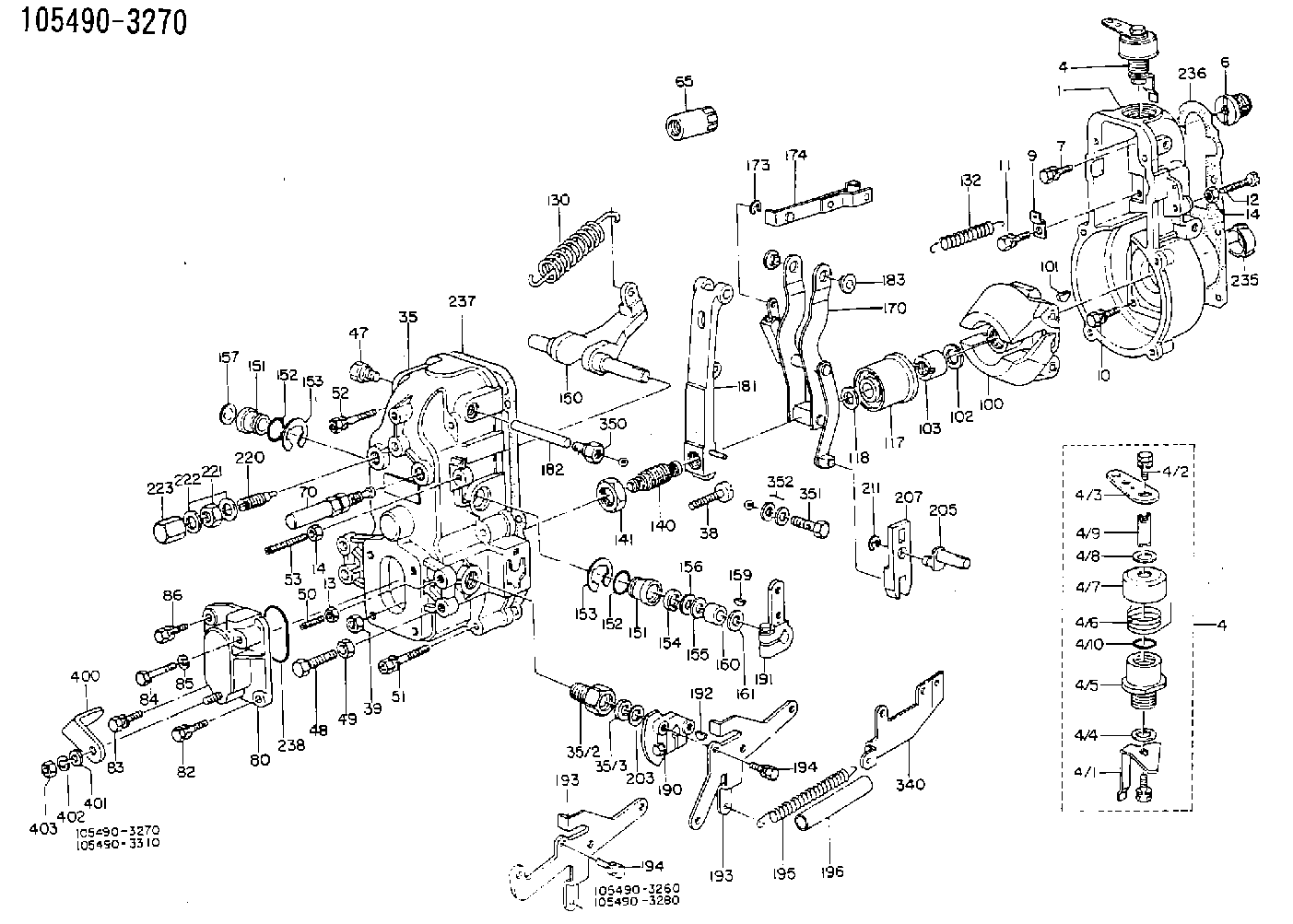

Scheme ###:
1. | [1] | 154000-8300 | GOVERNOR HOUSING |
4. | [1] | 154304-1720 | CONTROL LEVER |
4. | [1] | 154304-1720 | CONTROL LEVER |
4/1. | [1] | 154304-3500 | CONTROL LEVER |
4/2. | [2] | 154352-2000 | BLEEDER SCREW |
4/3. | [1] | 154302-8300 | CONTROL LEVER |
4/4. | [1] | 029311-0230 | SHIM D18&10.3T0.5 |
4/5. | [1] | 154321-1500 | BUSHING |
4/6. | [1] | 154327-3500 | COILED SPRING |
4/7. | [1] | 154322-0100 | CAP |
4/8. | [1] | 029311-0220 | SHIM D18&10.3T0.2 |
4/9. | [1] | 154324-2700 | LEVER SHAFT |
4/10. | [1] | 029631-0030 | O-RING &9.8W2.3 |
6. | [1] | 154007-0200 | ADAPTOR |
7. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
9. | [1] | 154350-1800 | PLATE |
10. | [5] | 029010-6810 | BLEEDER SCREW |
11. | [1] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
12. | [1] | 154010-2900 | BLEEDER SCREW |
13. | [1] | 029240-6010 | UNION NUT M6P1.0H5* |
14. | [2] | 154011-0100 | HEXAGON NUT |
14. | [2] | 154011-0100 | HEXAGON NUT |
35. | [1] | 154512-7020 | GOVERNOR COVER |
35/2. | [1] | 154321-1800 | BUSHING |
35/3. | [1] | 029621-0080 | PACKING RING |
38. | [1] | 154031-3200 | FLAT-HEAD SCREW |
39. | [1] | 154011-1600 | UNION NUT |
47. | [1] | 154036-0300 | CAPSULE |
48. | [1] | 154010-4700 | BLEEDER SCREW |
49. | [1] | 029240-8000 | UNION NUT |
50. | [1] | 155615-1000 | FLAT-HEAD SCREW |
51. | [4] | 020106-3840 | BLEEDER SCREW |
52. | [2] | 020106-5040 | BLEEDER SCREW |
53. | [1] | 154010-1100 | FLAT-HEAD SCREW |
65. | [1] | 155404-3800 | CAP |
70. | [1] | 154055-0220 | HEADLESS SCREW |
80. | [1] | 154060-0020 | COVER |
82. | [1] | 029020-6210 | BLEEDER SCREW |
83. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
84. | [1] | 029020-6220 | BLEEDER SCREW |
85. | [1] | 014110-6440 | LOCKING WASHER |
86. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
100. | [1] | 154100-5020 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-0420 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-6200 | GOVERNOR SPRING |
132. | [1] | 154154-2601 | COILED SPRING |
140. | [1] | 154176-6320 | HEADLESS SCREW |
141. | [1] | 029201-6010 | UNION NUT |
150. | [1] | 154200-3801 | SWIVELLING LEVER |
151. | [1] | 154204-2001 | BUSHING |
151. | [1] | 154204-2001 | BUSHING |
152. | [2] | 029631-8020 | O-RING |
152. | [2] | 029631-8020 | O-RING |
153. | [2] | 154354-3900 | LOCKING WASHER |
153. | [2] | 154354-3900 | LOCKING WASHER |
154. | [1] | 139611-0000 | PACKING RING |
155. | [1] | 139411-0000 | SHIM |
156/1. | [0] | 029311-1110 | SHIM D17&11T0.1 |
156/1. | [0] | 029311-1120 | SHIM D17&11T0.2 |
156/1. | [0] | 029311-1130 | SHIM D17&11T0.3 |
157. | [1] | 154204-3400 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
160. | [1] | 154206-0900 | BUSHING |
161. | [0] | 154206-0200 | PLAIN WASHER D19.5&11.2T1.0 |
170. | [1] | 154211-8220 | FORK LEVER |
173. | [1] | 016010-0540 | LOCKING WASHER |
174. | [1] | 154230-4720 | STRAP |
181. | [1] | 154236-4620 | TENSIONING LEVER |
182. | [1] | 154237-0900 | BEARING PIN |
183. | [2] | 154237-0600 | BUSHING |
190. | [1] | 154306-4720 | CONTROL LEVER |
191. | [1] | 154340-0820 | CONTROL LEVER |
192. | [1] | 025803-1310 | WOODRUFF KEY |
193. | [1] | 154305-2000 | CONTROL LEVER |
193. | [1] | 154305-2000 | CONTROL LEVER |
194. | [2] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
194. | [2] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
195. | [1] | 154314-4100 | COILED SPRING |
196. | [1] | 154156-0500 | TUBE |
203/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
203/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
203/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
203/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
203/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
203/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
203/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
203/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
203/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
203/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
203/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
205. | [1] | 154324-2600 | LEVER SHAFT |
207. | [1] | 154326-0300 | CONTROL LEVER |
211. | [1] | 016010-0840 | LOCKING WASHER |
220. | [1] | 154050-2320 | HEADLESS SCREW |
221. | [1] | 029201-2140 | UNION NUT |
222. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
223. | [1] | 154159-1200 | CAP NUT |
235. | [1] | 155412-5300 | IMPELLER WHEEL |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 154390-0300 | GASKET |
238. | [1] | 029635-2020 | O-RING |
340. | [1] | 154213-3900 | BRACKET |
400. | [1] | 154353-7300 | STOP BLOCK |
401. | [1] | 139310-0000 | PLAIN WASHER |
402. | [1] | 014111-0440 | LOCKING WASHER |
403. | [1] | 013111-0040 | UNION NUT M10P1.25H8 |
Include in #1:
101601-6380
as GOVERNOR
