105490-3230 ZEXEL F 019 Z1E 450 BOSCH GOVERNOR f019z1e450 1054903230 me035995




Information governor

BOSCH F 019 Z1E 450 f019z1e450
ZEXEL 105490-3230 1054903230
MITSUBISHI ME035995 me035995
105490-3230 GOVERNOR
Rating:
25
Buy GOVERNOR 105490-3230 zexel genuine, new aftermarket engine parts with delivery

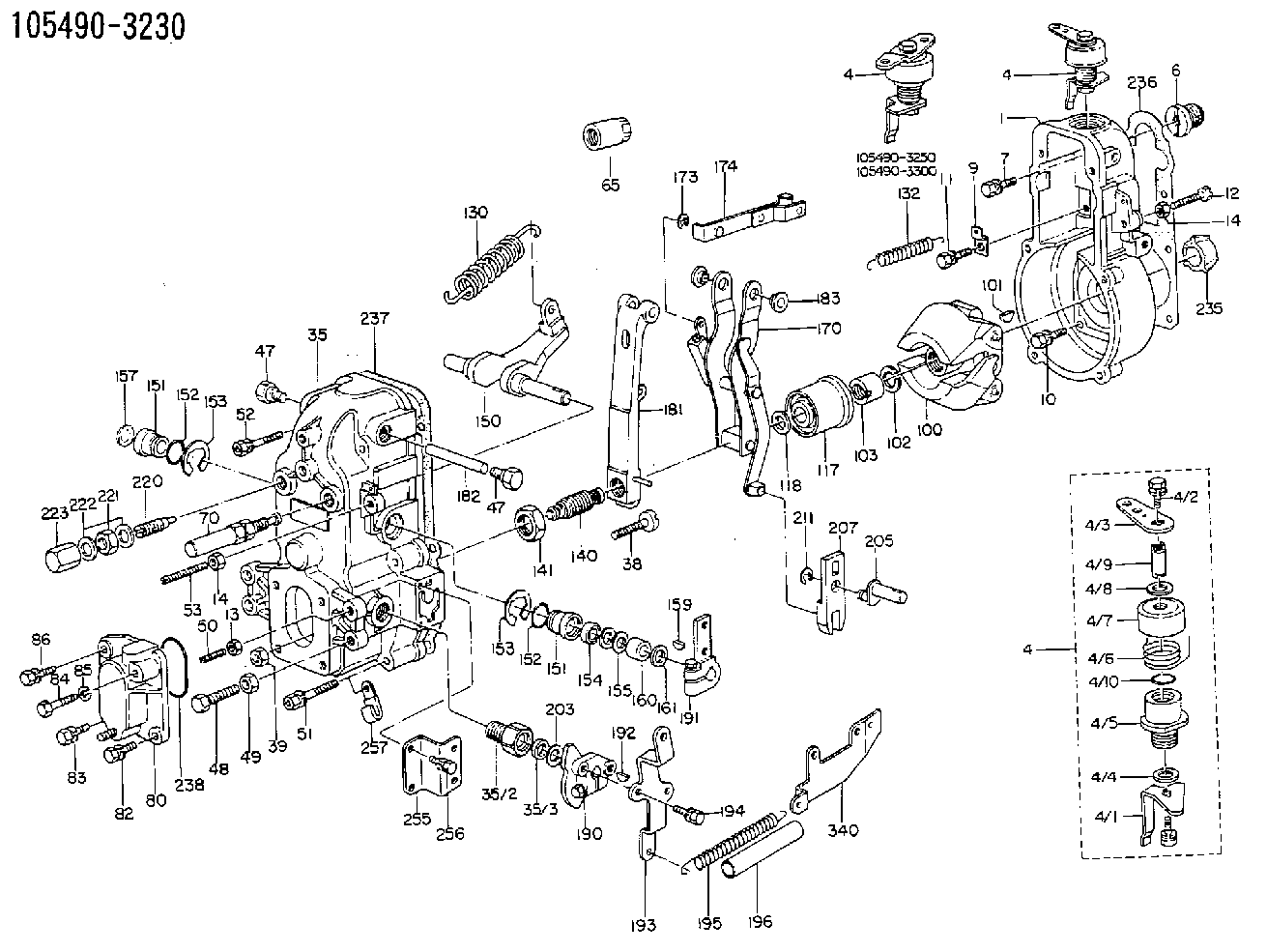

Scheme ###:

GOVERNOR HOUSING
1. [1] 154004-0500 GOVERNOR HOUSING
4. [1] 154304-1720 CONTROL LEVER
4. [1] 154304-1720 CONTROL LEVER
4. [1] 154304-1720 CONTROL LEVER
4/1. [1] 154304-3500 CONTROL LEVER
4/2. [2] 154352-2000 BLEEDER SCREW
4/3. [1] 154302-8300 CONTROL LEVER
4/4. [1] 029311-0230 SHIM D18&10.3T0.5
4/5. [1] 154321-1500 BUSHING
4/6. [1] 154327-3500 COILED SPRING
4/7. [1] 154322-0100 CAP
4/8. [1] 029311-0220 SHIM D18&10.3T0.2
4/9. [1] 154324-2700 LEVER SHAFT
4/10. [1] 029631-0030 O-RING &9.8W2.3
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1800 PLATE
10. [5] 029010-6810 BLEEDER SCREW
11. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
12. [1] 154010-2900 BLEEDER SCREW
13. [1] 029240-6010 UNION NUT M6P1.0H5*
14. [2] 154011-0100 HEXAGON NUT
14. [2] 154011-0100 HEXAGON NUT
35. [1] 154512-7620 GOVERNOR COVER
35/2. [1] 154321-1800 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3200 FLAT-HEAD SCREW
39. [1] 154011-1600 UNION NUT
47. [1] 154036-0300 CAPSULE
47. [1] 154036-0300 CAPSULE
48. [1] 154010-4700 BLEEDER SCREW
49. [1] 029240-8000 UNION NUT
50. [1] 155615-1000 FLAT-HEAD SCREW
51. [4] 020106-3840 BLEEDER SCREW
52. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-1100 FLAT-HEAD SCREW
65. [1] 155404-3800 CAP
70. [1] 154055-0220 HEADLESS SCREW
80. [1] 154060-0020 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
84. [1] 029020-6220 BLEEDER SCREW
85. [1] 014110-6440 LOCKING WASHER
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-5020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0420 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-6200 GOVERNOR SPRING
132. [1] 154154-2601 COILED SPRING
140. [1] 154176-6320 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-3801 SWIVELLING LEVER
151. [1] 154204-2001 BUSHING
151. [1] 154204-2001 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156/1. [0] 029311-1110 SHIM D17&11T0.1
156/1. [0] 029311-1120 SHIM D17&11T0.2
156/1. [0] 029311-1130 SHIM D17&11T0.3
157. [1] 154204-3400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-0900 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154211-8220 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-4720 STRAP
181. [1] 154236-4620 TENSIONING LEVER
182. [1] 154237-0900 BEARING PIN
183. [2] 154237-0600 BUSHING
190. [1] 154306-4720 CONTROL LEVER
191. [1] 154340-0820 CONTROL LEVER
192. [1] 025803-1310 WOODRUFF KEY
193. [1] 154306-1520 CONTROL LEVER
194. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
195. [1] 154314-4100 COILED SPRING
196. [1] 154156-0500 TUBE
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-2600 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-2320 HEADLESS SCREW
221. [1] 029201-2140 UNION NUT
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5300 IMPELLER WHEEL
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
255. [1] 154353-6000 BRACKET
256. [2] 020105-0940 BLEEDER SCREW
257. [1] 155402-6320 PLATE
340. [1] 154213-5800 BRACKET

Include in #1:

101601-6280 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105490-3230
F 019 Z1E 450
NP-EP/RFD200/1650AF9BSLN163
ME035995  MITSUBISHI
GOVERNOR
* K




Information:


Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
Table 1
Required Parts
Qty Part Number Part Name
1 420-0939 Sleeve(1)
1 420-0940 Sleeve(2)
1 420-0941 Sleeve(3)
1 420-0942 Sleeve(4)
(1) Red
(2) Silver
(3) Gold
(4) GreenSleeve Rework procedure
Illustration 1 g06360367
Typical example of an injector - without sleeve
(A) Adjustment screw
(B) Locknut
Remove and retain adjustment screw (A). Remove and discard locknut (B).
Illustration 2 g06360368
Typical example of an injector - with sleeve
(1) Sleeve
(A) Adjustment screw
Insert appropriate sleeve (1) onto adjustment screw (A).
