105490-3190 ZEXEL F 019 Z1E 449 BOSCH GOVERNOR f019z1e449 1054903190




Information governor

BOSCH F 019 Z1E 449 f019z1e449
ZEXEL 105490-3190 1054903190
105490-3190 GOVERNOR
Rating:
24
Buy GOVERNOR 105490-3190 zexel genuine, new aftermarket engine parts with delivery

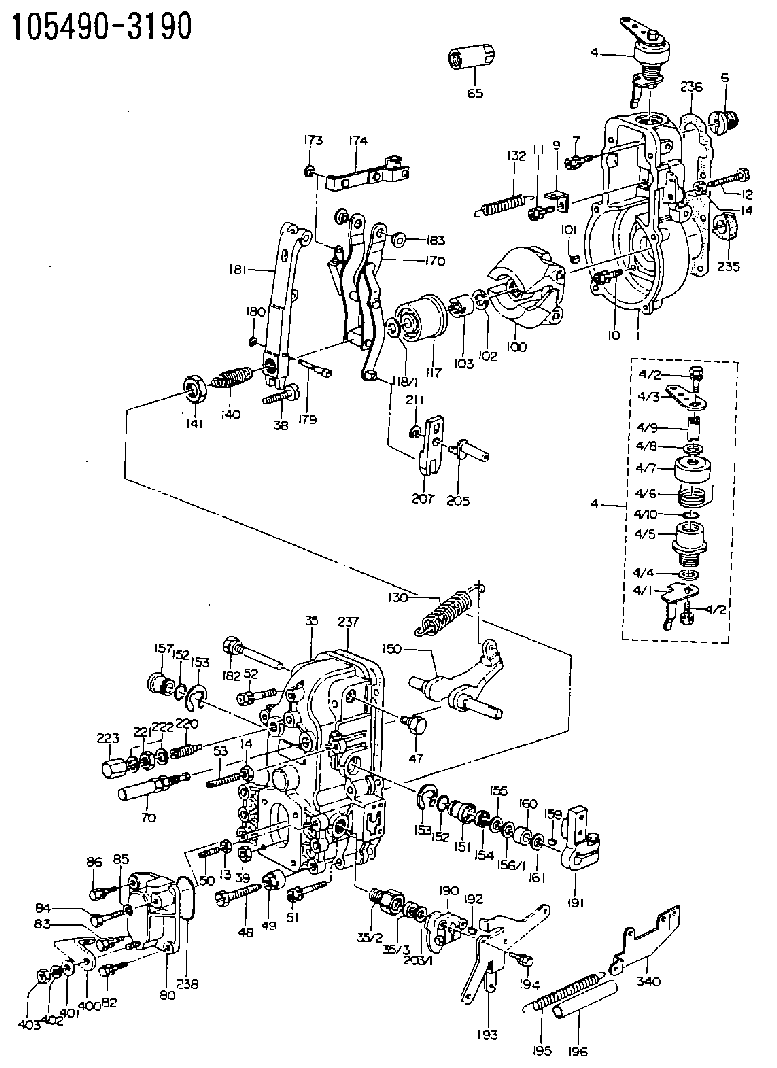

Scheme ###:

1. [1] 154000-8300 GOVERNOR HOUSING
4. [1] 154304-1720 CONTROL LEVER
4. [1] 154304-1720 CONTROL LEVER
4/1. [1] 154304-3500 CONTROL LEVER
4/2. [2] 154352-2000 BLEEDER SCREW
4/2. [2] 154352-2000 BLEEDER SCREW
4/3. [1] 154302-8300 CONTROL LEVER
4/4. [1] 029311-0230 SHIM D18&10.3T0.5
4/5. [1] 154321-1500 BUSHING
4/6. [1] 154327-3500 COILED SPRING
4/7. [1] 154322-0100 CAP
4/8. [1] 029311-0220 SHIM D18&10.3T0.2
4/9. [1] 154324-2700 LEVER SHAFT
4/10. [1] 029631-0030 O-RING &9.8W2.3
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1800 PLATE
10. [5] 029010-6810 BLEEDER SCREW
11. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
12. [1] 154010-2900 BLEEDER SCREW
13. [1] 029240-6010 UNION NUT M6P1.0H5*
14. [2] 154011-0100 HEXAGON NUT
14. [2] 154011-0100 HEXAGON NUT
35. [1] 154512-7020 GOVERNOR COVER
35/2. [1] 154321-1800 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3200 FLAT-HEAD SCREW
39. [1] 154011-1600 UNION NUT
47. [1] 154036-0300 CAPSULE
48. [1] 154010-4700 BLEEDER SCREW
49. [1] 029240-8000 UNION NUT
50. [1] 155615-1000 FLAT-HEAD SCREW
51. [4] 020106-3840 BLEEDER SCREW
52. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-1100 FLAT-HEAD SCREW
65. [1] 155404-3800 CAP
70. [1] 154055-0220 HEADLESS SCREW
80. [1] 154060-0020 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
84. [1] 029020-6220 BLEEDER SCREW
85. [1] 014110-6440 LOCKING WASHER
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-5020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0420 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-6200 GOVERNOR SPRING
132. [1] 154154-2601 COILED SPRING
140. [1] 154176-6320 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-3801 SWIVELLING LEVER
151. [1] 154204-2001 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156/1. [0] 029311-1110 SHIM D17&11T0.1
156/1. [0] 029311-1120 SHIM D17&11T0.2
156/1. [0] 029311-1130 SHIM D17&11T0.3
157. [1] 154204-3400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-0900 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154211-8220 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-4720 STRAP
181. [1] 154236-4620 TENSIONING LEVER
182. [1] 154237-0900 BEARING PIN
183. [2] 154237-0600 BUSHING
190. [1] 154306-4720 CONTROL LEVER
191. [1] 154340-0820 CONTROL LEVER
192. [1] 025803-1310 WOODRUFF KEY
193. [1] 154305-2000 CONTROL LEVER
194. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
195. [1] 154314-4100 COILED SPRING
196. [1] 154156-0500 TUBE
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-2600 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-2320 HEADLESS SCREW
221. [1] 029201-2140 UNION NUT
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5300 IMPELLER WHEEL
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
340. [1] 154213-5800 BRACKET
400. [1] 154353-7300 STOP BLOCK
401. [1] 139310-0000 PLAIN WASHER
402. [1] 014111-0440 LOCKING WASHER
403. [1] 013111-0040 UNION NUT M10P1.25H8

Include in #1:

101601-6180 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105490-3190
F 019 Z1E 449

GOVERNOR
* K 14JN GOV RFD GOV




Information:

Introduction
Do not perform any of the following procedure or order parts until you have read and understand the procedure. The procedure that follows below covers that installation of the new Diesel Exhaust Fluid (DEF) filter.Required Parts
Table 1 below contain the parts needed to complete the installation of the new DEF filter.Note: Only one DEF filter group is required per engine. Use Table 2 to determine which filter is the appropriate filter for each DEF header. Illustration 1 shows the location of the DEF header part number.
Table 1
Item Qty Part Number Part Description
1 1 452-6055 Filter Base As
2 1 453-1604(1) Diesel Exhaust Fluid Filter Gp
3 1 453-1605***#i05999309/d1820e940*** Diesel Exhaust Fluid Filter Gp
4 1 453-1606***#i05999309/d1820e940*** Diesel Exhaust Fluid Filter Gp
5 1 378-3187 Diesel Exhaust Fluid Filter Gp
6 1 423-3251 Connector
7 1 425-0385 Filter As
8 1 391-5262 Gasket
(1) Use Table 2 to choose the correct part that corresponds to the DEF header
Illustration 1 g03745839
(1) Location of DEF header part number
Table 2
DEF Header Part Number Required DEF Filter
434-3241 453-1604
434-3242 453-1605
434-3243 453-1606 Installation Procedure
Illustration 2 g03736523
(1) DEF header
(2) DEF filter
(3) DEF tank
(4) DEF header bolts
Clean the area around DEF header (1). Clear any dirt or debris that could contaminate the DEF tank or lines when removed. Note: If proper cleaning is not performed, DEF pump performance issues or failure may occur.
Disconnect the two DEF lines, two coolant lines, and harness from the DEF header assembly.
Remove the six DEF header screws (4) from the DEF header assembly. Note: Do not discard the screws that secure the DEF header assembly to the DEF tank. The screws will be reused in a later step.
Remove the DEF header assembly. Remove the previous DEF header gasket and discard.
Illustration 3 g03736534
(5) 452-6055 Filter Base As
Install filter base assembly (5) onto the DEF header assembly. Note: Each half of the adapter has two small locking tabs that secure to the bottom side of the DEF header assembly.
Remove the previous 425-0385 Filter As located at the bottom of the DEF pick-up tube.
Install the new 425-0385 Filter As onto the DEF header assembly.
Illustration 4 g03736545
(6) Band clamp
Install the correct DEF filter onto the DEF header adapter and secure using band clamp (6) that is supplied. Torque the band clamp to 4.5 0.7 N m (40 6 lb in).
Install the DEF header assembly back into the DEF tank. Secure the DEF header to the DEF tank using the six screws previously removed in Step 3. Torque the six screws to 5 1 N m (44 9 lb in).
Reconnect the harness, coolant lines, and DEF lines to the DEF header.
Illustration 5 g03736566
(7) DEF pump inlet filter fitting
(8) Main DEF pump filter
Replace DEF pump inlet filter fitting (7) and main DEF pump filter (8). Refer to Disassembly and Assembly, UENR0132, "Diesel Exhaust Fluid Filter - Remove and Install" for the replacement procedure.

Have questions with 105490-3190?





Group cross 105490-3190 ZEXEL







105490-3190
F 019 Z1E 449

GOVERNOR
