Information governor
BOSCH
9 420 612 264
9420612264
ZEXEL
105490-2900
1054902900
MITSUBISHI
3116143041
3116143041
Rating:

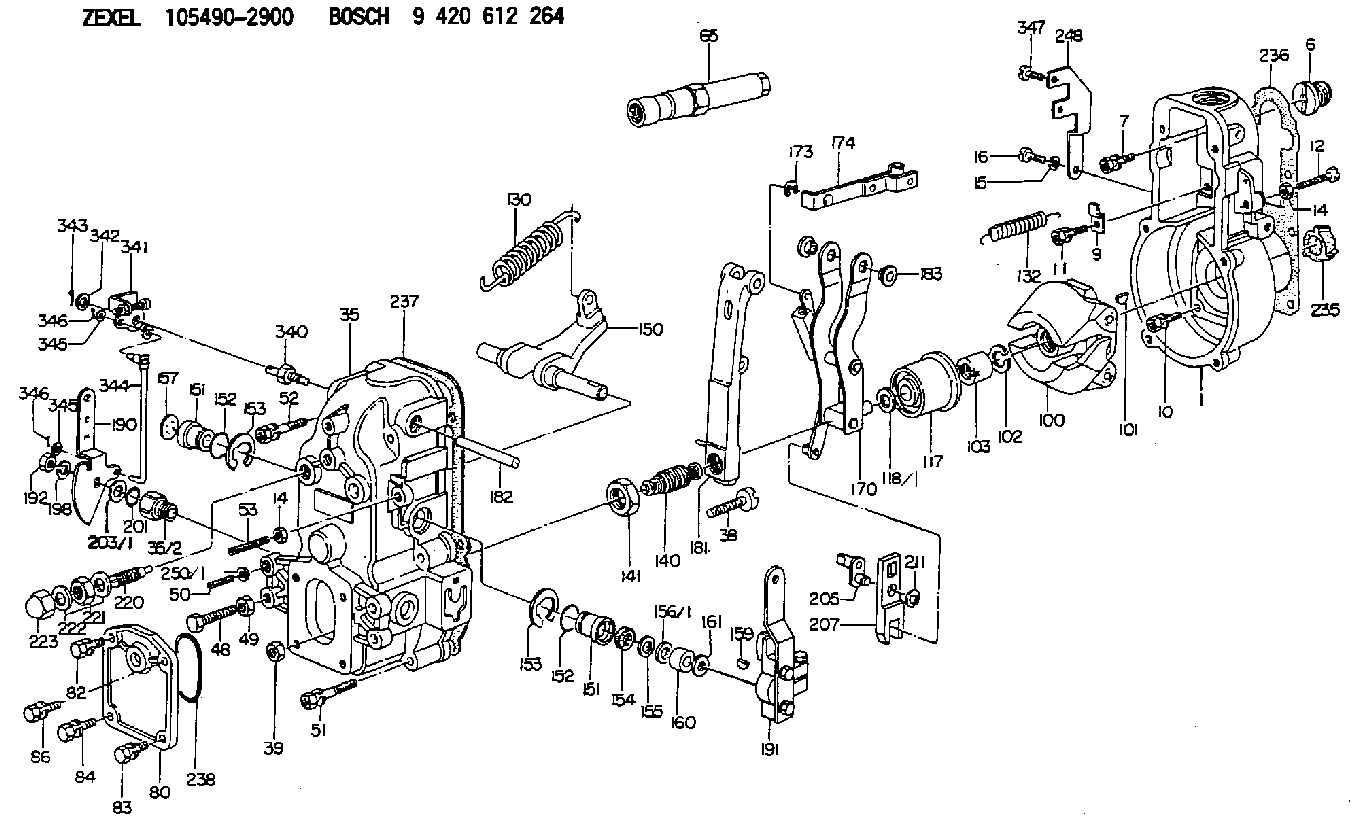

Scheme ###:
| 1. | [1] | 154000-8700 | GOVERNOR HOUSING |
| 6. | [1] | 154007-0200 | ADAPTOR |
| 7. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
| 9. | [1] | 154350-1800 | PLATE |
| 10. | [5] | 029010-6810 | BLEEDER SCREW |
| 11. | [1] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
| 12. | [1] | 154010-2200 | BLEEDER SCREW |
| 14. | [2] | 154011-0100 | HEXAGON NUT |
| 14. | [2] | 154011-0100 | HEXAGON NUT |
| 15. | [1] | 014110-8440 | LOCKING WASHER |
| 16. | [1] | 010138-1440 | BLEEDER SCREW M8P1.25L14 |
| 35. | [1] | 154512-8220 | GOVERNOR COVER |
| 35/2. | [1] | 154321-0400 | BUSHING |
| 38. | [1] | 154031-3200 | FLAT-HEAD SCREW |
| 39. | [1] | 154011-1600 | UNION NUT |
| 48. | [1] | 154010-5000 | BLEEDER SCREW M8P1.25L30 |
| 49. | [1] | 029240-8000 | UNION NUT |
| 50. | [1] | 154033-1500 | FLAT-HEAD SCREW |
| 51. | [4] | 020106-3840 | BLEEDER SCREW |
| 52. | [2] | 020106-5040 | BLEEDER SCREW |
| 53. | [1] | 154010-2900 | BLEEDER SCREW |
| 65. | [1] | 153043-0120 | STOPPING DEVICE |
| 80. | [1] | 154060-4900 | COVER |
| 82. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
| 83. | [1] | 029020-6210 | BLEEDER SCREW |
| 84. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
| 86. | [1] | 029020-6210 | BLEEDER SCREW |
| 100. | [1] | 154100-5020 | FLYWEIGHT ASSEMBLY |
| 101. | [1] | 025803-1610 | WOODRUFF KEY |
| 102. | [1] | 029321-2020 | LOCKING WASHER |
| 103. | [1] | 029231-2030 | UNION NUT |
| 117. | [1] | 154123-0420 | SLIDING PIECE |
| 118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
| 118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
| 118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
| 118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
| 118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
| 118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
| 118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
| 118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
| 118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
| 130. | [1] | 154150-6000 | GOVERNOR SPRING |
| 132. | [1] | 154154-0701 | COILED SPRING |
| 140. | [1] | 154175-1520 | HEADLESS SCREW |
| 141. | [1] | 029201-6010 | UNION NUT |
| 150. | [1] | 154200-3801 | SWIVELLING LEVER |
| 151. | [1] | 154204-2001 | BUSHING |
| 151. | [1] | 154204-2001 | BUSHING |
| 152. | [2] | 029631-8020 | O-RING |
| 152. | [2] | 029631-8020 | O-RING |
| 153. | [2] | 154354-3900 | LOCKING WASHER |
| 153. | [2] | 154354-3900 | LOCKING WASHER |
| 154. | [1] | 139611-0100 | PACKING RING |
| 155. | [1] | 139411-0000 | SHIM |
| 156/1. | [0] | 029311-1110 | SHIM D17&11T0.1 |
| 156/1. | [0] | 029311-1120 | SHIM D17&11T0.2 |
| 156/1. | [0] | 029311-1130 | SHIM D17&11T0.3 |
| 157. | [1] | 154204-3400 | BUSHING |
| 159. | [1] | 025803-1310 | WOODRUFF KEY |
| 160. | [1] | 154206-0900 | BUSHING |
| 161. | [0] | 154206-0200 | PLAIN WASHER D19.5&11.2T1.0 |
| 170. | [1] | 154210-8320 | FORK LEVER |
| 173. | [1] | 016010-0540 | LOCKING WASHER |
| 174. | [1] | 154230-3920 | STRAP |
| 181. | [1] | 154236-4520 | TENSIONING LEVER |
| 182. | [1] | 154237-0900 | BEARING PIN |
| 183. | [2] | 154237-0600 | BUSHING |
| 190. | [1] | 154305-0100 | CONTROL LEVER |
| 191. | [1] | 154341-6120 | CONTROL LEVER |
| 192. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
| 198. | [1] | 014110-8440 | LOCKING WASHER |
| 201. | [1] | 029631-0050 | O-RING |
| 203/1. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
| 203/1. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
| 203/1. | [0] | 029311-0430 | SHIM D18&10.3T0.30 |
| 203/1. | [0] | 029311-0440 | SHIM D18&10.3T0.40 |
| 203/1. | [0] | 029311-0450 | SHIM D18&10.3T0.25 |
| 203/1. | [0] | 029311-0460 | SHIM D18&10.3T0.35 |
| 203/1. | [0] | 139410-3300 | SHIM D18&10.3T0.6 |
| 203/1. | [0] | 139410-3400 | SHIM D18&10.3T0.8 |
| 203/1. | [0] | 139410-3500 | SHIM D18&10.3T0.9 |
| 205. | [1] | 154324-1200 | LEVER SHAFT |
| 207. | [1] | 154326-0300 | CONTROL LEVER |
| 211. | [1] | 016010-0840 | LOCKING WASHER |
| 220. | [1] | 154050-1420 | HEADLESS SCREW |
| 221. | [1] | 029201-2140 | UNION NUT |
| 222. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
| 223. | [1] | 154159-1200 | CAP NUT |
| 235. | [1] | 155412-5200 | IMPELLER WHEEL |
| 236. | [1] | 154390-0000 | GASKET |
| 237. | [1] | 154390-0300 | GASKET |
| 238. | [1] | 029635-2020 | O-RING |
| 248. | [1] | 154316-8200 | BRACKET |
| 250/1. | [0] | 029310-6220 | SHIM D11.5&6.5T0.10 |
| 250/1. | [0] | 029310-6230 | SHIM D11.5&6.5T0.20 |
| 250/1. | [0] | 029310-6240 | SHIM D11.5&6.5T0.25 |
| 250/1. | [0] | 029310-6250 | SHIM D11.5&6.5T1.00 |
| 250/1. | [0] | 029310-6370 | SHIM D11.5&6.5T0.30 |
| 250/1. | [0] | 029310-6380 | SHIM D11.5&6.5T0.40 |
| 250/1. | [0] | 029310-6390 | SHIM D11.5&6.5T0.50 |
| 250/1. | [0] | 029310-6400 | SHIM D11.5&6.5T0.60 |
| 250/1. | [0] | 029310-6410 | SHIM D11.5&6.5T0.70 |
| 250/1. | [0] | 029310-6420 | SHIM D11.5&6.5T0.80 |
| 250/1. | [0] | 029310-6430 | SHIM D11.5&6.5T0.90 |
| 250/1. | [0] | 139406-0500 | SHIM D11.5&6.5T1.5 |
| 250/1. | [0] | 139406-0600 | SHIM D11.5&6.5T2.0 |
| 340. | [1] | 154036-0800 | CAPSULE |
| 341. | [1] | 154351-3720 | CONTROL LEVER |
| 342. | [1] | 029300-8010 | PLAIN WASHER D15&8T1.00 |
| 343. | [1] | 025520-1210 | SPLIT PIN |
| 344. | [1] | 154351-4620 | RACK |
| 345. | [3] | 023500-5140 | PLAIN WASHER D10.0&5.3T1.00 |
| 345. | [3] | 023500-5140 | PLAIN WASHER D10.0&5.3T1.00 |
| 346. | [3] | 015316-0890 | SPLIT PIN |
| 346. | [3] | 015316-0890 | SPLIT PIN |
| 347. | [1] | 029050-5040 | FLAT-HEAD SCREW M5P0.8L9 |
Include in #1:
101691-1750
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
105490-2900
3116143041 MITSUBISHI
GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV
K 14JN MECHANICAL GOVERNOR GOV RFD GOV
