105490-2810 ZEXEL F 019 Z1E 447 BOSCH GOVERNOR f019z1e447 1054902810




Information governor

BOSCH F 019 Z1E 447 f019z1e447
ZEXEL 105490-2810 1054902810
105490-2810 GOVERNOR
Rating:
10
Buy GOVERNOR 105490-2810 zexel genuine, new aftermarket engine parts with delivery

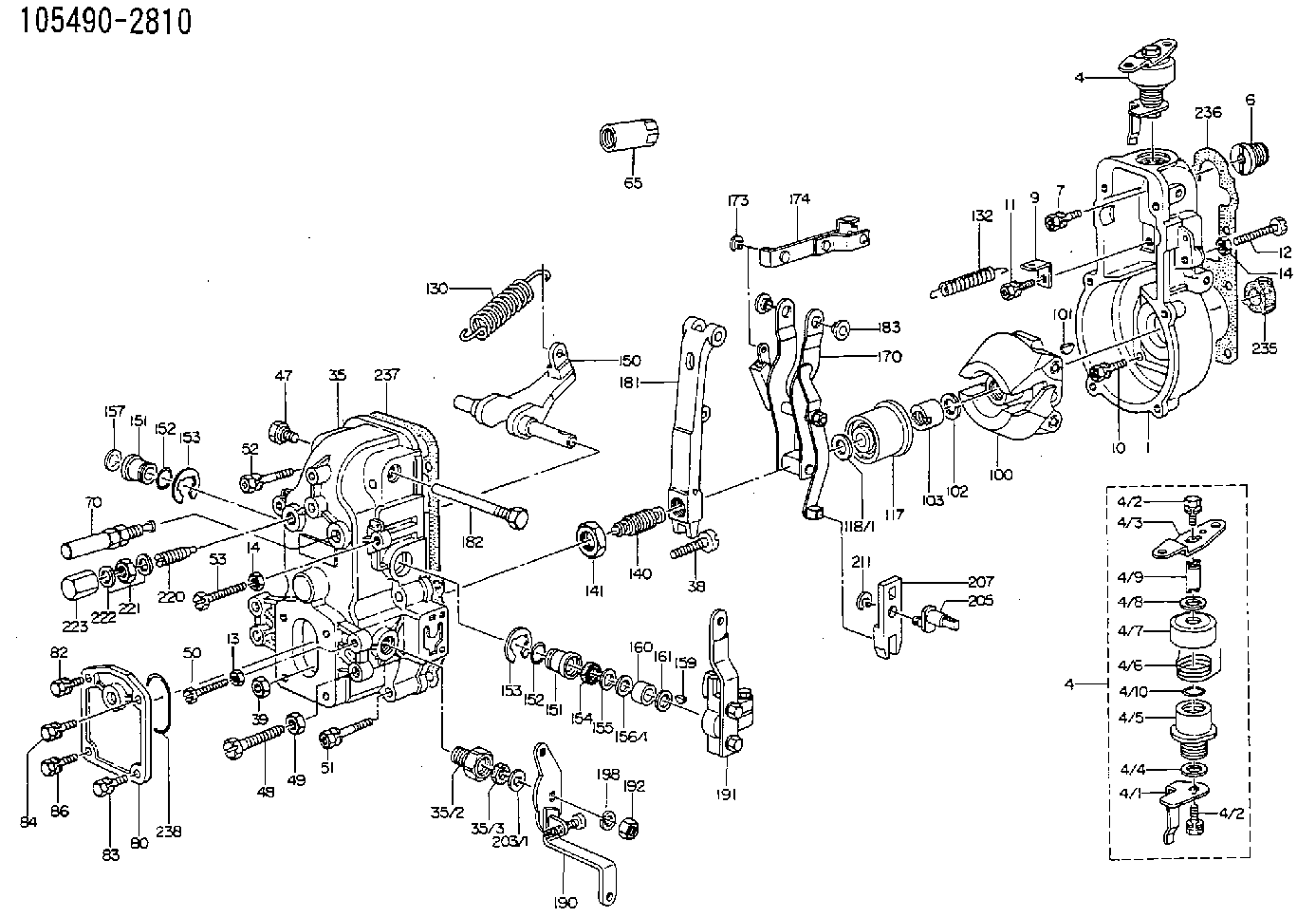

Scheme ###:

GOVERNOR HOUSING
1. [1] 154000-7000 GOVERNOR HOUSING
4. [1] 154304-2020 CONTROL LEVER
4. [1] 154304-2020 CONTROL LEVER
4/1. [1] 154304-3500 CONTROL LEVER
4/2. [2] 154352-2000 BLEEDER SCREW
4/2. [2] 154352-2000 BLEEDER SCREW
4/3. [1] 154302-9600 CONTROL LEVER
4/4. [1] 029311-0230 SHIM D18&10.3T0.5
4/5. [1] 154321-1500 BUSHING
4/6. [1] 154327-4600 COILED SPRING
4/7. [1] 154322-0100 CAP
4/8. [1] 029311-0220 SHIM D18&10.3T0.2
4/9. [1] 154324-2700 LEVER SHAFT
4/10. [1] 029631-0030 O-RING &9.8W2.3
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1800 PLATE
10. [5] 029010-6810 BLEEDER SCREW
11. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
12. [1] 154010-2200 BLEEDER SCREW
13. [1] 029240-6010 UNION NUT M6P1.0H5*
14. [2] 154011-0100 HEXAGON NUT
14. [2] 154011-0100 HEXAGON NUT
35. [1] 154512-7920 GOVERNOR COVER
35/2. [1] 154321-1800 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3200 FLAT-HEAD SCREW
39. [1] 154011-1600 UNION NUT
47. [1] 154036-0300 CAPSULE
48. [1] 154010-5000 BLEEDER SCREW M8P1.25L30
49. [1] 029240-8000 UNION NUT
50. [1] 155615-2200 BLEEDER SCREW M6P1.0L30
51. [4] 020106-3840 BLEEDER SCREW
52. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-2900 BLEEDER SCREW
65. [1] 155404-5700 CAP
70. [1] 154055-0520 HEADLESS SCREW
80. [1] 154060-4900 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
84. [1] 029020-6210 BLEEDER SCREW
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-7120 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0420 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-7000 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
140. [1] 154176-2120 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-3801 SWIVELLING LEVER
151. [1] 154204-2001 BUSHING
151. [1] 154204-2001 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156/1. [0] 029311-1110 SHIM D17&11T0.1
156/1. [0] 029311-1120 SHIM D17&11T0.2
156/1. [0] 029311-1130 SHIM D17&11T0.3
157. [1] 154204-3400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-0900 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154211-8220 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-4720 STRAP
181. [1] 154236-4620 TENSIONING LEVER
182. [1] 154237-0900 BEARING PIN
183. [2] 154237-0600 BUSHING
190. [1] 154305-4720 CONTROL LEVER
191. [1] 154303-7720 CONTROL LEVER
192. [1] 013020-8040 UNION NUT M8P1.25H7
198. [1] 014110-8440 LOCKING WASHER
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-1200 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-1220 HEADLESS SCREW
221. [1] 029201-2140 UNION NUT
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5200 IMPELLER WHEEL
236. [1] 154390-1300 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING

Include in #1:

101601-6011 as GOVERNOR
101601-6051

Cross reference number

Zexel num
Bosch num
Firm num
Name
105490-2810
F 019 Z1E 447

GOVERNOR
* K 14JN GOV RFD GOV




Information:

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Note: The standard work for the laser mark has been updated.Problem
Illustration 1 g06273667During laser marking on these Reman 3400 HEUI injectors both Prime and Non-Prime injectors were marked with NP. This caused confusion with dealers and customers. The NP is thought to mean "Non-Prime" and the injectors are Prime injector part numbers. The prime injectors marked incorrectly with NP but were built and tested to the correct Prime part number and should be used in fuel systems for prime injectors. Dealers can remove the two letters if they decide the two letters cause too much confusion.Solution
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
Illustration 2 g06273668
Prime HEUI injector
NP stands for "Non-Prime". Going forward only "Non-Prime" 3400 HEUI injectors will have the NP laser mark.

Have questions with 105490-2810?





Group cross 105490-2810 ZEXEL

105490-2800
F 019 Z1E 446

GOVERNOR
105490-2810
F 019 Z1E 447

GOVERNOR
105490-2820
F 019 Z3E 575
NP-EP/RFD200/1450AF23BSLN122

GOVERNOR
105490-2830
