105489-5400 ZEXEL 9 420 610 933 BOSCH GOVERNOR 9420610933 1054895400

Information governor

BOSCH 9 420 610 933 9420610933

ZEXEL 105489-5400 1054895400

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105489-5400 zexel genuine, new aftermarket engine parts with delivery

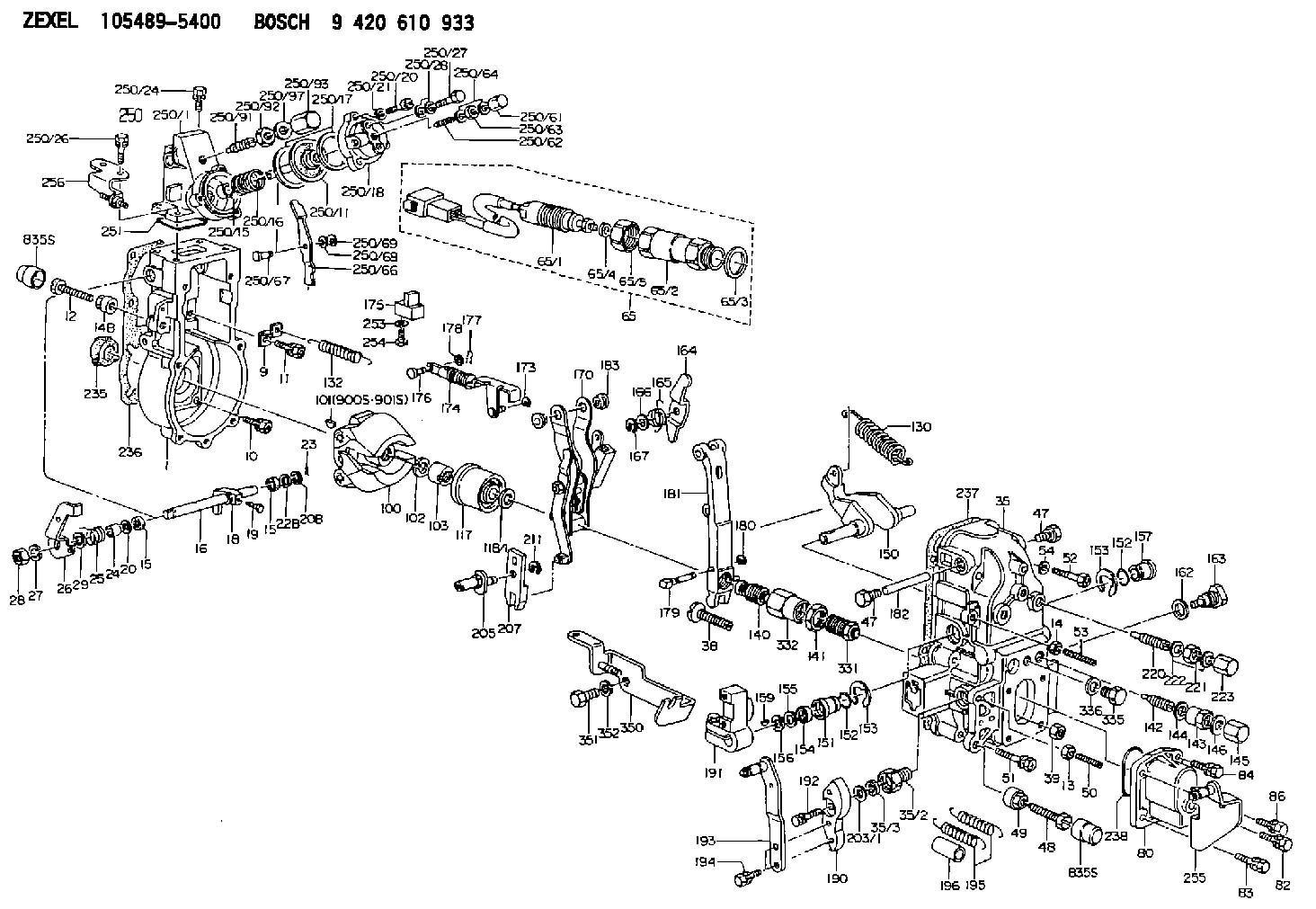

Scheme ###:

1.	[1]	154004-6420	GOVERNOR HOUSING
9.	[1]	154350-6000	PLATE
10.	[4]	139006-4100	BLEEDER SCREW
11.	[4]	139006-5800	BLEEDER SCREW
12.	[1]	154010-7300	BLEEDER SCREW M8P1.25L60
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
15.	[2]	139608-0000	PACKING RING
15.	[2]	139608-0000	PACKING RING
16.	[1]	155004-3600	LEVER SHAFT
18.	[1]	155003-3401	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
22B.	[0]	029310-8050	SHIM D13.5&8T0.5
23.	[1]	025520-1210	SPLIT PIN
24.	[1]	154206-5200	BUSHING
25.	[1]	154327-9500	COILED SPRING
26.	[1]	154382-3420	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER
28.	[1]	013020-8040	UNION NUT M8P1.25H7
29.	[1]	139408-1400	SHIM
29B.	[0]	139408-1400	SHIM
29C.	[0]	139408-1500	SHIM
35.	[1]	154516-1420	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	139610-0600	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1800	CAPSULE
47.	[2]	154036-1800	CAPSULE
48.	[1]	154010-7700	BLEEDER SCREW M10P1.25L51
48B.	[1]	154010-6000	BLEEDER SCREW M10P1.25L55
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-3500	FLAT-HEAD SCREW
51.	[5]	020106-4540	BLEEDER SCREW M6P1.0L45
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-1100	FLAT-HEAD SCREW
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	154611-8720	RACK SENSOR ASSY
65/1.	[1]	479775-1820	RACK SENSOR
65/2.	[1]	154614-4900	JOINT CONNECTION
65/3.	[1]	026524-3040	GASKET
65/4A.	[0]	029310-6220	SHIM D11.5&6.5T0.10
65/4B.	[0]	029310-6230	SHIM D11.5&6.5T0.20
65/4C.	[0]	029310-6240	SHIM D11.5&6.5T0.25
65/4D.	[0]	029310-6260	SHIM D11.5&6.4T1.00
65/4E.	[0]	029310-6270	SHIM D11.5&6.4T1.20
65/4F.	[0]	029310-6280	SHIM D11.5&6.4T1.50
65/5.	[1]	154614-1900	UNION NUT
80.	[1]	154063-9100	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	029020-6260	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	020006-2040	BLEEDER SCREW M6P1L20 4T
100.	[1]	154100-9320	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7900	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154183-0320	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
142.	[1]	154242-5720	HEADLESS SCREW
143.	[1]	154242-3200	UNION NUT
144.	[1]	026516-2040	GASKET D19.9&16.2T1
145.	[1]	154159-1800	CAP NUT
146.	[1]	029331-6130	GASKET
150.	[1]	154200-5601	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM D22.0&12.0T0.40
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
162.	[1]	029331-6050	GASKET
163.	[1]	154401-3201	BLEEDER SCREW
164.	[1]	154243-0820	CONTROL LEVER
165.	[1]	154327-6100	COILED SPRING
166.	[1]	029310-8320	SHIM D16.5&8T0.2
167.	[1]	154356-3600	LOCKING WASHER
170.	[1]	154218-4820	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154235-1520	STRAP
175.	[1]	154232-1923	CONNECTOR
176.	[1]	159231-4900	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
178.	[1]	029310-5170	SHIM D8&5.3T0.5
179.	[1]	154238-0701	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154239-2320	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1800	BUSHING
190.	[1]	154360-2700	CONTROL LEVER
191.	[1]	154340-4620	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154385-6620	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
195.	[2]	154332-4400	COILED SPRING
196.	[2]	154156-3601	TUBE
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3500	LEVER SHAFT
207.	[1]	154326-8220	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-8220	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154390-1500	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	139700-0100	O-RING
250.	[1]	154420-4320	MANIFOLD-PRESSURE COMP.
250/1.	[1]	154412-5822	DIAPHRAGM HOUSING
250/11.	[1]	154412-6522	DIAPHRAGM
250/15.	[1]	154412-7700	BUSHING
250/16.	[1]	154402-3200	COILED SPRING
250/17.	[2]	154413-2600	GASKET
250/18.	[1]	154404-5000	COVER
250/20.	[3]	139006-0900	BLEEDER SCREW
250/21.	[3]	014110-6440	LOCKING WASHER
250/24.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
250/26.	[2]	020106-2040	BLEEDER SCREW M6P1L20
250/27.	[1]	029731-0180	EYE BOLT
250/28.	[2]	026510-1340	GASKET D13.4&10.2T1
250/61.	[1]	154035-1600	CAP NUT
250/62.	[1]	154404-4400	FLAT-HEAD SCREW
250/63.	[1]	013030-6040	UNION NUT M6P1H3.6
250/64.	[2]	026506-1040	GASKET D9.9&6.2T1
250/66.	[1]	154412-4622	CONTROL LEVER
250/67.	[1]	154412-1600	BEARING PIN
250/68.	[1]	029310-5090	SHIM D10&5.1T0.5
250/69.	[1]	016010-0540	LOCKING WASHER
250/91.	[1]	154412-5120	HEADLESS SCREW
250/92.	[1]	029201-2030	UNION NUT M12P1.0H4
250/93.	[1]	154412-5300	CAP NUT
250/97.	[2]	026512-1540	GASKET D15.4&12.2T1.50
251.	[1]	154358-2500	SEAL RING
253.	[1]	029320-5020	LOCKING WASHER
254.	[1]	010535-1040	FLAT-HEAD SCREW M5P0.8L10
255.	[1]	154375-3520	BRACKET
256.	[1]	154373-7120	BRACKET
331.	[1]	154179-4520	HEADLESS SCREW
332.	[1]	139218-0500	UNION NUT
335.	[1]	154352-2600	CAPSULE
336.	[1]	029331-6030	GASKET
350.	[1]	154375-4220	BRACKET
351.	[2]	010010-1640	BLEEDER SCREW M10P1.5L16 4T
352.	[2]	014111-0440	LOCKING WASHER
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

108622-3394 as GOVERNOR

108622-3395

108622-3490

108622-3491

Cross reference number

Zexel num

Bosch num

Firm num

Name

105489-5400
105489-5401

9 420 610 933

GOVERNOR
* K

Information:

Introduction
Procedure to prevent injector Plunger Spring failure due to inadequate fuel system priming.
The low-pressure fuel system must be primed after injector replacement or other repair to the low-pressure fuel system circuit which may allow air to enter the system.
Inadequate priming can result in air being present in the low-pressure fuel system and inside the injectors.
Attempting to start the engine without adequate priming may result in an early hour failure of the injector plunger spring.
Follow the procedure below to prevent injector failure due to inadequate priming.
DO NOT START THE ENGINE WITHOUT PRIMING THE FUEL SYSTEM
Illustration 1 g03735591
Damaged plunger spring due to improper fuel system primingFuel System Priming Procedure:
Disconnect the injector harness at the valve cover.
Use the hand primer to fill the fuel system. Pump until the hand primer becomes too hard to depress by hand.
Crank the engine 3 times for 15 seconds each. Reapply the hand primer after each cranking cycle.
Once the hand primer remains hard to depress after the 15 second crank, reconnect the injector harness and start the engine.
Clear any related fault codes (ET) that were logged while cranking the engine with the injector harness disconnected.
Illustration 2 g03736011
