105489-5310 ZEXEL F 019 Z5E 052 BOSCH GOVERNOR f019z5e052 1054895310 me740606

Information governor

BOSCH F 019 Z5E 052 f019z5e052

ZEXEL 105489-5310 1054895310

MITSUBISHI ME740606 me740606

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105489-5310 zexel genuine, new aftermarket engine parts with delivery

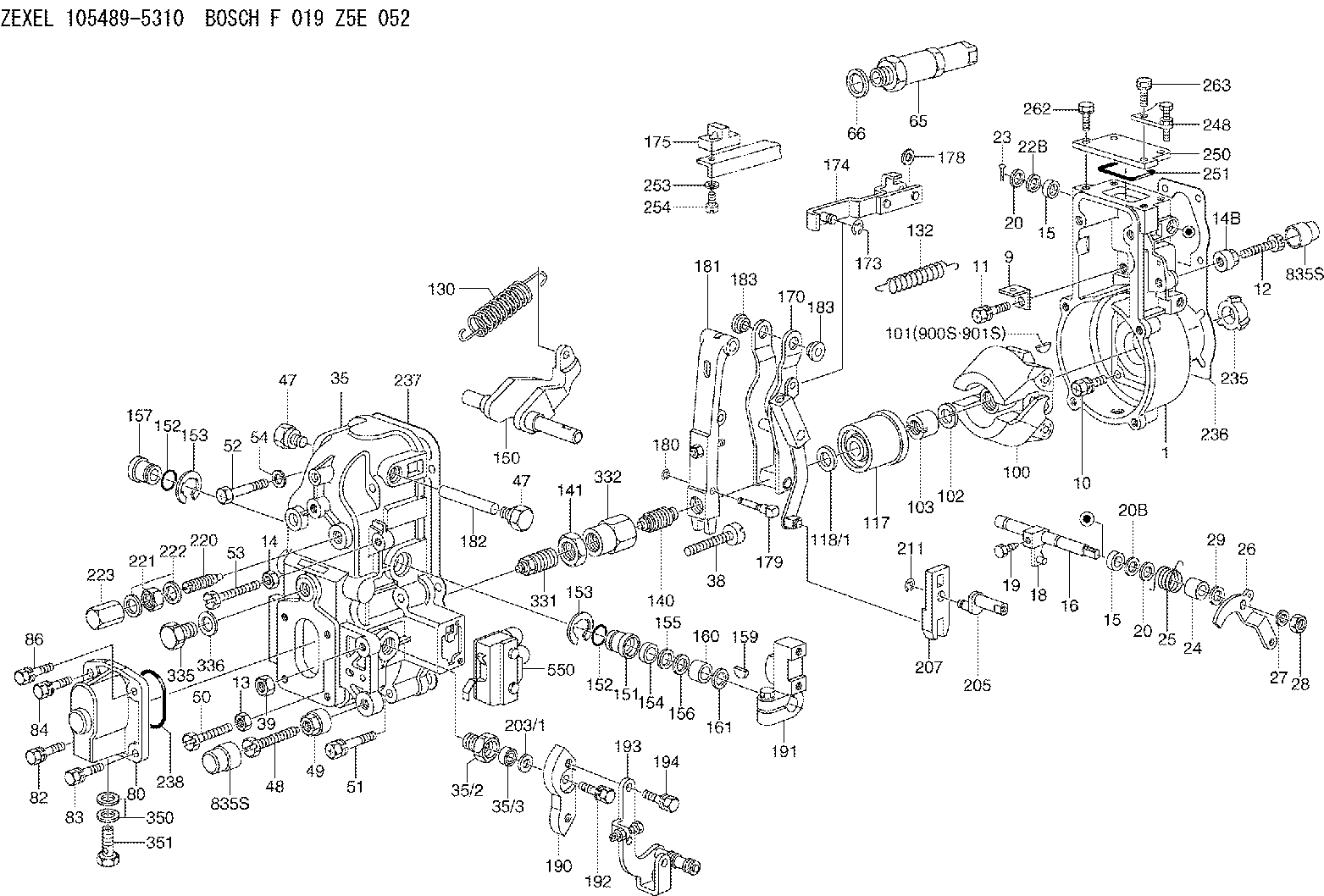

Scheme ###:

1.	[1]	154004-1022	GOVERNOR HOUSING
9.	[1]	154350-6000	PLATE
10.	[4]	020106-2040	BLEEDER SCREW
11.	[4]	020106-1840	BLEEDER SCREW
12.	[1]	154010-7300	BLEEDER SCREW
13.	[1]	013020-6040	UNION NUT
14.	[1]	013020-8040	UNION NUT
14B.	[1]	154011-2300	UNION NUT
15.	[2]	029620-8050	PACKING RING
15.	[2]	029620-8050	PACKING RING
16.	[1]	155004-3301	LEVER SHAFT
18.	[1]	155003-1920	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
22B.	[0]	029310-8050	SHIM D13.5&8T0.5
23.	[1]	025520-1210	SPLIT PIN
24.	[1]	154206-2000	BUSHING
25.	[1]	154327-5200	COILED SPRING
26.	[1]	154382-4800	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER D15.4&8.2T2
28.	[1]	013020-8040	UNION NUT
29.	[1]	139408-1400	SHIM D16&8T0.2
29B.	[0]	139408-1400	SHIM D16&8T0.2
29C.	[0]	139408-1500	SHIM D16&8T0.5
35.	[1]	154514-4220	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1800	CAPSULE
47.	[2]	154036-1800	CAPSULE
48.	[1]	154010-7700	BLEEDER SCREW M10P1.25L51
48B.	[1]	154010-6000	BLEEDER SCREW M10P1.25L55
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-1900	BLEEDER SCREW
51.	[5]	020106-4540	BLEEDER SCREW
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-7300	BLEEDER SCREW
54.	[2]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
65.	[1]	153043-6420	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154063-6121	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW
84.	[1]	029020-6210	BLEEDER SCREW
86.	[1]	020006-1640	BLEEDER SCREW
100.	[1]	154100-9220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY 13 MM
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7900	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154183-8820	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
150.	[1]	154200-5401	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY 13 MM
160.	[1]	154206-2300	BUSHING
161.	[0]	154206-2400	PLAIN WASHER D20.5&12.2T1
170.	[1]	154218-2220	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-6320	STRAP
175.	[1]	154232-1720	PLATE
178.	[1]	029310-5170	SHIM
179.	[1]	154238-0201	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5620	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1300	BUSHING
183.	[2]	154237-1300	BUSHING
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154340-1920	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW
193.	[1]	154368-3520	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-4100	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6220	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT
222.	[2]	026512-1540	GASKET
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	139700-0100	O-RING
248.	[1]	154356-9320	BRACKET
250.	[1]	154356-0800	PLATE
251.	[1]	154358-2500	SEAL RING
253.	[1]	029320-5020	LOCKING WASHER
254.	[1]	010535-1040	FLAT-HEAD SCREW
262.	[2]	029010-6700	BLEEDER SCREW
263.	[2]	020106-1440	BLEEDER SCREW
331.	[1]	154179-4220	HEADLESS SCREW
332.	[1]	139218-0500	UNION NUT
335.	[1]	154352-2600	CAPSULE
336.	[1]	029331-6030	GASKET
350.	[2]	026512-1840	GASKET
351.	[1]	153556-4800	EYE BOLT
550.	[1]	153169-5720	MICROSWITCH
835S.	[2]	154062-1700	CAP
835S.	[2]	154062-1700	CAP
900S.	[1]	025803-1310	WOODRUFF KEY 13 MM
901S.	[1]	025803-1610	WOODRUFF KEY 16 MM

Include in #1:

106673-7300 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105489-5310

F 019 Z5E 052
NP-EP/RFD200/1300PF10DHR

ME740606 MITSUBISHI

GOVERNOR
K

Information:

Introduction
The valve housing may crack causing certain remanufactured fuel injectors to malfunction.Problem
Some remanufactured valve bodies on fuel injectors have been cracking under high pressure. This crack in the valve body can cause fuel to get into the engine oil.Solution
All 10R-0957 Injector Gp Fuel with serial number range 848368 to 850132 should be removed from the parts stock. 10R-0960 Injector Gp Fuel , 10R-0961 Injector Gp Fuel , 10R-0963 Injector Gp Fuel , and 10R-1268 Injector Gp Fuel with a serial number range from 188029 to 188914 should be removed from the parts stock. The above listed fuel injectors should be removed from the parts stock and the injectors should be held pending further instructions.
