105489-4991 ZEXEL 9 420 613 750 BOSCH GOVERNOR 9420613750 1054894991 224001980a

Information governor

BOSCH 9 420 613 750 9420613750

ZEXEL 105489-4991 1054894991

HINO 224001980A 224001980a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105489-4991 zexel genuine, new aftermarket engine parts with delivery

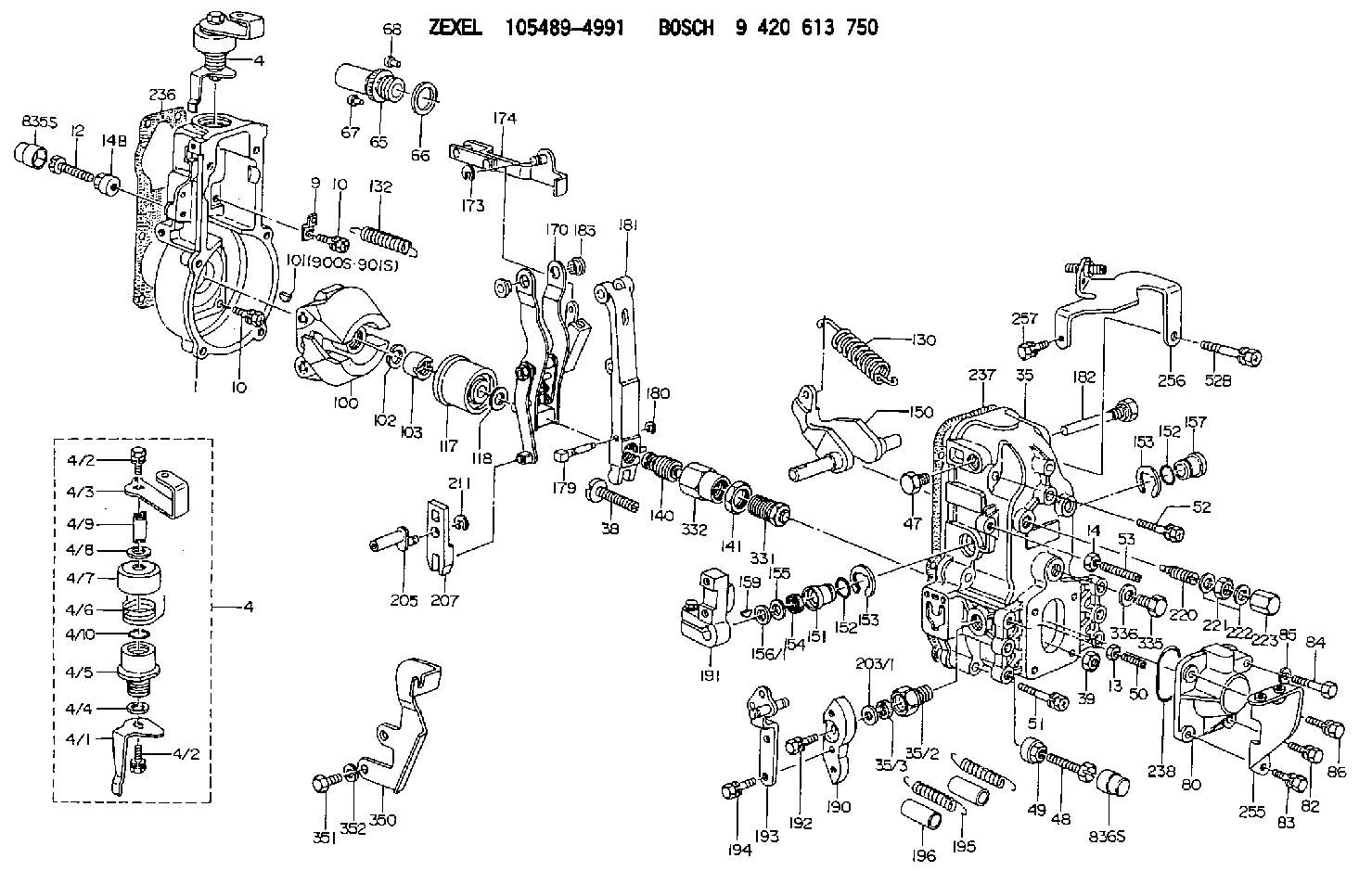

Scheme ###:

1.	[1]	154000-9100	GOVERNOR HOUSING
4.	[1]	154380-4320	CONTROL LEVER
4.	[1]	154380-4320	CONTROL LEVER
4/1.	[1]	154304-6200	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154380-4300	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-4100	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-7400	BLEEDER SCREW M8P1.25L55
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
35.	[1]	154513-6020	GOVERNOR COVER
35/2.	[1]	154321-1800	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3500	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
47.	[1]	154036-1200	CAPSULE
48.	[1]	154010-7700	BLEEDER SCREW M10P1.25L51
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-1100	FLAT-HEAD SCREW M6P1.0L37
51.	[4]	020106-3840	BLEEDER SCREW
52.	[1]	020106-5040	BLEEDER SCREW
52B.	[1]	029010-6850	BLEEDER SCREW
53.	[1]	154010-1100	FLAT-HEAD SCREW
65.	[1]	153021-5620	STOPPING DEVICE
66.	[1]	026524-2940	GASKET D28.9&24.3T2
67.	[2]	139140-4100	CAPSULE
68.	[1]	029141-7010	CAPSULE
80.	[1]	154060-7300	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	029020-6240	BLEEDER SCREW
84.	[1]	010006-3840	BLEEDER SCREW
85.	[1]	014110-6440	LOCKING WASHER
86.	[1]	020006-1840	BLEEDER SCREW M6P1L18
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-6200	GOVERNOR SPRING
132.	[1]	154154-4000	COILED SPRING
140.	[1]	154180-0520	HEADLESS SCREW
141.	[1]	029201-6220	UNION NUT
150.	[1]	154200-3701	SWIVELLING LEVER
151.	[1]	154204-2001	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156/1.	[0]	029311-1110	SHIM D17&11T0.1
156/1.	[0]	029311-1120	SHIM D17&11T0.2
156/1.	[0]	029311-1130	SHIM D17&11T0.3
157.	[1]	154204-3400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
170.	[1]	154216-4120	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-4920	STRAP
179.	[1]	154238-0301	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-7320	TENSIONING LEVER
182.	[1]	154237-0900	BEARING PIN
183.	[2]	154237-0600	BUSHING
190.	[1]	154360-2700	CONTROL LEVER
191.	[1]	154340-2220	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154361-7020	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
195.	[2]	154314-8900	COILED SPRING
196.	[2]	154156-0900	TUBE
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3100	LEVER SHAFT
207.	[1]	154326-6223	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-3520	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
255.	[1]	154370-6720	BRACKET
256.	[1]	154372-8520	BRACKET
257.	[1]	020006-1240	BLEEDER SCREW M6P1L12 4T
331.	[1]	154179-5820	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT
335.	[1]	154352-2600	CAPSULE
336.	[1]	029331-6030	GASKET
350.	[1]	154374-0200	BRACKET
351.	[2]	010010-1240	BLEEDER SCREW M10P1.5L12 4T
352.	[2]	014111-0440	LOCKING WASHER
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-8751 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105489-4991

9 420 613 750
NP-EP/RFD200/1650PF9CHR

224001980A HINO

GOVERNOR
* K

Information:

Illustration 3 g01007381
Modified 2P-5494 crowfoot wrench
Remove the hose assembly (6) and the two connectors (7). Discard these parts.
Illustration 4 g01043882
(5) HEUI pump (6) Flexible oil line (7) Connector (8) Injection actuation pressure control valveInstallation of the 240-0717 Engine Oil Lines Gp
Illustration 5 g01043862
(5) HEUI pump (8) Injection actuation pressure control valve (9) Connector (10) Clip (11) Washer (12) Bolt (13) Spacer (14) Tube assembly (15) O-ring (16) O-ring (17) ElbowNote: Some engines may not have a fuel filter mounting bracket. The existence of the fuel filter mounting bracket on the air inlet cover helps to determine the proper spacer to use. If the fuel filter bracket is mounted on the air inlet cover then the 135-5096 Spacer must be used. If the fuel filter bracket is not mounted on the air inlet cover then the
