105489-4942 ZEXEL F 019 Z1E 335 BOSCH GOVERNOR f019z1e335 1054894942 223008212a




Information governor

BOSCH F 019 Z1E 335 f019z1e335
ZEXEL 105489-4942 1054894942
HINO 223008212A 223008212a
105489-4942 GOVERNOR
Rating:
23
Buy GOVERNOR 105489-4942 zexel genuine, new aftermarket engine parts with delivery

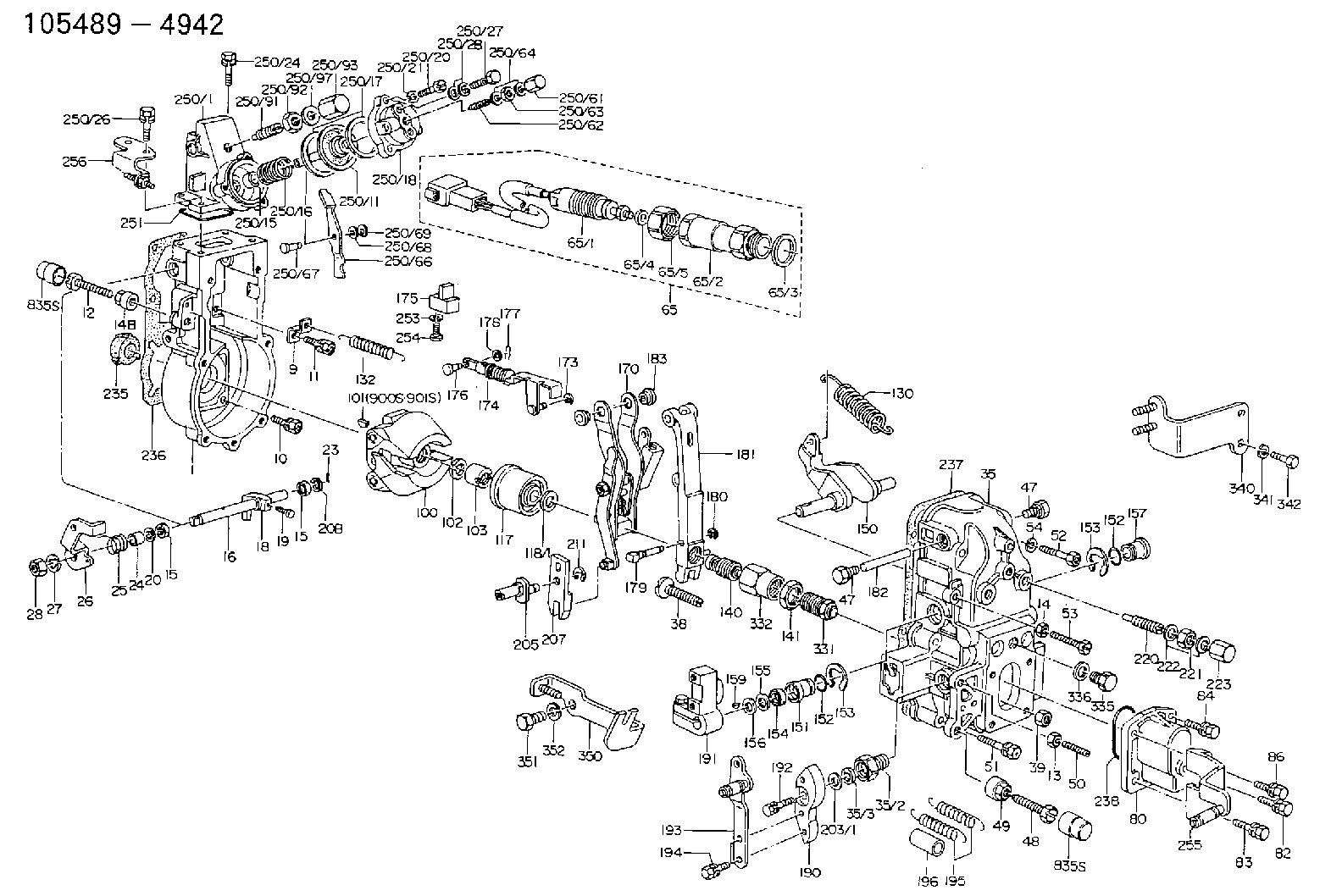

Scheme ###:

GOVERNOR HOUSING
1. [1] 154004-6420 GOVERNOR HOUSING
9. [1] 154350-6000 PLATE
10. [4] 139006-4100 BLEEDER SCREW
11. [4] 139006-5800 BLEEDER SCREW
12. [1] 154010-7300 BLEEDER SCREW M8P1.25L60
13. [1] 013020-6040 UNION NUT M6P1H5
14. [1] 154011-0100 HEXAGON NUT
14B. [1] 154011-2300 UNION NUT
15. [2] 139608-0000 PACKING RING
15. [2] 139608-0000 PACKING RING
16. [1] 155004-3600 LEVER SHAFT
18. [1] 155003-3401 CONTROL LEVER
19. [1] 155006-0500 BLEEDER SCREW
20. [1] 139308-1500 PLAIN WASHER D18&8T1.0
20B. [1] 139308-1600 PLAIN WASHER D18&8T1.5
23. [1] 154373-2200 SAFETY PIN
24. [1] 154206-5200 BUSHING
25. [1] 154327-9500 COILED SPRING
26. [1] 154382-0500 CONTROL LEVER
27. [1] 014110-8440 LOCKING WASHER
28. [1] 013020-8040 UNION NUT M8P1.25H7
35. [1] 154516-1620 GOVERNOR COVER
35/2. [1] 154321-2000 BUSHING
35/3. [1] 139610-0600 PACKING RING
38. [1] 154031-3401 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [2] 154036-1800 CAPSULE
47. [2] 154036-1800 CAPSULE
48. [1] 154010-7900 BLEEDER SCREW M10P1.25L58
48B. [1] 154010-6000 BLEEDER SCREW M10P1.25L55
49. [1] 154011-2200 UNION NUT
50. [1] 155615-3500 FLAT-HEAD SCREW
51. [5] 020106-4540 BLEEDER SCREW M6P1.0L45
52. [2] 029010-6850 BLEEDER SCREW
53. [1] 154010-3100 BLEEDER SCREW
54. [2] 014110-6440 LOCKING WASHER
65. [1] 154611-4421 RACK SENSOR ASSY
65/1. [1] 479775-1621 RACK SENSOR
65/2. [1] 154614-5100 JOINT CONNECTION
65/3. [1] 026524-3040 GASKET
65/4A. [0] 029310-6220 SHIM D11.5&6.5T0.10
65/4B. [0] 029310-6230 SHIM D11.5&6.5T0.20
65/4C. [0] 029310-6240 SHIM D11.5&6.5T0.25
65/4D. [0] 029310-6260 SHIM D11.5&6.4T1.00
65/4E. [0] 029310-6270 SHIM D11.5&6.4T1.20
65/4F. [0] 029310-6280 SHIM D11.5&6.4T1.50
65/5. [1] 154614-1900 UNION NUT
80. [1] 154063-9100 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 029020-6260 BLEEDER SCREW
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
86. [1] 020006-2040 BLEEDER SCREW M6P1L20 4T
100. [1] 154100-9320 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 139212-0000 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-7900 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
140. [1] 154183-0020 HEADLESS SCREW
141. [1] 139218-0100 UNION NUT
150. [1] 154200-5601 SWIVELLING LEVER
151. [1] 154200-5501 BUSHING
152. [2] 139700-0000 O-RING
152. [2] 139700-0000 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139610-0101 PACKING RING
155. [1] 139411-0100 SHIM D22.0&12.0T0.40
156. [0] 139411-0200 SHIM D18.0&12.0T0.10
156B. [0] 139411-0300 SHIM D18.0&12.0T0.20
156C. [0] 139411-0400 SHIM D18.0&12.0T0.30
157. [1] 154204-3500 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
170. [1] 154218-2120 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154235-1620 STRAP
175. [1] 154232-1923 CONNECTOR
176. [1] 154222-4900 BEARING PIN
177. [1] 155402-3800 SAFETY PIN
178. [1] 029310-5170 SHIM D8&5.3T0.5
179. [1] 154238-0701 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154239-1120 TENSIONING LEVER
182. [1] 154237-1200 BEARING PIN
183. [2] 154237-1800 BUSHING
190. [1] 154360-2700 CONTROL LEVER
191. [1] 154340-4520 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154386-5620 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
195. [2] 154338-9100 COILED SPRING
196. [2] 154156-2300 TUBE
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-3500 LEVER SHAFT
207. [1] 154326-8220 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-8520 HEADLESS SCREW
221. [1] 029201-2130 UNION NUT M12P1.0H6
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5300 IMPELLER WHEEL
236. [1] 154390-1500 GASKET
237. [1] 154390-0200 GASKET
238. [1] 139700-0100 O-RING
250. [1] 154420-4320 MANIFOLD-PRESSURE COMP.
250/1. [1] 154412-5822 DIAPHRAGM HOUSING
250/11. [1] 154412-6522 DIAPHRAGM
250/15. [1] 154412-7700 BUSHING
250/16. [1] 154402-3200 COILED SPRING
250/17. [2] 154413-2600 GASKET
250/18. [1] 154404-5000 COVER
250/20. [3] 139006-0900 BLEEDER SCREW
250/21. [3] 014110-6440 LOCKING WASHER
250/24. [2] 020106-1640 BLEEDER SCREW M6P1.0L14
250/26. [2] 020106-2040 BLEEDER SCREW M6P1L20
250/27. [1] 029731-0180 EYE BOLT
250/28. [2] 026510-1340 GASKET D13.4&10.2T1
250/61. [1] 154035-1600 CAP NUT
250/62. [1] 154404-4400 FLAT-HEAD SCREW
250/63. [1] 013030-6040 UNION NUT M6P1H3.6
250/64. [2] 026506-1040 GASKET D9.9&6.2T1
250/66. [1] 154412-4622 CONTROL LEVER
250/67. [1] 154412-1600 BEARING PIN
250/68. [1] 029310-5090 SHIM D10&5.1T0.5
250/69. [1] 016010-0540 LOCKING WASHER
250/91. [1] 154412-5120 HEADLESS SCREW
250/92. [1] 029201-2030 UNION NUT M12P1.0H4
250/93. [1] 154412-5300 CAP NUT
250/97. [2] 026512-1540 GASKET D15.4&12.2T1.50
251. [1] 154358-2500 SEAL RING
253. [1] 029320-5020 LOCKING WASHER
254. [1] 010535-1040 FLAT-HEAD SCREW M5P0.8L10
255. [1] 154375-3520 BRACKET
256. [1] 154373-7120 BRACKET
331. [1] 154179-3321 HEADLESS SCREW
332. [1] 139218-0500 UNION NUT
335. [1] 154352-2600 CAPSULE
336. [1] 029331-6030 GASKET
340. [1] 154375-2620 BRACKET
341. [2] 014110-8440 LOCKING WASHER
342. [2] 010038-1240 BLEEDER SCREW
350. [1] 154375-4320 BRACKET
351. [2] 010010-1640 BLEEDER SCREW M10P1.5L16 4T
352. [2] 014111-0440 LOCKING WASHER
835S. [2] 154062-1700 CAP D20L32
835S. [2] 154062-1700 CAP D20L32
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

108622-3422 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105489-4942
105489-4943
F 019 Z1E 335
223008212A  HINO
GOVERNOR
* K




Information:

Coolants
Special Publication, PMEP5027, "Label - Cat ELC Radiator Label"
Datasheet, PEHJ0067, "Cat ELC (Extended Life Coolant)" (Worldwide)
Datasheet, PEHP9554, "Cat DEAC (Diesel Engine Antifreeze/Coolant) (Concentrate)"Lubricants
Datasheet, PEHJ0159, "Cat DEO-ULS (SAE15W-40)" (North America, Canada, Mexico, and United States)
Datasheet, PEHJ0059, "Cat DEO (SAE 10W-30 and SAE 15W-40)" (North America, Canada, Mexico, and United States)
Datasheet, PEHJ0021, "Cat DEO (SAE 10W-30 and SAE 15W-40)" (Worldwide except North America, Egypt, Saudi Arabia, and Brazil)
Datasheet, PEHJ0072, "Cat DEO (SAE 10W-30 and SAE 15W-40)" (Brazil)
Datasheet, PEHJ0091, "Cat DEO (SAE 10W-30 and SAE 15W-40)" (Egypt and Saudi Arabia)
Datasheet, PEHP7062, "Cat DEO SYN (SAE 5W-40)"
Datasheet, PEHJ0008, "Cat Arctic DEO (SAE 0W-30)" (Canada and United States)Grease
Special Publication, PEGJ0035, "Grease Selection Guide"
Datasheet, PEHP0002, "Cat Advanced 3Moly Grease" (NLGI grade 2)
Datasheet, NEHP6010, "Cat Ultra 5Moly Grease" (NLGI grades 1 and 2)
Datasheet, NEHP6011, "Cat Arctic Platinum Grease" (NLGI grade 0)
Datasheet, NEHP6012, "Cat Desert Gold Grease" (NLGI grade 2)
Datasheet, NEHP6015, "Cat High Speed Ball Bearing Grease" (NLGI grade 2)
Datasheet, PEHJ0088, "Cat Multipurpose Grease" (NLGI grade 2)S O S Services
Special Publication, PEHJ0191, "S O S Coolant Analysis"
Special Publication, PEGJ0047, "How To Take A Good Oil Sample"
Special Publications, PEDP7036, "S O S Fluids Analysis Cornerstone"
Special Publications, PEHP7076, "Understanding S O S Services Tests"
Special Publication, PEHP7052, "Making the Most of S O S Services"
Special Publication, PEGJ0046, "Understanding Your S O S Services Results"Filters
Datasheet, PEHP7046, "Fuel Contamination Control"
Datasheet, PEHJ0068, "Cat Advanced Efficiency Engine Oil Filter"
Datasheet, PEHJ0165, "Open Crankcase Ventilation Filter"Miscellaneous
Special Publication, PECP9067, "One Safe Source"
Special Publication, AECQ1042, "Caterpillar Product Line Brochure"
Special Publication, PEWJ0074, "Cat Filter and Fluid Application Guide"
Datasheet, PEHJ0030, "Cat Synthetic GO (SAE 75W-140)"
Datasheet, PEHP7508, "Cat GO (SAE 80W-90 and SAE 85W-140)"
Special Publication, NENG2500, "Caterpillar Dealer Service Tool Catalog"
Special Publication, PECJ0003, "Cat Shop Supplies and Tools" catalog
Special Publication, LEGT6380, "Understanding Tractor-Trailer Performance"
Special Publication, SENR9620, "Improving Fuel System Durability" (Package of 10)
Special Publication, SEBF1018, "Improving Component Durability - Engines" (Package of 10)
Special Publication, SEBF1020, "Improving Component Durability - Managing Fluid Cleanliness" (Package of 10)
"ASTM D6469 Standard Guide for Microbial Contamination in Fuels and Fuel Systems"
