105489-4782 ZEXEL F 01G 29N 01L BOSCH GOVERNOR f01g29n01l 1054894782

Information governor

BOSCH F 01G 29N 01L f01g29n01l

ZEXEL 105489-4782 1054894782

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105489-4782 zexel genuine, new aftermarket engine parts with delivery

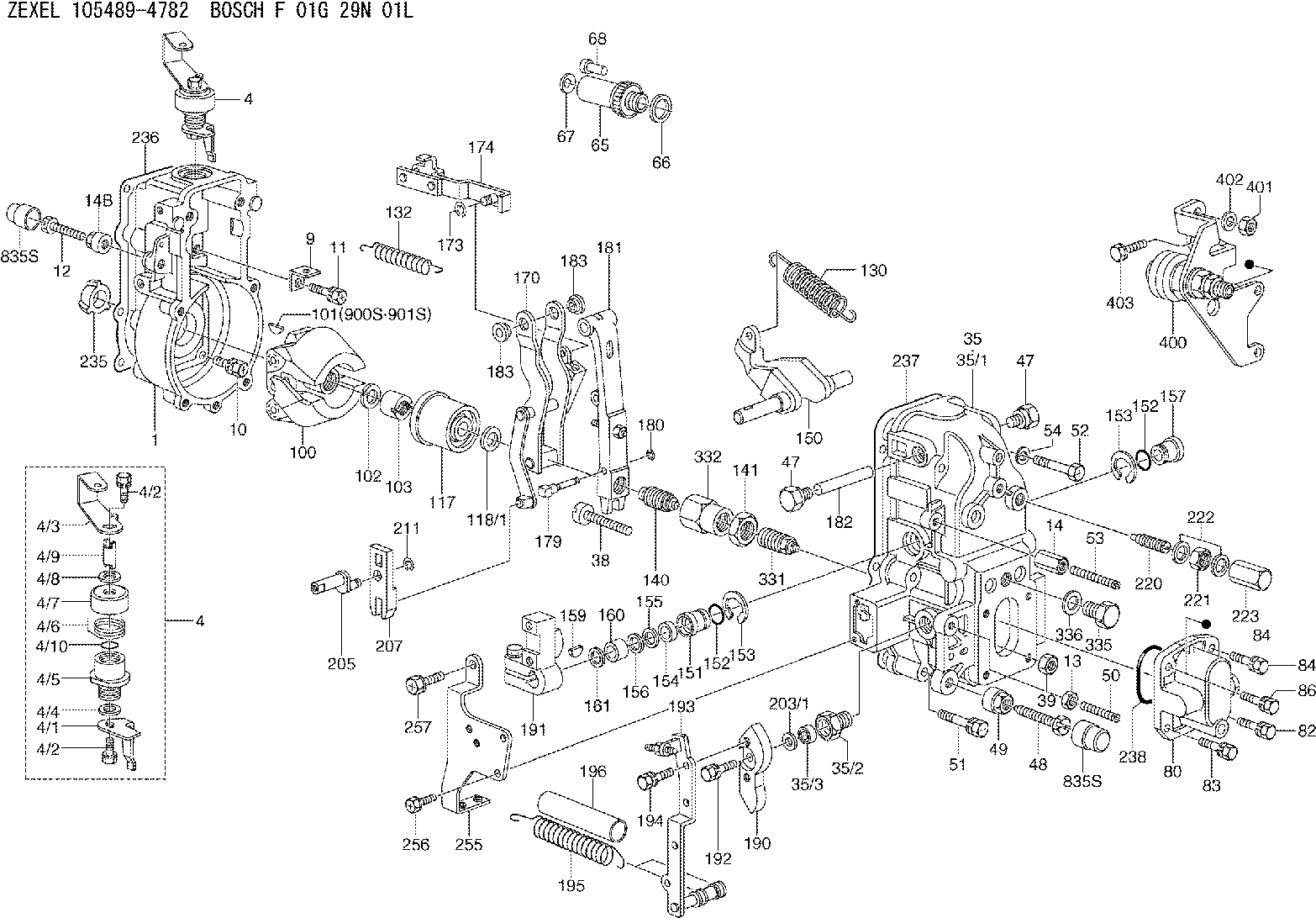

Scheme ###:

1.	[1]	154004-1300	GOVERNOR HOUSING
4.	[1]	154365-6721	CONTROL LEVER
4.	[1]	154365-6721	CONTROL LEVER
4/1.	[1]	154304-6200	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154365-6700	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-4100	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING
9.	[1]	154350-6000	PLATE
10.	[4]	020106-2040	BLEEDER SCREW
11.	[4]	020106-1840	BLEEDER SCREW
12.	[1]	154010-7300	BLEEDER SCREW
13.	[1]	139206-0700	UNION NUT
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
35.	[1]	154516-1220	GOVERNOR COVER
35/1.	[1]	154516-1200	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1800	CAPSULE
47.	[2]	154036-1800	CAPSULE
48.	[1]	154010-6000	BLEEDER SCREW M10P1.25L55
48B.	[1]	154010-7900	BLEEDER SCREW M10P1.25L58
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-3100	FLAT-HEAD SCREW
51.	[5]	020106-4540	BLEEDER SCREW
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-1200	FLAT-HEAD SCREW
54.	[2]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
65.	[1]	153021-5620	STOPPING DEVICE
66.	[1]	026524-2940	GASKET
67.	[2]	139140-4100	CAPSULE
68.	[1]	029141-7010	CAPSULE
80.	[1]	154063-4100	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	020006-2240	BLEEDER SCREW
84.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	029020-6210	BLEEDER SCREW
86.	[1]	020006-2240	BLEEDER SCREW
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY 13 MM
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-9400	GOVERNOR SPRING
132.	[1]	154154-4000	COILED SPRING
140.	[1]	154189-1420	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
150.	[1]	154200-5601	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY 13 MM
170.	[1]	154218-2720	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-6620	STRAP
179.	[1]	154238-0701	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154239-1120	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1800	BUSHING
183.	[2]	154237-1800	BUSHING
190.	[1]	154360-2700	CONTROL LEVER
191.	[1]	154340-4520	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW
193.	[1]	154386-4420	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW
195.	[2]	154332-7700	COILED SPRING
196.	[2]	154156-2900	TUBE
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3600	LEVER SHAFT
207.	[1]	154326-8220	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6920	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT
222.	[2]	026512-1540	GASKET
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5300	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	139700-0100	O-RING
255.	[1]	154373-2020	BRACKET
256.	[2]	020106-1040	BLEEDER SCREW M6P1.0L12
257.	[1]	020118-1440	BLEEDER SCREW
331.	[1]	154179-9420	HEADLESS SCREW
332.	[1]	139218-0200	UNION NUT
335.	[1]	154352-2600	CAPSULE
336.	[1]	029331-6030	GASKET
400.	[1]	154375-3321	CYLINDER
401.	[1]	013020-8040	UNION NUT
402.	[1]	014010-6140	PLAIN WASHER D13&6.5T1.0
403.	[1]	020006-1240	BLEEDER SCREW
835S.	[2]	154062-1700	CAP
835S.	[2]	154062-1700	CAP
900S.	[1]	025803-1310	WOODRUFF KEY 13 MM
901S.	[1]	025803-1610	WOODRUFF KEY 16 MM

Include in #1:

106671-8722 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105489-4782

F 01G 29N 01L
NP-EP/RFD200/1550PF74DHR

GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV

Information:

Specifications
The following table lists the specifications for the CPU that is used on the 203-7810 Engine Monitoring Control Group and the 203-7811 Engine Monitoring Control Group.
Table 1
Item Description
Socket 7 Processor Intel Pentium MMX 233 MHz
BIOS Phoenix OEM BIOS
256 K X 8 flash EPROM (boot ROM)
Main Memory Up to 256 Mbytes DRAM (one 168 pin DIMM socket)
60 ns 3.3 V EDO / SDRAM with ECC
60 and 66 MHz bus speeds
L2 Cache Memory 512 KB pipeline burst static RAM
Chipsets Acer M1531B North Bridge
Acer M1543B South Bridge
Video Interface Chips & Technologies CHIPS 65550
2 Mbytes VGA local memory
Internal LVDS interface to indicator panel
External HD15 CRT (analog monitor) connector
Ethernet PCI 10/100 BaseT
Intel 82559 MAC
Filtered RJ-45 connector
Other CPU I/O Two RS232 serial ports ("COM1" and "COM2") (1)
Parallel port ("LPT1")
Two PS/2 ports for keyboard and mouse connections
Two USB ports
System Hardware Monitor LM78 Monitor IC mapped to IRQ5, drives diagnostics indicator
Internal temperature via DS1620 IC
User configured via BIOS
Other Features M5819 Real Time Clock chip with 256 bytes RAM
MAX705 Watchdog Timer
( 1 ) "COM2" is used by optional touchscreen interfaceSystem Hardware Monitor
The systems hardware monitor checks the following items:
2.8 V supply (CPU core)
3.3 V supply
5 V supply
12 V supply
