105489-4710 ZEXEL F 019 Z5E 047 BOSCH GOVERNOR f019z5e047 1054894710 223007890a




Information governor

BOSCH F 019 Z5E 047 f019z5e047
ZEXEL 105489-4710 1054894710
HINO 223007890A 223007890a
105489-4710 GOVERNOR
Rating:
79
Buy GOVERNOR 105489-4710 zexel genuine, new aftermarket engine parts with delivery

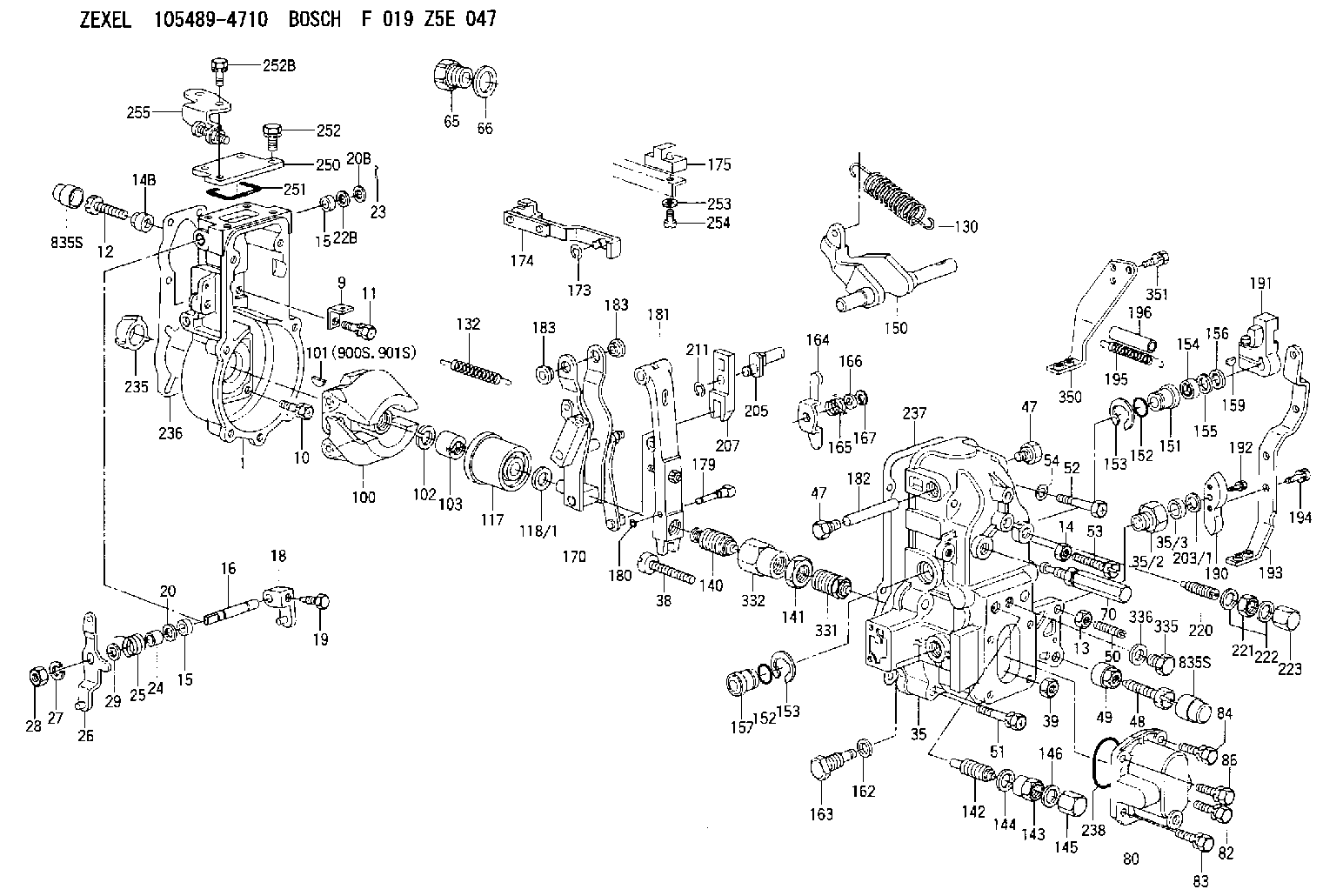

Scheme ###:

1. [1] 154004-4621 GOVERNOR HOUSING
9. [1] 154353-5601 PLATE
10. [4] 020106-2040 BLEEDER SCREW M6P1L20
11. [4] 020106-1840 BLEEDER SCREW M6P1L18
12. [1] 154010-7300 BLEEDER SCREW M8P1.25L60
13. [1] 013020-6040 UNION NUT M6P1H5
14. [1] 154011-0100 HEXAGON NUT
14B. [1] 154011-2300 UNION NUT
15. [2] 029620-8050 PACKING RING
15. [2] 029620-8050 PACKING RING
16. [1] 155004-3600 LEVER SHAFT
18. [1] 155003-2401 CONTROL LEVER
19. [1] 155006-0700 BLEEDER SCREW
20. [1] 139308-0900 PLAIN WASHER D16&8T1
20B. [1] 139308-1000 PLAIN WASHER D16&8T1.5
22B. [0] 029310-8050 SHIM D13.5&8T0.5
22B. [7] 139408-1500 SHIM
23. [1] 025520-1210 SPLIT PIN
24. [1] 154206-2000 BUSHING
25. [1] 154327-9000 COILED SPRING
26. [1] 154381-4220 CONTROL LEVER
27. [1] 014110-8440 LOCKING WASHER
28. [1] 013020-8040 UNION NUT M8P1.25H7
29. [1] 139408-1400 SHIM
29B. [0] 139408-1400 SHIM
29C. [0] 139408-1500 SHIM
35. [1] 154514-8220 GOVERNOR COVER
35/2. [1] 154321-2000 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3401 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [2] 154036-1800 CAPSULE
47. [2] 154036-1800 CAPSULE
48. [1] 154010-7100 BLEEDER SCREW M10P1.25L47
48B. [1] 154010-7700 BLEEDER SCREW M10P1.25L51
49. [1] 154011-2200 UNION NUT
50. [1] 155615-2300 FLAT-HEAD SCREW
51. [5] 020106-4540 BLEEDER SCREW M6P1.0L45
52. [2] 029010-6850 BLEEDER SCREW
53. [1] 154010-3100 BLEEDER SCREW
54. [2] 014110-6440 LOCKING WASHER
65. [1] 155404-1700 CAP
66. [1] 026524-3040 GASKET
70. [1] 154055-4520 HEADLESS SCREW
80. [1] 154063-4100 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 029020-6210 BLEEDER SCREW
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-9220 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 139212-0000 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-7900 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
140. [1] 154183-1720 HEADLESS SCREW
141. [1] 139218-0100 UNION NUT
142. [1] 154242-5220 HEADLESS SCREW
143. [1] 154242-5400 UNION NUT
144. [1] 026516-2040 GASKET D19.9&16.2T1
145. [1] 154159-1800 CAP NUT
146. [1] 029331-6130 GASKET
150. [1] 154200-5401 SWIVELLING LEVER
151. [1] 154200-5501 BUSHING
152. [2] 139700-0000 O-RING
152. [2] 139700-0000 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139610-0101 PACKING RING
155. [1] 139411-0100 SHIM D22.0&12.0T0.40
156. [0] 139411-0200 SHIM D18.0&12.0T0.10
156B. [0] 139411-0300 SHIM D18.0&12.0T0.20
156C. [0] 139411-0400 SHIM D18.0&12.0T0.30
157. [1] 154204-3500 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
162. [1] 029331-6050 GASKET
163. [1] 154401-3201 BLEEDER SCREW
164. [1] 154243-0720 CONTROL LEVER
165. [1] 154327-6000 COILED SPRING
166. [1] 029310-8320 SHIM D16.5&8T0.2
167. [1] 154356-3600 LOCKING WASHER
170. [1] 154217-7020 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154234-3220 STRAP
175. [1] 154232-2323 CONNECTOR
179. [1] 154238-0201 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154239-0420 TENSIONING LEVER
182. [1] 154237-1200 BEARING PIN
183. [2] 154237-1300 BUSHING
183. [2] 154237-1300 BUSHING
190. [1] 154360-2800 CONTROL LEVER
191. [1] 154340-4320 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154368-7820 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
195. [2] 154332-5300 COILED SPRING
196. [2] 154156-3601 TUBE
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-4100 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-8520 HEADLESS SCREW
221. [1] 029201-2130 UNION NUT M12P1.0H6
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5200 IMPELLER WHEEL
236. [1] 154371-5600 GASKET
237. [1] 154390-0200 GASKET
238. [1] 139700-0100 O-RING
250. [1] 154063-9800 COVER
251. [1] 154358-2500 SEAL RING
252. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
252B. [2] 020006-2040 BLEEDER SCREW M6P1L20 4T
253. [1] 029320-5020 LOCKING WASHER
254. [1] 010535-1040 FLAT-HEAD SCREW M5P0.8L10
255. [1] 154373-5620 BRACKET
331. [1] 154188-1220 HEADLESS SCREW
332. [1] 139218-0500 UNION NUT
335. [1] 154352-2600 CAPSULE
336. [1] 029331-6030 GASKET
350. [1] 154356-0221 BRACKET
351. [3] 029010-5340 BLEEDER SCREW
835S. [2] 154062-1700 CAP D20L32
835S. [2] 154062-1700 CAP D20L32
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106873-3310 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105489-4710
F 019 Z5E 047
NP-EP/RFD200/1300PF10DJR
223007890A  HINO
GOVERNOR
K




Information:


Table 1
Required Tools
Tool     Part Number     Part Description     Qty
A     380-5200     Tool Kit     1
B     366-7782     Attenuator     1    Testing Procedure
Perform a "Manual Diesel Particulate Filter Regeneration" using the electronic service tool. If the "Manual Diesel Particulate Filter Regeneration" procedure follows the removal of excess oil from the exhaust system, proceed to Step 2.
Follow the procedure that is detailed by Step 1.b through to Step 1.m to clean oil from the exhaust system.
Remove excess oil from all pipes with a clean cloth.
Remove the DPF from the bracket for the clean emission module. Refer to Disassembly and Assembly, "Diesel Particulate Filter - Remove" for the correct procedure.
Use a suitable supporting device, position the DPF in a vertical position. Ensure that the inlet side of the DPF faces in a DOWNWARDS position.
Let the DPF drain overnight. The oil will collect inside the inlet face of the DPF. Position a suitable container under the inlet face of the DPF. Incline the inlet face of the DPF to drain the oil into the container.
If amount drained from DPF equals less than 1 L (0.26 US gal), proceed to Step 1.g. If amount is greater than 1 L (0.26 US gal), then the DPF should be replaced.
Remove excess oil from the inlet and outlet of the DPF with a clean cloth.
Install the DPF from the bracket for the clean emission module. Refer to Disassembly and Assembly, "Diesel Particulate Filter - Install" for the correct procedure.
Start the engine. Operate the engine a 100 percent throttle for a MINIMUM of 20 minutes. Do not operate the application under load at this time period.
After 20 minutes, use the electronic service tool to perform the "DPF Desulphation Procedure". The "DPF Desulphation Procedure" will last 60 minutes.
Once the "DPF Desulphation Procedure" has been completed, observe the soot load. If the soot load is at a value less than 80 percent, then the application can be returned to service.
Check the application for any signs of visible black smoke coming from the exhaust stack after the cleaning procedure has been completed. This could indicate a cracked DPF that will need to be replaced.Note: Black soot residue on the surface of the inside of the exhaust stack does not necessarily indicate a cracked DPF therefore should not be used in determining a problem with the DPF.
If white smoke does not dissipate, contact the Technical Communicator at a Caterpillar dealer. For further assistance, the Technical Communicator can confer with the Dealer Solutions Network.
After the manual DPF regeneration is complete, operate the engine at 1800 rpm for a MINIMUM of 20 minutes to stabilize the DPF temperatures.Note: The engine must maintain a steady speed for the entire duration of the test.
Hot engine components can cause injury from burns. Before performing maintenance on the engine, allow the engine and the components to cool.
Illustration 1 g02597531
Typical example (1) DPF Outlet Cap (2) Filter Paper (3) Hose Assembly (4) Air Pump
Illustration

Have questions with 105489-4710?





Group cross 105489-4710 ZEXEL

Isuzu


1157707640
GOVERNOR


GOVERNOR

Isuzu

F 019 Z5E 046
NP-EP/RFD200/1350PF30DER
1157707641
GOVERNOR

Hino

105489-4710
F 019 Z5E 047
NP-EP/RFD200/1300PF10DJR
223007890A
GOVERNOR
F 019 Z9E 355
223007840A
GOVERNOR
9 420 613 747
NP-EP/RFD200/1300PF10DJR

GOVERNOR
9 420 613 748

GOVERNOR
9 420 610 922
NP-EP/RFD200/1300PF10DJR

GOVERNOR














GOVERNOR

Hino

9 420 613 749
223007960A
GOVERNOR
F 01G 29N 01L
NP-EP/RFD200/1550PF74DHR

GOVERNOR


GOVERNOR
9 420 610 923
NP-EP/RFD200/1300PF28DJR

GOVERNOR
