105489-4640 ZEXEL 9 420 613 744 BOSCH GOVERNOR 9420613744 1054894640

Information governor

BOSCH 9 420 613 744 9420613744

ZEXEL 105489-4640 1054894640

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105489-4640 zexel genuine, new aftermarket engine parts with delivery

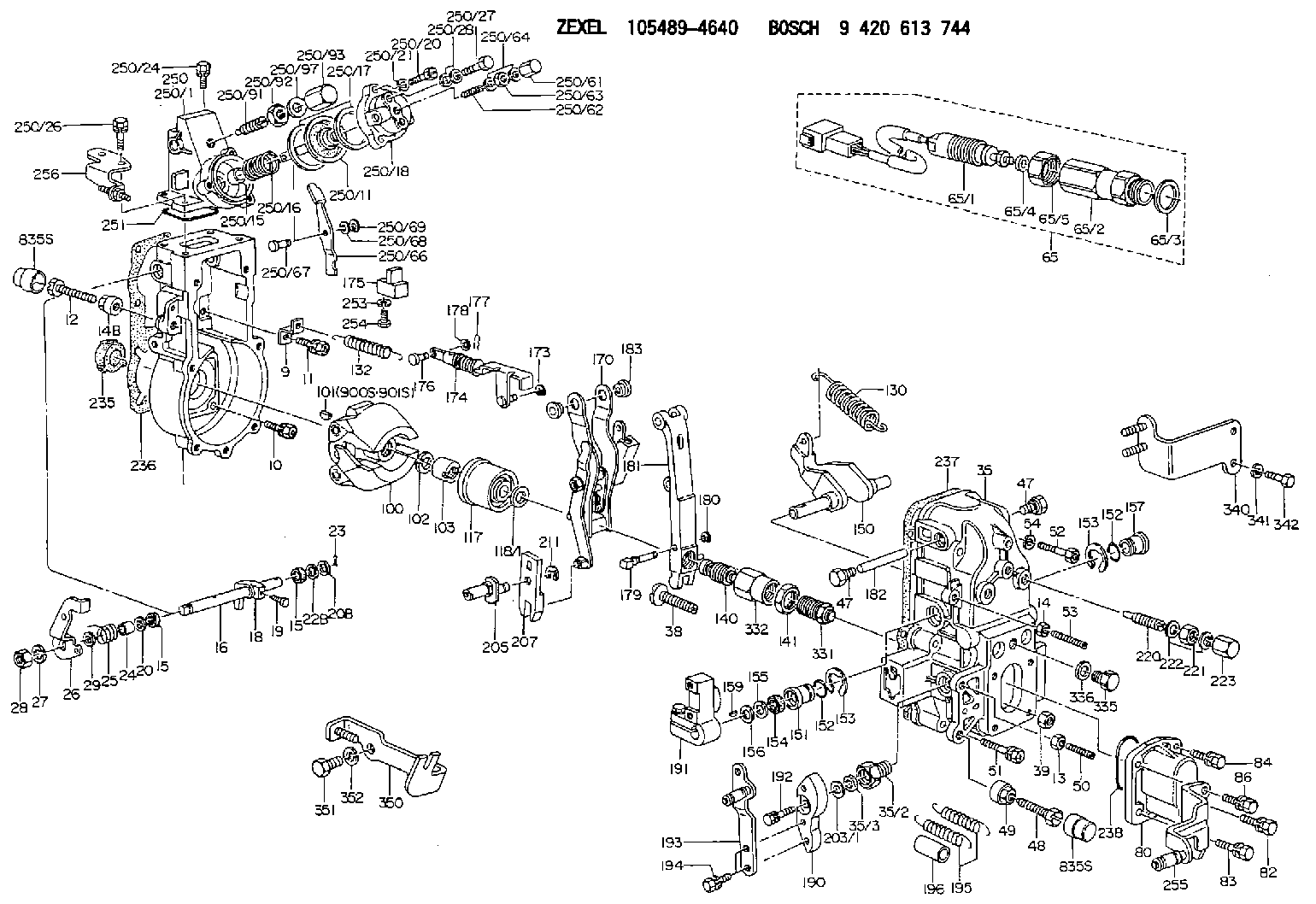

Scheme ###:

1.	[1]	154004-6420	GOVERNOR HOUSING
9.	[1]	154350-6000	PLATE
10.	[4]	139006-4100	BLEEDER SCREW
11.	[4]	139006-5800	BLEEDER SCREW
12.	[1]	154010-7300	BLEEDER SCREW M8P1.25L60
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
15.	[2]	139608-0000	PACKING RING
15.	[2]	139608-0000	PACKING RING
16.	[1]	155004-3600	LEVER SHAFT
18.	[1]	155003-3401	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20.	[1]	139308-1500	PLAIN WASHER D18&8T1.0
20B.	[1]	139308-1600	PLAIN WASHER D18&8T1.5
22B.	[0]	029310-8050	SHIM D13.5&8T0.5
22B.	[7]	139408-1500	SHIM
23.	[1]	154373-2200	SAFETY PIN
24.	[1]	154206-2000	BUSHING
25.	[1]	154327-9000	COILED SPRING
26.	[1]	154381-8600	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER
28.	[1]	013020-8040	UNION NUT M8P1.25H7
29.	[1]	139408-1400	SHIM
29B.	[0]	139408-1400	SHIM
29C.	[0]	139408-1500	SHIM
35.	[1]	154515-4720	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1800	CAPSULE
47.	[2]	154036-1800	CAPSULE
48.	[1]	154010-7900	BLEEDER SCREW M10P1.25L58
48B.	[1]	154010-6000	BLEEDER SCREW M10P1.25L55
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-2300	FLAT-HEAD SCREW
51.	[5]	020106-4540	BLEEDER SCREW M6P1.0L45
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-3100	BLEEDER SCREW
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	154610-9020	RACK SENSOR ASSY
65/1.	[1]	479742-7220	RACK SENSOR
65/2.	[1]	154614-6800	JOINT CONNECTION
65/3.	[1]	026524-3040	GASKET
65/4A.	[0]	029310-6220	SHIM D11.5&6.5T0.10
65/4B.	[0]	029310-6230	SHIM D11.5&6.5T0.20
65/4C.	[0]	029310-6240	SHIM D11.5&6.5T0.25
65/4D.	[0]	029310-6260	SHIM D11.5&6.4T1.00
65/4E.	[0]	029310-6270	SHIM D11.5&6.4T1.20
65/4F.	[0]	029310-6280	SHIM D11.5&6.4T1.50
65/5.	[1]	154614-1900	UNION NUT
80.	[1]	154063-9100	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	029020-6240	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	020006-1840	BLEEDER SCREW M6P1L18
100.	[1]	154100-9320	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7900	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154183-0020	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
150.	[1]	154200-5601	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM D22.0&12.0T0.40
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
170.	[1]	154218-2120	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154235-0720	STRAP
175.	[1]	154232-1923	CONNECTOR
176.	[1]	159231-4900	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
178.	[1]	029310-5170	SHIM D8&5.3T0.5
179.	[1]	154238-0701	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154239-1120	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1800	BUSHING
190.	[1]	154360-2700	CONTROL LEVER
191.	[1]	154340-4520	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154386-1320	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
195.	[2]	154338-1300	COILED SPRING
196.	[2]	154156-2800	TUBE
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3600	LEVER SHAFT
207.	[1]	154326-8220	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-8620	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5300	IMPELLER WHEEL
236.	[1]	154390-1500	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	139700-0100	O-RING
250.	[1]	154420-4320	MANIFOLD-PRESSURE COMP.
250/1.	[1]	154412-5822	DIAPHRAGM HOUSING
250/11.	[1]	154412-6522	DIAPHRAGM
250/15.	[1]	154412-7700	BUSHING
250/16.	[1]	154402-3200	COILED SPRING
250/17.	[2]	154413-2600	GASKET
250/18.	[1]	154404-5000	COVER
250/20.	[3]	139006-0900	BLEEDER SCREW
250/21.	[3]	014110-6440	LOCKING WASHER
250/24.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
250/26.	[2]	020106-2040	BLEEDER SCREW M6P1L20
250/27.	[1]	029731-0180	EYE BOLT
250/28.	[2]	026510-1340	GASKET D13.4&10.2T1
250/61.	[1]	154035-1600	CAP NUT
250/62.	[1]	154404-4400	FLAT-HEAD SCREW
250/63.	[1]	013030-6040	UNION NUT M6P1H3.6
250/64.	[2]	026506-1040	GASKET D9.9&6.2T1
250/66.	[1]	154412-4622	CONTROL LEVER
250/67.	[1]	154412-1600	BEARING PIN
250/68.	[1]	029310-5090	SHIM D10&5.1T0.5
250/69.	[1]	016010-0540	LOCKING WASHER
250/91.	[1]	154412-5120	HEADLESS SCREW
250/92.	[1]	029201-2030	UNION NUT M12P1.0H4
250/93.	[1]	154412-5300	CAP NUT
250/97.	[2]	026512-1540	GASKET D15.4&12.2T1.50
251.	[1]	154358-2500	SEAL RING
253.	[1]	029320-5020	LOCKING WASHER
254.	[1]	010535-1040	FLAT-HEAD SCREW M5P0.8L10
255.	[1]	154375-1820	BRACKET
256.	[1]	154373-7120	BRACKET
331.	[1]	154188-2220	HEADLESS SCREW
332.	[1]	139218-0500	UNION NUT
335.	[1]	154352-2600	CAPSULE
336.	[1]	029331-6030	GASKET
340.	[1]	154375-0920	BRACKET
341.	[2]	014110-8440	LOCKING WASHER
342.	[2]	010038-1240	BLEEDER SCREW
350.	[1]	154375-0820	BRACKET
351.	[2]	010010-1640	BLEEDER SCREW M10P1.5L16 4T
352.	[2]	014111-0440	LOCKING WASHER
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

108622-3310 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105489-4640
105489-4641

9 420 613 744

GOVERNOR
