Information governor
BOSCH
F 019 Z2F 174
f019z2f174
ZEXEL
105489-4464
1054894464

Rating:

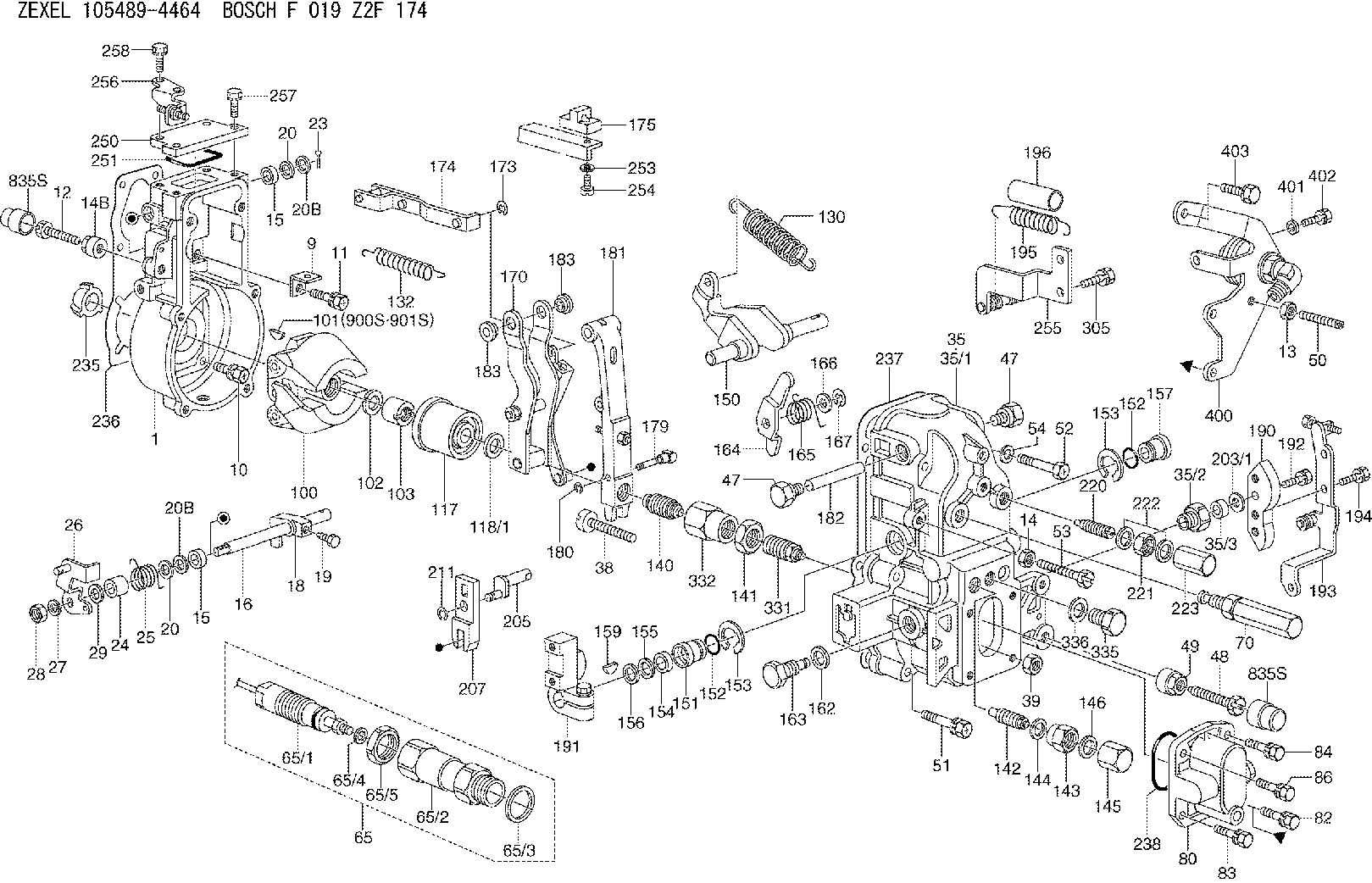

Scheme ###:
1. | [1] | 154004-6420 | GOVERNOR HOUSING |
9. | [1] | 154376-3320 | PLATE |
10. | [4] | 139006-4100 | BLEEDER SCREW |
11. | [4] | 139006-5800 | BLEEDER SCREW |
12. | [1] | 154013-0600 | BLEEDER SCREW |
13. | [1] | 139206-0700 | UNION NUT |
14. | [1] | 154011-0100 | HEXAGON NUT |
14B. | [1] | 154011-2300 | UNION NUT |
15. | [2] | 139608-0000 | PACKING RING |
15. | [2] | 139608-0000 | PACKING RING |
16. | [1] | 155004-3600 | LEVER SHAFT |
18. | [1] | 155003-3401 | CONTROL LEVER |
19. | [1] | 155006-0700 | BLEEDER SCREW |
20. | [1] | 139308-1500 | PLAIN WASHER D18&8T1.0 |
20. | [1] | 139308-1500 | PLAIN WASHER D18&8T1.0 |
20B. | [1] | 139308-1600 | PLAIN WASHER D18&8T1.5 |
20B. | [1] | 139308-1600 | PLAIN WASHER D18&8T1.5 |
23. | [1] | 154373-2200 | SAFETY PIN |
24. | [1] | 154206-5200 | BUSHING |
25. | [1] | 154327-9500 | COILED SPRING |
26. | [1] | 154381-7520 | CONTROL LEVER |
27. | [1] | 014110-8440 | LOCKING WASHER D15.4&8.2T2 |
28. | [1] | 013020-8040 | UNION NUT |
29. | [1] | 139408-1400 | SHIM D16&8T0.2 |
29B. | [0] | 139408-1400 | SHIM D16&8T0.2 |
29C. | [0] | 139408-1500 | SHIM D16&8T0.5 |
35. | [1] | 154516-1920 | GOVERNOR COVER |
35/1. | [1] | 154516-1900 | GOVERNOR COVER |
35/2. | [1] | 154321-2000 | BUSHING |
35/3. | [1] | 139610-0600 | PACKING RING |
38. | [1] | 154031-3401 | FLAT-HEAD SCREW |
39. | [1] | 029201-0160 | UNION NUT |
47. | [2] | 154036-1800 | CAPSULE |
47. | [2] | 154036-1800 | CAPSULE |
48. | [1] | 154010-6000 | BLEEDER SCREW M10P1.25L55 |
48B. | [1] | 154010-7900 | BLEEDER SCREW M10P1.25L58 |
49. | [1] | 154011-2200 | UNION NUT |
50. | [1] | 155615-3100 | FLAT-HEAD SCREW |
51. | [5] | 020106-4540 | BLEEDER SCREW |
52. | [2] | 029010-6850 | BLEEDER SCREW |
53. | [1] | 154010-3100 | BLEEDER SCREW |
54. | [2] | 014110-6440 | LOCKING WASHER D12.2&6.1T1.5 |
65. | [1] | 154610-7721 | RACK SENSOR ASSY |
65/1. | [1] | 479742-5921 | RACK SENSOR |
65/2. | [1] | 154614-4800 | JOINT CONNECTION |
65/3. | [1] | 026524-3040 | GASKET |
65/4. | [1] | 029310-6280 | SHIM |
65/5. | [1] | 154614-1900 | UNION NUT |
70. | [1] | 154055-2720 | HEADLESS SCREW |
80. | [1] | 154063-4100 | COVER |
82. | [1] | 020006-2240 | BLEEDER SCREW |
83. | [1] | 029020-6210 | BLEEDER SCREW |
84. | [1] | 020006-2240 | BLEEDER SCREW |
86. | [1] | 029020-6210 | BLEEDER SCREW |
100. | [1] | 154100-9220 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1310 | WOODRUFF KEY 13 MM |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 139212-0000 | UNION NUT |
117. | [1] | 154123-2320 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-8000 | GOVERNOR SPRING |
132. | [1] | 154154-4600 | COILED SPRING |
140. | [1] | 154189-0620 | HEADLESS SCREW |
141. | [1] | 139218-0100 | UNION NUT |
142. | [1] | 154242-5220 | HEADLESS SCREW |
143. | [1] | 154242-5400 | UNION NUT |
144. | [1] | 026516-2040 | GASKET |
145. | [1] | 154159-1800 | CAP NUT |
146. | [1] | 029331-6130 | GASKET |
150. | [1] | 154200-5601 | SWIVELLING LEVER |
151. | [1] | 154200-5501 | BUSHING |
152. | [2] | 139700-0000 | O-RING |
152. | [2] | 139700-0000 | O-RING |
153. | [2] | 154354-3900 | LOCKING WASHER |
153. | [2] | 154354-3900 | LOCKING WASHER |
154. | [1] | 139610-0101 | PACKING RING |
155. | [1] | 139411-0100 | SHIM |
156. | [0] | 139411-0200 | SHIM D18.0&12.0T0.10 |
156B. | [0] | 139411-0300 | SHIM D18.0&12.0T0.20 |
156C. | [0] | 139411-0400 | SHIM D18.0&12.0T0.30 |
157. | [1] | 154204-3500 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY 13 MM |
162. | [1] | 029331-6050 | GASKET |
163. | [1] | 154401-3201 | BLEEDER SCREW |
164. | [1] | 154243-0720 | CONTROL LEVER |
165. | [1] | 154327-6000 | COILED SPRING |
166. | [1] | 029310-8320 | SHIM |
167. | [1] | 154356-3600 | LOCKING WASHER |
170. | [1] | 154218-6220 | FORK LEVER |
173. | [1] | 016010-0540 | LOCKING WASHER |
174. | [1] | 154235-2020 | STRAP |
175. | [1] | 154232-1821 | CONNECTOR |
179. | [1] | 154238-1700 | BEARING PIN |
180. | [1] | 016010-0540 | LOCKING WASHER |
181. | [1] | 154239-3520 | TENSIONING LEVER |
182. | [1] | 154237-1200 | BEARING PIN |
183. | [2] | 154237-1800 | BUSHING |
183. | [2] | 154237-1800 | BUSHING |
190. | [1] | 154360-2800 | CONTROL LEVER |
191. | [1] | 154340-4320 | CONTROL LEVER |
192. | [1] | 020006-1670 | BLEEDER SCREW |
193. | [1] | 154386-3720 | CONTROL LEVER |
194. | [2] | 020006-1240 | BLEEDER SCREW |
195. | [2] | 154338-0100 | COILED SPRING |
196. | [2] | 154156-1800 | TUBE |
203/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
203/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
203/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
203/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
203/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
203/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
203/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
203/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
203/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
203/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
203/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
205. | [1] | 154324-3500 | LEVER SHAFT |
207. | [1] | 154326-8121 | CONTROL LEVER |
211. | [1] | 016010-0840 | LOCKING WASHER |
220. | [1] | 154050-8220 | HEADLESS SCREW |
221. | [1] | 029201-2140 | UNION NUT |
222. | [2] | 026512-1540 | GASKET |
223. | [1] | 154159-1200 | CAP NUT |
235. | [1] | 155412-5200 | IMPELLER WHEEL |
236. | [1] | 154390-1500 | GASKET |
237. | [1] | 154390-0200 | GASKET |
238. | [1] | 139700-0100 | O-RING |
250. | [1] | 154063-9800 | COVER |
251. | [1] | 154358-2500 | SEAL RING |
253. | [1] | 029320-5020 | LOCKING WASHER |
254. | [1] | 010535-1040 | FLAT-HEAD SCREW |
255. | [1] | 154374-9720 | BRACKET |
256. | [1] | 154373-7120 | BRACKET |
257. | [2] | 020106-1640 | BLEEDER SCREW |
258. | [2] | 020106-2040 | BLEEDER SCREW |
305. | [2] | 020118-1240 | BLEEDER SCREW |
331. | [1] | 154179-5120 | HEADLESS SCREW |
332. | [1] | 139218-0500 | UNION NUT |
335. | [1] | 154352-2600 | CAPSULE |
336. | [1] | 029331-6030 | GASKET |
400. | [1] | 154373-1620 | CYLINDER |
401. | [1] | 014010-6140 | PLAIN WASHER D13&6.5T1.0 |
402. | [1] | 020006-1240 | BLEEDER SCREW |
403. | [1] | 020018-2040 | BLEEDER SCREW |
835S. | [2] | 154062-1700 | CAP |
835S. | [2] | 154062-1700 | CAP |
900S. | [1] | 025803-1310 | WOODRUFF KEY 13 MM |
901S. | [1] | 025803-1610 | WOODRUFF KEY 16 MM |
Include in #1:
108822-3015
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Test Procedure
System Operation
An energized input closes the N.O. contacts. An energized input opens the N.C. contacts. Digital modules are used to determine whether a circuit is ON/OFF. A number of modules are available. The most common modules have sixteen channels.
Illustration 1 g00563503
Diagram of the programmable logic controller
Illustration 2 g00563591
Schematic of the discrete inputFunctional Test
Check the electrical connectors and check the wiring.
Bodily contact with electrical potential can cause bodily injury or death.To avoid the possibility of injury or death, ensure that the main power supply has been disconnected before performing any maintenance or removing any modules.
Disconnect the power supply.
Check the electrical connectors and check the wiring for damage or bad connections.
Verify that all modules are properly seated.
Verify the status of the LED on the SLC 5/04.The results of the preceding procedure are in the following list:
All of the components are fully installed. All of the components are free of corrosion. All of the components are free of damage. All of the modules are properly seated. Proceed to 2.
The components are not fully installed. The components are not free of corrosion. The components are damaged. All of the modules are not properly seated. Repair the component. Verify that the repair resolves the problem. STOP.
Verify the value of the channel.
Get on-line with the PLC.
Locate the software address for the channel.The results of the preceding procedure are in the following list:
The channel has a software address. Proceed to 3.
The channel does not have a software address. Replace the module. Verify that the repair resolves the problem. Refer to Maintenance Procedure, "Input Module and Output Module - Replace". Stop.
Apply the rated voltage.
Apply the rated voltage to the channel.
Verify that the address changed from zero to one.Note: The LED will illuminate when the rated voltage is applied to the channel.The results of the preceding procedure are in the following list:
The software address value changes. The module is functioning normally. Stop.
The software address value does not change. the module is not functioning normally. Replace the module. Verify that the repair resolves the problem. Refer to Maintenance Procedure, "Input Module and Output Module - Replace". Stop.
