105489-4432 ZEXEL F 019 Z9E 875 BOSCH GOVERNOR f019z9e875 1054894432 223008360a

Information governor

BOSCH F 019 Z9E 875 f019z9e875

ZEXEL 105489-4432 1054894432

HINO 223008360A 223008360a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105489-4432 zexel genuine, new aftermarket engine parts with delivery

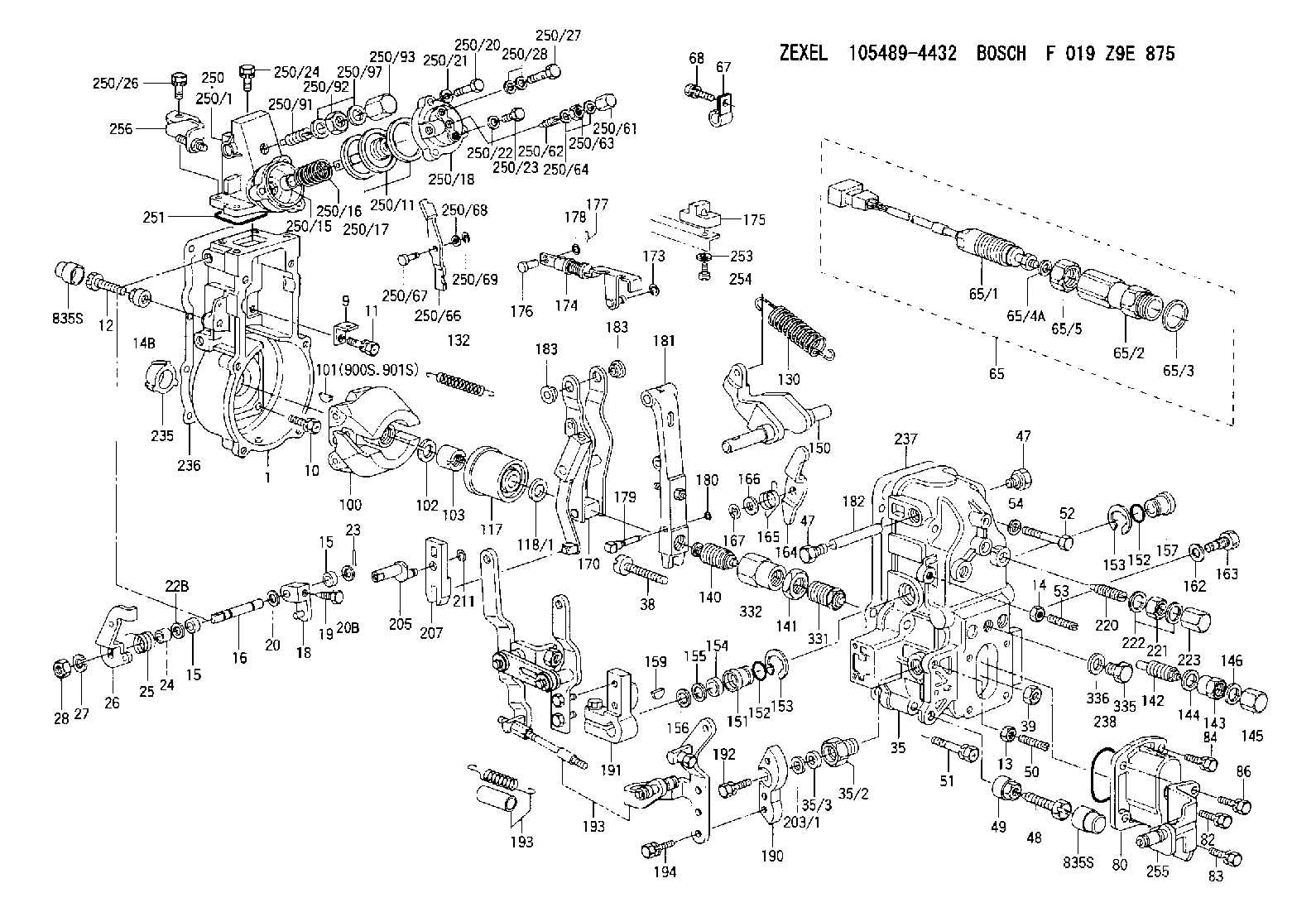

Scheme ###:

1.	[1]	154004-6420	GOVERNOR HOUSING
9.	[1]	154350-6000	PLATE
10.	[4]	139006-4100	BLEEDER SCREW
11.	[4]	139006-5800	BLEEDER SCREW
12.	[1]	154010-7300	BLEEDER SCREW M8P1.25L60
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
15.	[2]	139608-0000	PACKING RING
15.	[2]	139608-0000	PACKING RING
16.	[1]	155004-3600	LEVER SHAFT
18.	[1]	155003-3400	CONTROL LEVER
19.	[1]	155006-0500	BLEEDER SCREW
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
22B.	[0]	029310-8050	SHIM D13.5&8T0.5
23.	[1]	025520-1210	SPLIT PIN
24.	[1]	154206-5200	BUSHING
25.	[1]	154327-9500	COILED SPRING
26.	[1]	154381-2900	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER
28.	[1]	013020-8040	UNION NUT M8P1.25H7
35.	[1]	154515-3720	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1800	CAPSULE
47.	[2]	154036-1800	CAPSULE
48.	[1]	154010-7700	BLEEDER SCREW M10P1.25L51
48B.	[1]	154010-6000	BLEEDER SCREW M10P1.25L55
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-2300	FLAT-HEAD SCREW
51.	[5]	020106-4540	BLEEDER SCREW M6P1.0L45
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-1100	FLAT-HEAD SCREW
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	154610-7520	RACK SENSOR ASSY
65/1.	[1]	479742-5320	RACK SENSOR
65/2.	[1]	154614-4700	JOINT CONNECTION
65/3.	[1]	026524-3040	GASKET
65/4A.	[0]	029310-6220	SHIM D11.5&6.5T0.10
65/4B.	[0]	029310-6230	SHIM D11.5&6.5T0.20
65/4C.	[0]	029310-6240	SHIM D11.5&6.5T0.25
65/4D.	[0]	029310-6260	SHIM D11.5&6.4T1.00
65/4E.	[0]	029310-6270	SHIM D11.5&6.4T1.20
65/4F.	[0]	029310-6280	SHIM D11.5&6.4T1.50
65/5.	[1]	154614-1900	UNION NUT
67.	[1]	154614-3600	CLAMPING BAND
68.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
80.	[1]	154063-9100	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	029020-6240	BLEEDER SCREW
84.	[1]	020006-1840	BLEEDER SCREW M6P1L18
86.	[1]	020006-1840	BLEEDER SCREW M6P1L18
100.	[1]	154100-9320	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7900	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154183-0320	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
142.	[1]	154242-5720	HEADLESS SCREW
143.	[1]	154242-3200	UNION NUT
144.	[1]	026516-2040	GASKET D19.9&16.2T1
145.	[1]	154159-1800	CAP NUT
146.	[1]	029331-6130	GASKET
150.	[1]	154200-5601	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM D22.0&12.0T0.40
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
162.	[1]	029331-6050	GASKET
163.	[1]	154401-3201	BLEEDER SCREW
164.	[1]	154243-0820	CONTROL LEVER
165.	[1]	154327-6100	COILED SPRING
166.	[1]	029310-8320	SHIM D16.5&8T0.2
167.	[1]	154356-3600	LOCKING WASHER
170.	[1]	154217-7620	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154235-0720	STRAP
175.	[1]	154232-2323	CONNECTOR
176.	[1]	154222-4900	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
178.	[1]	029310-5170	SHIM D8&5.3T0.5
179.	[1]	154238-0701	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154239-2320	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1800	BUSHING
183.	[2]	154237-1800	BUSHING
190.	[1]	154360-2700	CONTROL LEVER
191.	[1]	154340-4620	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154399-6520	LEVER GROUP
193.	[1]	154399-6520	LEVER GROUP
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3600	LEVER SHAFT
207.	[1]	154326-8220	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-8220	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154413-2900	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	139700-0100	O-RING
250.	[1]	154420-0620	MANIFOLD-PRESSURE COMP.
250/1.	[1]	154412-5822	DIAPHRAGM HOUSING
250/11.	[1]	154412-6522	DIAPHRAGM
250/15.	[1]	154412-7700	BUSHING
250/16.	[1]	154411-3800	COILED SPRING
250/17.	[2]	154413-2600	GASKET
250/18.	[1]	154404-3900	COVER
250/20.	[3]	139006-0900	BLEEDER SCREW
250/21.	[3]	014110-6440	LOCKING WASHER
250/22.	[1]	026506-1040	GASKET D9.9&6.2T1
250/23.	[1]	029010-6010	CAPSULE M6P1.0L7
250/24.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
250/26.	[2]	020106-2040	BLEEDER SCREW M6P1L20
250/27.	[1]	029731-0180	EYE BOLT
250/28.	[2]	026510-1340	GASKET D13.4&10.2T1
250/61.	[1]	154035-1600	CAP NUT
250/62.	[1]	154404-4400	FLAT-HEAD SCREW
250/63.	[1]	013030-6040	UNION NUT M6P1H3.6
250/64.	[2]	026506-1040	GASKET D9.9&6.2T1
250/66.	[1]	154412-4622	CONTROL LEVER
250/67.	[1]	154412-1600	BEARING PIN
250/68.	[1]	029310-5090	SHIM D10&5.1T0.5
250/69.	[1]	016010-0540	LOCKING WASHER
250/91.	[1]	154412-5120	HEADLESS SCREW
250/92.	[1]	029201-2030	UNION NUT M12P1.0H4
250/93.	[1]	154412-5300	CAP NUT
250/97.	[2]	026512-1540	GASKET D15.4&12.2T1.50
251.	[1]	154358-2500	SEAL RING
253.	[1]	029320-5020	LOCKING WASHER
254.	[1]	010535-1040	FLAT-HEAD SCREW M5P0.8L10
255.	[1]	154375-2920	BRACKET
256.	[1]	154373-8420	BRACKET
331.	[1]	154179-5020	HEADLESS SCREW
332.	[1]	139218-0500	UNION NUT
335.	[1]	154352-2600	CAPSULE
336.	[1]	029331-6030	GASKET
835S.	[2]	154062-1700	CAP D20L32
835S.	[2]	154062-1700	CAP D20L32
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

108622-3233 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105489-4432
105489-4433

F 019 Z9E 875

223008360A HINO

GOVERNOR
* K

Information:

Illustration 2 g00563507
Functional Test
Check the electrical connectors and check the wiring.
Bodily contact with electrical potential can cause bodily injury or death.To avoid the possibility of injury or death, ensure that the main power supply has been disconnected before performing any maintenance or removing any modules.
Disconnect the power supply.
Check the electrical connectors and check the wiring for damage or bad connections.
Verify that all modules are properly seated.
Connect the power supply.
Verify the status of the LED on the SLC 5/04.The results of the preceding procedure are in the following list:
All of the components are fully installed. All of the components are free of corrosion. All of the components are free of damage. All of the modules are properly seated. Proceed to 2.
The components are not fully installed. The components are not free of corrosion. The components are damaged. All of the modules are not properly seated. Repair the component. Verify that the repair resolves the problem. STOP.
Check the fuse for the power supply.
Bodily contact with electrical potential can cause bodily injury or death.To avoid the possibility of injury or death, ensure that the main power supply has been disconnected before performing any maintenance or removing any modules.
Ensure that the power supply has been disconnected.
Check the fuse for the power supply.The results of the preceding procedure are in
