Information governor
BOSCH
9 420 612 945
9420612945
ZEXEL
105489-4320
1054894320
ISUZU
1157707080
1157707080

Rating:

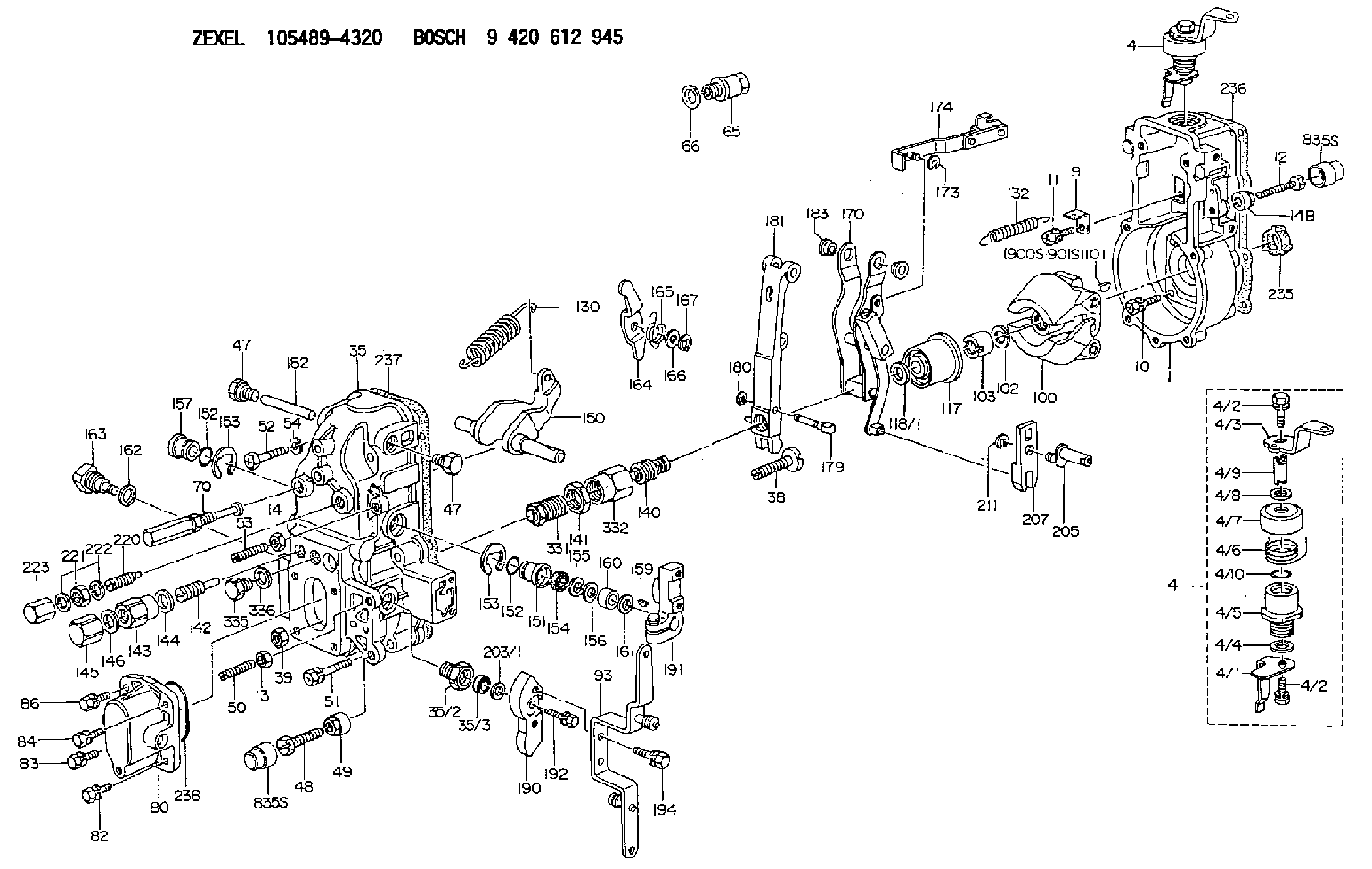

Scheme ###:
1. | [1] | 154004-2000 | GOVERNOR HOUSING |
1. | [1] | 154004-2000 | GOVERNOR HOUSING |
4. | [1] | 154381-6620 | CONTROL LEVER |
4. | [1] | 154381-6620 | CONTROL LEVER |
4/1. | [1] | 154304-6200 | CONTROL LEVER |
4/2. | [2] | 154352-2000 | BLEEDER SCREW |
4/3. | [1] | 154364-0400 | CONTROL LEVER |
4/4. | [1] | 029311-0230 | SHIM D18&10.3T0.5 |
4/5. | [1] | 154321-1500 | BUSHING |
4/6. | [1] | 154327-2901 | COILED SPRING |
4/7. | [1] | 154322-0100 | CAP |
4/8. | [1] | 029311-0220 | SHIM D18&10.3T0.2 |
4/9. | [1] | 154324-2700 | LEVER SHAFT |
4/10. | [1] | 139710-0300 | O-RING |
9. | [1] | 154350-6000 | PLATE |
10. | [4] | 020106-2040 | BLEEDER SCREW M6P1L20 |
11. | [4] | 020106-1840 | BLEEDER SCREW M6P1L18 |
12. | [1] | 154010-8100 | BLEEDER SCREW M8P1.25L65 |
13. | [1] | 013020-6040 | UNION NUT M6P1H5 |
14. | [1] | 154011-0100 | HEXAGON NUT |
14B. | [1] | 154011-2300 | UNION NUT |
35. | [1] | 154515-3420 | GOVERNOR COVER |
35/2. | [1] | 154321-2000 | BUSHING |
35/3. | [1] | 139610-0600 | PACKING RING |
38. | [1] | 154031-3401 | FLAT-HEAD SCREW |
39. | [1] | 029201-0160 | UNION NUT |
47. | [2] | 154036-1800 | CAPSULE |
47. | [2] | 154036-1800 | CAPSULE |
48. | [1] | 154010-7900 | BLEEDER SCREW M10P1.25L58 |
48B. | [1] | 154010-6000 | BLEEDER SCREW M10P1.25L55 |
49. | [1] | 154011-2200 | UNION NUT |
50. | [1] | 155615-2300 | FLAT-HEAD SCREW |
51. | [5] | 020106-4540 | BLEEDER SCREW M6P1.0L45 |
52. | [2] | 029010-6850 | BLEEDER SCREW |
53. | [1] | 154010-0100 | FLAT-HEAD SCREW |
54. | [2] | 014110-6440 | LOCKING WASHER |
65. | [1] | 153021-5000 | CAP |
66. | [1] | 139524-0000 | GASKET |
70. | [1] | 154055-2520 | HEADLESS SCREW |
80. | [1] | 154063-4100 | COVER |
82. | [1] | 029020-6210 | BLEEDER SCREW |
83. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
84. | [1] | 029020-6210 | BLEEDER SCREW |
86. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
100. | [1] | 154100-9220 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1310 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 139212-0000 | UNION NUT |
117. | [1] | 154123-2320 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-7900 | GOVERNOR SPRING |
132. | [1] | 154154-0701 | COILED SPRING |
140. | [1] | 154183-2120 | HEADLESS SCREW |
141. | [1] | 139218-0100 | UNION NUT |
142. | [1] | 154242-5620 | HEADLESS SCREW |
143. | [1] | 154242-3200 | UNION NUT |
144. | [1] | 139516-0100 | GASKET |
145. | [1] | 154159-1800 | CAP NUT |
146. | [1] | 139516-0100 | GASKET |
150. | [1] | 154200-5701 | SWIVELLING LEVER |
151. | [1] | 154200-5501 | BUSHING |
152. | [2] | 139719-0000 | O-RING |
152. | [2] | 139719-0000 | O-RING |
153. | [2] | 154354-3900 | LOCKING WASHER |
153. | [2] | 154354-3900 | LOCKING WASHER |
154. | [1] | 139612-0000 | PACKING RING |
155. | [1] | 139411-0100 | SHIM D22.0&12.0T0.40 |
156. | [0] | 139411-0200 | SHIM D18.0&12.0T0.10 |
156B. | [0] | 139411-0300 | SHIM D18.0&12.0T0.20 |
156C. | [0] | 139411-0400 | SHIM D18.0&12.0T0.30 |
157. | [1] | 154204-3500 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
160. | [1] | 154206-2300 | BUSHING |
161. | [0] | 154206-2400 | PLAIN WASHER D20.5&12.2T1 |
162. | [1] | 139516-0100 | GASKET |
163. | [1] | 154401-3201 | BLEEDER SCREW |
164. | [1] | 154243-0720 | CONTROL LEVER |
165. | [1] | 154327-6000 | COILED SPRING |
166. | [1] | 029310-8320 | SHIM D16.5&8T0.2 |
167. | [1] | 154356-3600 | LOCKING WASHER |
170. | [1] | 154217-6520 | FORK LEVER |
173. | [1] | 016010-0540 | LOCKING WASHER |
174. | [1] | 154230-6620 | STRAP |
179. | [1] | 154238-0701 | BEARING PIN |
180. | [1] | 016010-0540 | LOCKING WASHER |
181. | [1] | 154239-2420 | TENSIONING LEVER |
182. | [1] | 154237-1200 | BEARING PIN |
183. | [2] | 154237-1800 | BUSHING |
190. | [1] | 154360-2800 | CONTROL LEVER |
191. | [1] | 154340-1920 | CONTROL LEVER |
192. | [1] | 020006-1670 | BLEEDER SCREW M6P1L16 7T |
193. | [1] | 154386-2420 | CONTROL LEVER |
194. | [2] | 020006-1240 | BLEEDER SCREW M6P1L12 4T |
203/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
203/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
203/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
203/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
203/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
203/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
203/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
203/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
203/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
203/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
203/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
205. | [1] | 154324-3500 | LEVER SHAFT |
207. | [1] | 154326-7320 | CONTROL LEVER |
211. | [1] | 016010-0840 | LOCKING WASHER |
220. | [1] | 154050-6820 | HEADLESS SCREW |
221. | [1] | 029201-2140 | UNION NUT |
222. | [2] | 139512-0000 | GASKET D17.2&12.2T1.0 |
223. | [1] | 154159-1200 | CAP NUT |
235. | [1] | 155412-5200 | IMPELLER WHEEL |
236. | [1] | 154371-5600 | GASKET |
237. | [1] | 154390-0200 | GASKET |
238. | [1] | 139700-0100 | O-RING |
331. | [1] | 154188-0220 | HEADLESS SCREW |
332. | [1] | 139218-0500 | UNION NUT |
335. | [1] | 154352-2600 | CAPSULE |
336. | [1] | 139516-0100 | GASKET |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
Include in #1:
106671-1880
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
105489-4320
1157707080 ISUZU
GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV
K 14JN MECHANICAL GOVERNOR GOV RFD GOV
