105489-4242 ZEXEL 9 420 613 731 BOSCH GOVERNOR 9420613731 1054894242




Information governor

BOSCH 9 420 613 731 9420613731
ZEXEL 105489-4242 1054894242
105489-4242 GOVERNOR
Rating:
70
Buy GOVERNOR 105489-4242 zexel genuine, new aftermarket engine parts with delivery

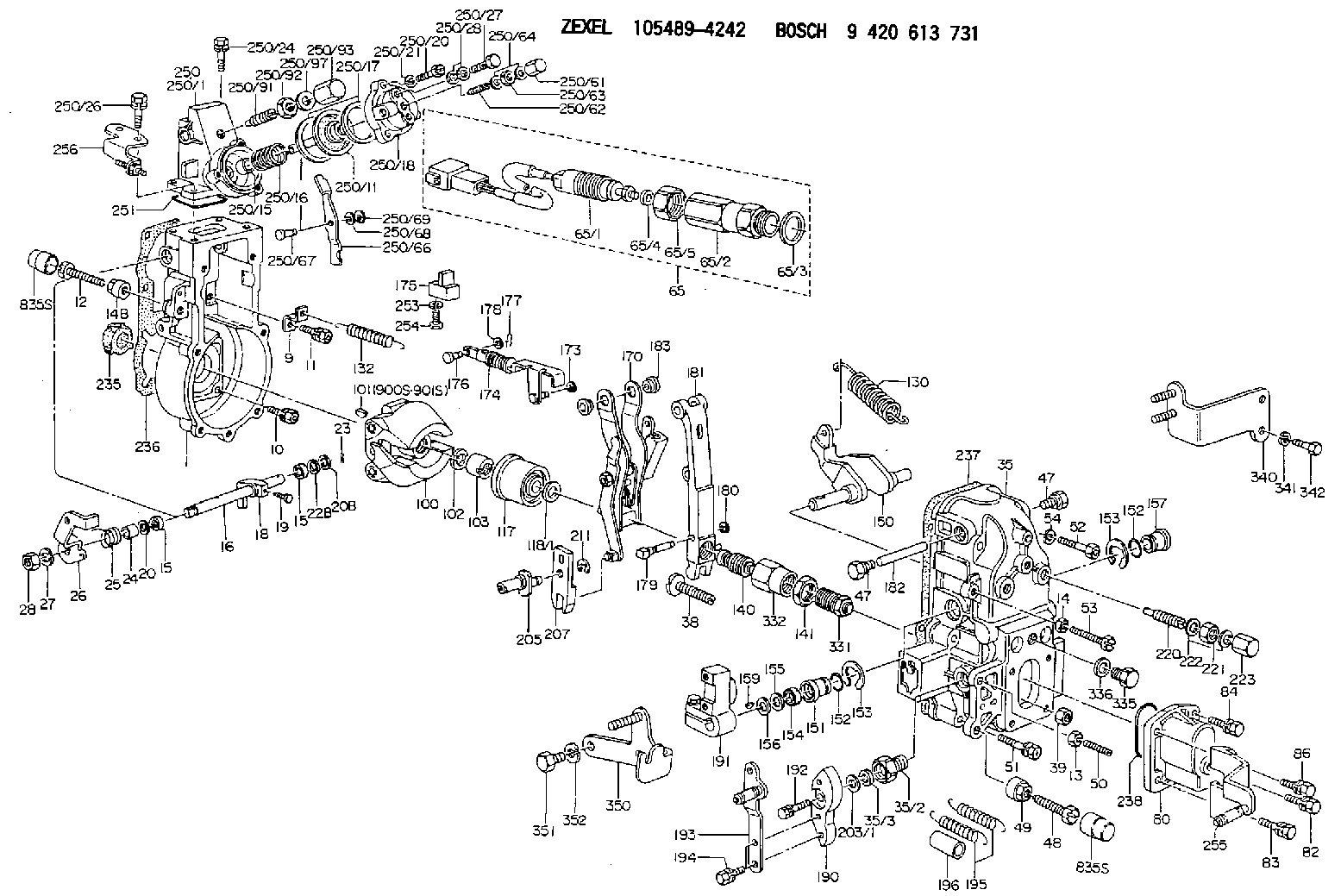

Scheme ###:

GOVERNOR HOUSING
1. [1] 154004-6420 GOVERNOR HOUSING
9. [1] 154350-6000 PLATE
10. [4] 139006-4100 BLEEDER SCREW
11. [4] 139006-5800 BLEEDER SCREW
12. [1] 154010-7300 BLEEDER SCREW M8P1.25L60
13. [1] 013020-6040 UNION NUT M6P1H5
14. [1] 154011-0100 HEXAGON NUT
14B. [1] 154011-2300 UNION NUT
15. [2] 139608-0000 PACKING RING
15. [2] 139608-0000 PACKING RING
16. [1] 155004-3600 LEVER SHAFT
18. [1] 155003-3400 CONTROL LEVER
19. [1] 155006-0500 BLEEDER SCREW
20. [1] 139308-1500 PLAIN WASHER D18&8T1.0
20B. [1] 139308-1600 PLAIN WASHER D18&8T1.5
22B. [0] 029310-8050 SHIM D13.5&8T0.5
22B. [0] 139408-1500 SHIM
23. [1] 154373-2200 SAFETY PIN
24. [1] 154206-5200 BUSHING
25. [1] 154327-9500 COILED SPRING
26. [1] 154381-6800 CONTROL LEVER
27. [1] 014110-8440 LOCKING WASHER
28. [1] 013020-8040 UNION NUT M8P1.25H7
35. [1] 154515-4720 GOVERNOR COVER
35/2. [1] 154321-2000 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3401 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [2] 154036-1800 CAPSULE
47. [2] 154036-1800 CAPSULE
48. [1] 154010-7900 BLEEDER SCREW M10P1.25L58
48B. [1] 154010-6000 BLEEDER SCREW M10P1.25L55
49. [1] 154011-2200 UNION NUT
50. [1] 155615-2300 FLAT-HEAD SCREW
51. [5] 020106-4540 BLEEDER SCREW M6P1.0L45
52. [2] 029010-6850 BLEEDER SCREW
53. [1] 154010-3100 BLEEDER SCREW
54. [2] 014110-6440 LOCKING WASHER
65. [1] 154610-8820 RACK SENSOR ASSY
65/1. [1] 479742-7120 RACK SENSOR
65/2. [1] 154614-6800 JOINT CONNECTION
65/3. [1] 026524-3040 GASKET
65/4A. [0] 029310-6220 SHIM D11.5&6.5T0.10
65/4B. [0] 029310-6230 SHIM D11.5&6.5T0.20
65/4C. [0] 029310-6240 SHIM D11.5&6.5T0.25
65/4D. [0] 029310-6260 SHIM D11.5&6.4T1.00
65/4E. [0] 029310-6270 SHIM D11.5&6.4T1.20
65/4F. [0] 029310-6280 SHIM D11.5&6.4T1.50
65/5. [1] 154614-1900 UNION NUT
80. [1] 154063-9100 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 029020-6240 BLEEDER SCREW
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
86. [1] 020006-1840 BLEEDER SCREW M6P1L18
100. [1] 154100-9320 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 139212-0000 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-7900 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
140. [1] 154183-0020 HEADLESS SCREW
141. [1] 139218-0100 UNION NUT
150. [1] 154200-5601 SWIVELLING LEVER
151. [1] 154200-5501 BUSHING
152. [2] 139700-0000 O-RING
152. [2] 139700-0000 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139610-0101 PACKING RING
155. [1] 139411-0100 SHIM D22.0&12.0T0.40
156. [0] 139411-0200 SHIM D18.0&12.0T0.10
156B. [0] 139411-0300 SHIM D18.0&12.0T0.20
156C. [0] 139411-0400 SHIM D18.0&12.0T0.30
157. [1] 154204-3500 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
170. [1] 154217-9020 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154234-8220 STRAP
175. [1] 154232-1923 CONNECTOR
176. [1] 154222-4900 BEARING PIN
177. [1] 155402-3800 SAFETY PIN
178. [1] 029310-5170 SHIM D8&5.3T0.5
179. [1] 154238-0701 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154239-1120 TENSIONING LEVER
182. [1] 154237-1200 BEARING PIN
183. [2] 154237-1800 BUSHING
190. [1] 154360-2700 CONTROL LEVER
191. [1] 154340-4520 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154386-1320 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
195. [2] 154332-9600 COILED SPRING
196. [2] 154156-2900 TUBE
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-3600 LEVER SHAFT
207. [1] 154326-8220 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-8620 HEADLESS SCREW
221. [1] 029201-2140 UNION NUT
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5300 IMPELLER WHEEL
236. [1] 154413-2900 GASKET
237. [1] 154390-0200 GASKET
238. [1] 139700-0100 O-RING
250. [1] 154419-2620 MANIFOLD-PRESSURE COMP.
250/1. [1] 154412-5822 DIAPHRAGM HOUSING
250/11. [1] 154412-6522 DIAPHRAGM
250/15. [1] 154412-7700 BUSHING
250/16. [1] 154411-5500 COILED SPRING
250/17. [2] 154413-2600 GASKET
250/18. [1] 154404-5000 COVER
250/20. [3] 139006-0900 BLEEDER SCREW
250/21. [3] 014110-6440 LOCKING WASHER
250/24. [2] 020106-1640 BLEEDER SCREW M6P1.0L14
250/26. [2] 020106-2040 BLEEDER SCREW M6P1L20
250/27. [1] 029731-0180 EYE BOLT
250/28. [2] 026510-1340 GASKET D13.4&10.2T1
250/61. [1] 154035-1600 CAP NUT
250/62. [1] 154404-4400 FLAT-HEAD SCREW
250/63. [1] 013030-6040 UNION NUT M6P1H3.6
250/64. [2] 026506-1040 GASKET D9.9&6.2T1
250/66. [1] 154412-4622 CONTROL LEVER
250/67. [1] 154412-1600 BEARING PIN
250/68. [1] 029310-5090 SHIM D10&5.1T0.5
250/69. [1] 016010-0540 LOCKING WASHER
250/91. [1] 154412-5120 HEADLESS SCREW
250/92. [1] 029201-2030 UNION NUT M12P1.0H4
250/93. [1] 154412-5300 CAP NUT
250/97. [2] 026512-1540 GASKET D15.4&12.2T1.50
251. [1] 154358-2500 SEAL RING
253. [1] 029320-5020 LOCKING WASHER
254. [1] 010535-1040 FLAT-HEAD SCREW M5P0.8L10
255. [1] 154374-8620 BRACKET
256. [1] 154373-7120 BRACKET
331. [1] 154188-2220 HEADLESS SCREW
332. [1] 139218-0500 UNION NUT
335. [1] 154352-2600 CAPSULE
336. [1] 029331-6030 GASKET
340. [1] 154372-7820 BRACKET
341. [2] 014110-8440 LOCKING WASHER
342. [2] 010038-1240 BLEEDER SCREW
350. [1] 154373-0020 BRACKET
351. [2] 010010-1640 BLEEDER SCREW M10P1.5L16 4T
352. [2] 014111-0440 LOCKING WASHER
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

108622-3162 as GOVERNOR
108622-3163

Cross reference number

Zexel num
Bosch num
Firm num
Name
105489-4242
105489-4243
9 420 613 731

GOVERNOR
* K




Information:

Introduction
The problem that is identified now has a known permanent solution. Components to perform repairs are limited at this time. Review the solution below for further details. Problem
Caterpillar is aware of recent failures of the 8N-1721 Connecting Rod and the 8N-1984 Connecting Rod on certain diesel and gas applications of 3300 engines. Primary failure mode is a ventilated cylinder block due to the connecting rod crank end failure. All failures have occurred before 500 hours in service. Root cause has been identified and the team is working to resolve the issue. Solution
A "Quality Hold" is active for all new assemblies that utilize the 8N-1984 Connecting Rod and the 8N-1721 Connecting Rod manufactured between 01April 2011 and 31December 2012. The "Quality Hold" is applicable to all Morton service stock also.Cat ® Reman has identified a list of part numbers for Service kits, Piston Packs, and Rod Assembly boxes that may contain defective factory connecting rod assemblies. Dealers are advised not to use any factory new connecting rod assemblies that are found in the kits or assemblies prior to examination. Refer to Table 1.
Table 1
Service kit, Piston Pack, and Rod Assembly Part Numbers That May Contain the Defective New Connecting Rod Assemblies
8N-1721     20R-1439     20R-1474
0R-1696     20R-1428     20R-1660
0R-1697     0R-9206     20R-1442
0R-3043     20R-1462     20R-1482
10R-3637     20R-1455     20R-1483
10R-9259     20R-1477     20R-1451
0R-1694     20R-1472     20R-1450
0R-4284     20R-1448     20R-1445
0R-1695     20R-1446     20R-1443
0R-4635     20R-1468     20R-1426
0R-4488     20R-1466     20R-1423
0R-4506     20R-1441     0R-2078
0R-3044     20R-1437     0R-3258
0R-2080     20R-1435     20R-1665
0R-3259     20R-1434     20R-1663
0R-3612     20R-1429     20R-1675
0R-3610     20R-1424     0R-3661
10R-6152     0R-2557     0R-1692
20R-1673     0R-2079     0R-1693
20R-1664     20R-1341     0R-3660
0R-4949     0R-2555     0R-3662
0R-9205     0R-3613     20R-1127
0R-2556     0R-4956     8N-1984
0R-3706     0R-2554
10R-1851     0R-4948
10R-1636     10R-0889
10R-1840     0R-3611
0R-2077     10R-7253
20R-1454     0R-7444    When an engine failure occurs due to the connecting rod assembly, dealers are asked to contact the Dealer Solution Network (DSN) Tier 2 core engine service engineer at Mossville Engine Center (MEC) to expedite support to the customer.To support field repairs and rebuilds, dealers are advised to inspect the manufacture date on any 3304, G3304, 3306, or G3306 engine with the 8N-1984 Connecting Rod , the 8N-1721 Connecting Rod , the 0R-0914 Connecting Rod , and the 0R-0915 Connecting Rod , used to perform repairs. If the manufacture date is within the suspect date range, do not use the part. Parts stocking service letters will be released soon to address suspect material in dealer inventories. Markings on the Suspect 8N-1984 Connecting Rod and the 8N-1721 Connecting Rod
Illustration 1 g03342875
(1
