105489-4130 ZEXEL 9 420 613 726 BOSCH GOVERNOR 9420613726 1054894130




Information governor

BOSCH 9 420 613 726 9420613726
ZEXEL 105489-4130 1054894130
105489-4130 GOVERNOR
Rating:
53
Buy GOVERNOR 105489-4130 zexel genuine, new aftermarket engine parts with delivery

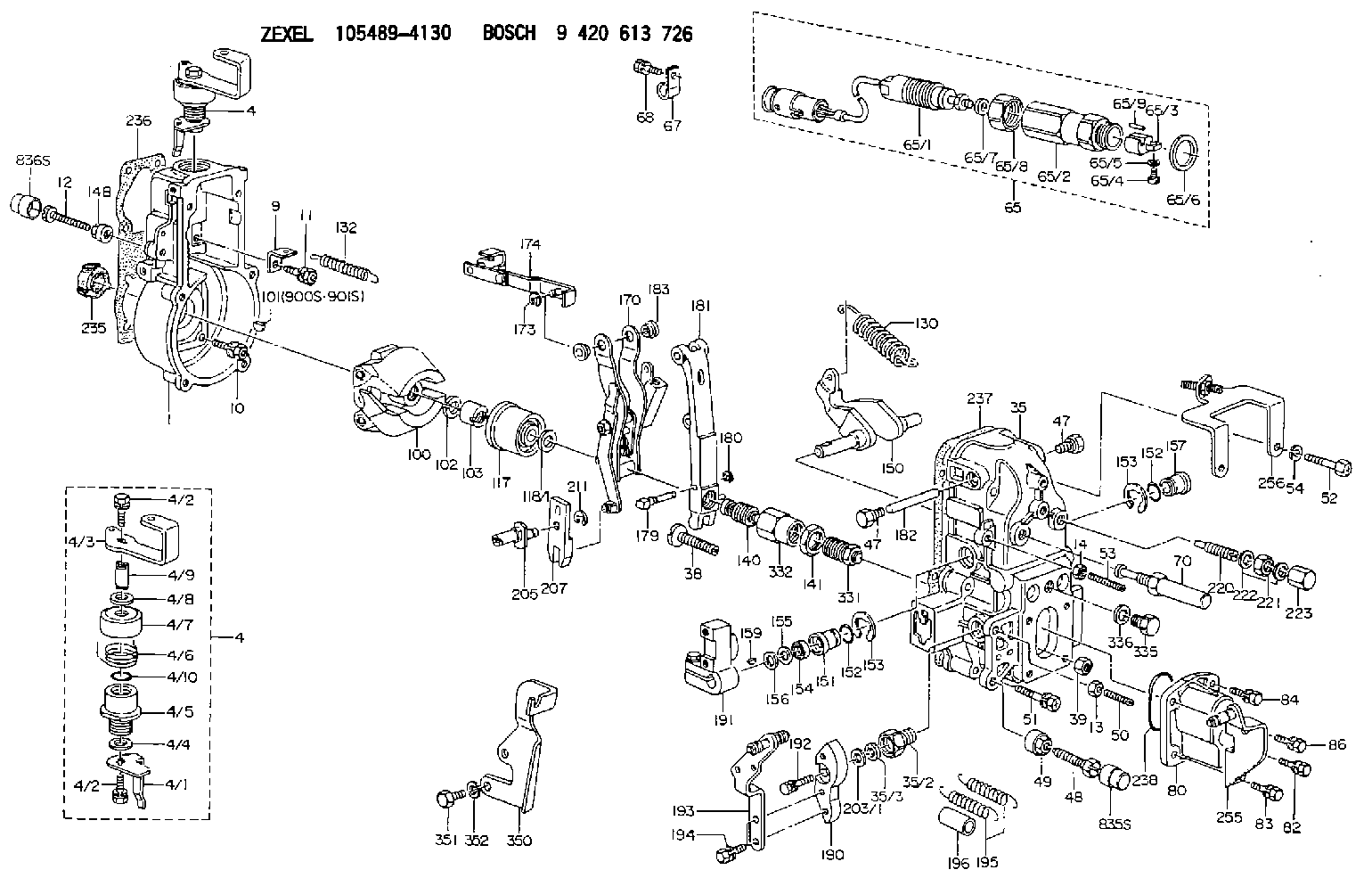

Scheme ###:

1. [1] 154004-1300 GOVERNOR HOUSING
4. [1] 154380-4320 CONTROL LEVER
4. [1] 154380-4320 CONTROL LEVER
4/1. [1] 154304-6200 CONTROL LEVER
4/2. [2] 154352-2000 BLEEDER SCREW
4/2. [2] 154352-2000 BLEEDER SCREW
4/3. [1] 154380-4300 CONTROL LEVER
4/4. [1] 029311-0230 SHIM D18&10.3T0.5
4/5. [1] 154321-1500 BUSHING
4/6. [1] 154327-4100 COILED SPRING
4/7. [1] 154322-0100 CAP
4/8. [1] 029311-0220 SHIM D18&10.3T0.2
4/9. [1] 154324-2700 LEVER SHAFT
4/10. [1] 029631-0030 O-RING &9.8W2.3
9. [1] 154353-5601 PLATE
10. [4] 020106-2040 BLEEDER SCREW M6P1L20
11. [4] 020106-1840 BLEEDER SCREW M6P1L18
12. [1] 154010-7300 BLEEDER SCREW M8P1.25L60
13. [1] 013020-6040 UNION NUT M6P1H5
14. [1] 154011-0100 HEXAGON NUT
14B. [1] 154011-2300 UNION NUT
35. [1] 154515-4020 GOVERNOR COVER
35/2. [1] 154321-2000 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3401 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [2] 154036-1800 CAPSULE
47. [2] 154036-1800 CAPSULE
48. [1] 154010-7700 BLEEDER SCREW M10P1.25L51
48B. [1] 154010-7100 BLEEDER SCREW M10P1.25L47
49. [1] 154011-2200 UNION NUT
50. [1] 155615-2300 FLAT-HEAD SCREW
51. [5] 020106-4540 BLEEDER SCREW M6P1.0L45
52. [2] 010006-6040 BLEEDER SCREW
53. [1] 154010-1100 FLAT-HEAD SCREW
54. [2] 014110-6440 LOCKING WASHER
65. [1] 154610-7320 RACK SENSOR ASSY
65/1. [1] 479742-2820 RACK SENSOR
65/2. [1] 154614-4800 JOINT CONNECTION
65/3. [1] 154614-6500 BLOCK
65/4. [1] 010234-1040 HEX-SOCKET-HEAD CAP SCREW
65/5. [1] 014110-4440 LOCKING WASHER
65/6. [1] 026524-3040 GASKET
65/7. [1] 029310-6280 SHIM D11.5&6.4T1.50
65/8. [1] 154614-1900 UNION NUT
65/9. [1] 154614-3300 BEARING PIN
67. [1] 159564-4400 CLAMPING BAND
68. [1] 020106-1240 BLEEDER SCREW M6P1.0L12
70. [1] 154055-0520 HEADLESS SCREW
80. [1] 154063-9100 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 029020-6240 BLEEDER SCREW
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
86. [1] 020006-1840 BLEEDER SCREW M6P1L18
100. [1] 154100-9520 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 139212-0000 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-9400 GOVERNOR SPRING
132. [1] 154154-3800 COILED SPRING
140. [1] 154183-1620 HEADLESS SCREW
141. [1] 139218-0100 UNION NUT
150. [1] 154200-5601 SWIVELLING LEVER
151. [1] 154200-5501 BUSHING
152. [2] 139700-0000 O-RING
152. [2] 139700-0000 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139610-0101 PACKING RING
155. [1] 139411-0100 SHIM D22.0&12.0T0.40
156. [0] 139411-0200 SHIM D18.0&12.0T0.10
156B. [0] 139411-0300 SHIM D18.0&12.0T0.20
156C. [0] 139411-0400 SHIM D18.0&12.0T0.30
157. [1] 154204-3500 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
170. [1] 154217-7520 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-8120 STRAP
179. [1] 154238-0701 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154239-1520 TENSIONING LEVER
182. [1] 154237-1200 BEARING PIN
183. [2] 154237-1800 BUSHING
190. [1] 154360-2700 CONTROL LEVER
191. [1] 154340-4520 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154385-3620 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
195. [2] 154332-8500 COILED SPRING
196. [2] 154156-2800 TUBE
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-3600 LEVER SHAFT
207. [1] 154326-8220 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-7720 HEADLESS SCREW
221. [1] 029201-2130 UNION NUT M12P1.0H6
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5300 IMPELLER WHEEL
236. [1] 154371-5600 GASKET
237. [1] 154390-0200 GASKET
238. [1] 139700-0100 O-RING
255. [1] 154373-6120 BRACKET
256. [1] 154373-9820 BRACKET
331. [1] 154188-1720 HEADLESS SCREW
332. [1] 139218-0200 UNION NUT
335. [1] 154352-2600 CAPSULE
336. [1] 029331-6030 GASKET
350. [1] 154374-0200 BRACKET
351. [2] 010010-1240 BLEEDER SCREW M10P1.5L12 4T
352. [2] 014111-0440 LOCKING WASHER
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106671-8620 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105489-4130
105489-4131
9 420 613 726

GOVERNOR
* K




Information:


ACTION REQUIRED
Do not order the 601-8546 and 601-8547 Hoses. The new hoses have been direct shipped to the dealership prior to the release of this Service Letter program.
If you have not received the parts, the parts received are damaged, or if you have any questions you will need to work with your Dealer TC to submit the information or question through CPI Feedback within the Service Information Management System (SIMSi).
Give the information to your Dealer Technical Communicator (TC) along with this service letter program number and CPI number 472555.
Request the Dealer TC to submit the CPI Feedback.
Refer to the attached Rework Procedure.
OWNER NOTIFICATION
Owners in the following countries will receive the attached Owner Notification:
US
Canada
SERVICE CLAIM ALLOWANCES
Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
100% 100% 0% 0% 0% 0%
This is a 1.5-hour job
Note: $60 US Dollars are allowed for 10 Liters of coolant.
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
MAKE EVERY EFFORT TO COMPLETE THIS PROGRAM AS SOON AS POSSIBLE.
EXAMPLE COPY OF OWNER NOTIFICATION
XYZ Corporation
3240 Arrow Drive
Anywhere, YZ 99999
PRIORITY - PRODUCT IMPROVEMENT PROGRAM FOR REPLACING THE DEF INJECTOR COOLANT HOSES
MODELS INVOLVED - CERTAIN 313 AND 315 NGH EXCAVATORS
Dear Cat Product Owner:
The existing coolant hoses need to be replaced on the products listed below. The existing hoses can leak water and/or burst. You will not be charged for the service performed.
Contact your local Cat dealer immediately to schedule this service. The dealer will advise you of the time required to complete this service.
If you are no longer the owner of this product(s), please contact your local Cat dealer so that our records can be updated. Please refer the dealer to their Service Letter dated 01Jul2020 when scheduling this service.
We regret the inconvenience this may cause you, and urge you to have this service performed as soon as possible to prevent unscheduled downtime.
Caterpillar Inc.
Identification #(s)
Attached to 01Jul2020 Service Letter
Rework Procedure
1. Confirm the machine/engine components/coolant are cooled down for safety.
2. Drain coolant (approximately 10L) to avoid spilling out from hoses during replacement.
3. Removed the strap on hose. Refer to Image1.3.1.
Image1.3.1
4. Loosen the clamps and remove the hoses (both inlet and outlet). Refer to Image1.4.1.
Image1.4.1
5. Install new parts. Refer to Images1.5.1 and 1.5.2.
Image1.5.1
Image1.5.2
6. Fill the coolant and check for leakage from the hoses.
