105489-4081 ZEXEL 9 420 612 163 BOSCH GOVERNOR 9420612163 1054894081

Information governor

BOSCH 9 420 612 163 9420612163

ZEXEL 105489-4081 1054894081

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105489-4081 zexel genuine, new aftermarket engine parts with delivery

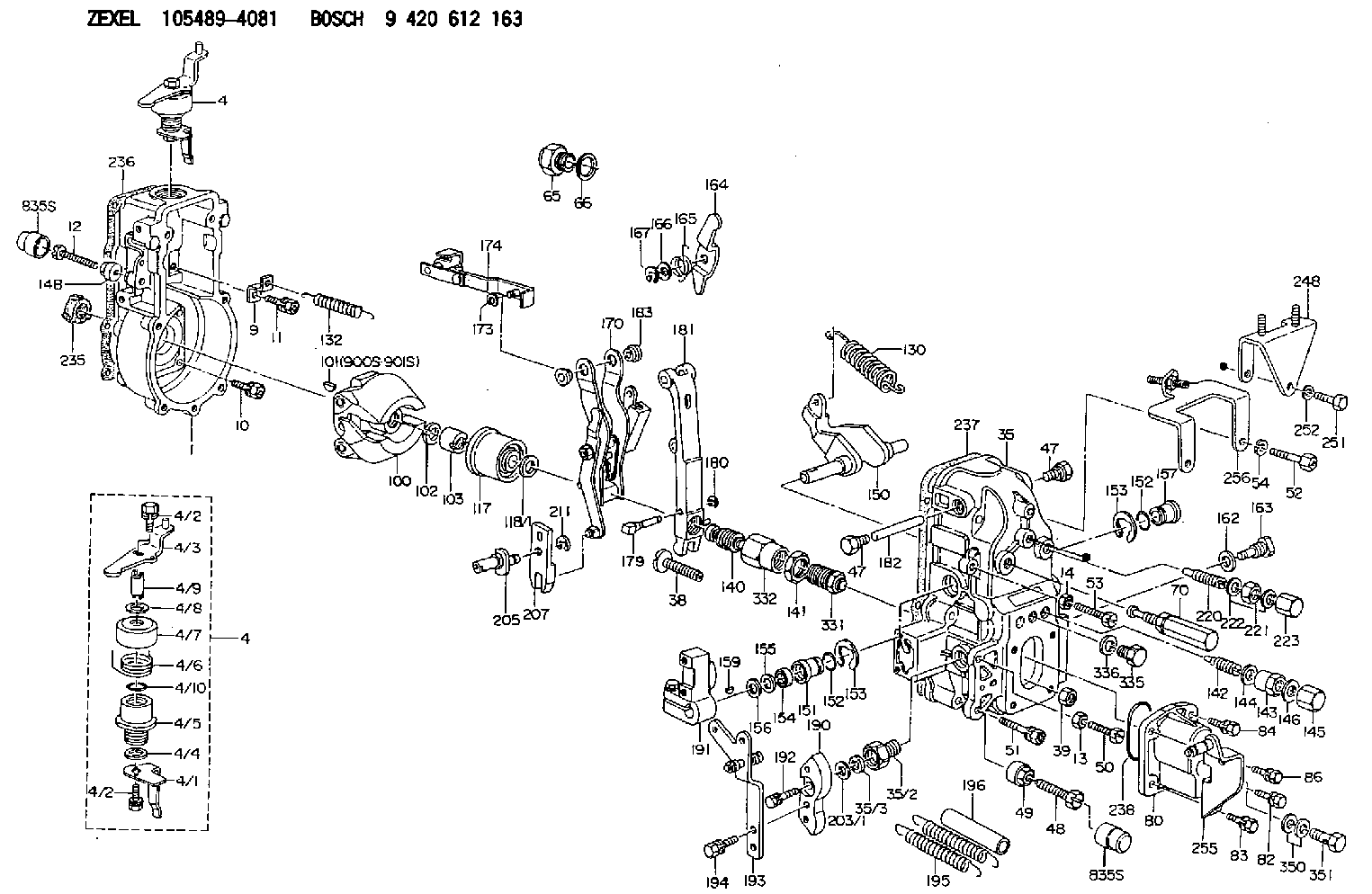

Scheme ###:

1.	[1]	154004-0100	GOVERNOR HOUSING
4.	[1]	154381-1020	CONTROL LEVER
4.	[1]	154381-1020	CONTROL LEVER
4/1.	[1]	154304-6200	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154381-0920	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-2901	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
9.	[1]	154350-6000	PLATE
10.	[4]	020106-2040	BLEEDER SCREW M6P1L20
11.	[4]	020106-1840	BLEEDER SCREW M6P1L18
12.	[1]	154010-7300	BLEEDER SCREW M8P1.25L60
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	154011-2300	UNION NUT
14B.	[1]	154011-0100	HEXAGON NUT
35.	[1]	154516-2420	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	139610-0600	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1800	CAPSULE
47.	[2]	154036-1800	CAPSULE
48.	[1]	154010-6000	BLEEDER SCREW M10P1.25L55
48B.	[1]	154010-7900	BLEEDER SCREW M10P1.25L58
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-1900	BLEEDER SCREW
51.	[5]	020106-4540	BLEEDER SCREW M6P1.0L45
52.	[2]	139006-5900	BLEEDER SCREW
53.	[1]	154010-2900	BLEEDER SCREW
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	155404-1700	CAP
66.	[1]	026524-3040	GASKET
70.	[1]	154055-3520	HEADLESS SCREW
80.	[1]	154063-6221	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	029020-6240	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	020006-1840	BLEEDER SCREW M6P1L18
100.	[1]	154100-9320	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-9000	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154183-9720	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
142.	[1]	154242-3020	HEADLESS SCREW
143.	[1]	154242-5400	UNION NUT
144.	[1]	026516-2040	GASKET D19.9&16.2T1
145.	[1]	154159-1800	CAP NUT
146.	[1]	029331-6130	GASKET
150.	[1]	154200-5601	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM D22.0&12.0T0.40
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
162.	[1]	029331-6050	GASKET
163.	[1]	154401-3201	BLEEDER SCREW
164.	[1]	154243-0820	CONTROL LEVER
165.	[1]	154327-6100	COILED SPRING
166.	[1]	029310-8320	SHIM D16.5&8T0.2
167.	[1]	154356-3600	LOCKING WASHER
170.	[1]	154217-9320	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-6620	STRAP
179.	[1]	154238-0201	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154239-1820	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1300	BUSHING
190.	[1]	154360-2700	CONTROL LEVER
191.	[1]	154340-4520	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154385-9920	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
195.	[2]	154332-5100	COILED SPRING
196.	[2]	154156-1800	TUBE
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3400	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-8220	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	139700-0100	O-RING
248.	[1]	154373-9720	BRACKET
251.	[1]	010038-1440	BLEEDER SCREW M8P1.25L14
252.	[1]	014110-8440	LOCKING WASHER
255.	[1]	154373-7820	BRACKET
256.	[1]	154373-9820	BRACKET
331.	[1]	154179-3120	HEADLESS SCREW
332.	[1]	139218-0200	UNION NUT
335.	[1]	154352-2600	CAPSULE
336.	[1]	029331-6030	GASKET
350.	[2]	029331-2120	GASKET
351.	[1]	029731-2040	EYE BOLT
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106971-3182 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105489-4081

9 420 612 163
NP-EP/RFD200/1350PF66DJR

GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV

Information:

CONFIDENTIAL
TECHNICAL INFORMATION BULLETIN November 21, 2001
Generator Set PM3516 (BPD)
Component Code(s) 7060SUBJECT: XQ 2000 Power Module Slide Rail on 3500B Diesel Generator Sets
PROBLEM:
The 141-6413 Rail Group - Slide was used to facilitate the correct positioning and installation of the 3516B Generator Set into a Power Module. In some power modules, there was a possibility that the Generator Set base rail could come in contact with the slide rail which is installed on the container floor. This contact was possible due to "tolerance stack" on the components. This was a random occurrence that caused no detrimental effects to the switchgear or any other Power Module component. No failures were caused by this situation.
SOLUTION:
With the current assembly equipment in Caterpillar's Griffin Georgia facility, the need for the guide rails no longer exists. The Generator Set Assembly is pushed inside the Power Module container utilizing a hydraulic ram device. This hydraulic ram device correctly positions the Generator set without relying on the guide rails. The use of the 141-6413 Rail Group - Slide for the 3516B Generator Set installation has therefore been eliminated in 3516B Power Module product built after August 10, 2001.
COPYRIGHT 2001 CATERPILLAR
ALL RIGHTS RESERVED
