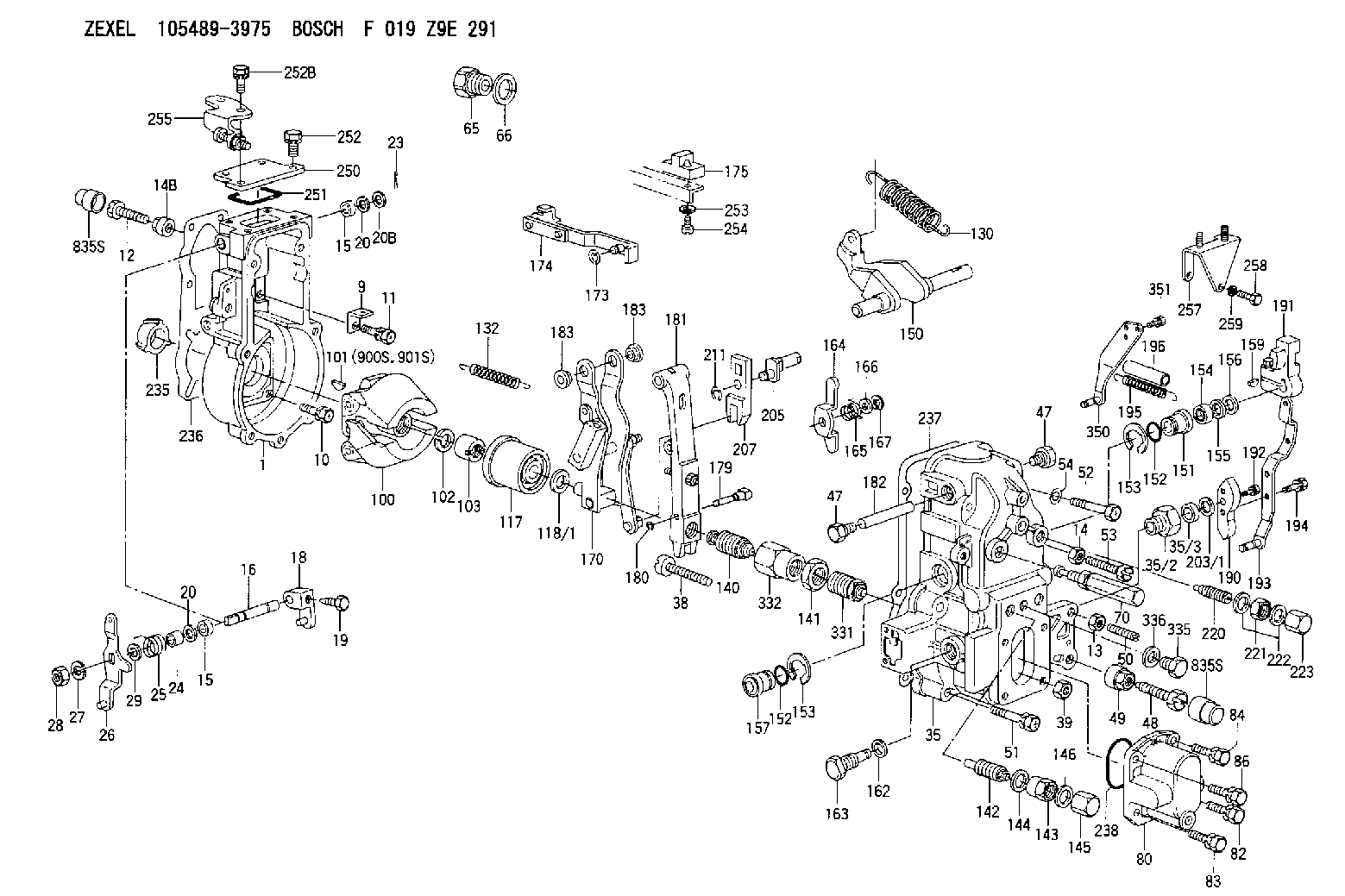

105489-3975 ZEXEL F 019 Z9E 291 BOSCH GOVERNOR f019z9e291 1054893975

27Oct2017
(Revised 15Nov2017)
U-589
A-422
D-499
O-495
Parts stock action only
PRODUCT IMPROVEMENT PROGRAM FOR INSPECTING AND POSSIBLY REMOVING CERTAIN FUEL INJECTORS FROM DEALER PARTS STOCK
7750 PI70685
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
When submitting claim for Parts Stock Action, Use the appropriate 99Z as the s/n, the appropriate Service Letter Program Number as the Part number in the Part Causing Failure field, "7751" as the Group Number, "56" as the Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
This Revised Service Letter replaces the 27Oct2017 Service Letter. A change has been made to the Problem.
TERMINATION DATE
31Jan2018
PROBLEM
Certain fuel injectors may have been built using a non-hardened tappet retention pin within the date code range from D10M07Y17 through D13M10Y17. If installed the tappet retention pin could wear prematurely causing failure.
ACTION REQUIRED
Inspect the following fuel injectors in dealer parts stock:
Reman Injectors
0R1756
0R1758
0R1759
0R2921
0R2922
0R2923
0R2924
0R2925
0R3051
0R3052
0R3743
0R8338
0R8680
New Injectors
1113718
4P9075
4P9076
4P9077
6I4355
6I4356
6I4357
6I4358
7C4182
7C4184
7E6408
9Y3773
Inspect the build date. The build date can be found on the shipping label on the box (Image 1).
Remove all new injectors within the date range D10M07Y17-D13M10Y17 from dealer parts stock.
Inspect all Reman injectors within the date range D10M07Y17-D13M10Y17. When checking the Reman injectors inspect the tappet.
If the tappet is lapped and has a dull gray appearance (Image 2), mark the box with a green dot under the label (Image 4) and mark the package to indicate that the injector has been inspected according to this program and return the injector to dealer parts stock.
If the tappet on the Reman injector has a shiny machined finish (Image 3) remove from stock.
If unable to differentiate between the tappets, then remove the injector from dealer parts stock.
For the injectors removed from dealer parts stock, refer to the Parts Disposition.
If there is a new or Reman injector in dealer parts stock that has a green dot under the label on the box (Image 4), inspection was completed at the parts depot and material is certified as acceptable to use.
SERVICE CLAIM ALLOWANCES
Submit one claim for all injectors inspected and removed in dealer parts stock. 5 minutes will be allowed to inspect each injector. Include total amount of injectors inspected.
PARTS DISPOSITION
NACD:
Hold all suspect injectors for a Parts Return Request (PRR). A Parts Return Request (PRR) will be issued to you through the Send-It-Back process after the claim is submitted. Make sure to list the service letter program number on the packing slip and include the closed work order paperwork.
EAME, LACD, and APD:
Hold all suspect injectors for 30 days for a possible Parts Return Request (PRR). Make sure to list the service letter program number on the packing slip and include the closed work order paperwork.
If a Parts Return Request (PRR) is not issued to you after
