105489-3954 ZEXEL F 019 Z5E 037 BOSCH GOVERNOR f019z5e037 1054893954 223006892a

Information governor

BOSCH F 019 Z5E 037 f019z5e037

ZEXEL 105489-3954 1054893954

HINO 223006892A 223006892a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105489-3954 zexel genuine, new aftermarket engine parts with delivery

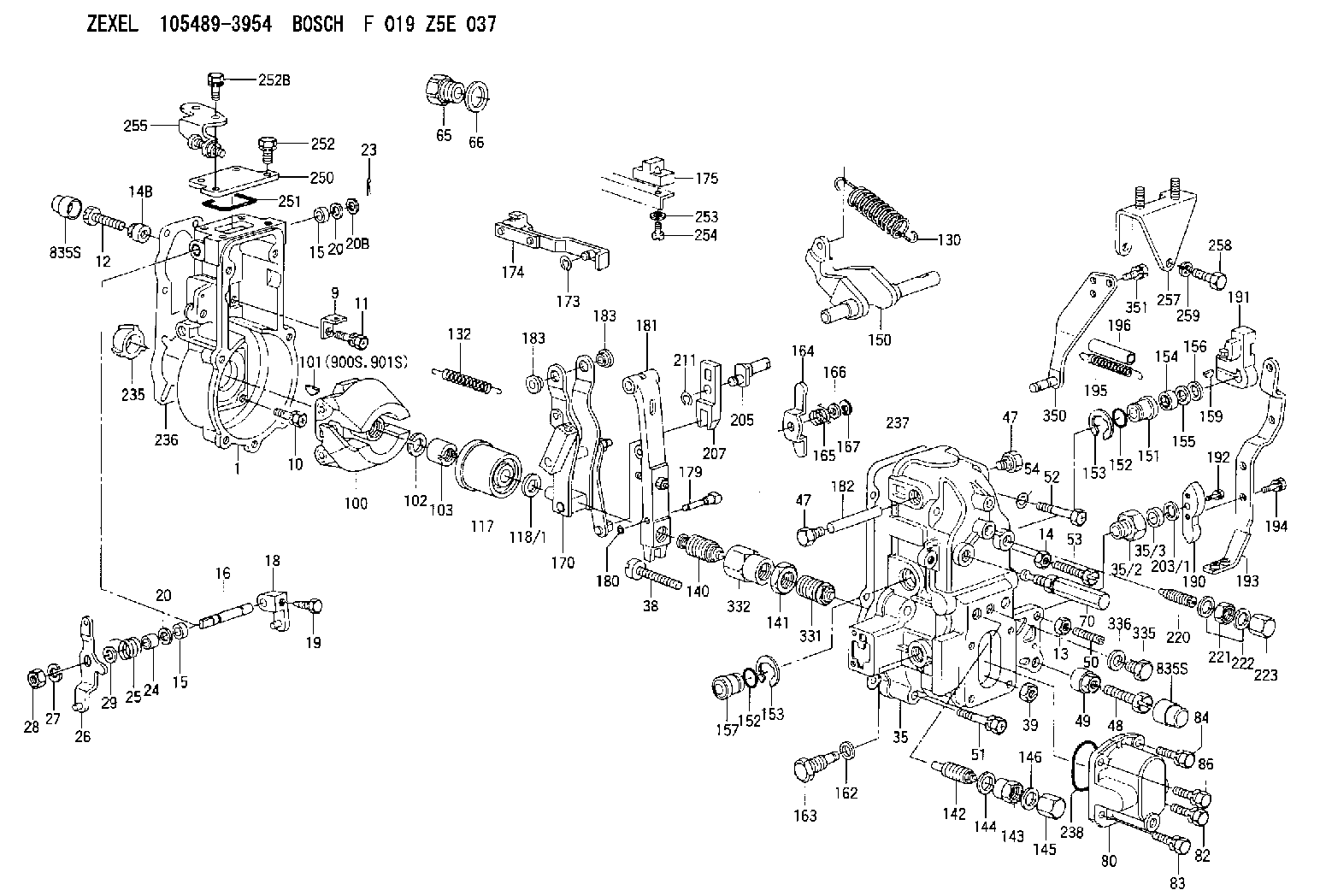

Scheme ###:

1.	[1]	154004-4621	GOVERNOR HOUSING
9.	[1]	154353-5601	PLATE
10.	[4]	020106-2040	BLEEDER SCREW M6P1L20
11.	[4]	020106-1840	BLEEDER SCREW M6P1L18
12.	[1]	154010-7300	BLEEDER SCREW M8P1.25L60
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	154011-2300	UNION NUT
14B.	[1]	154011-2300	UNION NUT
15.	[2]	029620-8050	PACKING RING
15.	[2]	029620-8050	PACKING RING
16.	[1]	155004-3600	LEVER SHAFT
18.	[1]	155003-2401	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
23.	[1]	025520-1210	SPLIT PIN
24.	[1]	154206-2000	BUSHING
25.	[1]	154327-9000	COILED SPRING
26.	[1]	154381-4220	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER
28.	[1]	013020-8040	UNION NUT M8P1.25H7
29.	[1]	139408-1400	SHIM
29B.	[0]	139408-1400	SHIM
29C.	[0]	139408-1500	SHIM
35.	[1]	154516-2120	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	139610-0600	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1800	CAPSULE
47.	[2]	154036-1800	CAPSULE
48.	[1]	154010-7100	BLEEDER SCREW M10P1.25L47
48B.	[1]	154010-7700	BLEEDER SCREW M10P1.25L51
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-2300	FLAT-HEAD SCREW
51.	[5]	020106-4540	BLEEDER SCREW M6P1.0L45
52.	[2]	020306-6340	BLEEDER SCREW
53.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
53B.	[1]	154010-8000	BLEEDER SCREW
53C.	[1]	154013-0600	BLEEDER SCREW
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	155404-1700	CAP
66.	[1]	026524-3040	GASKET
70.	[1]	154055-2820	HEADLESS SCREW
80.	[1]	154063-4100	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7900	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154183-1720	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
142.	[1]	154242-5520	HEADLESS SCREW
143.	[1]	154242-5400	UNION NUT
144.	[1]	026516-2040	GASKET D19.9&16.2T1
145.	[1]	154159-1800	CAP NUT
146.	[1]	029331-6130	GASKET
150.	[1]	154200-5401	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM D22.0&12.0T0.40
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
162.	[1]	029331-6050	GASKET
163.	[1]	154401-3201	BLEEDER SCREW
164.	[1]	154243-0720	CONTROL LEVER
165.	[1]	154327-6000	COILED SPRING
166.	[1]	029310-8320	SHIM D16.5&8T0.2
167.	[1]	154356-3600	LOCKING WASHER
170.	[1]	154217-7020	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154234-3220	STRAP
175.	[1]	154232-2323	CONNECTOR
179.	[1]	154238-0201	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154239-0420	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1300	BUSHING
183.	[2]	154237-1300	BUSHING
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154340-4320	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154368-7820	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
195.	[2]	154332-5300	COILED SPRING
196.	[2]	154156-3601	TUBE
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-4100	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-8520	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT M12P1.0H6
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	139700-0100	O-RING
250.	[1]	154063-9800	COVER
251.	[1]	154358-2500	SEAL RING
252.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
252B.	[2]	020006-2040	BLEEDER SCREW M6P1L20 4T
253.	[1]	029320-5020	LOCKING WASHER
254.	[1]	010535-1040	FLAT-HEAD SCREW M5P0.8L10
255.	[1]	154373-5620	BRACKET
257.	[1]	154213-7021	BRACKET
258.	[1]	010038-1440	BLEEDER SCREW M8P1.25L14
259.	[1]	014110-8440	LOCKING WASHER
331.	[1]	154188-1420	HEADLESS SCREW
332.	[1]	139218-0500	UNION NUT
335.	[1]	154352-2600	CAPSULE
336.	[1]	029331-6030	GASKET
350.	[1]	154356-0221	BRACKET
351.	[3]	029010-5340	BLEEDER SCREW
835S.	[3]	154062-1700	CAP D20L32
835S.	[3]	154062-1700	CAP D20L32
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106873-3134 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105489-3954

F 019 Z5E 037
NP-EP/RFD200/1300PF10DJR

223006892A HINO

GOVERNOR
K

Information:

*******Group 2*******
C18 N8F00529-00532, 534-535, 542-545
PARTS NEEDED
Qty
Part Number Description
*******Group 1*******
6 20R3454 INJECTOR GP-FUEL
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 12% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
*******Group 2*******
6 20R3454 INJECTOR GP-FUEL
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 12% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
If a single injector fails, replace all six injectors at the time of failure. Refer to Disassembly and Assembly, UENR0132, "Valve Mechanism Cover - Remove and Install" and "Electronic Unit Injector - Remove and Install" to complete the repair.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 1*******
0-6000 hrs,
0-60 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 4.0-hour job for Group 1
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 2*******
0-6000 hrs,
0-60 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 4.0-hour job for Group 2
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
