105489-3892 ZEXEL 9 420 613 890 BOSCH GOVERNOR 9420613890 1054893892

Information governor

BOSCH 9 420 613 890 9420613890

ZEXEL 105489-3892 1054893892

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105489-3892 zexel genuine, new aftermarket engine parts with delivery

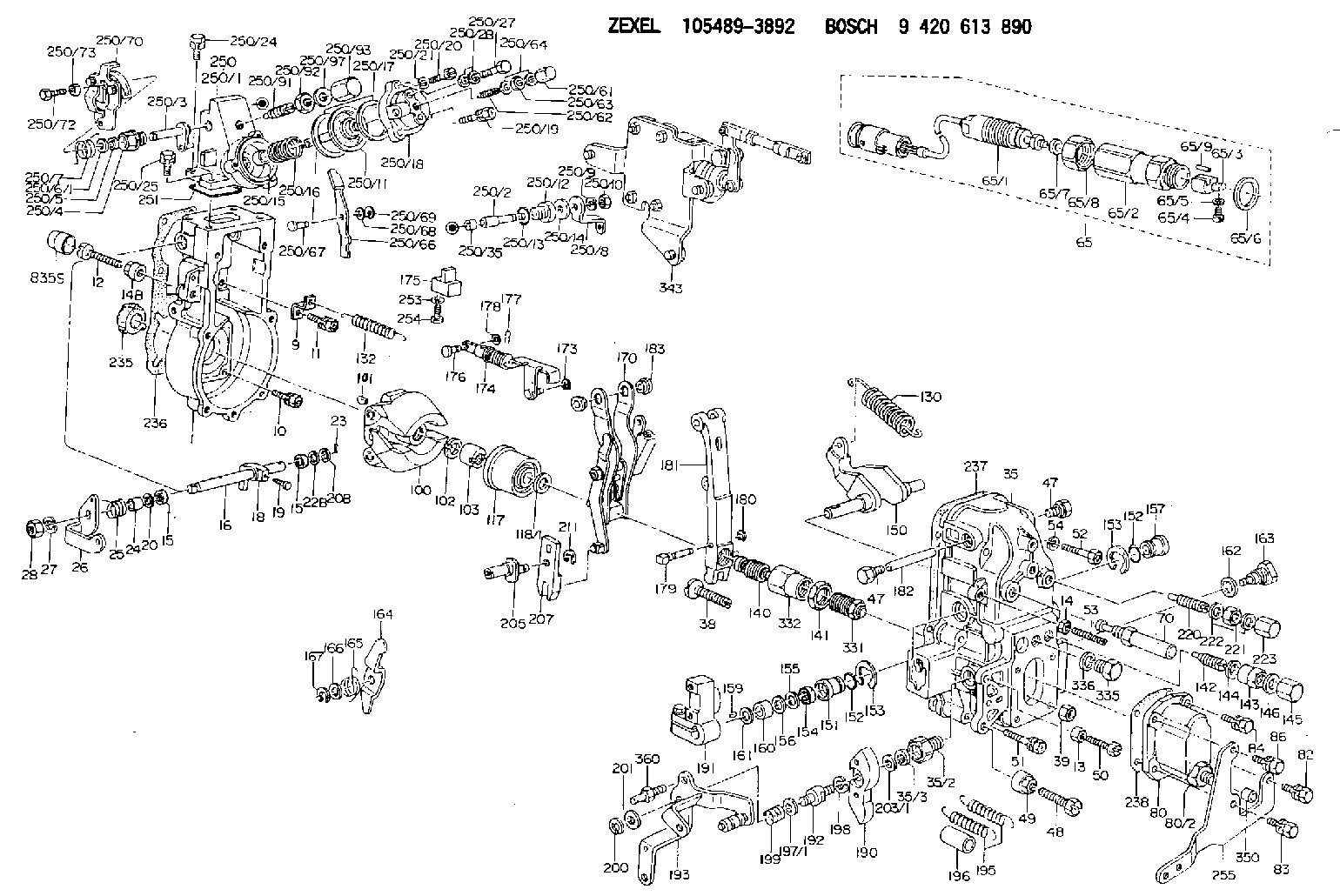

Scheme ###:

1.	[1]	154004-4621	GOVERNOR HOUSING
9.	[1]	154350-6000	PLATE
10.	[4]	020106-2040	BLEEDER SCREW M6P1L20
11.	[4]	020106-1840	BLEEDER SCREW M6P1L18
12.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
15.	[2]	139608-0100	PACKING RING
15.	[2]	139608-0100	PACKING RING
16.	[1]	155004-3600	LEVER SHAFT
18.	[1]	155003-2101	CONTROL LEVER
19.	[1]	155006-0100	BLEEDER SCREW
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
22B.	[0]	029310-8050	SHIM D13.5&8T0.5
23.	[1]	025520-1210	SPLIT PIN
24.	[1]	154206-2000	BUSHING
25.	[1]	154327-3600	COILED SPRING
26.	[1]	154381-0801	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER
28.	[1]	013020-8040	UNION NUT M8P1.25H7
35.	[1]	154515-2520	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	139610-0600	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1800	CAPSULE
47.	[2]	154036-1800	CAPSULE
48.	[1]	154010-7100	BLEEDER SCREW M10P1.25L47
48B.	[1]	154010-7700	BLEEDER SCREW M10P1.25L51
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-2400	BLEEDER SCREW
51.	[5]	020106-4540	BLEEDER SCREW M6P1.0L45
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	154610-6620	RACK SENSOR ASSY
65/1.	[1]	479742-3920	RACK SENSOR
65/2.	[1]	154614-2500	JOINT CONNECTION
65/3.	[1]	154614-2900	BLOCK
65/4.	[1]	010234-1040	HEX-SOCKET-HEAD CAP SCREW
65/5.	[1]	014110-4440	LOCKING WASHER
65/6.	[1]	139524-0000	GASKET
65/7.	[1]	029310-6280	SHIM D11.5&6.4T1.50
65/8.	[1]	154614-1900	UNION NUT
65/9.	[1]	154614-3300	BEARING PIN
70.	[1]	154055-3120	HEADLESS SCREW
80.	[1]	154063-6620	COVER
80/2.	[1]	131423-1700	CONNECTOR
82.	[1]	029020-6240	BLEEDER SCREW
83.	[1]	029020-6240	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	029020-6240	BLEEDER SCREW
100.	[1]	154100-9220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-8400	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154183-8520	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
142.	[1]	154242-3520	HEADLESS SCREW
143.	[1]	154242-3200	UNION NUT
144.	[1]	139516-0100	GASKET
145.	[1]	154159-1800	CAP NUT
146.	[1]	139516-0100	GASKET
150.	[1]	154200-5801	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
152.	[2]	139719-0000	O-RING
152.	[2]	139719-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139612-0000	PACKING RING
155.	[1]	139411-0100	SHIM D22.0&12.0T0.40
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2300	BUSHING
161.	[0]	154206-2400	PLAIN WASHER D20.5&12.2T1
162.	[1]	139516-0100	GASKET
163.	[1]	154401-3201	BLEEDER SCREW
164.	[1]	154243-0820	CONTROL LEVER
165.	[1]	154327-6100	COILED SPRING
166.	[1]	029310-8320	SHIM D16.5&8T0.2
167.	[1]	154356-3600	LOCKING WASHER
170.	[1]	154217-9320	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154234-9920	STRAP
175.	[1]	154232-1923	CONNECTOR
176.	[1]	154222-4900	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
178.	[1]	029310-5170	SHIM D8&5.3T0.5
179.	[1]	154238-0201	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154239-1820	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1300	BUSHING
190.	[1]	154360-2700	CONTROL LEVER
191.	[1]	154340-1920	CONTROL LEVER
192.	[1]	154372-2000	BLEEDER SCREW
193.	[1]	154385-5720	CONTROL LEVER
195.	[2]	154332-6300	COILED SPRING
196.	[2]	154156-2000	TUBE
197/1.	[0]	029310-8610	SHIM D10.5&8.5T0.1
197/1.	[0]	029310-8620	SHIM D10.5&8.5T0.15
197/1.	[0]	029310-8630	SHIM D10.5&8.5T0.2
197/1.	[0]	029310-8650	SHIM D10.5&8.5T0.5
198.	[1]	014110-8440	LOCKING WASHER
199.	[1]	154327-8900	COILED SPRING
200.	[1]	016010-0740	LOCKING WASHER
201.	[1]	139408-1100	SHIM D15&8T0.5
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3400	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6820	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT M12P1.0H6
222.	[2]	139512-0000	GASKET D17.2&12.2T1.0
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	154390-1400	GASKET
250.	[1]	154420-1120	MANIFOLD-PRESSURE COMP.
250/1.	[1]	154413-0621	DIAPHRAGM HOUSING
250/2.	[1]	154413-0700	LEVER SHAFT
250/3.	[1]	154413-0820	CONTROL LEVER
250/4.	[1]	159230-0600	BUSHING
250/5.	[1]	029621-0080	PACKING RING
250/6/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
250/6/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
250/6/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
250/6/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
250/6/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
250/6/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
250/6/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
250/6/1.	[0]	139410-1400	SHIM D26&10.2T0.7
250/6/1.	[0]	139410-1500	SHIM D26&10.2T0.9
250/6/1.	[0]	139410-1600	SHIM D26&10.2T0.8
250/6/1.	[0]	139410-2700	SHIM D26&10.2T0.6
250/7.	[1]	154412-6200	COILED SPRING
250/8.	[1]	154413-1000	CONTROL LEVER
250/9.	[1]	014110-8440	LOCKING WASHER
250/10.	[1]	013020-8140	UNION NUT M8P1.25H6.5
250/11.	[1]	154412-6522	DIAPHRAGM
250/12.	[1]	154321-0200	BUSHING
250/13.	[1]	029630-9050	O-RING
250/14.	[0]	029311-0220	SHIM D18&10.3T0.2
250/14B.	[0]	029311-0230	SHIM D18&10.3T0.5
250/15.	[1]	154412-7700	BUSHING
250/16.	[1]	154411-2700	COILED SPRING
250/17.	[2]	154413-2600	GASKET
250/18.	[1]	154404-5000	COVER
250/19.	[1]	139006-0900	BLEEDER SCREW
250/20.	[1]	020106-2240	BLEEDER SCREW
250/20B.	[1]	139006-0900	BLEEDER SCREW
250/21.	[2]	014110-6440	LOCKING WASHER
250/24.	[3]	020106-1640	BLEEDER SCREW M6P1.0L14
250/25.	[1]	029020-6210	BLEEDER SCREW
250/27.	[1]	029731-0180	EYE BOLT
250/28.	[2]	026510-1340	GASKET D13.4&10.2T1
250/35.	[1]	154413-1700	JOINT CONNECTION
250/61.	[1]	154035-1600	CAP NUT
250/62.	[1]	154404-4400	FLAT-HEAD SCREW
250/63.	[1]	013030-6040	UNION NUT M6P1H3.6
250/64.	[2]	026506-1040	GASKET D9.9&6.2T1
250/66.	[1]	154413-0922	CONTROL LEVER
250/67.	[1]	154412-1600	BEARING PIN
250/68.	[1]	029310-5090	SHIM D10&5.1T0.5
250/69.	[1]	016010-0540	LOCKING WASHER
250/70.	[1]	154412-5611	CONTROL LEVER
250/72.	[1]	153141-1600	BLEEDER SCREW
250/73.	[1]	029240-6010	UNION NUT M6P1.0H5*
250/91.	[1]	154413-1920	HEADLESS SCREW
250/92.	[1]	029201-2140	UNION NUT
250/93.	[1]	154412-5300	CAP NUT
250/97.	[2]	026512-1540	GASKET D15.4&12.2T1.50
251.	[1]	154419-2500	SEAL RING
253.	[1]	029320-5020	LOCKING WASHER
254.	[1]	010535-1040	FLAT-HEAD SCREW M5P0.8L10
255.	[1]	154373-7220	BRACKET
331.	[1]	154179-5120	HEADLESS SCREW
332.	[1]	139218-0500	UNION NUT
335.	[1]	154352-2600	CAPSULE
336.	[1]	139516-0100	GASKET
343.	[1]	154410-4520	SOLENOID
350.	[1]	154357-5800	CAP
360.	[1]	154373-7400	BEARING PIN

Include in #1:

106671-1811 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105489-3892
105489-3893

9 420 613 890

GOVERNOR
* K
