105489-3741 ZEXEL 9 420 613 710 BOSCH GOVERNOR 9420613710 1054893741




Information governor

BOSCH 9 420 613 710 9420613710
ZEXEL 105489-3741 1054893741
105489-3741 GOVERNOR
Rating:
11
Buy GOVERNOR 105489-3741 zexel genuine, new aftermarket engine parts with delivery

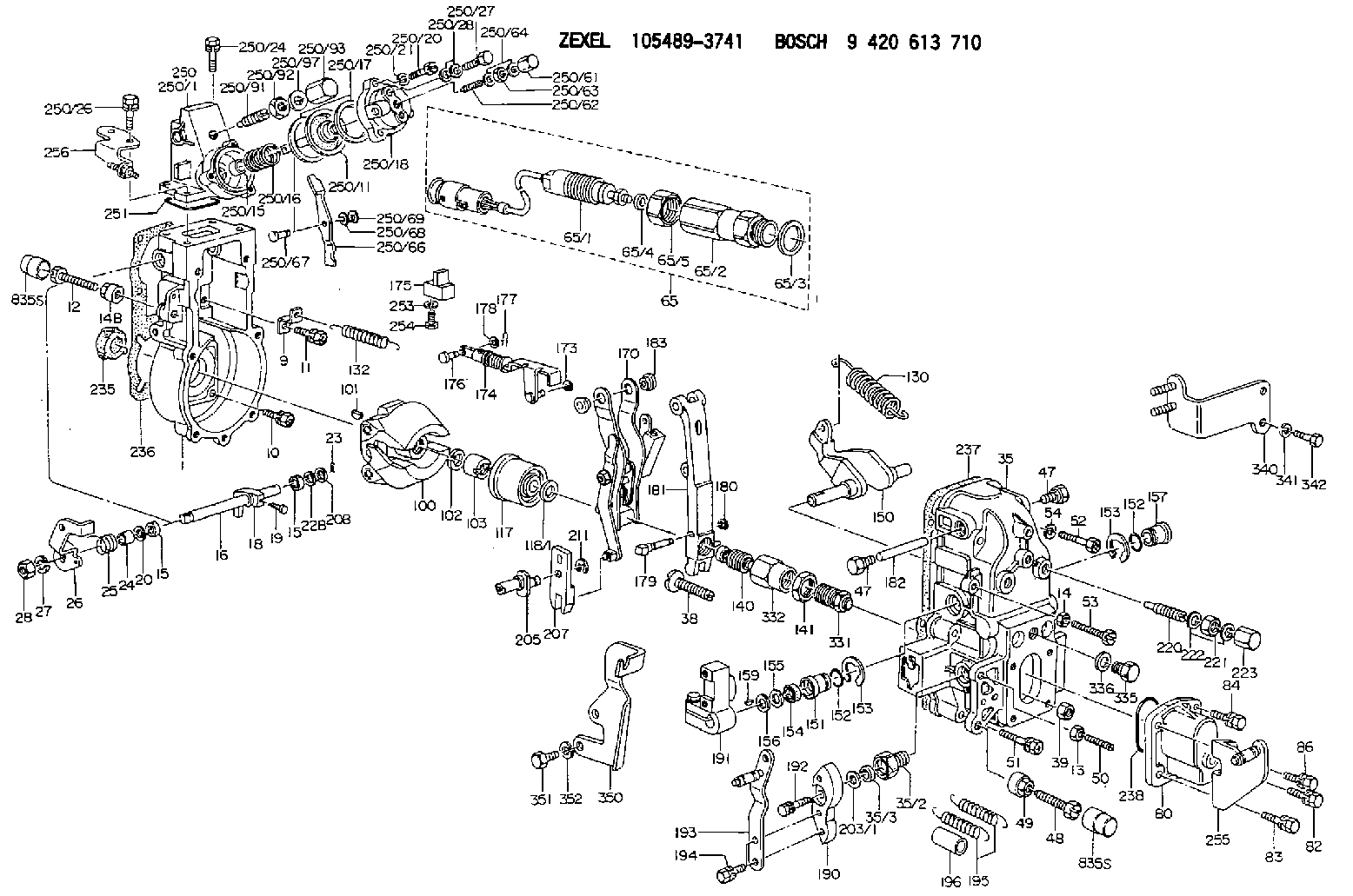

Scheme ###:

1. [1] 154004-6420 GOVERNOR HOUSING
9. [1] 154350-6000 PLATE
10. [4] 139006-4100 BLEEDER SCREW
11. [4] 139006-5800 BLEEDER SCREW
12. [1] 154010-7200 BLEEDER SCREW M8P1.25L62
13. [1] 013020-6040 UNION NUT M6P1H5
14. [1] 154011-0100 HEXAGON NUT
14B. [1] 154011-2300 UNION NUT
15. [2] 029620-8050 PACKING RING
15. [2] 029620-8050 PACKING RING
16. [1] 155004-3600 LEVER SHAFT
18. [1] 155003-3400 CONTROL LEVER
19. [1] 155006-0500 BLEEDER SCREW
20. [1] 139308-1500 PLAIN WASHER D18&8T1.0
20B. [1] 139308-1600 PLAIN WASHER D18&8T1.5
22B. [0] 029310-8050 SHIM D13.5&8T0.5
23. [1] 154373-2200 SAFETY PIN
24. [1] 154206-2000 BUSHING
25. [1] 154327-9000 COILED SPRING
26. [1] 154381-2600 CONTROL LEVER
27. [1] 014110-8440 LOCKING WASHER
28. [1] 013020-8040 UNION NUT M8P1.25H7
35. [1] 154515-4720 GOVERNOR COVER
35/2. [1] 154321-2000 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3401 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [2] 154036-1800 CAPSULE
47. [2] 154036-1800 CAPSULE
48. [1] 154012-4800 BLEEDER SCREW M10P1.25L51
48B. [1] 154012-5100 BLEEDER SCREW
49. [1] 154011-2200 UNION NUT
50. [1] 155615-2300 FLAT-HEAD SCREW
51. [5] 020106-4540 BLEEDER SCREW M6P1.0L45
52. [2] 029010-6850 BLEEDER SCREW
53. [1] 154010-3100 BLEEDER SCREW
54. [2] 014110-6440 LOCKING WASHER
65. [1] 154610-6120 RACK SENSOR ASSY
65/1. [1] 479742-3620 RACK SENSOR
65/2. [1] 154614-4900 JOINT CONNECTION
65/3. [1] 026524-3040 GASKET
65/4A. [0] 029310-6220 SHIM D11.5&6.5T0.10
65/4B. [0] 029310-6230 SHIM D11.5&6.5T0.20
65/4C. [0] 029310-6240 SHIM D11.5&6.5T0.25
65/4D. [0] 029310-6260 SHIM D11.5&6.4T1.00
65/4E. [0] 029310-6270 SHIM D11.5&6.4T1.20
65/4F. [0] 029310-6280 SHIM D11.5&6.4T1.50
65/5. [1] 154614-1900 UNION NUT
80. [1] 154063-9100 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 029020-6240 BLEEDER SCREW
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
86. [1] 020006-1840 BLEEDER SCREW M6P1L18
100. [1] 154100-9320 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 139212-0000 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-7900 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
140. [1] 154183-0020 HEADLESS SCREW
141. [1] 139218-0100 UNION NUT
150. [1] 154200-5601 SWIVELLING LEVER
151. [1] 154200-5501 BUSHING
152. [2] 139700-0000 O-RING
152. [2] 139700-0000 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139610-0101 PACKING RING
155. [1] 139411-0100 SHIM D22.0&12.0T0.40
156. [0] 139411-0200 SHIM D18.0&12.0T0.10
156B. [0] 139411-0300 SHIM D18.0&12.0T0.20
156C. [0] 139411-0400 SHIM D18.0&12.0T0.30
157. [1] 154204-3500 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
170. [1] 154217-9020 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154234-2220 STRAP
175. [1] 154232-1923 CONNECTOR
176. [1] 154222-4900 BEARING PIN
177. [1] 155402-3800 SAFETY PIN
178. [1] 029310-5170 SHIM D8&5.3T0.5
179. [1] 154238-0701 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154239-1120 TENSIONING LEVER
182. [1] 154237-1200 BEARING PIN
183. [2] 154237-1800 BUSHING
190. [1] 154360-2700 CONTROL LEVER
191. [1] 154340-4520 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154385-9520 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
195. [2] 154332-7400 COILED SPRING
196. [2] 154156-2800 TUBE
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-3600 LEVER SHAFT
207. [1] 154326-7420 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-8620 HEADLESS SCREW
221. [1] 029201-2140 UNION NUT
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5300 IMPELLER WHEEL
236. [1] 154390-1500 GASKET
237. [1] 154390-0200 GASKET
238. [1] 139700-0100 O-RING
250. [1] 154420-1620 MANIFOLD-PRESSURE COMP.
250/1. [1] 154415-0320 DIAPHRAGM HOUSING
250/11. [1] 154412-6522 DIAPHRAGM
250/15. [1] 154412-7700 BUSHING
250/16. [1] 154411-3800 COILED SPRING
250/17. [2] 154413-2600 GASKET
250/18. [1] 154404-5000 COVER
250/20. [3] 139006-0900 BLEEDER SCREW
250/21. [3] 014110-6440 LOCKING WASHER
250/24. [2] 020106-1640 BLEEDER SCREW M6P1.0L14
250/26. [2] 020106-2040 BLEEDER SCREW M6P1L20
250/27. [1] 029731-0180 EYE BOLT
250/28. [2] 026510-1340 GASKET D13.4&10.2T1
250/61. [1] 154035-1600 CAP NUT
250/62. [1] 154404-4400 FLAT-HEAD SCREW
250/63. [1] 013030-6040 UNION NUT M6P1H3.6
250/64. [2] 026506-1040 GASKET D9.9&6.2T1
250/66. [1] 154412-4622 CONTROL LEVER
250/67. [1] 154412-1600 BEARING PIN
250/68. [1] 029310-5090 SHIM D10&5.1T0.5
250/69. [1] 016010-0540 LOCKING WASHER
250/91. [1] 154412-5120 HEADLESS SCREW
250/92. [1] 029201-2030 UNION NUT M12P1.0H4
250/93. [1] 154412-5300 CAP NUT
250/97. [2] 026512-1540 GASKET D15.4&12.2T1.50
251. [1] 154358-2500 SEAL RING
253. [1] 029320-5020 LOCKING WASHER
254. [1] 010535-1040 FLAT-HEAD SCREW M5P0.8L10
255. [1] 154373-6120 BRACKET
256. [1] 154373-7120 BRACKET
331. [1] 154179-3321 HEADLESS SCREW
332. [1] 139218-0500 UNION NUT
335. [1] 154352-2600 CAPSULE
336. [1] 029331-6030 GASKET
340. [1] 154372-7820 BRACKET
341. [2] 014110-8440 LOCKING WASHER
342. [2] 010038-1240 BLEEDER SCREW
350. [1] 154372-9500 BRACKET
351. [2] 010010-1640 BLEEDER SCREW M10P1.5L16 4T
352. [2] 014111-0440 LOCKING WASHER

Include in #1:

108622-3121 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105489-3741
105489-3742
9 420 613 710

GOVERNOR
* K
