Information governor
BOSCH
9 420 612 152
9420612152
ZEXEL
105489-3736
1054893736

Rating:

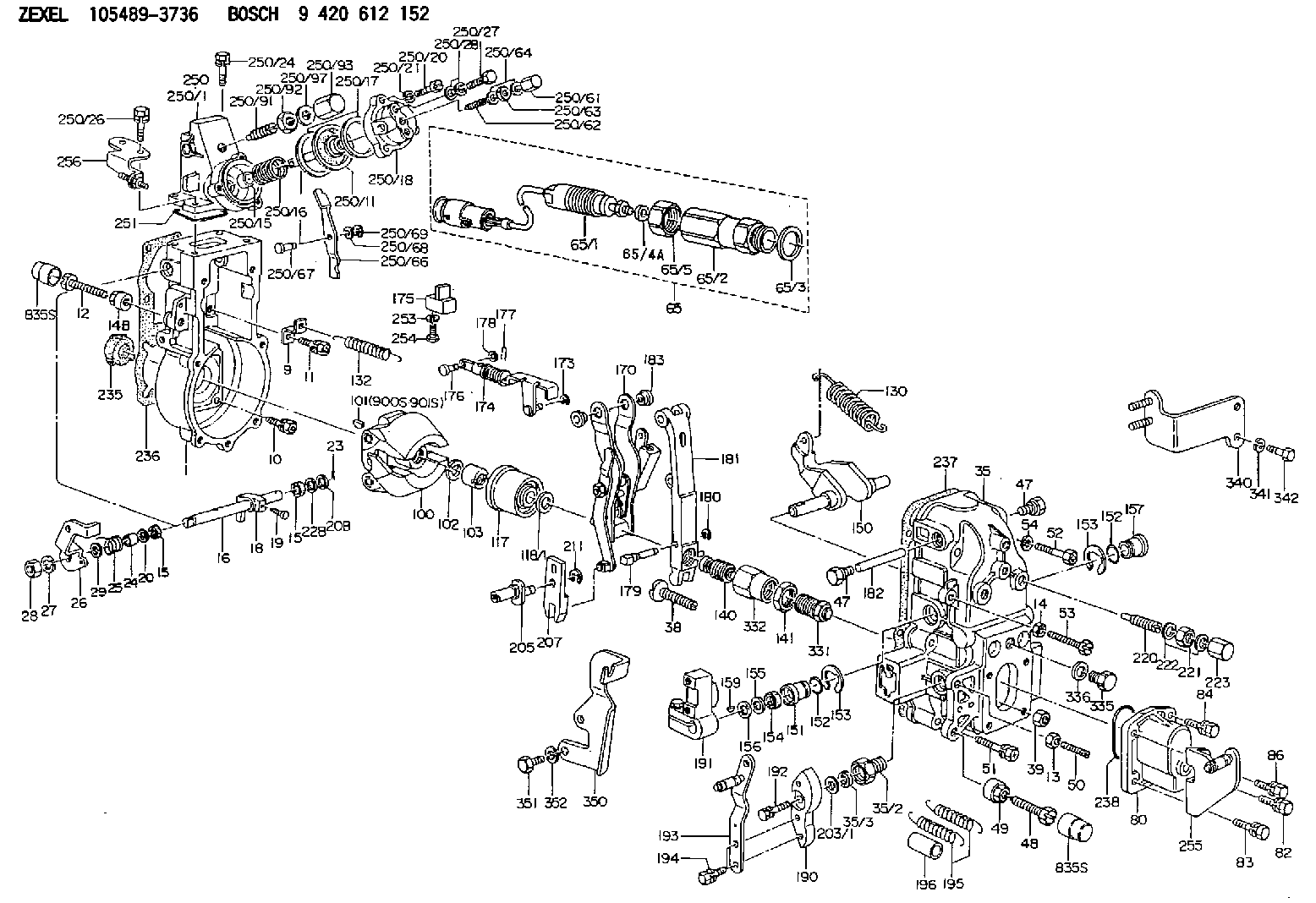

Scheme ###:
1. | [1] | 154004-6420 | GOVERNOR HOUSING |
9. | [1] | 154350-6000 | PLATE |
10. | [4] | 139006-4100 | BLEEDER SCREW |
11. | [4] | 139006-5800 | BLEEDER SCREW |
12. | [1] | 154010-7200 | BLEEDER SCREW M8P1.25L62 |
13. | [1] | 013020-6040 | UNION NUT M6P1H5 |
14. | [1] | 154011-0100 | HEXAGON NUT |
14B. | [1] | 154011-2300 | UNION NUT |
15. | [2] | 139608-0000 | PACKING RING |
15. | [2] | 139608-0000 | PACKING RING |
16. | [1] | 155004-3600 | LEVER SHAFT |
18. | [1] | 155003-3401 | CONTROL LEVER |
19. | [1] | 155006-0700 | BLEEDER SCREW |
20. | [1] | 139308-1500 | PLAIN WASHER D18&8T1.0 |
20B. | [1] | 139308-1600 | PLAIN WASHER D18&8T1.5 |
22B. | [0] | 029310-8050 | SHIM D13.5&8T0.5 |
22B. | [7] | 139408-1500 | SHIM |
23. | [1] | 154373-2200 | SAFETY PIN |
24. | [1] | 154206-5200 | BUSHING |
25. | [1] | 154327-9500 | COILED SPRING |
26. | [1] | 154381-2600 | CONTROL LEVER |
27. | [1] | 014110-8440 | LOCKING WASHER |
28. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
29. | [1] | 139408-1400 | SHIM |
29B. | [0] | 139408-1400 | SHIM |
29C. | [0] | 139408-1500 | SHIM |
35. | [1] | 154516-1620 | GOVERNOR COVER |
35/2. | [1] | 154321-2000 | BUSHING |
35/3. | [1] | 139610-0600 | PACKING RING |
38. | [1] | 154031-3401 | FLAT-HEAD SCREW |
39. | [1] | 029201-0160 | UNION NUT |
47. | [2] | 154036-1800 | CAPSULE |
47. | [2] | 154036-1800 | CAPSULE |
48. | [1] | 154010-7700 | BLEEDER SCREW M10P1.25L51 |
48B. | [1] | 154010-6000 | BLEEDER SCREW M10P1.25L55 |
49. | [1] | 154011-2200 | UNION NUT |
50. | [1] | 155615-2300 | FLAT-HEAD SCREW |
51. | [5] | 020106-4540 | BLEEDER SCREW M6P1.0L45 |
52. | [2] | 029010-6850 | BLEEDER SCREW |
53. | [1] | 154010-3100 | BLEEDER SCREW |
54. | [2] | 014110-6440 | LOCKING WASHER |
65. | [1] | 154610-6520 | RACK SENSOR ASSY |
65/1. | [1] | 479742-4120 | RACK SENSOR |
65/2. | [1] | 154614-6800 | JOINT CONNECTION |
65/3. | [1] | 026524-3040 | GASKET |
65/4A. | [0] | 029310-6220 | SHIM D11.5&6.5T0.10 |
65/4B. | [0] | 029310-6230 | SHIM D11.5&6.5T0.20 |
65/4C. | [0] | 029310-6240 | SHIM D11.5&6.5T0.25 |
65/4D. | [0] | 029310-6260 | SHIM D11.5&6.4T1.00 |
65/4E. | [0] | 029310-6270 | SHIM D11.5&6.4T1.20 |
65/4F. | [0] | 029310-6280 | SHIM D11.5&6.4T1.50 |
65/5. | [1] | 154614-1900 | UNION NUT |
80. | [1] | 154063-9100 | COVER |
82. | [1] | 029020-6210 | BLEEDER SCREW |
83. | [1] | 029020-6240 | BLEEDER SCREW |
84. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
86. | [1] | 020006-1840 | BLEEDER SCREW M6P1L18 |
100. | [1] | 154100-9320 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1310 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 139212-0000 | UNION NUT |
117. | [1] | 154123-2320 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-7900 | GOVERNOR SPRING |
132. | [1] | 154154-0701 | COILED SPRING |
140. | [1] | 154183-0020 | HEADLESS SCREW |
141. | [1] | 139218-0100 | UNION NUT |
150. | [1] | 154200-5601 | SWIVELLING LEVER |
151. | [1] | 154200-5501 | BUSHING |
152. | [2] | 139700-0000 | O-RING |
152. | [2] | 139700-0000 | O-RING |
153. | [2] | 154354-3900 | LOCKING WASHER |
153. | [2] | 154354-3900 | LOCKING WASHER |
154. | [1] | 139610-0101 | PACKING RING |
155. | [1] | 139411-0100 | SHIM D22.0&12.0T0.40 |
156. | [0] | 139411-0200 | SHIM D18.0&12.0T0.10 |
156B. | [0] | 139411-0300 | SHIM D18.0&12.0T0.20 |
156C. | [0] | 139411-0400 | SHIM D18.0&12.0T0.30 |
157. | [1] | 154204-3500 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
170. | [1] | 154218-4620 | FORK LEVER |
173. | [1] | 016010-0540 | LOCKING WASHER |
174. | [1] | 154230-9220 | STRAP |
175. | [1] | 154232-1923 | CONNECTOR |
176. | [1] | 159231-4900 | BEARING PIN |
177. | [1] | 155402-3800 | SAFETY PIN |
178. | [1] | 029310-5170 | SHIM D8&5.3T0.5 |
179. | [1] | 154238-0701 | BEARING PIN |
180. | [1] | 016010-0540 | LOCKING WASHER |
181. | [1] | 154239-1120 | TENSIONING LEVER |
182. | [1] | 154237-1200 | BEARING PIN |
183. | [2] | 154237-1800 | BUSHING |
190. | [1] | 154360-2700 | CONTROL LEVER |
191. | [1] | 154340-4520 | CONTROL LEVER |
192. | [1] | 020006-1670 | BLEEDER SCREW M6P1L16 7T |
193. | [1] | 154385-9520 | CONTROL LEVER |
194. | [2] | 020006-1240 | BLEEDER SCREW M6P1L12 4T |
195. | [2] | 154332-9400 | COILED SPRING |
196. | [2] | 154156-2800 | TUBE |
203/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
203/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
203/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
203/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
203/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
203/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
203/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
203/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
203/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
203/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
203/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
205. | [1] | 154324-3600 | LEVER SHAFT |
207. | [1] | 154326-8220 | CONTROL LEVER |
211. | [1] | 016010-0840 | LOCKING WASHER |
220. | [1] | 154050-8620 | HEADLESS SCREW |
221. | [1] | 029201-2140 | UNION NUT |
222. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
223. | [1] | 154159-1200 | CAP NUT |
235. | [1] | 155412-5300 | IMPELLER WHEEL |
236. | [1] | 154413-2900 | GASKET |
237. | [1] | 154390-0200 | GASKET |
238. | [1] | 139700-0100 | O-RING |
250. | [1] | 154420-2320 | MANIFOLD-PRESSURE COMP. |
250/1. | [1] | 154415-0320 | DIAPHRAGM HOUSING |
250/11. | [1] | 154412-6522 | DIAPHRAGM |
250/15. | [1] | 154412-7700 | BUSHING |
250/16. | [1] | 154411-5300 | COILED SPRING |
250/17. | [2] | 154413-2600 | GASKET |
250/18. | [1] | 154404-5000 | COVER |
250/20. | [3] | 139006-0900 | BLEEDER SCREW |
250/21. | [3] | 014110-6440 | LOCKING WASHER |
250/24. | [2] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
250/26. | [2] | 020106-2040 | BLEEDER SCREW M6P1L20 |
250/27. | [1] | 029731-0180 | EYE BOLT |
250/28. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
250/61. | [1] | 154035-1600 | CAP NUT |
250/62. | [1] | 154404-4400 | FLAT-HEAD SCREW |
250/63. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
250/64. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
250/66. | [1] | 154412-4622 | CONTROL LEVER |
250/67. | [1] | 154412-1600 | BEARING PIN |
250/68. | [1] | 029310-5090 | SHIM D10&5.1T0.5 |
250/69. | [1] | 016010-0540 | LOCKING WASHER |
250/91. | [1] | 154412-5120 | HEADLESS SCREW |
250/92. | [1] | 029201-2030 | UNION NUT M12P1.0H4 |
250/93. | [1] | 154412-5300 | CAP NUT |
250/97. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
251. | [1] | 154358-2500 | SEAL RING |
253. | [1] | 029320-5020 | LOCKING WASHER |
254. | [1] | 010535-1040 | FLAT-HEAD SCREW M5P0.8L10 |
255. | [1] | 154373-6120 | BRACKET |
256. | [1] | 154373-7120 | BRACKET |
331. | [1] | 154179-3321 | HEADLESS SCREW |
332. | [1] | 139218-0500 | UNION NUT |
335. | [1] | 154352-2600 | CAPSULE |
336. | [1] | 029331-6030 | GASKET |
340. | [1] | 154372-7820 | BRACKET |
341. | [2] | 014110-8440 | LOCKING WASHER |
342. | [2] | 010038-1240 | BLEEDER SCREW |
350. | [1] | 154372-9500 | BRACKET |
351. | [2] | 010010-1640 | BLEEDER SCREW M10P1.5L16 4T |
352. | [2] | 014111-0440 | LOCKING WASHER |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
