105489-3714 ZEXEL 9 420 612 149 BOSCH GOVERNOR 9420612149 1054893714




Information governor

BOSCH 9 420 612 149 9420612149
ZEXEL 105489-3714 1054893714
105489-3714 GOVERNOR
Rating:
17
Buy GOVERNOR 105489-3714 zexel genuine, new aftermarket engine parts with delivery

Scheme ###:

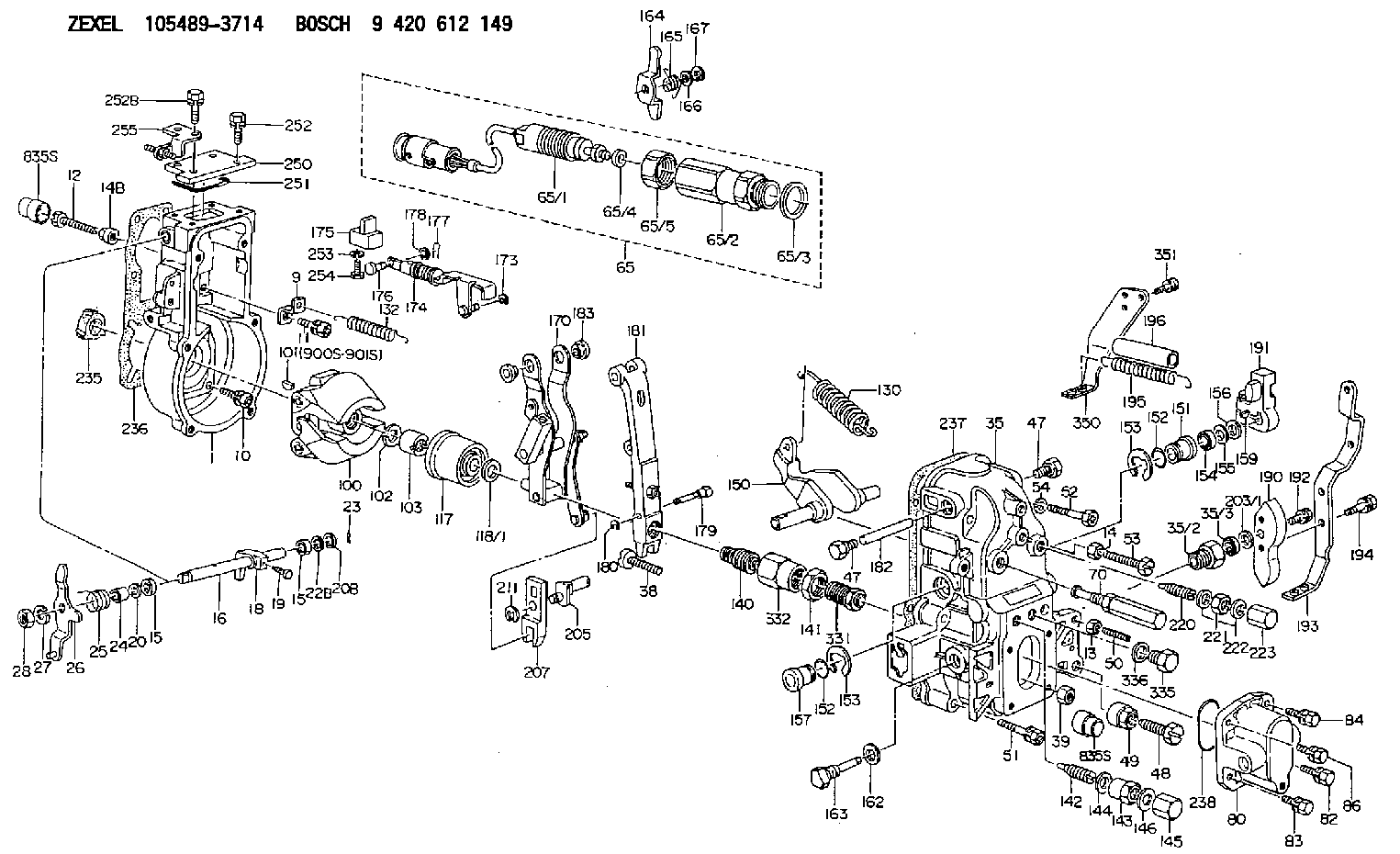

GOVERNOR HOUSING
1. [1] 154004-4621 GOVERNOR HOUSING
9. [1] 154353-5601 PLATE
10. [4] 020106-2040 BLEEDER SCREW M6P1L20
11. [4] 020106-1840 BLEEDER SCREW M6P1L18
12. [1] 154010-7300 BLEEDER SCREW M8P1.25L60
13. [1] 013020-6040 UNION NUT M6P1H5
14. [1] 154011-0100 HEXAGON NUT
14B. [1] 154011-2300 UNION NUT
15. [2] 029620-8050 PACKING RING
15. [2] 029620-8050 PACKING RING
16. [1] 155004-3600 LEVER SHAFT
18. [1] 155003-2401 CONTROL LEVER
19. [1] 155006-0100 BLEEDER SCREW
20. [1] 139308-0900 PLAIN WASHER D16&8T1
20B. [1] 139308-1000 PLAIN WASHER D16&8T1.5
22B. [0] 029310-8050 SHIM D13.5&8T0.5
22B. [7] 139408-1500 SHIM
23. [1] 025520-1210 SPLIT PIN
24. [1] 154206-2000 BUSHING
25. [1] 154327-9000 COILED SPRING
26. [1] 154381-4220 CONTROL LEVER
27. [1] 014110-8440 LOCKING WASHER
28. [1] 013020-8040 UNION NUT M8P1.25H7
35. [1] 154514-8220 GOVERNOR COVER
35/2. [1] 154321-2000 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3401 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [2] 154036-1800 CAPSULE
47. [2] 154036-1800 CAPSULE
48. [1] 154010-7100 BLEEDER SCREW M10P1.25L47
48B. [1] 154010-7700 BLEEDER SCREW M10P1.25L51
49. [1] 154011-2200 UNION NUT
50. [1] 155615-2300 FLAT-HEAD SCREW
51. [5] 020106-4540 BLEEDER SCREW M6P1.0L45
52. [2] 029010-6850 BLEEDER SCREW
53. [1] 154010-3100 BLEEDER SCREW
54. [2] 014110-6440 LOCKING WASHER
65. [1] 154610-5420 RACK SENSOR ASSY
65/1. [1] 479743-9520 RACK SENSOR ASSY
65/2. [1] 154614-2500 JOINT CONNECTION
65/3. [1] 026524-3040 GASKET
65/4. [1] 029310-6280 SHIM D11.5&6.4T1.50
65/5. [1] 154614-1900 UNION NUT
70. [1] 154055-2820 HEADLESS SCREW
80. [1] 154063-4100 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 029020-6210 BLEEDER SCREW
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-9220 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 139212-0000 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-7900 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
140. [1] 154183-1720 HEADLESS SCREW
141. [1] 139218-0100 UNION NUT
142. [1] 154242-3020 HEADLESS SCREW
143. [1] 154242-5400 UNION NUT
144. [1] 026516-2040 GASKET D19.9&16.2T1
145. [1] 154159-1800 CAP NUT
146. [1] 029331-6130 GASKET
150. [1] 154200-5401 SWIVELLING LEVER
151. [1] 154200-5501 BUSHING
152. [2] 139700-0000 O-RING
152. [2] 139700-0000 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139610-0101 PACKING RING
155. [1] 139411-0100 SHIM D22.0&12.0T0.40
156. [0] 139411-0200 SHIM D18.0&12.0T0.10
156B. [0] 139411-0300 SHIM D18.0&12.0T0.20
156C. [0] 139411-0400 SHIM D18.0&12.0T0.30
157. [1] 154204-3500 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
162. [1] 029331-6050 GASKET
163. [1] 154401-3201 BLEEDER SCREW
164. [1] 154243-0720 CONTROL LEVER
165. [1] 154327-6000 COILED SPRING
166. [1] 029310-8320 SHIM D16.5&8T0.2
167. [1] 154356-3600 LOCKING WASHER
170. [1] 154217-7020 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154234-3220 STRAP
175. [1] 154232-2323 CONNECTOR
176. [1] 154222-4900 BEARING PIN
177. [1] 155402-3800 SAFETY PIN
178. [1] 029310-5170 SHIM D8&5.3T0.5
179. [1] 154238-0201 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154239-0420 TENSIONING LEVER
182. [1] 154237-1200 BEARING PIN
183. [2] 154237-1300 BUSHING
190. [1] 154360-2800 CONTROL LEVER
191. [1] 154340-4320 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154368-7820 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
195. [2] 154332-5300 COILED SPRING
196. [2] 154156-3601 TUBE
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-4100 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-8520 HEADLESS SCREW
221. [1] 029201-2130 UNION NUT M12P1.0H6
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5200 IMPELLER WHEEL
236. [1] 154371-5600 GASKET
237. [1] 154390-0200 GASKET
238. [1] 139700-0100 O-RING
250. [1] 154063-9800 COVER
251. [1] 154358-2500 SEAL RING
252. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
252B. [2] 020006-2040 BLEEDER SCREW M6P1L20 4T
253. [1] 029320-5020 LOCKING WASHER
254. [1] 010535-1040 FLAT-HEAD SCREW M5P0.8L10
255. [1] 154373-5620 BRACKET
331. [1] 154188-1420 HEADLESS SCREW
332. [1] 139218-0500 UNION NUT
335. [1] 154352-2600 CAPSULE
336. [1] 029331-6030 GASKET
350. [1] 154356-0221 BRACKET
351. [3] 029010-5340 BLEEDER SCREW
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106873-3044 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105489-3714
105489-3715
9 420 612 149

GOVERNOR
* K




Information:

(1) Oil cooler base bypass valve. Opening pressure ... 155 17 kPa (22.5 2.5 psi)(2) Base assembly. Tighten stud that holds filter assembly (3) to a torque of ... 68 7 N m (50 5 lb ft)(3) Filter assembly.(4) Cover. Tighten to a torque of ... 60 10 N m (44 7 lb ft)(5) Seal. Lubricate seal with lubricant being sealed.
Section A-A. Oil Filter Bypass Valve.The bypass opening pressure differential is 170 kPa (25 psi).(6) Seal.(7) Spring (8M3182): Assembled length ... 63.5 mm (2.50 in)Load at assembled length ... 36.5 N (8.92 lb)Free length after test ... 91.7 mm (3.61 in)Outside diameter ... 20.6 mm (.81 in)(8) Seal.(9) Plunger.
Section B-B. Oil Pump Bypass Valve.(10) Spring (2N6005): Assembled length ... 96.52 mm (3.800 in)Load at assembled length ... 92.52 N (20.817 lb)Operating length (min) ... 45.72 mm (1.800 in)Load at min operating length ... 257.55 N (57.949 lb)Free length after test ... 124.71 mm (4.910 in)Outside diameter ... 21.84 mm (.860 in)(11) Valve.(12) Seal.(13) Seal.
Section C-C. High Pressure Relief Valve.The relief pressure is 696 kPa (101 psi).(14) Spacer.(15) Spring (1A2170): Assembled length ... 21.43 mm (.844 in)Load at assembled length ... 198.03 13.35 N (44.500 3.000 lb)Free length after test ... 31.00 mm (1.220 in)Outside diameter ... 19.60 mm (.772 in)(16) Seal.
Oil Cooler Bypass Valve.(17) Minimum stroke ... 8.4 mm (.33 in)(18) Length of valve fully compressed ... 44.2 1 mm (1.70 .04 in)(19) Length of valve fully extended ... 52.6 1 mm (2.10 .04 in)(B) Position "B".Valve Data: Start to close temperature ... 100 to 102.8°C (212 to 217°F)Position "B" temperature activation ... 111.1°C (232°F)Position "B" bypass opening pressure differential ... 155 17 kPa (22 2 psi)Fail safe activation temperature ... 126.7°C (260°F) Unit will stroke to and remain at position "B" at failsafe activation temperature.
