105489-3582 ZEXEL 9 420 612 942 BOSCH GOVERNOR 9420612942 1054893582

Information governor

BOSCH 9 420 612 942 9420612942

ZEXEL 105489-3582 1054893582

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105489-3582 zexel genuine, new aftermarket engine parts with delivery

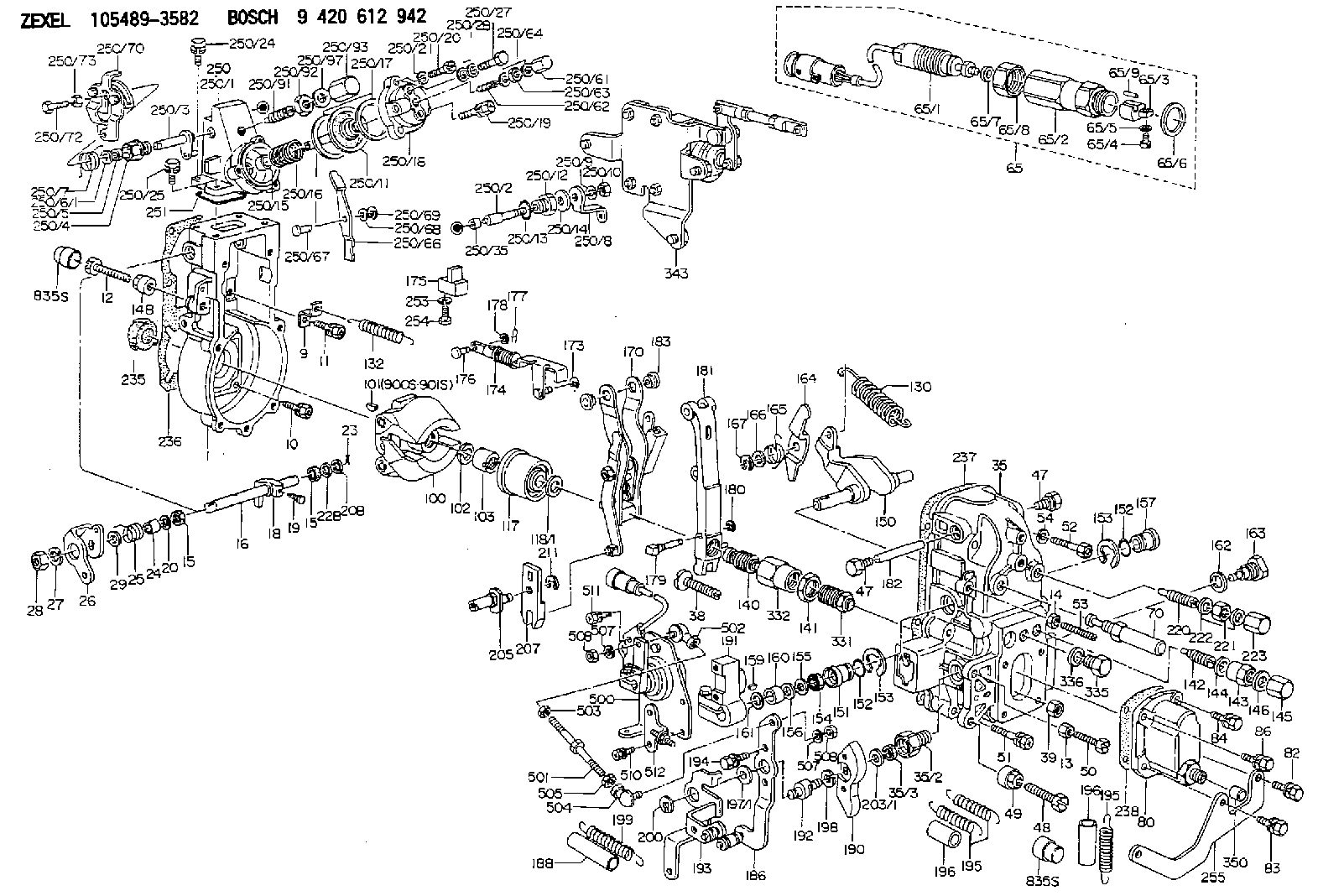

Scheme ###:

1.	[1]	154004-4621	GOVERNOR HOUSING
9.	[1]	154350-6000	PLATE
10.	[4]	020106-2040	BLEEDER SCREW M6P1L20
11.	[4]	020106-1840	BLEEDER SCREW M6P1L18
12.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
15.	[2]	139608-0100	PACKING RING
15.	[2]	139608-0100	PACKING RING
16.	[1]	155004-3600	LEVER SHAFT
18.	[1]	155003-2101	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
22B.	[0]	029310-8050	SHIM D13.5&8T0.5
22B.	[7]	139408-1500	SHIM
23.	[1]	025520-1210	SPLIT PIN
24.	[1]	154206-2000	BUSHING
25.	[1]	154327-3600	COILED SPRING
26.	[1]	154381-2400	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER
28.	[1]	013020-8040	UNION NUT M8P1.25H7
29.	[1]	139408-1400	SHIM
29B.	[0]	139408-1400	SHIM
29C.	[0]	139408-1500	SHIM
35.	[1]	154515-2520	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	139610-0600	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1800	CAPSULE
47.	[2]	154036-1800	CAPSULE
48.	[1]	154010-7100	BLEEDER SCREW M10P1.25L47
48B.	[1]	154010-7700	BLEEDER SCREW M10P1.25L51
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-2400	BLEEDER SCREW
51.	[5]	020106-4540	BLEEDER SCREW M6P1.0L45
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	154610-5520	RACK SENSOR ASSY
65/1.	[1]	479742-3120	RACK SENSOR
65/2.	[1]	154614-2500	JOINT CONNECTION
65/3.	[1]	154614-2900	BLOCK
65/4.	[1]	010234-1040	HEX-SOCKET-HEAD CAP SCREW
65/5.	[1]	014110-4440	LOCKING WASHER
65/6.	[1]	139524-0000	GASKET
65/7.	[1]	029310-6280	SHIM D11.5&6.4T1.50
65/8.	[1]	154614-1900	UNION NUT
65/9.	[1]	154614-3300	BEARING PIN
70.	[1]	154055-3120	HEADLESS SCREW
80.	[1]	154063-6621	COVER
82.	[1]	029020-6240	BLEEDER SCREW
83.	[1]	029020-6240	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	029020-6210	BLEEDER SCREW
100.	[1]	154100-9220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-8400	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154183-8520	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
142.	[1]	154242-3720	HEADLESS SCREW
143.	[1]	154242-3200	UNION NUT
144.	[1]	139516-0100	GASKET
145.	[1]	154159-1800	CAP NUT
146.	[1]	139516-0100	GASKET
150.	[1]	154200-5801	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
152.	[2]	139719-0000	O-RING
152.	[2]	139719-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139612-0000	PACKING RING
155.	[1]	139411-0100	SHIM D22.0&12.0T0.40
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2300	BUSHING
161.	[0]	154206-2400	PLAIN WASHER D20.5&12.2T1
162.	[1]	139516-0100	GASKET
163.	[1]	154401-3201	BLEEDER SCREW
164.	[1]	154243-0820	CONTROL LEVER
165.	[1]	154327-6100	COILED SPRING
166.	[1]	029310-8320	SHIM D16.5&8T0.2
167.	[1]	154356-3600	LOCKING WASHER
170.	[1]	154217-9320	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154234-9920	STRAP
175.	[1]	154232-1923	CONNECTOR
176.	[1]	159231-4900	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
178.	[1]	029310-5170	SHIM D8&5.3T0.5
179.	[1]	154238-0201	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154239-1820	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1300	BUSHING
186.	[1]	154385-6120	CONTROL LEVER
188.	[2]	154156-2000	TUBE
190.	[1]	154360-2700	CONTROL LEVER
191.	[1]	154340-1920	CONTROL LEVER
192.	[1]	154372-2000	BLEEDER SCREW
193.	[1]	154385-5920	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
195.	[1]	154332-6400	COILED SPRING
195.	[1]	154332-6400	COILED SPRING
196.	[1]	154156-2000	TUBE
196.	[1]	154156-2000	TUBE
197/1.	[0]	029310-8610	SHIM D10.5&8.5T0.1
197/1.	[0]	029310-8620	SHIM D10.5&8.5T0.15
197/1.	[0]	029310-8630	SHIM D10.5&8.5T0.2
197/1.	[0]	029310-8650	SHIM D10.5&8.5T0.5
198.	[1]	014110-8440	LOCKING WASHER
199.	[2]	154332-6400	COILED SPRING
200.	[1]	016010-0740	LOCKING WASHER
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3400	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6820	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT M12P1.0H6
222.	[2]	139512-0000	GASKET D17.2&12.2T1.0
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	154390-1400	GASKET
250.	[1]	154420-1120	MANIFOLD-PRESSURE COMP.
250/1.	[1]	154413-0621	DIAPHRAGM HOUSING
250/2.	[1]	154413-0700	LEVER SHAFT
250/3.	[1]	154413-0820	CONTROL LEVER
250/4.	[1]	159230-0600	BUSHING
250/5.	[1]	029621-0080	PACKING RING
250/6/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
250/6/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
250/6/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
250/6/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
250/6/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
250/6/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
250/6/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
250/6/1.	[0]	139410-1400	SHIM D26&10.2T0.7
250/6/1.	[0]	139410-1500	SHIM D26&10.2T0.9
250/6/1.	[0]	139410-1600	SHIM D26&10.2T0.8
250/6/1.	[0]	139410-2700	SHIM D26&10.2T0.6
250/7.	[1]	154412-6200	COILED SPRING
250/8.	[1]	154413-1000	CONTROL LEVER
250/9.	[1]	014110-8440	LOCKING WASHER
250/10.	[1]	013020-8140	UNION NUT M8P1.25H6.5
250/11.	[1]	154412-6522	DIAPHRAGM
250/12.	[1]	154321-0200	BUSHING
250/13.	[1]	029630-9050	O-RING
250/14.	[0]	029311-0220	SHIM D18&10.3T0.2
250/14B.	[0]	029311-0230	SHIM D18&10.3T0.5
250/15.	[1]	154412-7700	BUSHING
250/16.	[1]	154411-2700	COILED SPRING
250/17.	[2]	154413-2600	GASKET
250/18.	[1]	154404-5000	COVER
250/19.	[1]	139006-0900	BLEEDER SCREW
250/20.	[1]	020106-2240	BLEEDER SCREW
250/20B.	[1]	139006-0900	BLEEDER SCREW
250/21.	[2]	014110-6440	LOCKING WASHER
250/24.	[3]	020106-1640	BLEEDER SCREW M6P1.0L14
250/25.	[1]	029020-6210	BLEEDER SCREW
250/27.	[1]	029731-0180	EYE BOLT
250/28.	[2]	026510-1340	GASKET D13.4&10.2T1
250/35.	[1]	154413-1700	JOINT CONNECTION
250/61.	[1]	154035-1600	CAP NUT
250/62.	[1]	154404-4400	FLAT-HEAD SCREW
250/63.	[1]	013030-6040	UNION NUT M6P1H3.6
250/64.	[2]	026506-1040	GASKET D9.9&6.2T1
250/66.	[1]	154413-0922	CONTROL LEVER
250/67.	[1]	154412-1600	BEARING PIN
250/68.	[1]	029310-5090	SHIM D10&5.1T0.5
250/69.	[1]	016010-0540	LOCKING WASHER
250/70.	[1]	154412-5611	CONTROL LEVER
250/72.	[1]	153141-1600	BLEEDER SCREW
250/73.	[1]	029240-6010	UNION NUT M6P1.0H5*
250/91.	[1]	154413-1920	HEADLESS SCREW
250/92.	[1]	029201-2140	UNION NUT
250/93.	[1]	154412-5300	CAP NUT
250/97.	[2]	026512-1540	GASKET D15.4&12.2T1.50
251.	[1]	154419-2500	SEAL RING
253.	[1]	029320-5020	LOCKING WASHER
254.	[1]	010535-1040	FLAT-HEAD SCREW M5P0.8L10
255.	[1]	154373-7520	BRACKET
331.	[1]	154179-5120	HEADLESS SCREW
332.	[1]	139218-0500	UNION NUT
335.	[1]	154352-2600	CAPSULE
336.	[1]	139516-0100	GASKET
343.	[1]	154410-4420	SOLENOID
350.	[1]	154357-5800	CAP
500.	[1]	154602-0420	LOAD SENSOR ASSY
501.	[1]	154604-8600	LEVER SHAFT
502.	[1]	159227-4000	JOINT CONNECTION
503.	[1]	013020-5240	UNION NUT M5P0.8H4
504.	[1]	159227-4100	JOINT CONNECTION
505.	[1]	029200-5130	UNION NUT
507.	[2]	014110-5440	LOCKING WASHER
507.	[2]	014110-5440	LOCKING WASHER
508.	[2]	013010-5240	UNION NUT M5P0.8H4
508.	[2]	013010-5240	UNION NUT M5P0.8H4
510.	[2]	020118-1440	BLEEDER SCREW
511.	[1]	020118-1440	BLEEDER SCREW
512.	[1]	154373-7620	BRACKET
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-1781 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105489-3582

9 420 612 942

GOVERNOR
* K

Information:

1. Remove wiring harnesses from bracket (1). 2. Disconnect the wires at connections (5). Remove seal wire (4). Remove five bolts (2), bracket (1) cover (3) and the gasket. 3. Remove two bolts (6) and clamps. Remove rack solenoid (7). 4. Disconnect wires at connections (8). Remove two bolts (10) and bracket assembly (9). Loosen the locknut and remove rack position sensor (11). Be careful not to lose the spring that is around the sensor. To remove the transducer module at this time use the following procedure:a. disconnect wires at connector (8).b. remove the connectors from the wires.c. remove four bolts that fasten transducer module (22) to housing (18).d. feed the wires through housing (18) while removing the transducer module. 5. Remove three bolts (12) from inside housing (14). Remove two bolts (13) and remove housing (14).
Typical Example6. Loosen locknut (15) and remove engine speed sensor (16).
Typical Example7. Remove seven bolts (17) and remove the transducer module and housing (18). 8. Remove three bolts (19) and cover (20). 9. Remove two bolts (21). Remove transducer module (22) and gasket. 10. Remove lockring (27), seat (25), spring (24), sleeve (23) and lockring (26). 11. Remove three bolts (28) and remove cylinder (29). 12. Remove sleeve (30), piston (31) and valve (32). Remove O-ring seal (33) from sleeve (30). 13. Remove bolts (34) and remove retainer (35). Remove two races and one bearing (not shown). Assemble Rack Actuator Package
1. Lubricate bearing (37) with engine oil. Install race (36), bearing (37), race (36) and retainer (35) on the fuel injection pump camshaft. 2. Lubricate O-ring seal (33) with engine oil and install on sleeve (30). Install valve (32) and piston (31) into sleeve (33). 3. Install sleeve (30) into cylinder (29).4. Install lockring (26), sleeve (23), spring (24), seat (25) and lockring (27) on valve (32). 5. Put cylinder assembly (29) in position on the fuel injection pump housing with piston (31) engaged over fuel injection pump rack (38). Be sure that rack (38) is properly engaged with piston (31). 6. Fasten cylinder (29) to the fuel injection pump housing with three bolts (28). The rack and servo valve (32) must move freely after bolts (28) are tight. 7. Install gasket (39) and transducer module (22) on housing (18). 8. Place wire harness (40) in the slot of the housing. 9. Install cover (20) and bolts (19).
Typical Example10. Install the gasket and housing (18) on the fuel injection pump housing with seven bolts (17).
Typical Example11. Install engine speed sensor (16) until it contacts retainer (35). Back the engine speed sensor out (counterclockwise) 180°. This procedure will provide a clearance of .76 mm (.030 in). Tighten locknut (15).
Typical Example12. Install gasket and housing (14).13. Install the rack position sensor damping seal in housing (14). Install the spring and rack position sensor (11) in housing (14).14. Connect the rack position sensor wiring connector to the transducer module wiring connector (P1 to J1). Connect the transducer module wiring connector to the control module wiring
