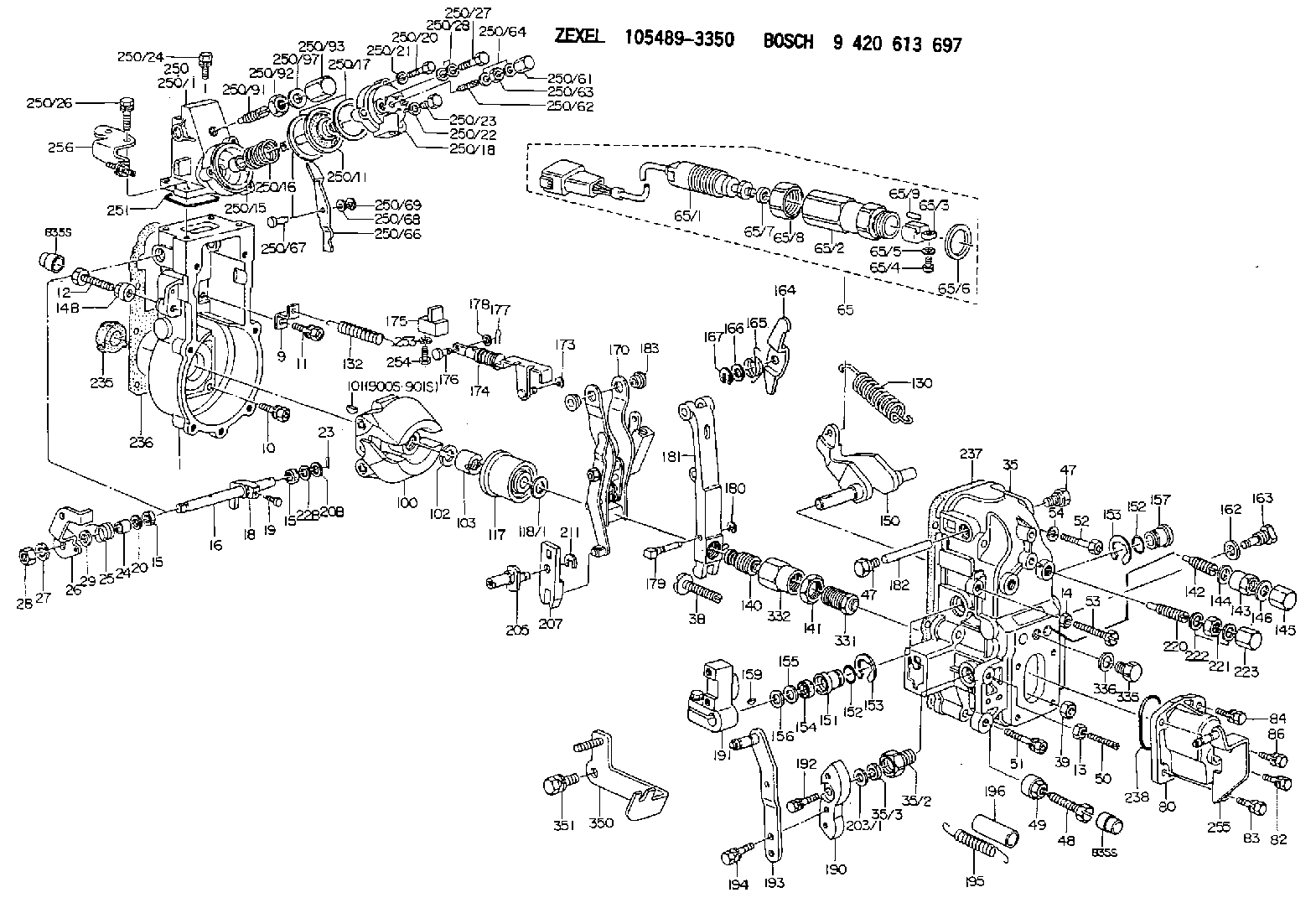

105489-3350 ZEXEL 9 420 613 697 BOSCH GOVERNOR 9420613697 1054893350

1. Disconnect plug P7 from receptacle J7. The locking ring helps identify P7 from J7. Check the connections for damaged wires or pins and corrosion. Also check that the pins are at the proper height in the connector. Check that the wires and pins are tight in the connectors by pulling (slightly) on each wire of each connector (including the breakout "T").2. Install the 8T8695 Adapter (nine pin breakout "T") between J7 and P7. Twist the locking rings to secure the connections.3. Connect the voltmeter as shown. Check for the appropriate voltages between the lettered "T" pins as explained in Steps 4 through 11.4. Pin B (parking brake) to A (ground):* Less than .5 volts DC with the key on and parking brake applied.* More than 4.5 volts DC with the key on and parking brake released. Diagnosis - Disconnect breakout "T" and check the individual switch circuits for open, ground or faulty switch. Switch circuit must have less than 2.5 ohms resistance and more than 5000 ohms resistance to chassis ground.5. Pin C (brake switch) to A:* Less than .5 volts DC with the key on.* More than 4.5 volts DC with brake pedal applied and the key on. Diagnosis - Disconnect breakout "T" and check the individual switch circuits for open, ground or faulty switch. Switch circuit must have less than 2.5 ohms resistance and more than 5000 ohms resistance to chassis ground.
Vehicle Speed Buffer (1) Magnetic Pickup (2) in transmission. Step 6 checks the proper functioning of the truck wiring, vehicle speed sensor and vehicle speed buffer. If proper vehicle speed is present on the appropriate status screens of the 3176 (7X1055) DDT or the (8T8697) ECAP service tools during road test than Step 6 is not necessary.6. Pin D to pin A (static check): Disconnect the magnetic pickup (in transmission) from the input wires of the vehicle speed buffer.* Voltage should be 4.5 to 7.5 volts DC with the key on.
Vehicle Speed Buffer with Jumper Wire* With the jumper wire installed to the speed buffer input wires as shown, voltage is less than .75 volts DC with the key on. Diagnosis - If the voltages in both parts of Step 6 are correct, check the vehicle speed sensor per the manufactures specifications.In both parts of Step 6, if the voltage is 4.5 to 7.5 volts DC and does not change when the input wires are opened or jumpered: Remove breakout "T" and check wire from J7 pin D to J14 pin D for ground or open.* Remove the jumper wire and reconnect the magnetic pickup to vehicle speed buffer.7. Pin E to pin A:* Less than 1.0 volt DC with key on and foot pedal in low idle position.* More than 3.5 volts DC with foot pedal in high idle position. Diagnosis - Disconnect breakout "T". With the truck schematic, check wire E for continuity from J7 pin E to J11 pin C. Also check that wire E is not grounded to the
