105489-3311 ZEXEL 9 420 612 940 BOSCH GOVERNOR 9420612940 1054893311 1157705551

Information governor

BOSCH 9 420 612 940 9420612940

ZEXEL 105489-3311 1054893311

ISUZU 1157705551 1157705551

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105489-3311 zexel genuine, new aftermarket engine parts with delivery

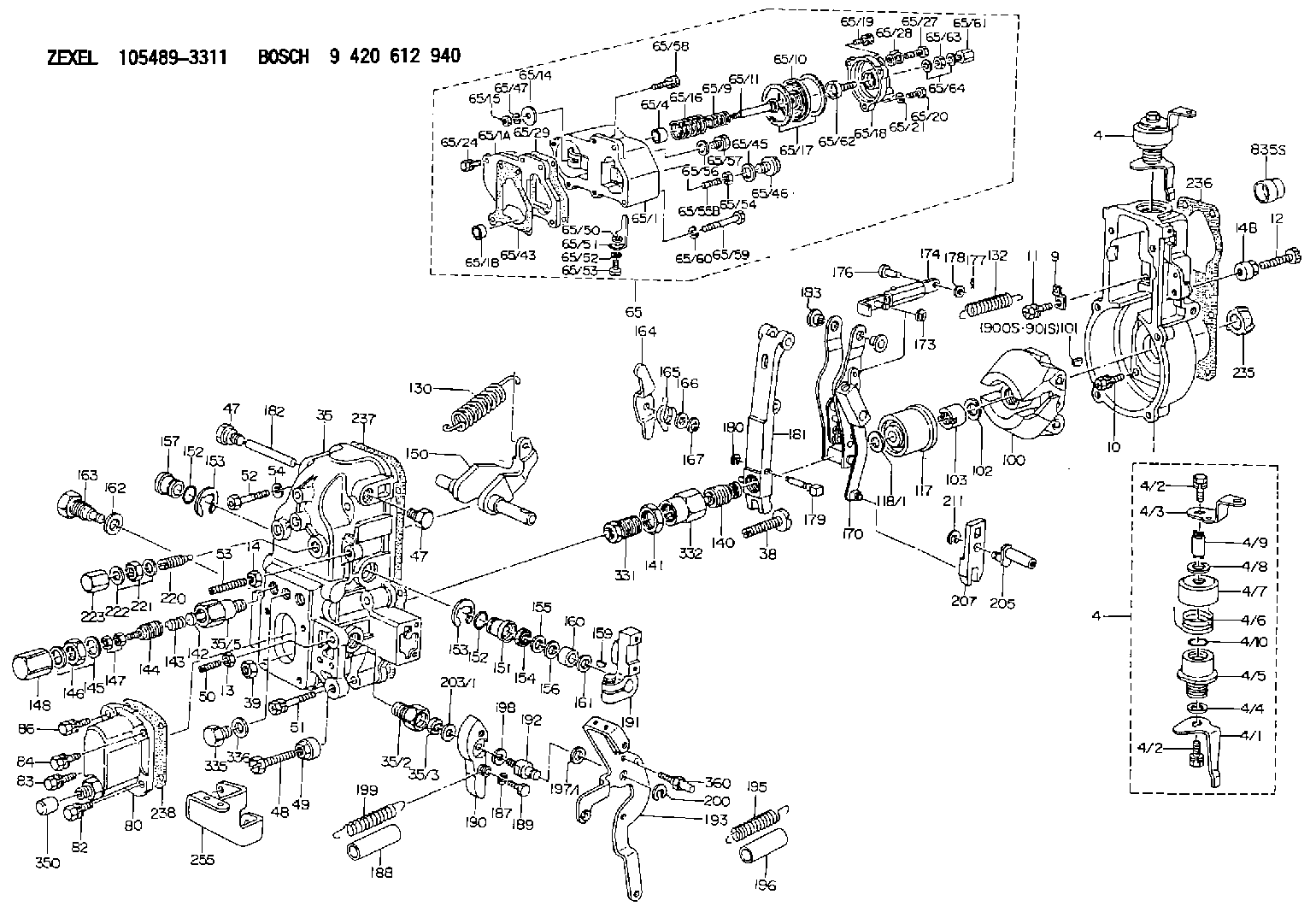

Scheme ###:

1.	[1]	154004-2000	GOVERNOR HOUSING
4.	[1]	154364-8820	CONTROL LEVER
4.	[1]	154364-8820	CONTROL LEVER
4/1.	[1]	154304-6200	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154364-8800	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-2901	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
9.	[1]	154353-5601	PLATE
10.	[4]	020106-2040	BLEEDER SCREW M6P1L20
11.	[4]	020106-1840	BLEEDER SCREW M6P1L18
12.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
13.	[1]	029240-6010	UNION NUT M6P1.0H5*
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
35.	[1]	154513-7420	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	029621-0080	PACKING RING
35/5.	[1]	154242-1800	GUIDE SLEEVE
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1800	CAPSULE
47.	[2]	154036-1800	CAPSULE
48.	[1]	154010-7100	BLEEDER SCREW M10P1.25L47
48B.	[1]	154010-7700	BLEEDER SCREW M10P1.25L51
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-2300	FLAT-HEAD SCREW
51.	[5]	020106-4540	BLEEDER SCREW M6P1.0L45
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	154420-1521	MANIFOLD-PRESSURE COMP.
65/1.	[1]	154412-0020	GOVERNOR HOUSING
65/1A.	[1]	154408-2901	SPACER BUSHING
65/1B.	[1]	134009-0000	SPACER BUSHING
65/4.	[1]	154413-1400	BUSHING
65/9.	[1]	154403-9700	COILED SPRING
65/10.	[1]	154400-9420	DIAPHRAGM
65/11.	[1]	154400-6101	STOP PIN
65/14.	[1]	154406-5500	SLOTTED WASHER
65/15.	[1]	013020-6040	UNION NUT M6P1H5
65/16.	[1]	154402-8500	COILED SPRING
65/17.	[2]	154413-2600	GASKET
65/18.	[1]	154404-5000	COVER
65/19.	[1]	020106-2040	BLEEDER SCREW M6P1L20
65/20.	[2]	029010-6310	BLEEDER SCREW
65/21.	[2]	014110-6440	LOCKING WASHER
65/24.	[2]	020106-2040	BLEEDER SCREW M6P1L20
65/27.	[1]	029731-0180	EYE BOLT
65/28.	[2]	026510-1340	GASKET D13.4&10.2T1
65/29.	[1]	154390-1700	GASKET
65/43.	[1]	154390-1800	GASKET
65/45.	[1]	029331-8040	GASKET
65/46.	[1]	154406-5800	FLAT-HEAD SCREW
65/47.	[1]	014110-6440	LOCKING WASHER
65/50.	[1]	154406-6800	PLAIN WASHER
65/51.	[1]	154406-6901	CONTROL LEVER
65/52.	[1]	014110-4440	LOCKING WASHER
65/53.	[1]	010234-0820	HEX-SOCKET-HEAD CAP SCREW
65/54.	[1]	013030-6040	UNION NUT M6P1H3.6
65/55B.	[1]	154404-1600	FLAT-HEAD SCREW L26.00
65/56.	[1]	029331-2130	GASKET
65/57.	[1]	154406-6500	FLAT-HEAD SCREW
65/58.	[2]	020106-2540	BLEEDER SCREW M6P1L25
65/59.	[2]	139006-9300	BLEEDER SCREW M6P1L70
65/60.	[2]	014110-6440	LOCKING WASHER
65/61.	[1]	154035-1600	CAP NUT
65/62.	[1]	154404-4400	FLAT-HEAD SCREW
65/63.	[1]	013030-6040	UNION NUT M6P1H3.6
65/64.	[2]	026506-1040	GASKET D9.9&6.2T1
80.	[1]	154063-6621	COVER
82.	[1]	029020-6240	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	029020-6240	BLEEDER SCREW
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-8300	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154183-0920	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
142.	[1]	154242-1500	STOP PIN
143.	[1]	154242-4500	COILED SPRING
144.	[1]	154242-1600	GUIDE SLEEVE
145.	[2]	029332-2030	GASKET D25.5&22T1
146.	[1]	139222-0100	UNION NUT
147.	[2]	023020-8040	UNION NUT M8P1H5
148.	[1]	154159-1400	CAP NUT
150.	[1]	154200-5701	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM D22.0&12.0T0.40
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2300	BUSHING
161.	[0]	154206-2400	PLAIN WASHER D20.5&12.2T1
162.	[1]	029331-6050	GASKET
163.	[1]	154401-3201	BLEEDER SCREW
164.	[1]	154243-0720	CONTROL LEVER
165.	[1]	154327-6000	COILED SPRING
166.	[1]	029310-8320	SHIM D16.5&8T0.2
167.	[1]	154356-3600	LOCKING WASHER
170.	[1]	154216-8420	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154235-1420	STRAP
176.	[1]	154222-4900	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
178.	[1]	029310-5170	SHIM D8&5.3T0.5
179.	[1]	154238-0201	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-7521	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1300	BUSHING
187.	[1]	014110-6440	LOCKING WASHER
188.	[1]	154156-1500	TUBE
189.	[1]	154357-6320	BLEEDER SCREW
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154340-1920	CONTROL LEVER
192.	[1]	154371-8300	BLEEDER SCREW
193.	[1]	154368-9020	CONTROL LEVER
195.	[2]	154317-5300	COILED SPRING
196.	[2]	154156-0600	TUBE
197/1.	[0]	029310-8610	SHIM D10.5&8.5T0.1
197/1.	[0]	029310-8620	SHIM D10.5&8.5T0.15
197/1.	[0]	029310-8630	SHIM D10.5&8.5T0.2
197/1.	[0]	029310-8650	SHIM D10.5&8.5T0.5
198.	[1]	014110-8440	LOCKING WASHER
199.	[1]	154317-0900	COILED SPRING
200.	[1]	016010-0740	LOCKING WASHER
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-4100	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6820	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT M12P1.0H6
222.	[2]	139512-0000	GASKET D17.2&12.2T1.0
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	154390-1400	GASKET
255.	[1]	154371-8420	BRACKET
331.	[1]	154179-3620	HEADLESS SCREW
332.	[1]	139218-0500	UNION NUT
335.	[1]	154352-2600	CAPSULE
336.	[1]	029331-6030	GASKET
350.	[1]	154357-5800	CAP
360.	[1]	154357-6900	BEARING PIN
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-1702 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105489-3311
105489-3312

9 420 612 940

1157705551 ISUZU

GOVERNOR
* K

Information:

Overcooling
25. Defective Temperature GaugeIf the temperature gauge shows that the coolant temperature is below normal and all other conditions indicate that conditions are normal, check the coolant temperature in another method, such as:* Read the coolant temperature with an ECAP or DDT.* Install an 8T0470 Thermistor Thermometer Group* Install a temperature sensitive tape.* Install a new gauge that is known to be good.26. Defective Coolant Temperature SensorIf a fault is detected in the coolant temperature sensor circuit, determine if the fault is in the wiring or the coolant temperature sensor following the procedure in Electronic Troubleshooting, 3176 Diesel Truck Engine, Form No. SENR3913. Repair or replace parts as needed. The coolant temperature sensor should be accurate within plus or minus 3° C (6° F). Check the accuracy of the sensor if it is found to be out of specification.27. Long Idle PeriodsRunning the engine for extended periods of time under no load conditions will cause the engine heat to be removed at a faster rate than it is being generated.28. Very Light LoadsVery light loads, very slow speeds, or downhill travel can cause below normal heating due to the decreased amount of fuel that is being burned. The installation of shutters will help correct this problem by decreasing the flow of air into the engine compartment.29. Defective Water Temperature RegulatorIf the water temperature regulator is stuck open, it will cause below normal engine heating. To test the thermostat, see the topic, Testing The Cooling System, in the Testing and Adjusting section of Systems Operation, Testing and Adjusting, Form No. SENR3909.30. Faulty Fan Clutch (Will Not Disengage)Check for proper operation of the fan clutch. Refer to the Truck Manufacturer's Service Manual for the proper procedure.31. Vent Line OpenIf the vent line (OEM) between the temperature regulator and the radiator top tank is open, overcooling could result. Install a valve assembly in the line that will allow air venting but restrict coolant flow with the engine running.
