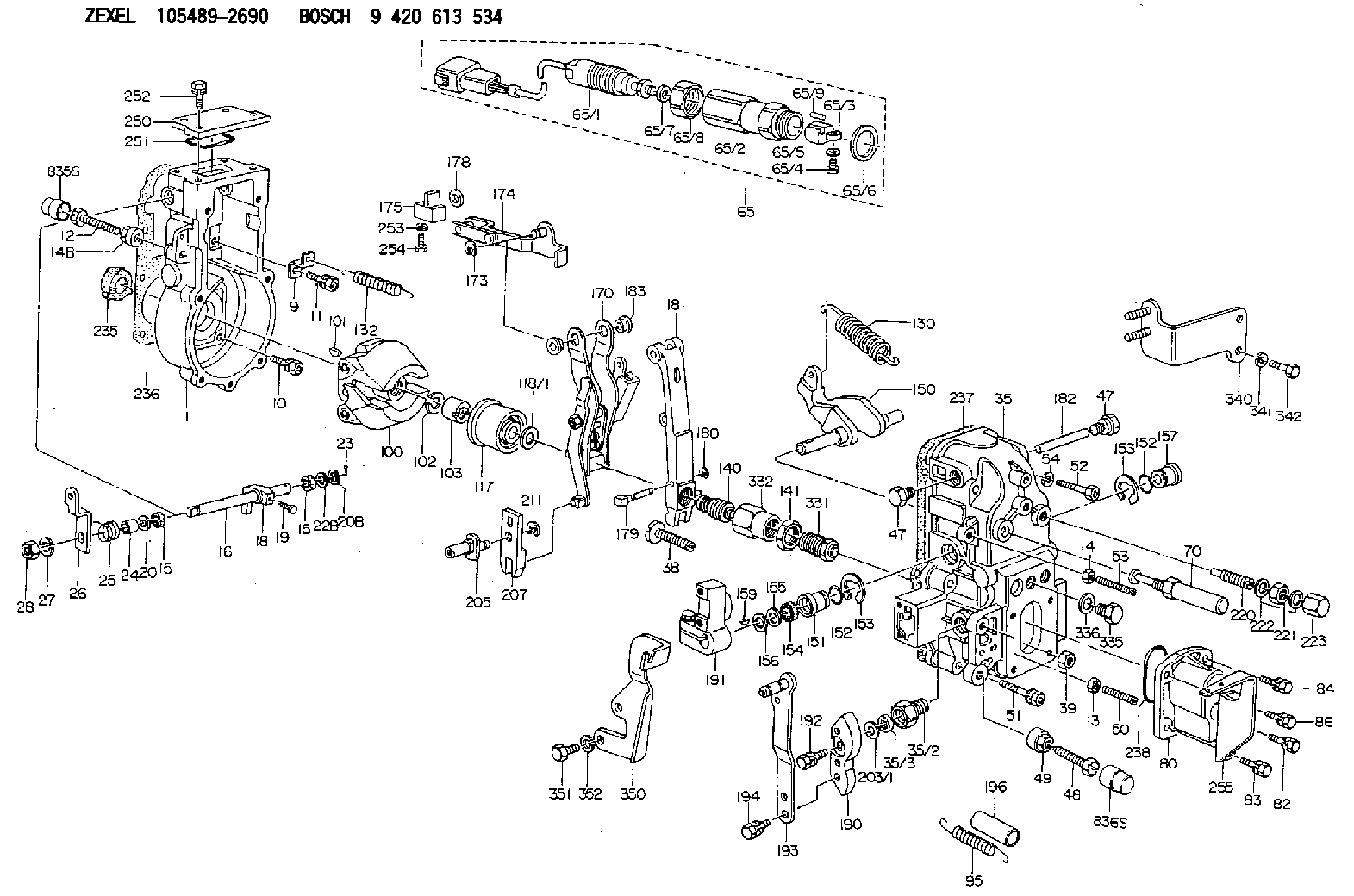

105489-2690 ZEXEL 9 420 613 534 BOSCH GOVERNOR 9420613534 1054892690 223005610a

(1) Bore in rocker arm for shaft ... 24.803 0.013 mm (.9765 .0005 in) Diameter of rocker arm shaft ... 24.752 0.013 mm (.9745 .0005 in)(2) Put 5P3931 Anti-Seize Compound on all the threads of bolts that hold rocker arm shafts and tighten the bolts in the step sequence that follows:Step 1. Tighten bolts from 1 through 6 in number sequence to ... 270 27 N m (200 20 lb ft)Step 2. Tighten bolts from 1 through 6 in number sequence to ... 450 20 N m (330 15 lb ft)Step 3. Tighten bolts from 1 through 6 in number sequence again to ... 450 20 N m (330 15 lb ft) (3) Torque for locknut for valve adjustment screw ... 30 4 N m (22 3 lb ft)(4) Torque for locknut for bridge assembly ... 30 4 N m (22 3 lb ft)Bridge Installation Instructions:a. Lubricate bridge dowel, bridge bore and top pad of bridge with engine oil.b. Install bridge assembly on bridge dowel.c. While firmly pressing [0.5 to 4.5 kg (1 to 10 lb)] straight down on the bridge pad, turn the adjusting screw clockwise until contact is made with the valve stem.d. Turn the screw clockwise and additional 20 to 30° (1/3 to 1/2 of 1 hex on nut) to straighten the dowel in the guide and compensate for slack in the threads.e. Hold the adjusting screw in this position and tighten the locknut to a torque of 30 4 N m (22 3 lb ft).(5) Valve clearance (with engine stopped). Intake valves ... 0.38 mm (.015 in)Exhaust valves ... 0.76 mm (.030 in) After setting valve clearance, tighten adjusting screw locknut to a torque of 30 4 N m (22 3 lb ft). Then, recheck the valve clearance.(5) Clearance for valves: Intake valves ... 0.38 mm (.015 in)Exhaust valves ... 0.76 mm (.030 in)(6) Height to top of dowel ... 53.3 0.5 mm (2.10 .02 in)(7) Diameter of dowel ... 11.008 0.003 mm (.4334 .0001 in) Bore in bridge for dowel ... 11.13 0.05 mm (.438 .002 in)Bore in head for dowel ... 10.968 0.020 mm (.4318 .0008 in) (8) Diameter of valve lifter ... 27.896 0.013 mm (1.0983 .0005 in) Bore in block for valve lifter ... 27.953 0.019 mm (1.1005 .0008 in) See Guideline For Reusable Parts; Salvage Of Lifter Bores In 3400 Family Engines, Form No. SEBF8069 for the procedure, tooling and specifications needed to install 4W4588 Sleeves for salvage of the lifter bores in the cylinder block.(9) 6N6872 Lifter Guide Spring. See Guideline For Reusable Parts, Form No. SEBF8066, for information on using guide springs again. (10) 2N7229 Spring: Length under test force ... 74.2 mm (2.92 in)Test force ... 45 to 53 N (10 to 12 lb)Free length after test ... 114.3 mm (4.50 in)Outside
