105489-2601 ZEXEL 9 420 613 527 BOSCH GOVERNOR 9420613527 1054892601 223005361a




Information governor

BOSCH 9 420 613 527 9420613527
ZEXEL 105489-2601 1054892601
HINO 223005361A 223005361a
105489-2601 GOVERNOR
Rating:
62
Buy GOVERNOR 105489-2601 zexel genuine, new aftermarket engine parts with delivery

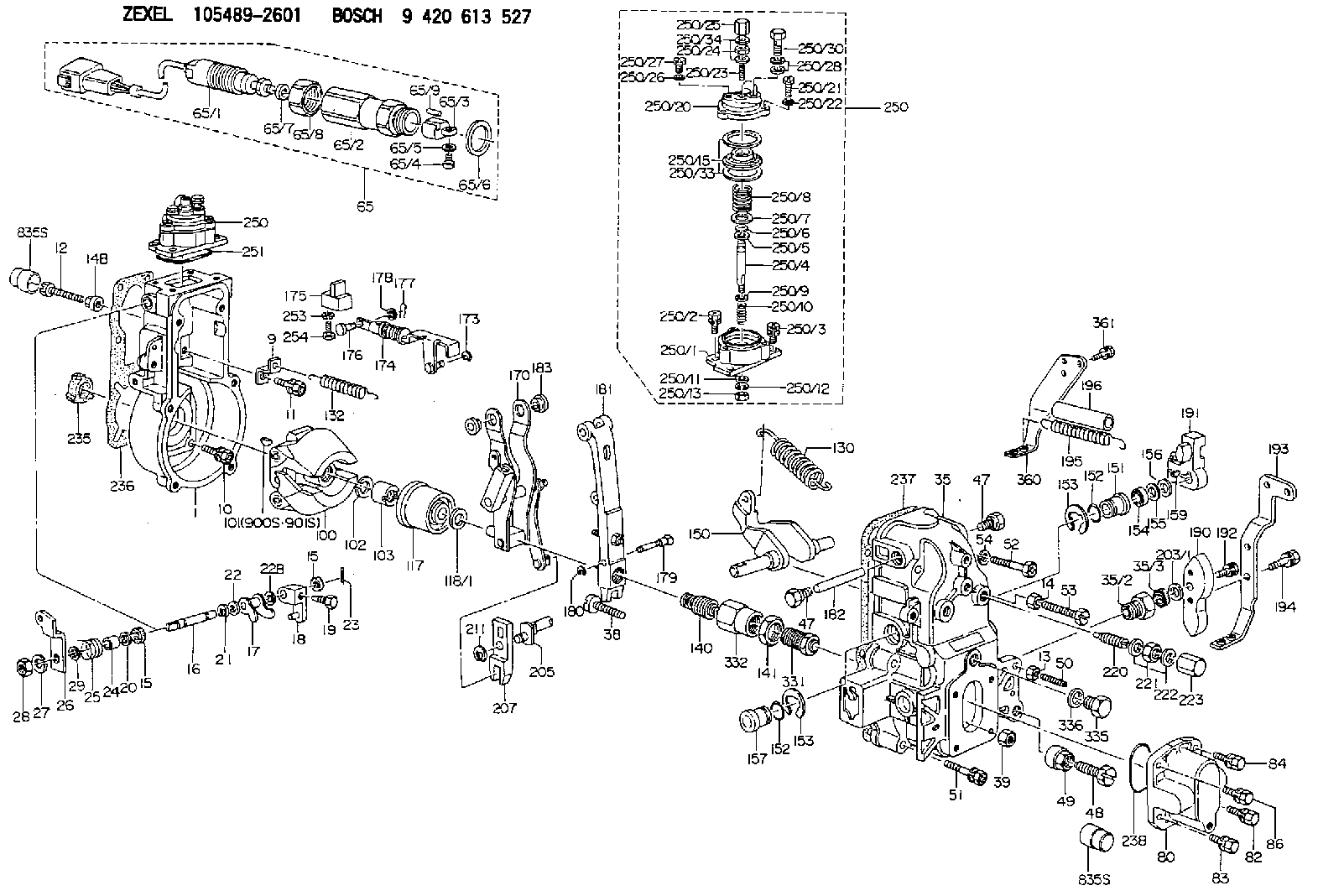

Scheme ###:

1. [1] 154004-1022 GOVERNOR HOUSING
9. [1] 154350-6000 PLATE
10. [4] 139006-4100 BLEEDER SCREW
11. [4] 139006-5800 BLEEDER SCREW
12. [1] 154010-7300 BLEEDER SCREW M8P1.25L60
13. [1] 029240-6010 UNION NUT M6P1.0H5*
14. [1] 154011-0100 HEXAGON NUT
14B. [1] 154011-2300 UNION NUT
15. [2] 029620-8050 PACKING RING
15. [2] 029620-8050 PACKING RING
16. [1] 155004-3200 LEVER SHAFT
17. [1] 154408-1520 CONTROL LEVER
18. [1] 155003-1920 CONTROL LEVER
19. [1] 155006-0700 BLEEDER SCREW
20. [1] 139308-1500 PLAIN WASHER D18&8T1.0
20B. [1] 139308-1600 PLAIN WASHER D18&8T1.5
21. [1] 016010-0740 LOCKING WASHER
22. [0] 029310-8040 SHIM D13.5&8T0.2
22. [7] 139408-1400 SHIM
22B. [0] 029310-8050 SHIM D13.5&8T0.5
22B. [7] 139408-1500 SHIM
23. [1] 154373-2200 SAFETY PIN
24. [1] 154206-2000 BUSHING
25. [1] 154327-8100 COILED SPRING
26. [1] 154367-1520 CONTROL LEVER
27. [1] 014110-8440 LOCKING WASHER
28. [1] 013020-8040 UNION NUT M8P1.25H7
29. [1] 139408-1400 SHIM
29B. [0] 139408-1400 SHIM
29C. [0] 139408-1500 SHIM
35. [1] 154515-5420 GOVERNOR COVER
35/2. [1] 154321-2000 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3401 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [2] 154036-1800 CAPSULE
47. [2] 154036-1800 CAPSULE
48. [1] 154010-7900 BLEEDER SCREW M10P1.25L58
48B. [1] 154010-6000 BLEEDER SCREW M10P1.25L55
49. [1] 154011-2200 UNION NUT
50. [1] 155615-2300 FLAT-HEAD SCREW
51. [5] 020106-4540 BLEEDER SCREW M6P1.0L45
52. [2] 029010-6850 BLEEDER SCREW
53. [1] 154010-3100 BLEEDER SCREW
54. [2] 014110-6440 LOCKING WASHER
65. [1] 154610-3520 RACK SENSOR ASSY
65/1. [1] 479743-9720 RACK SENSOR ASSY
65/2. [1] 154614-4900 JOINT CONNECTION
65/3. [1] 154614-3200 BLOCK
65/4. [1] 010234-1040 HEX-SOCKET-HEAD CAP SCREW
65/5. [1] 014110-4440 LOCKING WASHER
65/6. [1] 026524-3040 GASKET
65/7A. [0] 029310-6220 SHIM D11.5&6.5T0.10
65/7B. [0] 029310-6230 SHIM D11.5&6.5T0.20
65/7C. [0] 029310-6240 SHIM D11.5&6.5T0.25
65/7D. [0] 029310-6260 SHIM D11.5&6.4T1.00
65/7E. [0] 029310-6270 SHIM D11.5&6.4T1.20
65/7F. [0] 029310-6280 SHIM D11.5&6.4T1.50
65/8. [1] 154614-1900 UNION NUT
65/9. [1] 154614-3300 BEARING PIN
66. [1] 026524-3040 GASKET
80. [1] 154063-4100 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 029020-6210 BLEEDER SCREW
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-9320 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 139212-0000 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-8300 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
140. [1] 154183-0320 HEADLESS SCREW
141. [1] 139218-0100 UNION NUT
150. [1] 154200-5401 SWIVELLING LEVER
151. [1] 154200-5501 BUSHING
152. [2] 139700-0000 O-RING
152. [2] 139700-0000 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139610-0101 PACKING RING
155. [1] 139411-0100 SHIM D22.0&12.0T0.40
156. [0] 139411-0200 SHIM D18.0&12.0T0.10
156B. [0] 139411-0300 SHIM D18.0&12.0T0.20
156C. [0] 139411-0400 SHIM D18.0&12.0T0.30
157. [1] 154204-3500 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
170. [1] 154217-6520 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154234-8520 STRAP
175. [1] 154232-1220 PLATE
176. [1] 159231-4900 BEARING PIN
177. [1] 155402-3800 SAFETY PIN
178. [1] 029310-5170 SHIM D8&5.3T0.5
179. [1] 154238-0701 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154239-0320 TENSIONING LEVER
182. [1] 154237-1200 BEARING PIN
183. [2] 154237-1800 BUSHING
190. [1] 154360-2800 CONTROL LEVER
191. [1] 154340-4320 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154385-1620 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
195. [2] 154317-9600 COILED SPRING
196. [2] 154156-1300 TUBE
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-3900 LEVER SHAFT
207. [1] 154326-7320 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-6220 HEADLESS SCREW
221. [1] 029201-2140 UNION NUT
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5200 IMPELLER WHEEL
236. [1] 154413-3200 GASKET
237. [1] 154390-0200 GASKET
238. [1] 139700-0100 O-RING
250. [1] 154419-7420 MANIFOLD-PRESSURE COMP.
250. [1] 154419-7420 MANIFOLD-PRESSURE COMP.
250/1. [1] 154408-6220 DIAPHRAGM HOUSING
250/2. [3] 020106-1640 BLEEDER SCREW M6P1.0L14
250/3. [1] 029020-6210 BLEEDER SCREW
250/4. [1] 154400-5800 STOP PIN
250/5. [1] 153400-0900 SLOTTED WASHER
250/6. [1] 016010-0740 LOCKING WASHER
250/7. [0] 029312-0180 SHIM D25.5&20T0.5
250/7B. [0] 029312-0210 SHIM D25.5&20T0.2
250/8. [1] 154402-2000 COILED SPRING
250/9. [0] 154355-3900 SHIM D18&12.5T0.10
250/9B. [0] 154355-4000 SHIM D18&12.5T0.20
250/9C. [0] 154355-4100 SHIM D18&12.5T0.30
250/10. [1] 154402-4100 COILED SPRING
250/11. [1] 153400-0800 SPRING SEAT
250/12. [1] 014110-5440 LOCKING WASHER
250/13. [1] 013030-5240 UNION NUT M5P0.8H3.2
250/15. [1] 154400-7720 DIAPHRAGM
250/20. [1] 154404-3900 COVER
250/21. [3] 029010-6310 BLEEDER SCREW
250/22. [3] 014110-6440 LOCKING WASHER
250/23. [1] 154404-1100 FLAT-HEAD SCREW
250/24. [1] 013030-6040 UNION NUT M6P1H3.6
250/25. [1] 154035-1900 CAP NUT
250/26. [1] 026506-1040 GASKET D9.9&6.2T1
250/27. [1] 029010-6010 CAPSULE M6P1.0L7
250/28. [2] 026510-1340 GASKET D13.4&10.2T1
250/30. [1] 029731-0180 EYE BOLT
250/33. [2] 154413-2600 GASKET
250/34. [2] 026506-1040 GASKET D9.9&6.2T1
251. [1] 154358-2500 SEAL RING
253. [1] 029320-5020 LOCKING WASHER
254. [1] 010535-1040 FLAT-HEAD SCREW M5P0.8L10
331. [1] 154179-8220 HEADLESS SCREW
332. [1] 139218-0500 UNION NUT
335. [1] 154352-2600 CAPSULE
336. [1] 029331-6030 GASKET
360. [1] 154356-0221 BRACKET
361. [3] 029010-5340 BLEEDER SCREW
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Cross reference number

Zexel num
Bosch num
Firm num
Name
105489-2601
9 420 613 527
NP-EP/RFD200/1600PF59DWR
223005361A  HINO
GOVERNOR
K




Information:

Introduction
The 7C8966, 7C8972, 8N5651, 8N5887, 9N0495, and 9N5864 Fuel Injection Pump Groups (new), or the 0R0766, 0R0902, 0R0903, 0R2374, and 0R2385 Fuel Injection Pump Group [remanufactured - (reconditioning has been done to a used fuel injection pump and governor group to give the same quality as a new pump group)] are service replacements for the fuel injection pump and governor groups used on 3208 engines, according to the adaptability shown in the chart. These service groups have only those gaskets and seals that are needed to install the fuel injection pump and governor on the engine.Reference: Parts Manual, Service Manual, Engine Information Plate, Fuel Setting Information Microfiche, Fuel System and Related Information MicroficheDo not perform any procedure, outlined in this publication, or order any parts until you read and understand the information contained within.Service Group Chart
Removal and Installation
1. Remove the pump and governor from the engine. Refer to the Service Manual.
When a replacement fuel injection pump and governor is installed on an engine (or when replacement parts are put in a fuel injection pump and governor), use the information on the engine information plate and always check engine low idle speed, set point and the fuel setting dimension. These settings and dimensions must be checked and adjustments made by a mechanic that has the necessary training in fuel system maintenance. Before the fuel system checks and adjustment are made, remove the original factory fuel system seal. After all fuel system work has been completed, install your Dealer seal as a replacement seal. Refer to Fuel System and Related Information or Fuel Setting Information for additional specifications.
2. Put the new service pump group in a 2P8315 Bracket Assembly (1) so it will be easier to work on. Remove the shut-off solenoid and the solenoid ground wire from the old fuel system. Remove the fuel line fittings from the old fuel system. Install these parts in the same location on the new fuel system.3. Locate the engine serial number and write it down. Make reference to the Fuel Setting Information or Fuel System and Related Information to find the part number of the governor high idle spring that is needed for the engine. The same part number governor high idle spring given in the Fuel Setting Information, or the Fuel System and Related Information must be installed in the new service pump group. The 9L6508 High Idle Spring is already installed in the service pump and governor groups. The governor high idle spring needs to be changed only if the needed part number is different than 9L6508. If it is necessary to change the high idle spring, refer to the Service Manual. The part number of the low idle spring is 4N5663 and is the same for all fuel systems.4. A 4N0527 Overfueling Spring is installed in the service pump and governor groups. Refer to the Parts Manual to determine which overfueling spring is required. If the overfueling spring must be changed, refer to the Service Manual for the
