Information governor
BOSCH
9 420 613 526
9420613526
ZEXEL
105489-2524
1054892524

Rating:
Scheme ###:

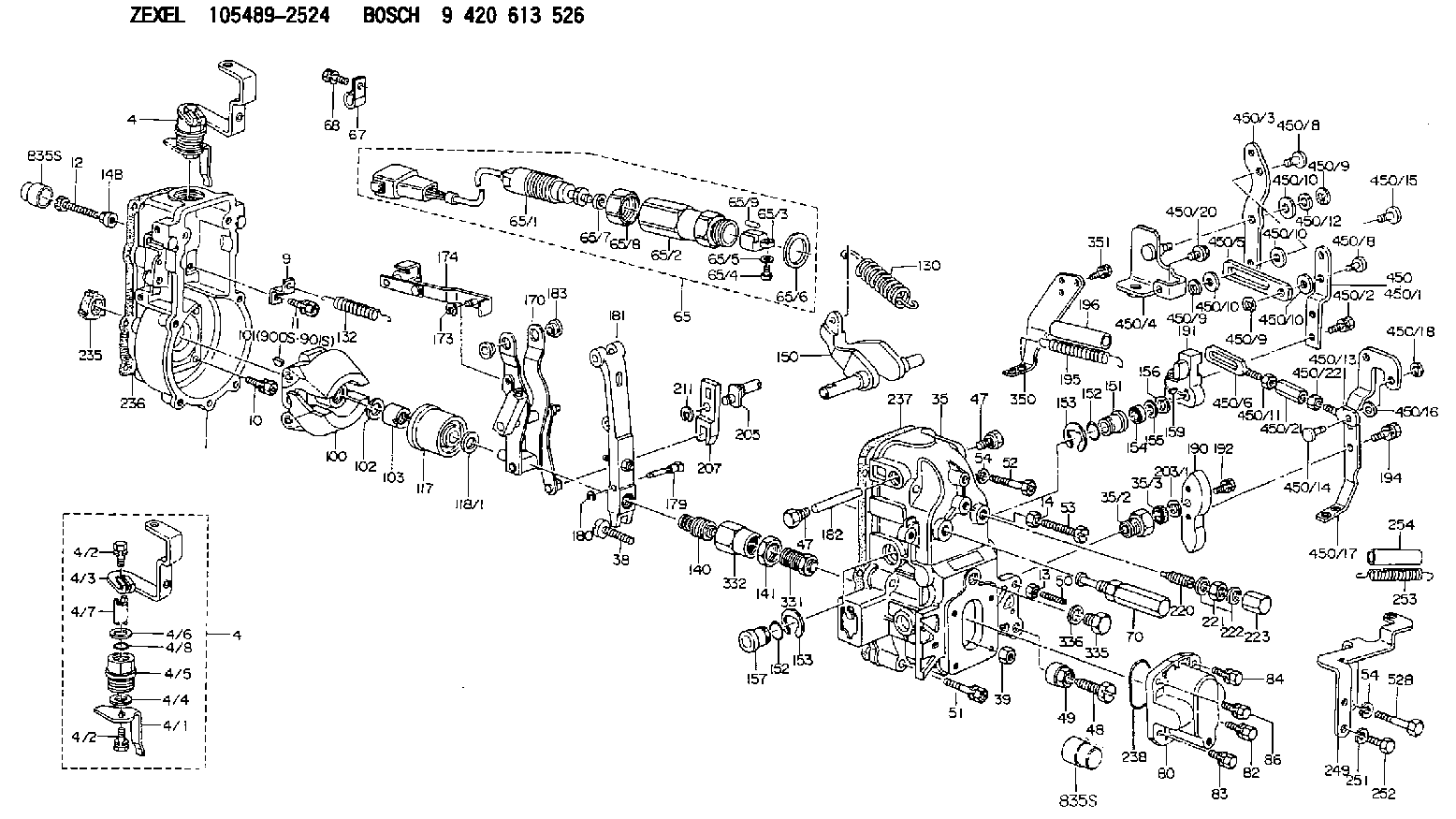

1. | [1] | 154004-1300 | GOVERNOR HOUSING |
4. | [1] | 154380-8120 | CONTROL LEVER |
4. | [1] | 154380-8120 | CONTROL LEVER |
4/1. | [1] | 154304-6200 | CONTROL LEVER |
4/2. | [2] | 154352-2000 | BLEEDER SCREW |
4/2. | [2] | 154352-2000 | BLEEDER SCREW |
4/3. | [1] | 154380-8110 | CONTROL LEVER |
4/4. | [2] | 029311-0230 | SHIM D18&10.3T0.5 |
4/5. | [1] | 154321-1500 | BUSHING |
4/6. | [1] | 029311-0220 | SHIM D18&10.3T0.2 |
4/7. | [1] | 154324-2700 | LEVER SHAFT |
4/8. | [1] | 029631-0030 | O-RING &9.8W2.3 |
9. | [1] | 154353-5601 | PLATE |
10. | [4] | 020106-2040 | BLEEDER SCREW M6P1L20 |
11. | [4] | 020106-1840 | BLEEDER SCREW M6P1L18 |
12. | [1] | 154010-7300 | BLEEDER SCREW M8P1.25L60 |
13. | [1] | 013020-6040 | UNION NUT M6P1H5 |
14. | [1] | 154011-0100 | HEXAGON NUT |
14B. | [1] | 154011-2300 | UNION NUT |
35. | [1] | 154515-6320 | GOVERNOR COVER |
35/2. | [1] | 154321-2000 | BUSHING |
35/3. | [1] | 029621-0080 | PACKING RING |
38. | [1] | 154031-3401 | FLAT-HEAD SCREW |
39. | [1] | 029201-0160 | UNION NUT |
47. | [2] | 154036-1800 | CAPSULE |
47. | [2] | 154036-1800 | CAPSULE |
48. | [1] | 154010-7700 | BLEEDER SCREW M10P1.25L51 |
48B. | [1] | 154010-8200 | BLEEDER SCREW |
49. | [1] | 154011-2200 | UNION NUT |
50. | [1] | 155615-2300 | FLAT-HEAD SCREW |
51. | [5] | 020106-4540 | BLEEDER SCREW M6P1.0L45 |
52. | [1] | 029010-6850 | BLEEDER SCREW |
52B. | [1] | 020306-6340 | BLEEDER SCREW |
53. | [1] | 154010-3100 | BLEEDER SCREW |
54. | [2] | 014110-6440 | LOCKING WASHER |
54. | [2] | 014110-6440 | LOCKING WASHER |
65. | [1] | 154610-2020 | RACK SENSOR ASSY |
65/1. | [1] | 479743-7020 | RACK SENSOR |
65/2. | [1] | 154614-2500 | JOINT CONNECTION |
65/3. | [1] | 154614-2900 | BLOCK |
65/4. | [1] | 010234-1040 | HEX-SOCKET-HEAD CAP SCREW |
65/5. | [1] | 014110-4440 | LOCKING WASHER |
65/6. | [1] | 026524-3040 | GASKET |
65/7. | [1] | 029310-6280 | SHIM D11.5&6.4T1.50 |
65/8. | [1] | 154614-1900 | UNION NUT |
65/9. | [1] | 154614-3300 | BEARING PIN |
67. | [1] | 154614-3600 | CLAMPING BAND |
68. | [1] | 020106-1240 | BLEEDER SCREW M6P1.0L12 |
70. | [1] | 154055-1520 | HEADLESS SCREW |
80. | [1] | 154063-4100 | COVER |
82. | [1] | 029020-6210 | BLEEDER SCREW |
83. | [1] | 029020-6210 | BLEEDER SCREW |
84. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
86. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
100. | [1] | 154100-9220 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1310 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 139212-0000 | UNION NUT |
117. | [1] | 154123-2320 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-9000 | GOVERNOR SPRING |
132. | [1] | 154154-0701 | COILED SPRING |
140. | [1] | 154183-1720 | HEADLESS SCREW |
141. | [1] | 139218-0100 | UNION NUT |
150. | [1] | 154200-5401 | SWIVELLING LEVER |
151. | [1] | 154200-5501 | BUSHING |
152. | [2] | 139700-0000 | O-RING |
152. | [2] | 139700-0000 | O-RING |
153. | [2] | 154354-3900 | LOCKING WASHER |
153. | [2] | 154354-3900 | LOCKING WASHER |
154. | [1] | 139610-0101 | PACKING RING |
155. | [1] | 139411-0100 | SHIM D22.0&12.0T0.40 |
156. | [0] | 139411-0200 | SHIM D18.0&12.0T0.10 |
156B. | [0] | 139411-0300 | SHIM D18.0&12.0T0.20 |
156C. | [0] | 139411-0400 | SHIM D18.0&12.0T0.30 |
157. | [1] | 154204-3500 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
170. | [1] | 154217-7820 | FORK LEVER |
173. | [1] | 016010-0540 | LOCKING WASHER |
174. | [1] | 154230-8120 | STRAP |
179. | [1] | 154238-0201 | BEARING PIN |
180. | [1] | 016010-0540 | LOCKING WASHER |
181. | [1] | 154239-1420 | TENSIONING LEVER |
182. | [1] | 154237-1200 | BEARING PIN |
183. | [2] | 154237-1300 | BUSHING |
190. | [1] | 154360-2800 | CONTROL LEVER |
191. | [1] | 154340-4320 | CONTROL LEVER |
192. | [1] | 020006-1670 | BLEEDER SCREW M6P1L16 7T |
194. | [2] | 020006-1240 | BLEEDER SCREW M6P1L12 4T |
195. | [2] | 154317-5200 | COILED SPRING |
196. | [2] | 154156-1300 | TUBE |
203/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
203/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
203/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
203/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
203/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
203/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
203/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
203/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
203/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
203/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
203/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
205. | [1] | 154324-4100 | LEVER SHAFT |
207. | [1] | 154326-0300 | CONTROL LEVER |
211. | [1] | 016010-0840 | LOCKING WASHER |
220. | [1] | 154050-8220 | HEADLESS SCREW |
221. | [1] | 029201-2130 | UNION NUT M12P1.0H6 |
222. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
223. | [1] | 154159-1200 | CAP NUT |
235. | [1] | 155412-5200 | IMPELLER WHEEL |
236. | [1] | 154371-5600 | GASKET |
237. | [1] | 154390-0200 | GASKET |
238. | [1] | 139700-0100 | O-RING |
249. | [1] | 154370-5620 | BRACKET |
251. | [2] | 014110-8440 | LOCKING WASHER |
252. | [2] | 010038-1440 | BLEEDER SCREW M8P1.25L14 |
253. | [1] | 154317-3700 | COILED SPRING |
254. | [1] | 154156-1000 | TUBE |
331. | [1] | 154179-4120 | HEADLESS SCREW |
332. | [1] | 139218-0200 | UNION NUT |
335. | [1] | 154352-2600 | CAPSULE |
336. | [1] | 029331-6030 | GASKET |
350. | [1] | 154356-0221 | BRACKET |
351. | [3] | 029010-5340 | BLEEDER SCREW |
450. | [1] | 154399-4621 | LEVER GROUP |
450/1. | [1] | 154371-6100 | CONTROL LEVER |
450/2. | [2] | 020006-1840 | BLEEDER SCREW M6P1L18 |
450/3. | [1] | 154372-1500 | CONTROL LEVER |
450/4. | [1] | 154371-6321 | BRACKET |
450/5. | [1] | 154372-1300 | STRAP |
450/6. | [1] | 154372-1400 | STRAP |
450/8. | [2] | 154352-1200 | BEARING PIN |
450/8. | [2] | 154352-1200 | BEARING PIN |
450/9. | [3] | 016010-0940 | LOCKING WASHER |
450/9. | [3] | 016010-0940 | LOCKING WASHER |
450/9. | [3] | 016010-0940 | LOCKING WASHER |
450/10. | [5] | 014011-0140 | PLAIN WASHER D22&10.5T1.6 |
450/10. | [5] | 014011-0140 | PLAIN WASHER D22&10.5T1.6 |
450/10. | [5] | 014011-0140 | PLAIN WASHER D22&10.5T1.6 |
450/10. | [5] | 014011-0140 | PLAIN WASHER D22&10.5T1.6 |
450/11. | [1] | 013020-6040 | UNION NUT M6P1H5 |
450/12. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
450/13. | [1] | 154372-1200 | CONNECTOR |
450/14. | [1] | 159231-5000 | BEARING PIN |
450/15. | [1] | 159231-5100 | BEARING PIN |
450/16. | [2] | 029300-8010 | PLAIN WASHER D15&8T1.00 |
450/17. | [1] | 154369-2420 | CONTROL LEVER |
450/18. | [2] | 016010-0740 | LOCKING WASHER |
450/20. | [1] | 020118-1440 | BLEEDER SCREW |
450/21. | [1] | 154353-5300 | UNION NUT M6P1H35 |
450/21B. | [1] | 154351-9200 | UNION NUT M6P1H40 |
450/22. | [1] | 029200-6210 | UNION NUT |
835S. | [2] | 154062-1700 | CAP D20L32 |
835S. | [2] | 154062-1700 | CAP D20L32 |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
Cross reference number
Zexel num
Bosch num
Firm num
Name
105489-2524
223006700A HINO
GOVERNOR
A K 14JN MECHANICAL GOVERNOR GOV RFD GOV
A K 14JN MECHANICAL GOVERNOR GOV RFD GOV
