Information governor
BOSCH
9 420 613 518
9420613518
ZEXEL
105489-2390
1054892390
MITSUBISHI
ME727174
me727174

Rating:
Scheme ###:

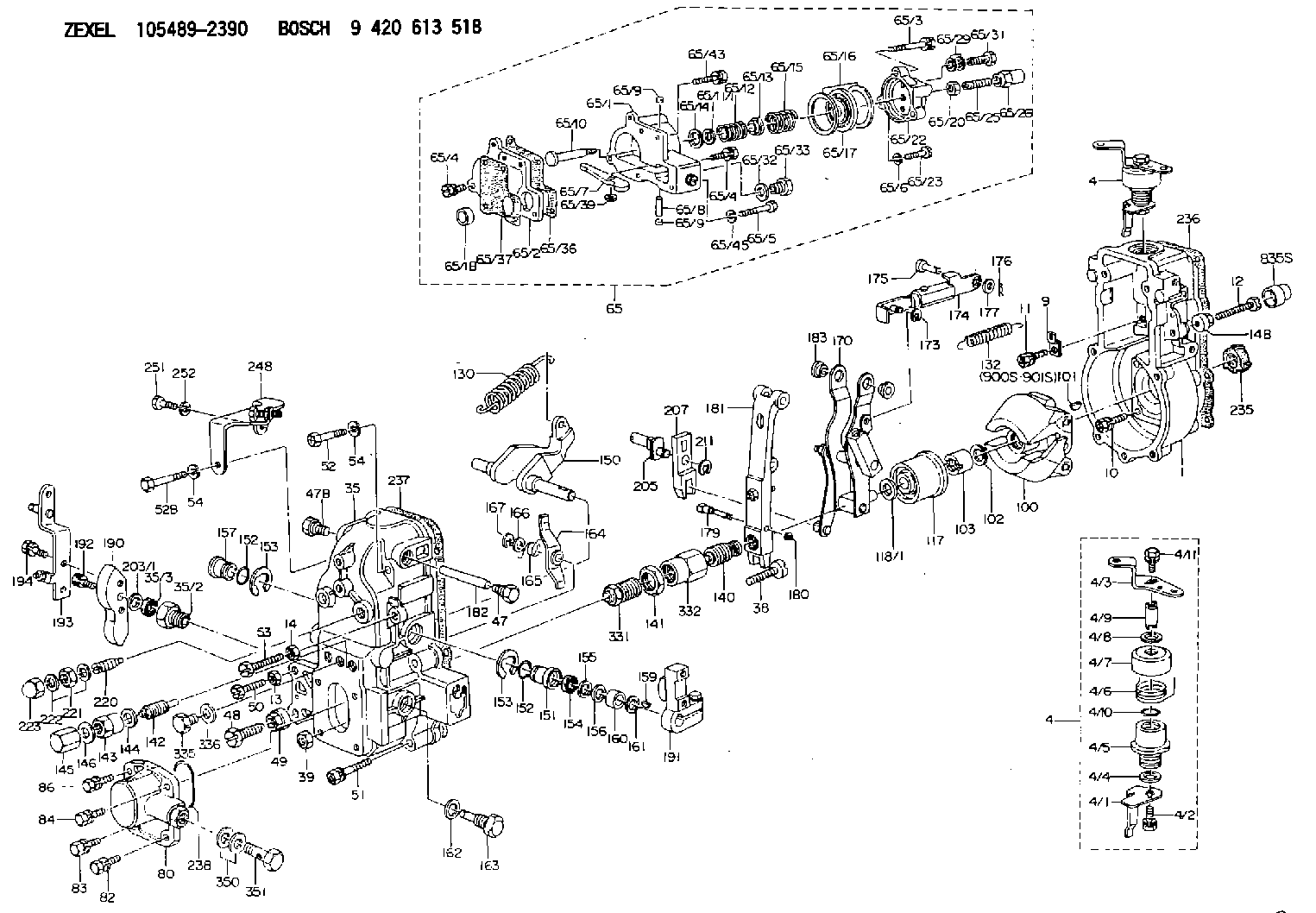

1. | [1] | 154004-0100 | GOVERNOR HOUSING |
4. | [1] | 154365-2120 | CONTROL LEVER |
4. | [1] | 154365-2120 | CONTROL LEVER |
4/1. | [1] | 154304-6200 | CONTROL LEVER |
4/2. | [1] | 154352-2000 | BLEEDER SCREW |
4/3. | [1] | 154365-2100 | CONTROL LEVER |
4/4. | [1] | 029311-0230 | SHIM D18&10.3T0.5 |
4/5. | [1] | 154321-1500 | BUSHING |
4/6. | [1] | 154327-6600 | COILED SPRING |
4/7. | [1] | 154322-0100 | CAP |
4/8. | [1] | 029311-0220 | SHIM D18&10.3T0.2 |
4/9. | [1] | 154324-2700 | LEVER SHAFT |
4/10. | [1] | 029631-0030 | O-RING &9.8W2.3 |
4/11. | [1] | 020006-1240 | BLEEDER SCREW M6P1L12 4T |
9. | [1] | 154350-6000 | PLATE |
10. | [4] | 020106-2040 | BLEEDER SCREW M6P1L20 |
11. | [4] | 020106-1840 | BLEEDER SCREW M6P1L18 |
12. | [1] | 154013-0600 | BLEEDER SCREW |
13. | [1] | 013020-6040 | UNION NUT M6P1H5 |
14. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
14B. | [1] | 154011-2300 | UNION NUT |
35. | [1] | 154515-2620 | GOVERNOR COVER |
35/2. | [1] | 154321-2000 | BUSHING |
35/3. | [1] | 029621-0080 | PACKING RING |
38. | [1] | 154031-3401 | FLAT-HEAD SCREW |
39. | [1] | 029201-0160 | UNION NUT |
47. | [1] | 154036-1900 | CAPSULE |
47B. | [1] | 154036-1800 | CAPSULE |
48. | [1] | 154010-7700 | BLEEDER SCREW M10P1.25L51 |
48B. | [1] | 154010-7100 | BLEEDER SCREW M10P1.25L47 |
49. | [1] | 154011-2200 | UNION NUT |
50. | [1] | 155615-1900 | BLEEDER SCREW |
51. | [5] | 020106-4540 | BLEEDER SCREW M6P1.0L45 |
52. | [1] | 010006-6040 | BLEEDER SCREW |
52B. | [1] | 029010-6850 | BLEEDER SCREW |
53. | [1] | 154010-7300 | BLEEDER SCREW M8P1.25L60 |
54. | [2] | 014110-6440 | LOCKING WASHER |
54. | [2] | 014110-6440 | LOCKING WASHER |
65. | [1] | 154419-6120 | MANIFOLD-PRESSURE COMP. |
65/1. | [1] | 154408-6621 | DIAPHRAGM HOUSING |
65/1B. | [1] | 134009-0000 | SPACER BUSHING |
65/2. | [1] | 154408-2400 | SPACER BUSHING |
65/3. | [2] | 020106-2240 | BLEEDER SCREW |
65/4. | [2] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
65/4. | [2] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
65/5. | [1] | 029010-6830 | BLEEDER SCREW |
65/6. | [1] | 014110-6440 | LOCKING WASHER |
65/7. | [1] | 154408-6700 | CONTROL LEVER |
65/8. | [1] | 154406-5000 | BEARING PIN |
65/9. | [2] | 154406-5100 | CAPSULE |
65/9. | [2] | 154406-5100 | CAPSULE |
65/10. | [1] | 154400-5700 | STOP PIN |
65/11/1. | [0] | 029311-2190 | SHIM D17.7&12T1.0 |
65/11/1. | [0] | 029311-2200 | SHIM D17.7&12T1.1 |
65/11/1. | [0] | 029311-2210 | SHIM D17.7&12T1.2 |
65/11/1. | [0] | 029311-2220 | SHIM D17.7&12T1.3 |
65/11/1. | [0] | 029311-2230 | SHIM D17.7&12T1.4 |
65/12. | [1] | 154411-1000 | COILED SPRING |
65/13. | [1] | 154406-5200 | SLOTTED WASHER |
65/14. | [0] | 029312-0180 | SHIM D25.5&20T0.5 |
65/14B. | [0] | 029312-0210 | SHIM D25.5&20T0.2 |
65/15. | [1] | 154411-2900 | COILED SPRING |
65/16. | [2] | 154413-2600 | GASKET |
65/17. | [1] | 154400-7720 | DIAPHRAGM |
65/20. | [1] | 023040-6040 | UNION NUT |
65/22. | [1] | 154404-5000 | COVER |
65/23. | [1] | 139006-0900 | BLEEDER SCREW |
65/25. | [1] | 154404-1600 | FLAT-HEAD SCREW L26.00 |
65/26. | [1] | 154406-7800 | CAP NUT |
65/29. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
65/31. | [1] | 029731-0180 | EYE BOLT |
65/32. | [1] | 026510-1340 | GASKET D13.4&10.2T1 |
65/33. | [1] | 154036-0300 | CAPSULE |
65/36. | [1] | 154390-0800 | GASKET |
65/37. | [1] | 154390-0900 | GASKET |
65/39. | [1] | 029310-5160 | SHIM D11.5&5.2T0.50 |
65/43. | [2] | 020106-2540 | BLEEDER SCREW M6P1L25 |
65/45. | [1] | 014110-6440 | LOCKING WASHER |
80. | [1] | 154063-6521 | COVER |
82. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
83. | [1] | 029020-6210 | BLEEDER SCREW |
84. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
86. | [1] | 029020-6210 | BLEEDER SCREW |
100. | [1] | 154100-9220 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1310 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 139212-0000 | UNION NUT |
117. | [1] | 154123-2320 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-7900 | GOVERNOR SPRING |
132. | [1] | 154154-0701 | COILED SPRING |
140. | [1] | 154183-5120 | HEADLESS SCREW |
141. | [1] | 139218-0100 | UNION NUT |
142. | [1] | 154242-5120 | HEADLESS SCREW |
143. | [1] | 154242-3200 | UNION NUT |
144. | [1] | 026516-2040 | GASKET D19.9&16.2T1 |
145. | [1] | 154159-1800 | CAP NUT |
146. | [1] | 029331-6130 | GASKET |
150. | [1] | 154200-5401 | SWIVELLING LEVER |
151. | [1] | 154200-5501 | BUSHING |
152. | [2] | 139700-0000 | O-RING |
152. | [2] | 139700-0000 | O-RING |
153. | [2] | 154354-3900 | LOCKING WASHER |
153. | [2] | 154354-3900 | LOCKING WASHER |
154. | [1] | 139610-0101 | PACKING RING |
155. | [1] | 139411-0100 | SHIM D22.0&12.0T0.40 |
156. | [0] | 139411-0200 | SHIM D18.0&12.0T0.10 |
156B. | [0] | 139411-0300 | SHIM D18.0&12.0T0.20 |
156C. | [0] | 139411-0400 | SHIM D18.0&12.0T0.30 |
157. | [1] | 154204-3500 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
160. | [1] | 154206-2300 | BUSHING |
161. | [0] | 154206-2400 | PLAIN WASHER D20.5&12.2T1 |
162. | [1] | 029331-6050 | GASKET |
163. | [1] | 154401-3201 | BLEEDER SCREW |
164. | [1] | 154243-0820 | CONTROL LEVER |
165. | [1] | 154327-6100 | COILED SPRING |
166. | [1] | 029310-8320 | SHIM D16.5&8T0.2 |
167. | [1] | 154356-3600 | LOCKING WASHER |
170. | [1] | 154216-7020 | FORK LEVER |
173. | [1] | 016010-0540 | LOCKING WASHER |
174. | [1] | 154234-1820 | STRAP |
175. | [1] | 159231-4900 | BEARING PIN |
176. | [1] | 155402-3800 | SAFETY PIN |
177. | [1] | 029310-5170 | SHIM D8&5.3T0.5 |
179. | [1] | 154238-0201 | BEARING PIN |
180. | [1] | 016010-0540 | LOCKING WASHER |
181. | [1] | 154236-9721 | TENSIONING LEVER |
182. | [1] | 154237-1200 | BEARING PIN |
183. | [2] | 154237-1300 | BUSHING |
190. | [1] | 154360-2700 | CONTROL LEVER |
191. | [1] | 154340-1920 | CONTROL LEVER |
192. | [1] | 020006-1670 | BLEEDER SCREW M6P1L16 7T |
193. | [1] | 154368-4920 | CONTROL LEVER |
194. | [2] | 020006-1240 | BLEEDER SCREW M6P1L12 4T |
203/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
203/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
203/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
203/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
203/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
203/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
203/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
203/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
203/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
203/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
203/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
205. | [1] | 154324-2900 | LEVER SHAFT |
207. | [1] | 154326-0300 | CONTROL LEVER |
211. | [1] | 016010-0840 | LOCKING WASHER |
220. | [1] | 154050-6820 | HEADLESS SCREW |
221. | [1] | 029201-2130 | UNION NUT M12P1.0H6 |
222. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
223. | [1] | 154159-0100 | CAP NUT |
235. | [1] | 155412-5200 | IMPELLER WHEEL |
236. | [1] | 154371-5600 | GASKET |
237. | [1] | 154390-0200 | GASKET |
238. | [1] | 139700-0100 | O-RING |
248. | [1] | 154357-9720 | BRACKET |
251. | [1] | 010065-1240 | BLEEDER SCREW M5P0.8L12 |
252. | [1] | 014110-5440 | LOCKING WASHER |
331. | [1] | 154179-4120 | HEADLESS SCREW |
332. | [1] | 139218-0500 | UNION NUT |
335. | [1] | 154352-2600 | CAPSULE |
336. | [1] | 029331-6030 | GASKET |
350. | [2] | 026512-1840 | GASKET D17.9&12.2T1.50 |
351. | [1] | 153556-4800 | EYE BOLT |
835S. | [2] | 154062-1700 | CAP D20L32 |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
