105489-1412 ZEXEL F 019 Z2E 640 BOSCH GOVERNOR f019z2e640 1054891412 me730309




Information governor

BOSCH F 019 Z2E 640 f019z2e640
ZEXEL 105489-1412 1054891412
MITSUBISHI ME730309 me730309
105489-1412 GOVERNOR
Rating:
74
Buy GOVERNOR 105489-1412 zexel genuine, new aftermarket engine parts with delivery

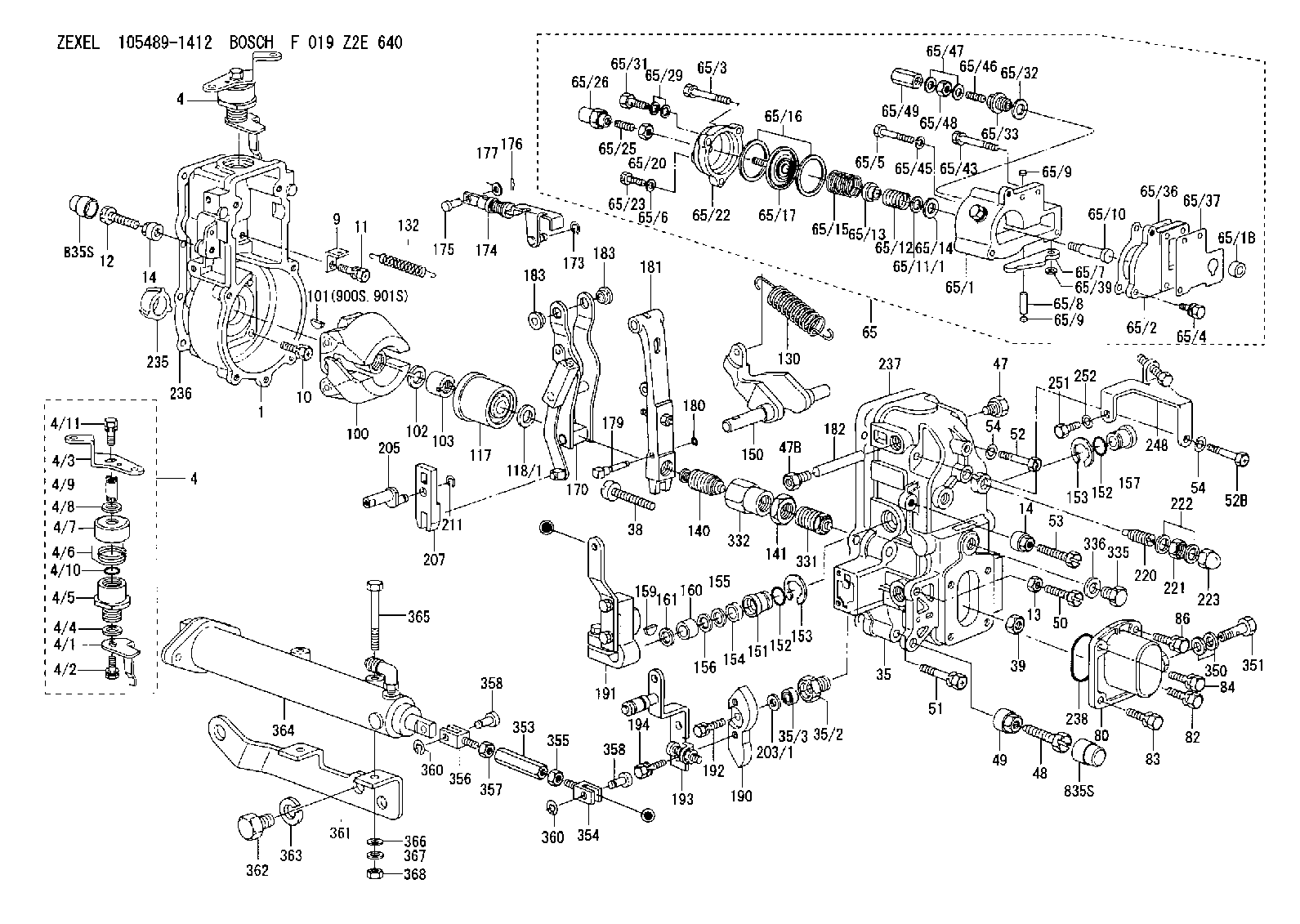

Scheme ###:

1. [1] 154004-0100 GOVERNOR HOUSING
4. [1] 154365-2120 CONTROL LEVER
4. [1] 154365-2120 CONTROL LEVER
4/1. [1] 154304-6200 CONTROL LEVER
4/2. [1] 154352-2000 BLEEDER SCREW
4/3. [1] 154365-2100 CONTROL LEVER
4/4. [1] 029311-0230 SHIM D18&10.3T0.5
4/5. [1] 154321-1500 BUSHING
4/6. [1] 154327-6600 COILED SPRING
4/7. [1] 154322-0100 CAP
4/8. [1] 029311-0220 SHIM D18&10.3T0.2
4/9. [1] 154324-2700 LEVER SHAFT
4/10. [1] 029631-0030 O-RING &9.8W2.3
4/11. [1] 020006-1240 BLEEDER SCREW M6P1L12 4T
9. [1] 154350-6000 PLATE
10. [4] 020106-2040 BLEEDER SCREW M6P1L20
11. [4] 020106-1840 BLEEDER SCREW M6P1L18
12. [1] 154010-7300 BLEEDER SCREW M8P1.25L60
13. [1] 013020-6040 UNION NUT M6P1H5
14. [2] 154011-2300 UNION NUT
14. [2] 154011-2300 UNION NUT
35. [1] 154514-1820 GOVERNOR COVER
35/2. [1] 154321-2000 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3401 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [1] 154036-1900 CAPSULE
47B. [1] 154036-1800 CAPSULE
48. [1] 154010-7100 BLEEDER SCREW M10P1.25L47
48B. [1] 154010-7700 BLEEDER SCREW M10P1.25L51
49. [1] 154011-2200 UNION NUT
50. [1] 155615-1900 BLEEDER SCREW
51. [5] 020106-4540 BLEEDER SCREW M6P1.0L45
52. [1] 010006-6040 BLEEDER SCREW
52B. [1] 029010-6850 BLEEDER SCREW
53. [1] 154010-8100 BLEEDER SCREW M8P1.25L65
54. [2] 014110-6440 LOCKING WASHER
54. [2] 014110-6440 LOCKING WASHER
65. [1] 154419-1421 MANIFOLD-PRESSURE COMP.
65/1. [1] 154408-6621 DIAPHRAGM HOUSING
65/1B. [1] 134009-0000 SPACER BUSHING
65/2. [1] 154408-2400 SPACER BUSHING
65/3. [2] 020106-2240 BLEEDER SCREW
65/4. [2] 020106-1640 BLEEDER SCREW M6P1.0L14
65/5. [1] 029010-6830 BLEEDER SCREW
65/6. [1] 014110-6440 LOCKING WASHER
65/7. [1] 154408-6700 CONTROL LEVER
65/8. [1] 154406-5000 BEARING PIN
65/9. [2] 154406-5100 CAPSULE
65/9. [2] 154406-5100 CAPSULE
65/10. [1] 154400-5700 STOP PIN
65/11/1. [0] 029311-2190 SHIM D17.7&12T1.0
65/11/1. [0] 029311-2200 SHIM D17.7&12T1.1
65/11/1. [0] 029311-2210 SHIM D17.7&12T1.2
65/11/1. [0] 029311-2220 SHIM D17.7&12T1.3
65/11/1. [0] 029311-2230 SHIM D17.7&12T1.4
65/12. [1] 154411-1000 COILED SPRING
65/13. [1] 154406-5200 SLOTTED WASHER
65/14. [0] 029312-0180 SHIM D25.5&20T0.5
65/14B. [0] 029312-0210 SHIM D25.5&20T0.2
65/15. [1] 154416-1100 COILED SPRING
65/16. [2] 154413-2600 GASKET
65/17. [1] 154400-7720 DIAPHRAGM
65/20. [1] 023040-6040 UNION NUT
65/22. [1] 154404-5000 COVER
65/23. [1] 139006-0900 BLEEDER SCREW
65/25. [1] 154404-1600 FLAT-HEAD SCREW L26.00
65/26. [1] 154406-7800 CAP NUT
65/29. [2] 026510-1340 GASKET D13.4&10.2T1
65/31. [1] 029731-0180 EYE BOLT
65/32. [1] 026510-1340 GASKET D13.4&10.2T1
65/33. [1] 154036-1600 ADAPTOR
65/36. [1] 154390-0800 GASKET
65/37. [1] 154390-0900 GASKET
65/39. [1] 029310-5160 SHIM D11.5&5.2T0.50
65/43. [2] 020106-2540 BLEEDER SCREW M6P1L25
65/45. [1] 014110-6440 LOCKING WASHER
65/46. [1] 154034-1600 FLAT-HEAD SCREW L30
65/47. [2] 026506-1040 GASKET D9.9&6.2T1
65/48. [1] 029240-6010 UNION NUT M6P1.0H5*
65/49. [1] 154035-1900 CAP NUT
80. [1] 154063-6521 COVER
82. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
83. [1] 029020-6210 BLEEDER SCREW
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
86. [1] 029020-6210 BLEEDER SCREW
100. [1] 154100-9220 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 139212-0000 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-7900 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
140. [1] 154183-1520 HEADLESS SCREW
141. [1] 139218-0100 UNION NUT
150. [1] 154200-5601 SWIVELLING LEVER
151. [1] 154200-5501 BUSHING
152. [2] 139700-0000 O-RING
152. [2] 139700-0000 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139610-0101 PACKING RING
155. [1] 139411-0100 SHIM D22.0&12.0T0.40
156. [0] 139411-0200 SHIM D18.0&12.0T0.10
156B. [0] 139411-0300 SHIM D18.0&12.0T0.20
156C. [0] 139411-0400 SHIM D18.0&12.0T0.30
157. [1] 154204-3500 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2300 BUSHING
161. [0] 154206-2400 PLAIN WASHER D20.5&12.2T1
170. [1] 154216-7020 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154234-1820 STRAP
175. [1] 159231-4900 BEARING PIN
176. [1] 155402-3800 SAFETY PIN
177. [1] 029310-5170 SHIM D8&5.3T0.5
179. [1] 154238-0201 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-5620 TENSIONING LEVER
182. [1] 154237-1200 BEARING PIN
183. [2] 154237-1300 BUSHING
183. [2] 154237-1300 BUSHING
190. [1] 154360-2700 CONTROL LEVER
191. [1] 154345-7120 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154368-4920 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-2900 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-6820 HEADLESS SCREW
221. [1] 029201-2130 UNION NUT M12P1.0H6
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-0100 CAP NUT
235. [1] 155412-5200 IMPELLER WHEEL
236. [1] 154371-5600 GASKET
237. [1] 154390-0200 GASKET
238. [1] 139700-0100 O-RING
248. [1] 154357-9720 BRACKET
251. [1] 010065-1240 BLEEDER SCREW M5P0.8L12
252. [1] 014110-5440 LOCKING WASHER
331. [1] 154179-4920 HEADLESS SCREW
332. [1] 139218-0500 UNION NUT
335. [1] 154352-2600 CAPSULE
336. [1] 029331-6030 GASKET
350. [2] 026512-1840 GASKET D17.9&12.2T1.50
351. [1] 153556-4800 EYE BOLT
353. [1] 154353-5300 UNION NUT M6P1H35
353B. [1] 154354-3800 UNION NUT M6P1H30
354. [1] 154352-4300 CLEVIS
355. [1] 013020-6040 UNION NUT M6P1H5
356. [1] 154351-9400 CLEVIS
357. [1] 029200-6210 UNION NUT
358. [2] 154604-2400 BEARING PIN
358. [2] 154604-2400 BEARING PIN
360. [2] 016010-0640 LOCKING WASHER
360. [2] 016010-0640 LOCKING WASHER
361. [1] 154354-6500 BRACKET
362. [2] 139016-0400 BLEEDER SCREW
363. [2] 014111-6440 LOCKING WASHER
364. [1] 154357-9420 AIR CYLINDER
365. [2] 010010-6540 BLEEDER SCREW
366. [2] 014111-0440 LOCKING WASHER
367. [2] 014011-0140 PLAIN WASHER D22&10.5T1.6
368. [2] 013021-0040 UNION NUT M10P1.5H8
835S. [3] 154062-1700 CAP D20L32
835S. [3] 154062-1700 CAP D20L32
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106871-7612 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105489-1412
F 019 Z2E 640
NP-EP/RFD200/1300PF10DWR
ME730309  MITSUBISHI
GOVERNOR
