105489-1371 ZEXEL F 019 Z2F 094 BOSCH GOVERNOR f019z2f094 1054891371

Information governor

BOSCH F 019 Z2F 094 f019z2f094

ZEXEL 105489-1371 1054891371

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105489-1371 zexel genuine, new aftermarket engine parts with delivery

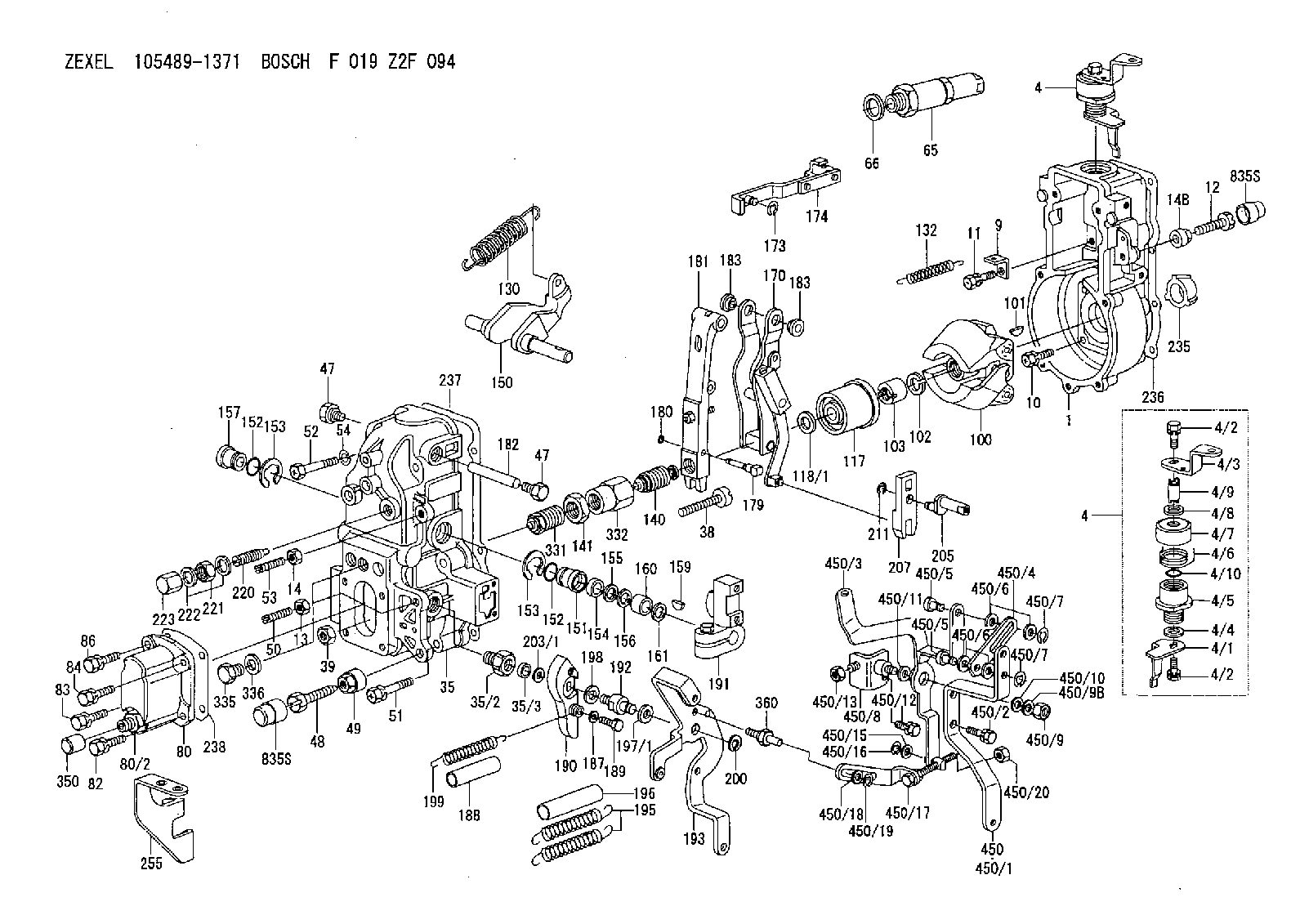

Scheme ###:

1.	[1]	154004-2000	GOVERNOR HOUSING
4.	[1]	154364-8820	CONTROL LEVER
4.	[1]	154364-8820	CONTROL LEVER
4/1.	[1]	154304-6200	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154364-8800	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-2901	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
9.	[1]	154353-5601	PLATE
10.	[4]	020106-2040	BLEEDER SCREW M6P1L20
11.	[4]	020106-1840	BLEEDER SCREW M6P1L18
12.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
13.	[1]	029240-6010	UNION NUT M6P1.0H5*
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
35.	[1]	154513-6820	COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1800	CAPSULE
47.	[2]	154036-1800	CAPSULE
48.	[1]	154010-7100	BLEEDER SCREW M10P1.25L47
48B.	[1]	154010-7700	BLEEDER SCREW M10P1.25L51
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-2300	FLAT-HEAD SCREW
51.	[5]	020106-4540	BLEEDER SCREW M6P1.0L45
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	153043-5220	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154063-6620	COVER
80/2.	[1]	131423-1700	CONNECTOR
82.	[1]	029020-6240	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	029020-6240	BLEEDER SCREW
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-9000	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154183-2120	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
150.	[1]	154200-5701	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM D22.0&12.0T0.40
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2300	BUSHING
161.	[0]	154206-2400	PLAIN WASHER D20.5&12.2T1
170.	[1]	154216-5220	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-8120	STRAP
179.	[1]	154238-0701	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-9220	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1800	BUSHING
183.	[2]	154237-1800	BUSHING
187.	[1]	014110-6440	LOCKING WASHER
188.	[1]	154156-1500	TUBE
189.	[1]	154357-6320	BLEEDER SCREW
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154340-1920	CONTROL LEVER
192.	[1]	154371-8300	BLEEDER SCREW
193.	[1]	154369-0320	CONTROL LEVER
195.	[2]	154317-5300	COILED SPRING
196.	[2]	154156-0600	TUBE
197/1.	[0]	029310-8610	SHIM D10.5&8.5T0.1
197/1.	[0]	029310-8620	SHIM D10.5&8.5T0.15
197/1.	[0]	029310-8630	SHIM D10.5&8.5T0.2
197/1.	[0]	029310-8650	SHIM D10.5&8.5T0.5
198.	[1]	014110-8440	LOCKING WASHER
199.	[1]	154317-0900	COILED SPRING
200.	[1]	016010-0740	LOCKING WASHER
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3500	LEVER SHAFT
207.	[1]	154326-6522	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6820	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	139512-0000	GASKET D17.2&12.2T1.0
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	154390-1400	GASKET
255.	[1]	154371-8420	BRACKET
331.	[1]	154179-5020	HEADLESS SCREW
332.	[1]	139218-0500	UNION NUT
335.	[1]	154352-2600	CAPSULE
336.	[1]	029331-6030	GASKET
350.	[1]	154357-5800	CAP
360.	[1]	154357-6900	BEARING PIN
450.	[1]	154399-4121	LEVER GROUP
450/1.	[1]	154370-5100	CONTROL LEVER
450/2.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
450/3.	[1]	154372-0520	CONTROL LEVER
450/4.	[1]	154358-0100	STRAP
450/5.	[2]	154352-1200	BEARING PIN
450/5.	[2]	154352-1200	BEARING PIN
450/6.	[4]	014011-0140	PLAIN WASHER D22&10.5T1.6
450/6.	[4]	014011-0140	PLAIN WASHER D22&10.5T1.6
450/7.	[2]	016010-0940	LOCKING WASHER
450/7.	[2]	016010-0940	LOCKING WASHER
450/8.	[1]	154372-0820	BRACKET
450/9.	[1]	013020-8040	UNION NUT M8P1.25H7
450/9B.	[1]	014110-8440	LOCKING WASHER
450/10.	[1]	014010-8140	PLAIN WASHER D18&8.5T1.6
450/11.	[1]	139412-0000	SHIM
450/12.	[1]	020018-3040	BLEEDER SCREW M8P1.25L30
450/13.	[1]	013120-8040	UNION NUT M8P1.25H6.5
450/15.	[1]	014010-6140	PLAIN WASHER D13&6.5T1
450/16.	[1]	016010-0640	LOCKING WASHER
450/17.	[1]	154371-6020	STRAP
450/18.	[1]	014010-6140	PLAIN WASHER D13&6.5T1
450/19.	[1]	016010-0640	LOCKING WASHER
450/20.	[1]	013020-6040	UNION NUT M6P1H5
835S.	[2]	154062-1700	CAP D20L32
835S.	[2]	154062-1700	CAP D20L32

Include in #1:

106693-1811 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105489-1371
105489-1372

F 019 Z2F 094

GOVERNOR
* K

Information:

Stopping the engine immediately after it has been working under load, can result in overheating and accelerated wear of the engine components.If the engine has been operating at highway speeds and/or high loads, run at low idle for at least three minutes to reduce and stabilize internal engine temperature before stopping the engine.
Avoiding hot engine shutdowns will maximize turbocharger shaft and bearing life.Make sure the shutoff procedure is understood. Refer to the OEM truck manufacturer's instructions for your type of engine shutoff system used.Electronic Engines
If your vehicle is equipped with an Electronic engine, DO NOT operate the engine without the rack actuator solenoid (BTM) in place and with the fuel shutoff solenoid disabled. Excessive engine speed (overspeed) may result.
The manual shutoff lever is located on the side of the electronic governor. The engine can be shut OFF by rotating and holding the manual shutoff lever in the counterclockwise (CCW) direction.Rotating and holding the manual shutoff lever in the clockwise (CW) direction overrides the shutoff solenoid. The lever is spring loaded and will return to the neutral position when released.After Stopping the Engine
If freezing temperatures are expected, allow the engine jacket water system to cool; then check the coolant for proper antifreeze protection. The engine must be protected against freezing to the lowest expected outside temperature. Add permanent-type antifreeze if required.
