105489-1291 ZEXEL 9 420 610 145 BOSCH GOVERNOR 9420610145 1054891291




Information governor

BOSCH 9 420 610 145 9420610145
ZEXEL 105489-1291 1054891291
105489-1291 GOVERNOR
Rating:
51
Buy GOVERNOR 105489-1291 zexel genuine, new aftermarket engine parts with delivery

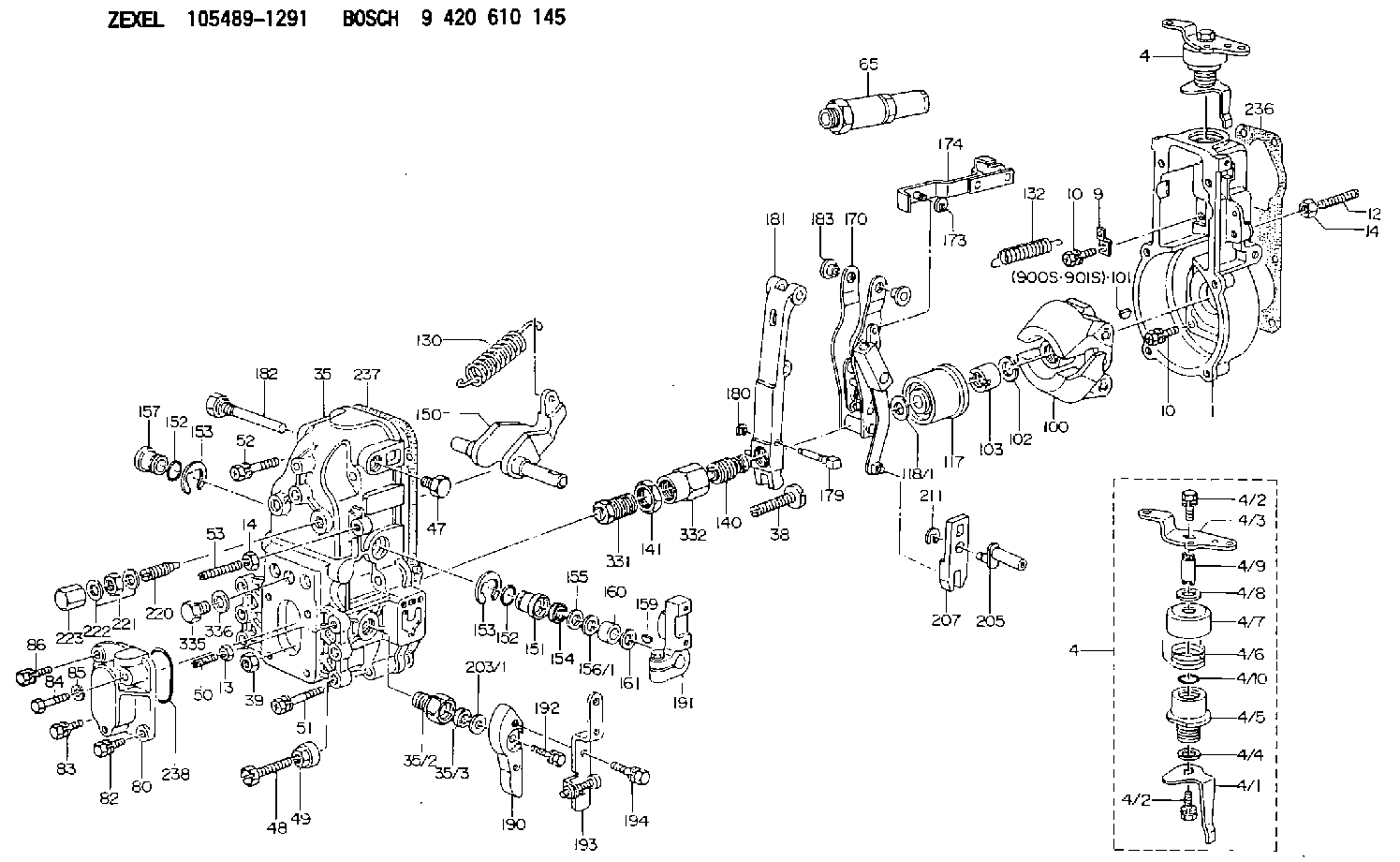

Scheme ###:

1. [1] 154000-4700 GOVERNOR HOUSING
4. [1] 154380-4420 CONTROL LEVER
4. [1] 154380-4420 CONTROL LEVER
4/1. [1] 154304-6200 CONTROL LEVER
4/2. [2] 154352-2000 BLEEDER SCREW
4/2. [2] 154352-2000 BLEEDER SCREW
4/3. [1] 154380-4400 CONTROL LEVER
4/4. [1] 029311-0230 SHIM D18&10.3T0.5
4/5. [1] 154321-1500 BUSHING
4/6. [1] 154327-2901 COILED SPRING
4/7. [1] 154322-0100 CAP
4/8. [1] 029311-0220 SHIM D18&10.3T0.2
4/9. [1] 154324-2700 LEVER SHAFT
4/10. [1] 029631-0030 O-RING &9.8W2.3
9. [1] 154350-6000 PLATE
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [1] 029240-6010 UNION NUT M6P1.0H5*
14. [2] 154011-0100 HEXAGON NUT
14. [2] 154011-0100 HEXAGON NUT
35. [1] 154514-6320 GOVERNOR COVER
35/2. [1] 154321-1800 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3500 FLAT-HEAD SCREW
39. [1] 154011-1600 UNION NUT
47. [1] 154036-0300 CAPSULE
48. [1] 154010-5500 BLEEDER SCREW M10P1.25L42
49. [1] 154011-2100 UNION NUT
50. [1] 155615-1100 FLAT-HEAD SCREW M6P1.0L37
51. [4] 020106-3840 BLEEDER SCREW
52. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0100 FLAT-HEAD SCREW
65. [1] 153043-3820 STOPPING DEVICE
80. [1] 154060-7900 COVER
82. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
83. [1] 029020-6210 BLEEDER SCREW
84. [1] 029020-6220 BLEEDER SCREW
85. [1] 014110-6440 LOCKING WASHER
86. [1] 029020-6210 BLEEDER SCREW
100. [1] 154100-9520 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-6000 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
140. [1] 154180-4620 HEADLESS SCREW
141. [1] 029201-6220 UNION NUT
150. [1] 154200-3801 SWIVELLING LEVER
151. [1] 154204-2001 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156/1. [0] 029311-1110 SHIM D17&11T0.1
156/1. [0] 029311-1120 SHIM D17&11T0.2
156/1. [0] 029311-1130 SHIM D17&11T0.3
157. [1] 154204-3400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-0900 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154217-3520 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-4920 STRAP
179. [1] 154238-0301 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-5520 TENSIONING LEVER
182. [1] 154237-0900 BEARING PIN
183. [2] 154237-0600 BUSHING
190. [1] 154360-2800 CONTROL LEVER
191. [1] 154340-2020 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154368-2120 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-4500 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-6820 HEADLESS SCREW
221. [1] 029201-2130 UNION NUT M12P1.0H6
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
236. [1] 154371-5600 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
331. [1] 154179-6020 HEADLESS SCREW
332. [1] 029201-6010 UNION NUT
335. [1] 154352-2600 CAPSULE
336. [1] 029331-6030 GASKET
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106671-4313 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105489-1291
105489-4180
9 420 610 145

GOVERNOR
* K 14JN GOV RFD GOV




Information:

Coolant
To prevent personal injury, do not step up on engine to remove the filler cap, if applicable. Use an adequate ladder.At operating temperature, the engine coolant is hot and under pressure. The radiator and all lines to heaters or the engine contain hot water. When pressure is relieved rapidly, this hot water can turn into steam.Allow cooling system components to cool before draining.Any contact with hot water or steam can cause severe burns.Check the coolant level only after the engine has been stopped and the filler cap is cool enough to remove with your bare hand.Remove the cooling system filler cap slowly to relieve pressure.Cooling system supplemental additive contains alkali. To prevent personal injury, avoid contact with the skin and eyes and do not drink.Oils
Hot oil and components can cause personal injury. Do not allow hot oil or components to contact the skin.Batteries
Battery electrolyte contains acid and can cause injury. Avoid contact with the skin and eyes.Wash hands after touching batteries and connectors. Use of gloves is recommended.Batteries give off flammable fumes which can explode.Always thaw a frozen battery before jump starting. Frozen batteries can explode.Do not smoke when observing the battery electrolyte levels.Always wear protective glasses when working with batteries.Fire or Explosion Prevention
Determine whether the engine will be operated in an environment in which combustible gases could be drawn through the air inlet system. These gases could cause the engine to overspeed, which in turn could seriously damage the engine and result in bodily injury or property damage.If your application involves the presence of combustible gases, consult your Caterpillar dealer to obtain additional information concerning protection devices suitable for the application involved.Inhaling freon gas through a lit cigarette or other smoking method, or inhaling fumes released from a flame contacting freon could cause bodily harm or death. Do not smoke when servicing, charging or working around air conditioners or where freon gas may be present.All fuels, most lubricants and some coolant mixtures are flammable.Diesel fuel is flammable. Gasoline is flammable. The mixture of diesel and gasoline fumes are extremely explosive.Do not smoke while refueling or in a refueling area.Always thaw a frozen battery before jump starting. Frozen batteries can explode.Do not smoke in areas where batteries are charged, or where flammable materials are stored.Batteries give off flammable fumes which can explode.Keep all fuels and lubricants stored in properly marked containers and away from all unauthorized persons.Store all oily rags or other flammable material in a protective container, in a safe place.Do not weld or flame cut on pipes or tubes that contain flammable fluids. Clean them thoroughly with nonflammable solvent before welding or flame cutting on them.Remove all flammable materials such as fuel, oil and other debris before they accumulate on the truck engine.Do not expose the engine to flames, burning brush, etc., if at all possible.Exhaust shields (if equipped), which protect hot exhaust components from oil or fuel spray in the event of a line, tube or seal failure, must be installed correctly.Never disconnect any charging

Have questions with 105489-1291?





Group cross 105489-1291 ZEXEL

Hino


223004560A
GOVERNOR

223004562A
GOVERNOR


GOVERNOR

Hino


223004580A
GOVERNOR

223004582A
GOVERNOR


GOVERNOR

Hino


223004572A
GOVERNOR


GOVERNOR






Hino


223004760A
GOVERNOR
F 019 Z5E 005
NP-EP/RFD200/1550PF74DWR
223004761A
GOVERNOR
F 019 Z5E 005
NP-EP/RFD200/1550PF74DWR
223004650A
GOVERNOR

Nissan-Diesel

F 019 Z5E 006
NP-EP/RFD200/1300PF10DWR
1910196862
GOVERNOR

Hino

F 019 Z5E 007
NP-EP/RFD200/1650PF9CHR
223004620A
GOVERNOR
F 019 Z3E 564
NP-EP/RFD200/1650PF9BHR
223004610A
GOVERNOR
F 019 Z1F 963

GOVERNOR
105489-1291

105489-4180
9 420 610 145

GOVERNOR
