Information governor
BOSCH
F 019 Z4E 971
f019z4e971
ZEXEL
105489-0000
1054890000
HINO
223003660A
223003660a

Rating:

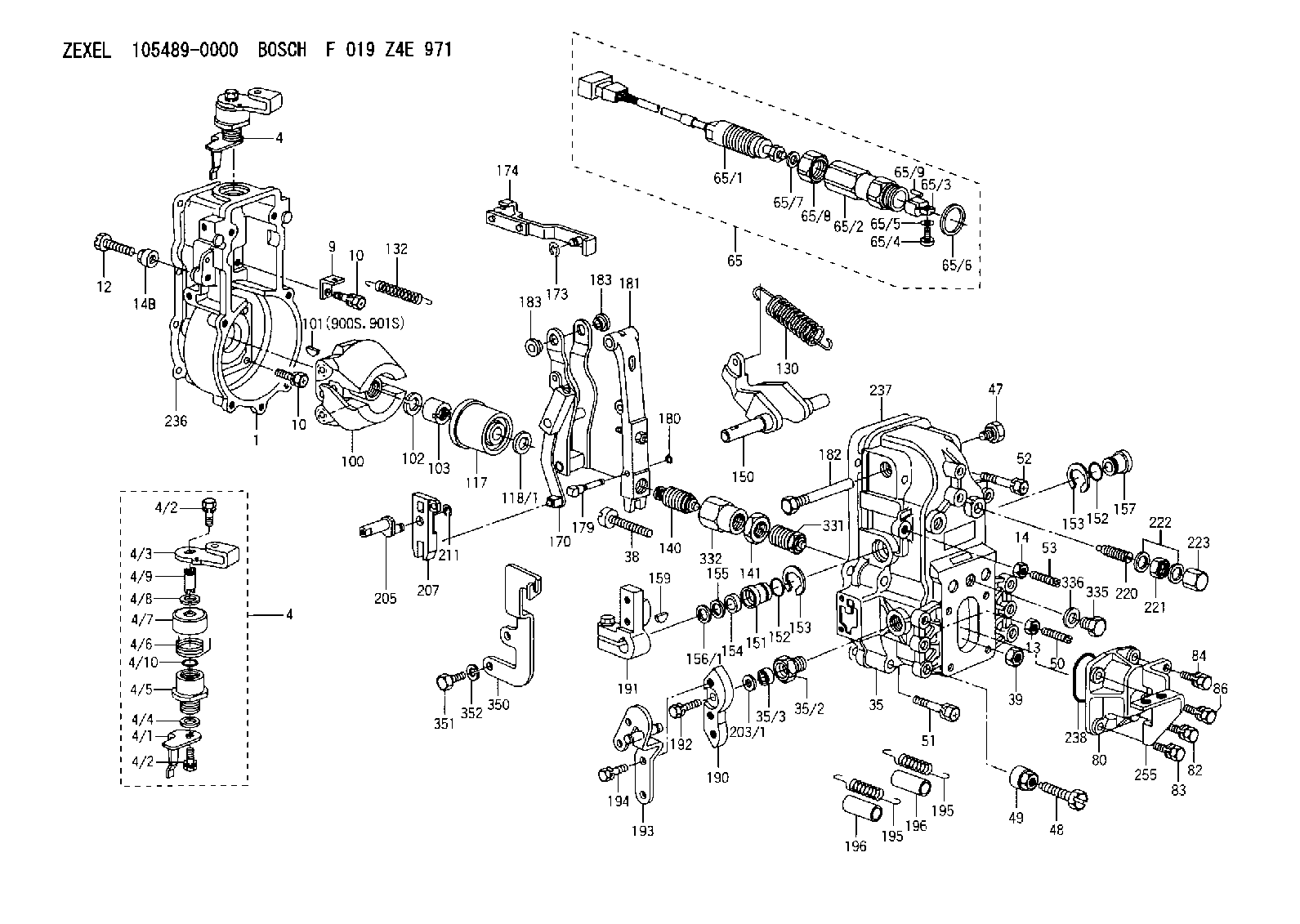

Scheme ###:
1. | [1] | 154000-9100 | GOVERNOR HOUSING |
4. | [1] | 154366-7020 | CONTROL LEVER |
4. | [1] | 154366-7020 | CONTROL LEVER |
4/1. | [1] | 154304-6200 | CONTROL LEVER |
4/2. | [2] | 154352-2000 | BLEEDER SCREW |
4/3. | [1] | 154366-7000 | CONTROL LEVER |
4/4. | [1] | 029311-0230 | SHIM |
4/5. | [1] | 154321-1500 | BUSHING |
4/6. | [1] | 154327-4100 | COILED SPRING |
4/7. | [1] | 154322-0100 | CAP |
4/8. | [1] | 029311-0220 | SHIM |
4/9. | [1] | 154324-2700 | LEVER SHAFT |
4/10. | [1] | 029631-0030 | O-RING |
9. | [1] | 154353-5601 | PLATE |
10. | [8] | 020106-2040 | BLEEDER SCREW |
10. | [8] | 020106-2040 | BLEEDER SCREW |
12. | [1] | 154010-7400 | BLEEDER SCREW |
13. | [1] | 013020-6040 | UNION NUT |
14. | [1] | 154011-0100 | HEXAGON NUT |
14B. | [1] | 154011-2300 | UNION NUT |
35. | [1] | 154513-6020 | GOVERNOR COVER |
35/2. | [1] | 154321-1800 | BUSHING |
35/3. | [1] | 029621-0080 | PACKING RING |
38. | [1] | 154031-3500 | FLAT-HEAD SCREW |
39. | [1] | 154011-1600 | UNION NUT |
47. | [1] | 154036-0300 | CAPSULE |
48. | [1] | 154010-7100 | BLEEDER SCREW |
49. | [1] | 154011-2200 | UNION NUT |
50. | [1] | 155615-1100 | FLAT-HEAD SCREW |
51. | [4] | 020106-3840 | BLEEDER SCREW |
52. | [2] | 020106-5040 | BLEEDER SCREW |
53. | [1] | 154010-1100 | FLAT-HEAD SCREW |
65. | [1] | 154610-0621 | RACK SENSOR ASSY |
65/1. | [1] | 479743-3520 | RACK SENSOR |
65/2. | [1] | 154614-2500 | JOINT CONNECTION |
65/3. | [1] | 154614-2900 | BLOCK |
65/4. | [1] | 010234-1040 | HEX-SOCKET-HEAD CAP SCREW |
65/5. | [1] | 014110-4440 | LOCKING WASHER D7.6&4.1T1 |
65/6. | [1] | 026524-3040 | GASKET |
65/7. | [1] | 029310-6280 | SHIM |
65/8. | [1] | 154614-1900 | UNION NUT |
65/9. | [1] | 154614-3300 | BEARING PIN |
80. | [1] | 154063-4700 | COVER |
82. | [1] | 029020-6210 | BLEEDER SCREW |
83. | [1] | 029020-6240 | BLEEDER SCREW |
84. | [1] | 020006-1640 | BLEEDER SCREW |
86. | [1] | 020006-1840 | BLEEDER SCREW |
100. | [1] | 154100-9520 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1310 | WOODRUFF KEY 13 MM |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-2320 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-7500 | GOVERNOR SPRING |
132. | [1] | 154154-0701 | COILED SPRING |
140. | [1] | 154180-0020 | HEADLESS SCREW |
141. | [1] | 029201-6220 | UNION NUT |
150. | [1] | 154200-3701 | SWIVELLING LEVER |
151. | [1] | 154204-2001 | BUSHING |
152. | [2] | 029631-8020 | O-RING |
152. | [2] | 029631-8020 | O-RING |
153. | [2] | 154354-3900 | LOCKING WASHER |
153. | [2] | 154354-3900 | LOCKING WASHER |
154. | [1] | 139611-0000 | PACKING RING |
155. | [1] | 139411-0000 | SHIM |
156/1. | [0] | 029311-1110 | SHIM D17&11T0.1 |
156/1. | [0] | 029311-1120 | SHIM D17&11T0.2 |
156/1. | [0] | 029311-1130 | SHIM D17&11T0.3 |
157. | [1] | 154204-3400 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY 13 MM |
170. | [1] | 154216-5520 | FORK LEVER |
173. | [1] | 016010-0540 | LOCKING WASHER |
174. | [1] | 154230-6120 | STRAP |
179. | [1] | 154238-0301 | BEARING PIN |
180. | [1] | 016010-0540 | LOCKING WASHER |
181. | [1] | 154236-6220 | TENSIONING LEVER |
182. | [1] | 154237-0900 | BEARING PIN |
183. | [2] | 154237-0600 | BUSHING |
183. | [2] | 154237-0600 | BUSHING |
190. | [1] | 154360-2700 | CONTROL LEVER |
191. | [1] | 154340-2220 | CONTROL LEVER |
192. | [1] | 020006-1670 | BLEEDER SCREW |
193. | [1] | 154362-6420 | CONTROL LEVER |
194. | [2] | 020006-1240 | BLEEDER SCREW |
195. | [2] | 154314-9800 | COILED SPRING |
195. | [2] | 154314-9800 | COILED SPRING |
196. | [2] | 154156-0900 | TUBE |
196. | [2] | 154156-0900 | TUBE |
203/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
203/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
203/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
203/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
203/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
203/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
203/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
203/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
203/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
203/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
203/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
205. | [1] | 154324-3100 | LEVER SHAFT |
207. | [1] | 154326-1100 | CONTROL LEVER |
211. | [1] | 016010-0840 | LOCKING WASHER |
220. | [1] | 154050-6820 | HEADLESS SCREW |
221. | [1] | 029201-2140 | UNION NUT |
222. | [2] | 026512-1540 | GASKET |
223. | [1] | 154159-1200 | CAP NUT |
236. | [1] | 154371-5600 | GASKET |
237. | [1] | 154390-0300 | GASKET |
238. | [1] | 029635-2020 | O-RING |
255. | [1] | 154357-5121 | BRACKET |
331. | [1] | 154179-2920 | HEADLESS SCREW |
332. | [1] | 029201-6010 | UNION NUT |
335. | [1] | 154352-2600 | CAPSULE |
336. | [1] | 029331-6030 | GASKET |
350. | [1] | 154354-3500 | BRACKET |
351. | [2] | 010010-1240 | BLEEDER SCREW |
352. | [2] | 014111-0440 | LOCKING WASHER |
900S. | [1] | 025803-1310 | WOODRUFF KEY 13 MM |
901S. | [1] | 025803-1610 | WOODRUFF KEY 16 MM |
Include in #1:
106671-3910
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
