105488-9921 ZEXEL 9 420 614 314 BOSCH GOVERNOR 9420614314 1054889921




Information governor

BOSCH 9 420 614 314 9420614314
ZEXEL 105488-9921 1054889921
105488-9921 GOVERNOR
Rating:
22
Buy GOVERNOR 105488-9921 zexel genuine, new aftermarket engine parts with delivery

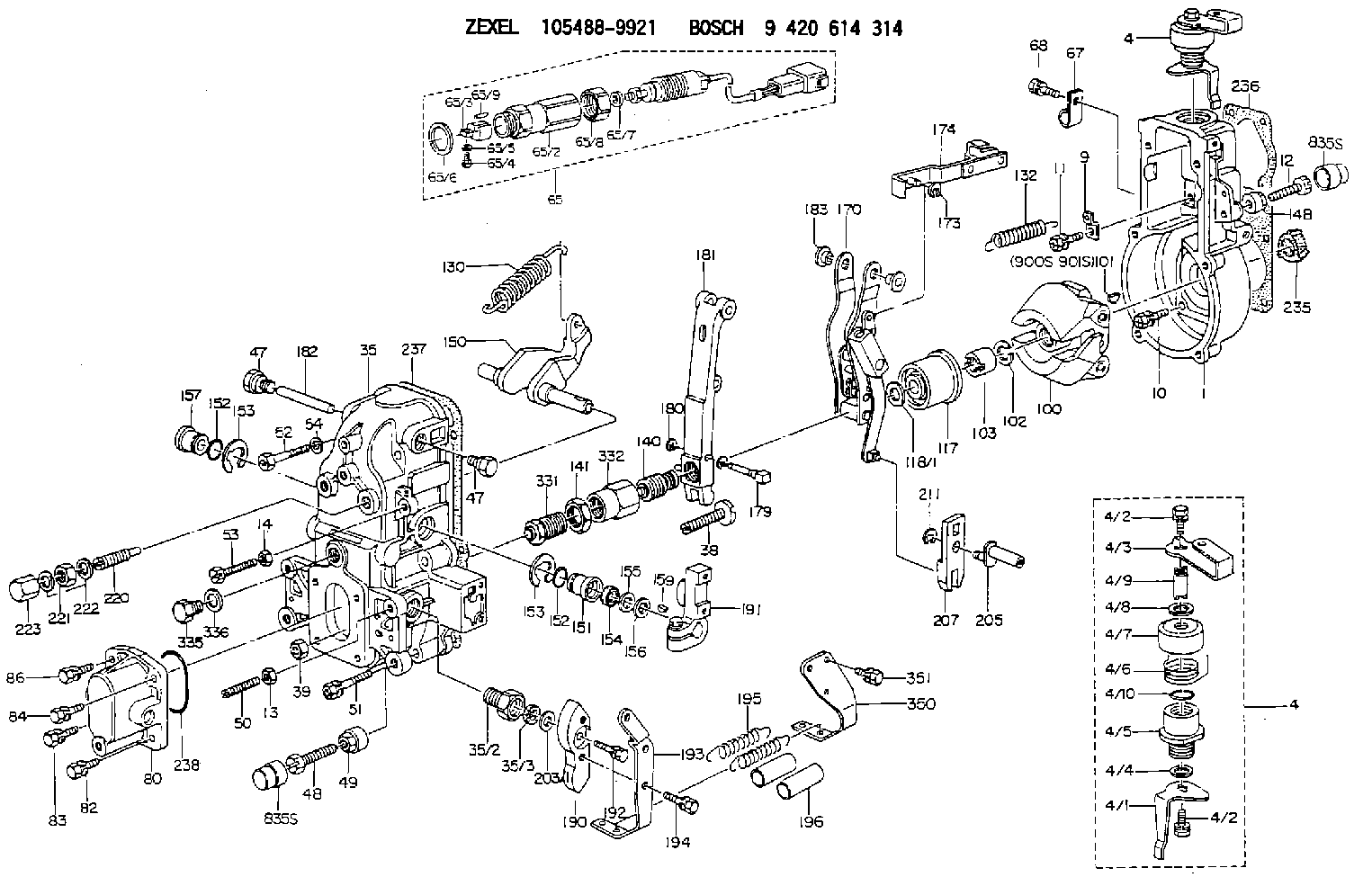

Scheme ###:

1. [1] 154004-1300 GOVERNOR HOUSING
4. [1] 154366-6320 CONTROL LEVER
4/1. [1] 154304-6200 CONTROL LEVER
4/2. [2] 154352-2000 BLEEDER SCREW
4/2. [2] 154352-2000 BLEEDER SCREW
4/3. [1] 154366-6300 CONTROL LEVER
4/4. [1] 029311-0230 SHIM D18&10.3T0.5
4/5. [1] 154321-1500 BUSHING
4/6. [1] 154327-4100 COILED SPRING
4/7. [1] 154322-0100 CAP
4/8. [1] 029311-0220 SHIM D18&10.3T0.2
4/9. [1] 154324-2700 LEVER SHAFT
4/10. [1] 029631-0030 O-RING &9.8W2.3
9. [1] 154353-5601 PLATE
10. [4] 020106-2040 BLEEDER SCREW M6P1L20
11. [4] 020106-1840 BLEEDER SCREW M6P1L18
12. [1] 154010-7400 BLEEDER SCREW M8P1.25L55
13. [1] 013020-6040 UNION NUT M6P1H5
14. [1] 154011-0100 HEXAGON NUT
14B. [1] 154011-2300 UNION NUT
35. [1] 154513-5120 GOVERNOR COVER
35/2. [1] 154321-2000 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3401 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [2] 154036-1800 CAPSULE
47. [2] 154036-1800 CAPSULE
48. [1] 154010-7700 BLEEDER SCREW M10P1.25L51
48B. [1] 154010-7100 BLEEDER SCREW M10P1.25L47
49. [1] 154011-2200 UNION NUT
50. [1] 155615-2300 FLAT-HEAD SCREW
51. [5] 020106-4540 BLEEDER SCREW M6P1.0L45
52. [2] 029010-6850 BLEEDER SCREW
53. [1] 154010-3100 BLEEDER SCREW
54. [2] 014110-6440 LOCKING WASHER
65. [1] 154610-0621 RACK SENSOR ASSY
65/2. [1] 154614-2500 JOINT CONNECTION
65/3. [1] 154614-2900 BLOCK
65/4. [1] 010234-1040 HEX-SOCKET-HEAD CAP SCREW
65/5. [1] 014110-4440 LOCKING WASHER
65/6. [1] 026524-3040 GASKET
65/7. [1] 029310-6280 SHIM D11.5&6.4T1.50
65/8. [1] 154614-1900 UNION NUT
65/9. [1] 154614-3300 BEARING PIN
67. [1] 154614-3500 CLAMPING BAND
68. [1] 020106-1240 BLEEDER SCREW M6P1.0L12
80. [1] 154063-4100 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 029020-6210 BLEEDER SCREW
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-9220 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 139212-0000 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-8300 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
140. [1] 154183-1720 HEADLESS SCREW
141. [1] 139218-0100 UNION NUT
150. [1] 154200-5401 SWIVELLING LEVER
151. [1] 154200-5501 BUSHING
152. [2] 139700-0000 O-RING
152. [2] 139700-0000 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139610-0101 PACKING RING
155. [1] 139411-0100 SHIM D22.0&12.0T0.40
156. [0] 139411-0200 SHIM D18.0&12.0T0.10
156B. [0] 139411-0300 SHIM D18.0&12.0T0.20
156C. [0] 139411-0400 SHIM D18.0&12.0T0.30
157. [1] 154204-3500 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
170. [1] 154216-8420 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-8120 STRAP
179. [1] 154238-0201 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-6320 TENSIONING LEVER
182. [1] 154237-1200 BEARING PIN
183. [2] 154237-1300 BUSHING
190. [1] 154360-2800 CONTROL LEVER
191. [1] 154340-4320 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154368-0820 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
195. [2] 154314-7300 COILED SPRING
196. [2] 154156-1300 TUBE
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-4100 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-6220 HEADLESS SCREW
221. [1] 029201-2140 UNION NUT
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5200 IMPELLER WHEEL
236. [1] 154371-5600 GASKET
237. [1] 154390-0200 GASKET
238. [1] 139700-0100 O-RING
331. [1] 154179-7420 HEADLESS SCREW
332. [1] 139218-0200 UNION NUT
335. [1] 154352-2600 CAPSULE
336. [1] 029331-6030 GASKET
350. [1] 154356-0221 BRACKET
351. [3] 029010-5340 BLEEDER SCREW
835S. [2] 154062-1700 CAP D20L32
835S. [2] 154062-1700 CAP D20L32
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106871-3832 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105488-9921
9 420 614 314
NP-EP/RFD200/1400PF31DHR

GOVERNOR
K




Information:

Literature Information
This manual contains recommended safety procedures, fluid systems specifications, operation instructions, maintenance information and basic troubleshooting along with basic repair information and should be stored in the pilot house or engine area. Read, study and keep it in a literature holder or literature storage area with other literature and engine information.Some photographs or illustrations in this manual show details or attachments that may be different from your engine. Guards and covers may have been removed for illustrative purposes. Continuing improvement and advancement of product design may have caused changes to your engine which are not included in this manual. Whenever a question arises regarding your engine, or this manual, please consult your Caterpillar dealer for the latest available information.Safety
The safety section lists basic safety precautions. In addition, this section identifies hazardous, warning situations. Read and understand the basic precautions listed in the safety section before operating or performing lubrication, maintenance and repair on this product.Operation
Operating techniques outlined in this manual are basic to assist with developing the skills and techniques required to operate the engine more efficiently and economically. Skill and techniques develop as the pilot gains knowledge of the engine and its capabilities.The operation section is a reference for experienced pilots, and photographs and illustrations guide the new pilot through correct procedures of inspecting, starting, operating and stopping the engine. This section also includes a discussion of gauges, indicators, features and controls.Maintenance
The maintenance section is a guide to engine care. Items in the Maintenance Schedule are referenced to detailed instructions that follow. The instructions and procedures are grouped by fuel consumption, service hours and/or calendar time maintenance intervals.Use fuel consumption first to determine intervals. Calendar intervals shown (daily, annually, etc.) may be used instead of service meter intervals if they provide more convenient schedules and approximate the indicated service meter reading.Recommended service should always be performed at the fuel consumption interval first. The actual operating environment of the engine also governs the maintenance schedule. Therefore, under extremely severe or freezing cold operating conditions, more frequent lubrication and maintenance than is specified in the Maintenance Schedule may be necessary.Maintenance Intervals
Perform maintenance on items at multiples of the original requirement. Each level and/or individual items in each level should be shifted ahead or back depending upon your specific maintenance practices, operation and application. We recommend that the maintenance schedules be reproduced and displayed near the engine as a convenient reminder. We also recommend that a maintenance record be maintained as part of the engine's permanent record.See the Maintenance Records section in this manual for information regarding documents that are generally accepted as proof of maintenance or repair. Your authorized Caterpillar engine dealer can assist you in tailoring your Maintenance Schedule to meet the needs of your operating environment.Overhaul
Your Caterpillar dealer offers a variety of options regarding overhaul programs. If you experience a major engine failure which necessitates removal of the engine from the hull, there are also numerous after failure overhaul options available from your Caterpillar dealer. Contact

Have questions with 105488-9921?





Group cross 105488-9921 ZEXEL

Hino

F 019 Z4E 967
NP-EP/RFD200/1650PF9CHR
223003700A
GOVERNOR

Isuzu


1157208140
GOVERNOR


GOVERNOR


GOVERNOR
105488-9921
9 420 614 314
NP-EP/RFD200/1400PF31DHR

GOVERNOR

Hino


223003590A
GOVERNOR

223006480A
GOVERNOR
F 019 Z4E 968
NP-EP/RFD200/1400PF31DHR
223003591A
GOVERNOR
F 019 Z4E 968
NP-EP/RFD200/1400PF31DHR
223006481A
GOVERNOR

223003600A
GOVERNOR
F 019 Z4E 969
NP-EP/RFD200/1400PF31DHR
223003601A
GOVERNOR

223003900A
GOVERNOR
9 420 613 503
NP-EP/RFD200/1650PF9CHR
223003901A
GOVERNOR

Isuzu


1157702100
GOVERNOR


GOVERNOR

Isuzu


1157702120
GOVERNOR


GOVERNOR

Isuzu


1157702130
GOVERNOR


GOVERNOR

Isuzu

F 019 Z4E 970
NP-EP/RFD200/1600PF33DJR
1157704500
GOVERNOR
