105488-9340 ZEXEL F 019 Z2F 594 BOSCH GOVERNOR f019z2f594 1054889340




Information governor

BOSCH F 019 Z2F 594 f019z2f594
ZEXEL 105488-9340 1054889340
105488-9340 GOVERNOR
Rating:
59
Buy GOVERNOR 105488-9340 zexel genuine, new aftermarket engine parts with delivery

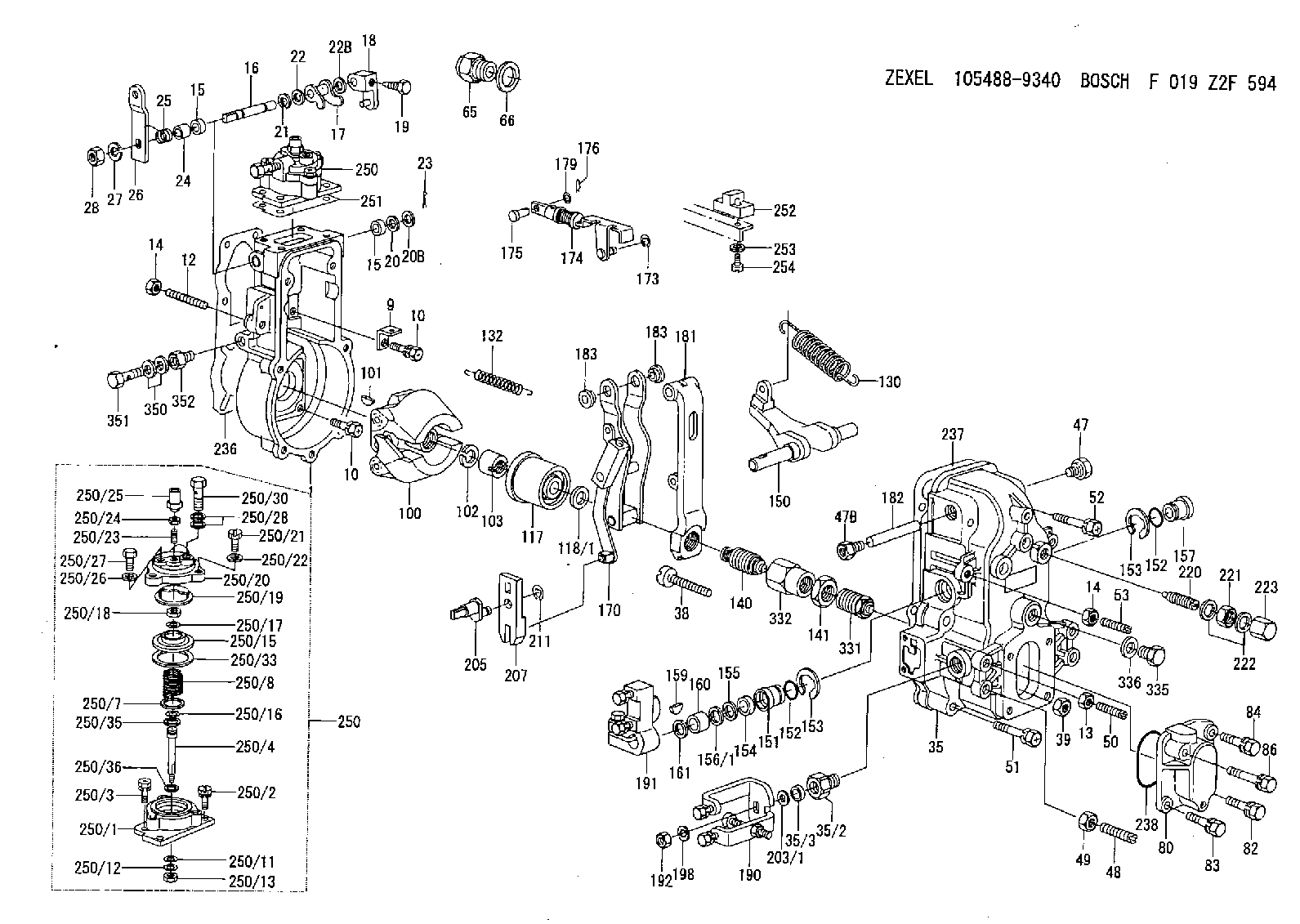

Scheme ###:

1. [1] 154000-9320 GOVERNOR HOUSING
9. [1] 154350-6000 PLATE
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [1] 029240-6010 UNION NUT M6P1.0H5*
14. [2] 154011-0100 HEXAGON NUT
14. [2] 154011-0100 HEXAGON NUT
15. [2] 029620-8050 PACKING RING
15. [2] 029620-8050 PACKING RING
16. [1] 155004-3200 LEVER SHAFT
17. [1] 154408-1520 CONTROL LEVER
18. [1] 155003-1920 CONTROL LEVER
19. [1] 155006-0100 BLEEDER SCREW
20. [0] 139308-0900 PLAIN WASHER D16&8T1
20B. [0] 139308-1000 PLAIN WASHER D16&8T1.5
21. [1] 016010-0740 LOCKING WASHER
22. [0] 029310-8040 SHIM D13.5&8T0.2
22B. [0] 029310-8050 SHIM D13.5&8T0.5
23. [1] 025520-1210 SPLIT PIN
24. [1] 154206-2000 BUSHING
25. [1] 154327-3600 COILED SPRING
26. [1] 154304-8500 CONTROL LEVER
27. [1] 014110-8440 LOCKING WASHER
28. [1] 013020-8040 UNION NUT M8P1.25H7
35. [1] 154512-6620 GOVERNOR COVER
35/2. [1] 154321-1800 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3200 FLAT-HEAD SCREW
39. [1] 154011-1600 UNION NUT
47. [1] 154036-1200 CAPSULE
47B. [1] 154036-0300 CAPSULE
48. [1] 154010-0300 FLAT-HEAD SCREW
49. [1] 029240-8000 UNION NUT
50. [1] 155615-1000 FLAT-HEAD SCREW
51. [4] 020106-3840 BLEEDER SCREW
52. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0100 FLAT-HEAD SCREW
65. [1] 155404-1700 CAP
66. [1] 026524-3040 GASKET
80. [1] 154060-7900 COVER
82. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
83. [1] 029020-6210 BLEEDER SCREW
84. [1] 029000-6800 BLEEDER SCREW
86. [1] 029020-6210 BLEEDER SCREW
100. [1] 154100-5020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0420 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-7000 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
140. [1] 154176-2720 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-3701 SWIVELLING LEVER
151. [1] 154204-2001 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156/1. [0] 029311-1110 SHIM D17&11T0.1
156/1. [0] 029311-1120 SHIM D17&11T0.2
156/1. [0] 029311-1130 SHIM D17&11T0.3
157. [1] 154204-3400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-0900 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154211-9420 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-5120 STRAP
175. [1] 159231-4900 BEARING PIN
176. [1] 155402-3800 SAFETY PIN
179. [1] 029310-5170 SHIM D8&5.3T0.5
181. [1] 154236-3620 TENSIONING LEVER
182. [1] 154237-0400 BEARING PIN
183. [2] 154237-0600 BUSHING
183. [2] 154237-0600 BUSHING
190. [1] 154362-6020 CONTROL LEVER
191. [1] 154340-0320 CONTROL LEVER
192. [1] 013020-8040 UNION NUT M8P1.25H7
198. [1] 014110-8440 LOCKING WASHER
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-1200 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-1220 HEADLESS SCREW
221. [1] 029201-2140 UNION NUT
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
236. [1] 154371-5600 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
250. [1] 154407-3520 MANIFOLD-PRESSURE COMP.
250. [1] 154407-3520 MANIFOLD-PRESSURE COMP.
250/1. [1] 154408-6220 DIAPHRAGM HOUSING
250/2. [3] 020106-1640 BLEEDER SCREW M6P1.0L14
250/3. [1] 029020-6210 BLEEDER SCREW
250/4. [1] 154400-5300 STOP PIN
250/7. [0] 029312-0180 SHIM D25.5&20T0.5
250/7B. [0] 029312-0210 SHIM D25.5&20T0.2
250/8. [1] 154403-6000 COILED SPRING
250/11. [1] 153400-0800 SPRING SEAT
250/12. [1] 014110-5440 LOCKING WASHER
250/13. [1] 013030-5240 UNION NUT M5P0.8H3.2
250/15. [1] 154400-0120 DIAPHRAGM
250/16. [1] 029330-8050 GASKET
250/17. [1] 014110-6440 LOCKING WASHER
250/18. [1] 023040-6040 UNION NUT
250/19. [1] 154404-3100 PLATE
250/20. [1] 154404-3900 COVER
250/21. [3] 029010-6310 BLEEDER SCREW
250/22. [3] 014110-6440 LOCKING WASHER
250/23. [1] 154404-1100 FLAT-HEAD SCREW
250/24. [1] 023040-6040 UNION NUT
250/25. [1] 154035-0320 CAP NUT
250/26. [1] 026506-1040 GASKET D9.9&6.2T1
250/27. [1] 029010-6010 CAPSULE M6P1.0L7
250/28. [2] 026510-1340 GASKET D13.4&10.2T1
250/30. [1] 029731-0180 EYE BOLT
250/33. [3] 154413-2600 GASKET
250/35. [1] 154354-3400 BUSHING
250/36. [1] 029310-6230 SHIM D11.5&6.5T0.20
251. [1] 154390-2000 GASKET
252. [1] 154232-1220 PLATE
253. [1] 029320-5020 LOCKING WASHER
254. [1] 010535-1040 FLAT-HEAD SCREW M5P0.8L10
331. [1] 154172-8520 HEADLESS SCREW
332. [1] 029201-6220 UNION NUT
335. [1] 154352-2600 CAPSULE
336. [1] 029331-6030 GASKET
350. [2] 026506-1040 GASKET D9.9&6.2T1
351. [1] 029730-6030 EYE BOLT
352. [1] 155012-0700 ADAPTOR

Include in #1:

106971-0083 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105488-9340
105488-9341
F 019 Z2F 594

GOVERNOR
* K




Information:

The troubleshooting chart provides a definite sequence to be followed for a logical procedure to determine the frequency and amplitude of vibration so that the source of the vibration can be located and corrected.1. The customer must be asked questions to determine whether his complaint is valid, or whether his diagnosis of the actual problem is correct.Some of the questions that must be asked are as follows: a. What components are vibrating?b. In what speed range does this vibration become excessive?c. Does clutch operation affect the vibration?d. What is the history of the problem?2. Run the engine through the idle speed range and note all vibrating components. Look for any loose or broken mounts, brackets, and fasteners. Repair and tighten any fixtures.3. Check idle speed range with clutch disengaged. If vibrations subside, there is a balance problem with the clutch disc. The clutch disc must be repaired or replaced.4. Further analysis requires the use of a vibration instrument. Any instrument which can accurately measure the displacement of the vibration (usually in mils-inch/1000) and the frequency (cycles per second) will be sufficient. A vibration instrument such as the IRD Mechanalysis Model 320 or an equivalent instrument can be used to analyze vibration.5. Measure vibration of cab components which have the objectionable vibration.Run engine slowly through the speed range and measure vibration with the instrument filter OUT. When peak amplitudes are found, run the engine at the speeds they occur and with the instrument filter IN, find the frequency of the vibration.If the frequency of vibration is 1/2 times of engine rpm (1/2 order), the vibration is caused by a cylinder misfiring. This must be corrected before further vibration analysis is made.If the frequency of vibration is 3 times engine rpm, no corrective action can be taken on the engine because this is the firing frequency of the 3406 engine. The problem is in the cab or chassis resonance.If frequency is some order other than 1/2 or 3rd, then further measurements must be made on the engine.6. Measurements taken on the engine must be made perpendicular to the crankshaft at the front and, rear of the engine in vertical and horizontal directions.7. Record all vibrations over 4.0 mils and the engine rpm at which it occurs (100 rpm intervals are sufficient) with instrument filter OUT. Note any sudden increase and decrease in amplitudes. These occur in resonant speed ranges.If no amplitudes exceed 4.0 mils, the engine is within Caterpillar Specifications.If amplitudes exceed 4.0 mils, the vibrations must be measured with the instrument filter IN to obtain the frequency of the vibrations.8. Run the engine at high idle. With the instrument filter IN, check the frequency range and record any amplitudes over 4.0 mils and the corresponding frequency. Analysis of vibrations for the possible causes is done by identifying the frequency of the vibration and where on the engine it is the greatest magnitude. Make reference to Special Instruction, Troubleshooting Engine Vibration In Vehicular Equipment, Form No. SEHS7914 for additional information

Have questions with 105488-9340?





Group cross 105488-9340 ZEXEL

Hino


223003360A
GOVERNOR

223003370A
GOVERNOR
F 019 Z4E 961
NP-EP/RFD200/1400PF31DHR
223003390A
GOVERNOR
F 019 Z4E 961
NP-EP/RFD200/1400PF31DHR
223003400A
GOVERNOR

Isuzu


1157207190
GOVERNOR


GOVERNOR
105488-9340

105488-9341
F 019 Z2F 594

GOVERNOR

Nissan-Diesel

9 420 613 283
NP-EP/RFD200/1450PF23BWR
1910197408
GOVERNOR

1910196666
GOVERNOR



Mitsubishi


ME717280
GOVERNOR

ME726070
GOVERNOR
F 019 Z2E 639
NP-EP/RFD200/1300PF10DWR
ME730240
GOVERNOR

ME717277
GOVERNOR

ME726071
GOVERNOR
F 019 Z4E 962
NP-EP/RFD200/1300PF10DWR
ME730856
GOVERNOR

Nissan-Diesel


1910196668
GOVERNOR
F 019 Z1E 644

GOVERNOR
