105488-9131 ZEXEL F 019 Z1E 326 BOSCH GOVERNOR f019z1e326 1054889131 223003142a

Information governor

BOSCH F 019 Z1E 326 f019z1e326

ZEXEL 105488-9131 1054889131

HINO 223003142A 223003142a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105488-9131 zexel genuine, new aftermarket engine parts with delivery

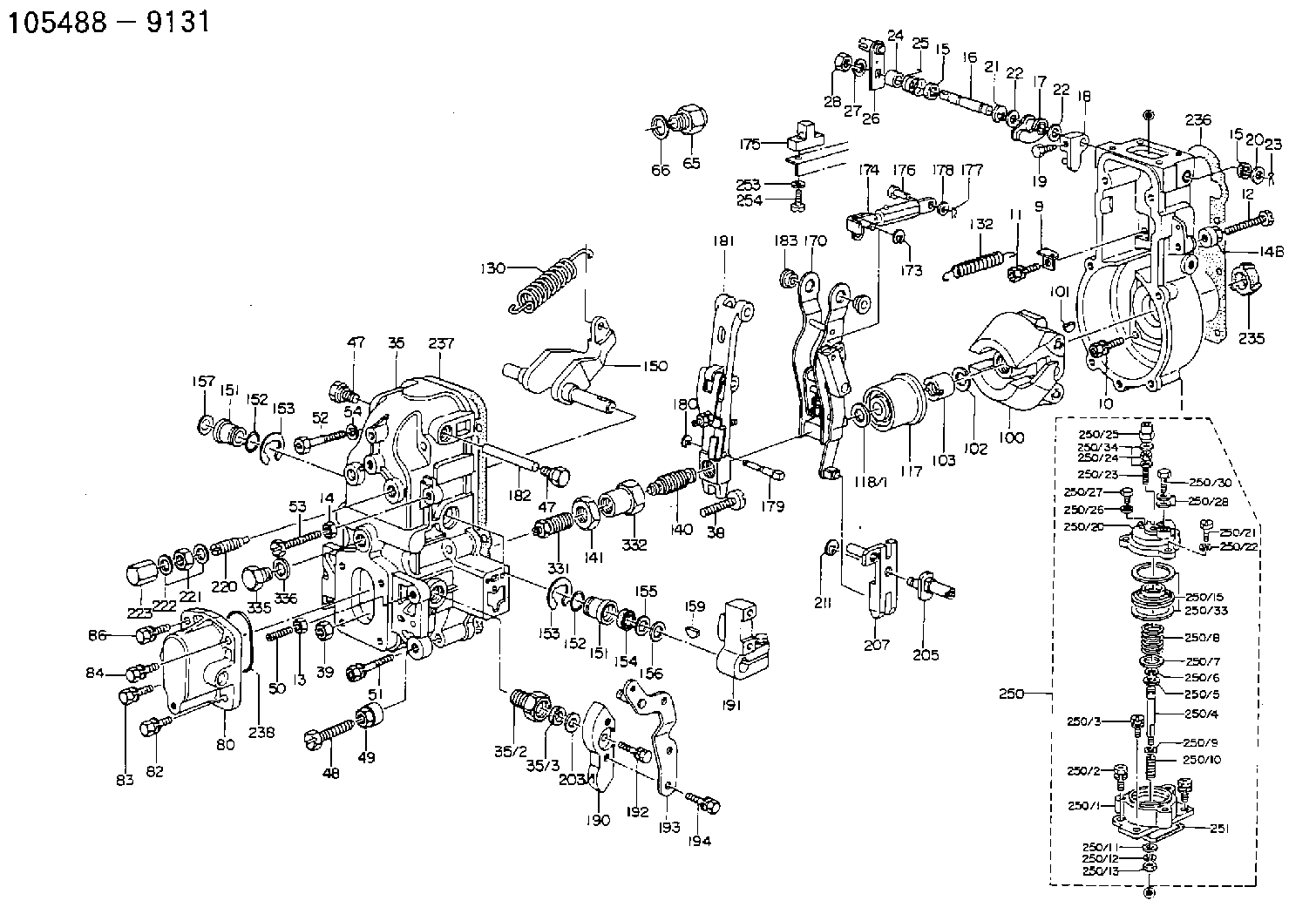

Scheme ###:

1.	[1]	154004-1022	GOVERNOR HOUSING
9.	[1]	154353-5601	PLATE
10.	[4]	020106-2040	BLEEDER SCREW M6P1L20
11.	[4]	020106-1840	BLEEDER SCREW M6P1L18
12.	[1]	154010-7400	BLEEDER SCREW M8P1.25L55
13.	[1]	029240-6010	UNION NUT M6P1.0H5*
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
15.	[2]	029620-8050	PACKING RING
15.	[2]	029620-8050	PACKING RING
16.	[1]	155004-3200	LEVER SHAFT
17.	[1]	154408-1520	CONTROL LEVER
18.	[1]	155003-1920	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
21.	[1]	016010-0740	LOCKING WASHER
22.	[0]	029310-8040	SHIM D13.5&8T0.2
22.	[7]	139408-1400	SHIM
22B.	[0]	029310-8050	SHIM D13.5&8T0.5
22B.	[7]	139408-1500	SHIM
23.	[1]	025520-1210	SPLIT PIN
24.	[1]	154206-2000	BUSHING
25.	[1]	154327-4400	COILED SPRING
26.	[1]	154364-3821	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER
28.	[1]	013020-8040	UNION NUT M8P1.25H7
29.	[1]	139408-1400	SHIM
29B.	[0]	139408-1400	SHIM
29C.	[0]	139408-1500	SHIM
35.	[1]	154513-5520	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1800	CAPSULE
47.	[2]	154036-1800	CAPSULE
48.	[1]	154010-6000	BLEEDER SCREW M10P1.25L55
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-2300	FLAT-HEAD SCREW
51.	[5]	020106-4540	BLEEDER SCREW M6P1.0L45
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-3100	BLEEDER SCREW
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	153021-2720	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154063-4100	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-8300	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154183-0520	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
150.	[1]	154200-5401	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM D22.0&12.0T0.40
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
170.	[1]	154216-5220	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154234-3420	STRAP
175.	[1]	154232-1220	PLATE
176.	[1]	159231-4900	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
178.	[1]	029310-5170	SHIM D8&5.3T0.5
179.	[1]	154238-0201	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-6320	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1300	BUSHING
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154340-4320	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154363-2621	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-4100	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-1220	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	139700-0100	O-RING
250.	[1]	154417-5020	MANIFOLD-PRESSURE COMP.
250/1.	[1]	154408-6220	DIAPHRAGM HOUSING
250/2.	[3]	020106-1640	BLEEDER SCREW M6P1.0L14
250/3.	[1]	029020-6210	BLEEDER SCREW
250/4.	[1]	154400-5800	STOP PIN
250/5.	[1]	153400-0900	SLOTTED WASHER
250/6.	[1]	016010-0740	LOCKING WASHER
250/7.	[0]	029312-0180	SHIM D25.5&20T0.5
250/7B.	[0]	029312-0210	SHIM D25.5&20T0.2
250/8.	[1]	154402-2000	COILED SPRING
250/9.	[0]	154355-3900	SHIM D18&12.5T0.10
250/9B.	[0]	154355-4000	SHIM D18&12.5T0.20
250/9C.	[0]	154355-4100	SHIM D18&12.5T0.30
250/10.	[1]	154411-0600	COILED SPRING
250/11.	[1]	153400-0800	SPRING SEAT
250/12.	[1]	014110-5440	LOCKING WASHER
250/13.	[1]	013030-5240	UNION NUT M5P0.8H3.2
250/15.	[1]	154400-7720	DIAPHRAGM
250/20.	[1]	154404-3900	COVER
250/21.	[3]	029010-6310	BLEEDER SCREW
250/22.	[3]	014110-6440	LOCKING WASHER
250/23.	[1]	154404-1100	FLAT-HEAD SCREW
250/24.	[1]	013030-6040	UNION NUT M6P1H3.6
250/25.	[1]	154035-1900	CAP NUT
250/26.	[1]	026506-1040	GASKET D9.9&6.2T1
250/27.	[1]	029010-6010	CAPSULE M6P1.0L7
250/28.	[2]	026510-1340	GASKET D13.4&10.2T1
250/30.	[1]	029731-0180	EYE BOLT
250/33.	[2]	154413-2600	GASKET
250/34.	[2]	026506-1040	GASKET D9.9&6.2T1
251.	[1]	154358-2500	SEAL RING
253.	[1]	029320-5020	LOCKING WASHER
254.	[1]	010535-1040	FLAT-HEAD SCREW M5P0.8L10
331.	[1]	154179-4120	HEADLESS SCREW
332.	[1]	139218-0500	UNION NUT
335.	[1]	154352-2600	CAPSULE
336.	[1]	029331-6030	GASKET
835S.	[2]	154062-1700	CAP D20L32
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106871-3683 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105488-9131

F 019 Z1E 326
NP-EP/RFD200/1400PF31DWR

223003142A HINO

GOVERNOR
K

Information:

Keep all parts clean from contaminants. Contaminants put into the system may cause rapid wear and shortened component life.
1. Remove cover (1) and the O-ring seal from the riming gear plate.
Use care when the trunnion is removed to prevent damage to the crankshaft front seal
2. Remove three bolts (2), trunnion (3) and the O-ring seal. 3. Remove the bolts that hold the timing gear cover in place. Carefully loosen the cover from the dowels and remove cover (4).4. Clean the old gasket from the contact surface of the timing gear cover and the timing gear plate.Install Timing Gear Cover
1. Install a new gasket (1) on the timing gear plate. Cut the gasket even with the bottom face on the cylinder block. 2. Install the timing gear cover (2). The bolts in locations (3) and (4) are tightened to a torque of 23 4 N m (17 3 lb ft). 3. Be sure the O-ring seal (6) is on position on trunnion. Install trunnion (5) and the bolts. Tighten the bolts to a torque of 135 15 N m (100 11 lb ft). 4. Install the O-ring seal and cover (7).End By:a. install crankshaft damper and pulleyb. install water pumpc. install air compressord. install oil pan
