Information governor
BOSCH
F 019 Z1E 320
f019z1e320
ZEXEL
105488-7870
1054887870
HINO
223002602A
223002602a

Rating:
Scheme ###:

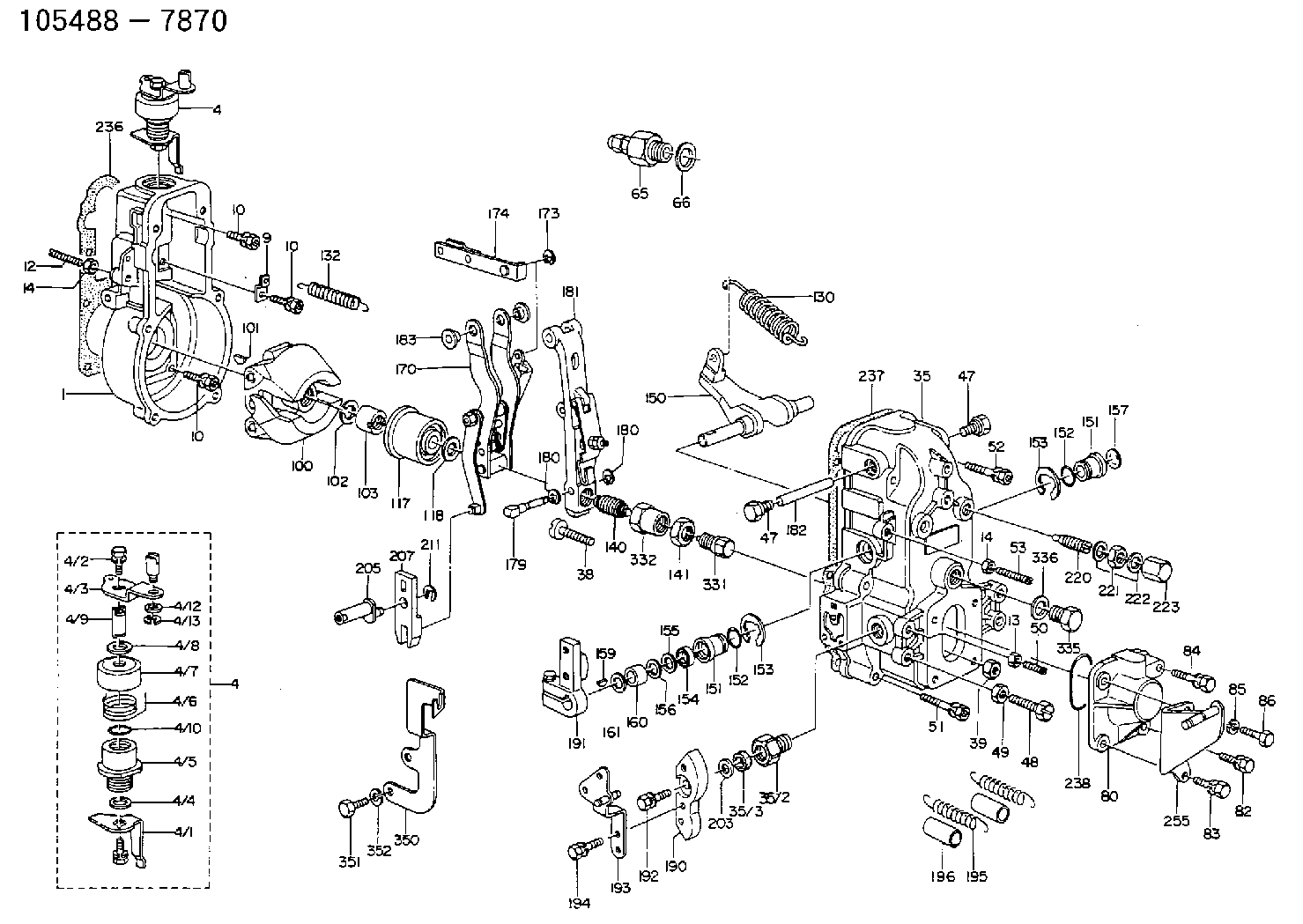

1. | [1] | 154000-9100 | GOVERNOR HOUSING |
4. | [1] | 154304-8221 | CONTROL LEVER |
4. | [1] | 154304-8221 | CONTROL LEVER |
4/1. | [1] | 154304-6200 | CONTROL LEVER |
4/2. | [2] | 154352-2000 | BLEEDER SCREW |
4/3. | [1] | 154304-3300 | CONTROL LEVER |
4/4. | [1] | 029311-0230 | SHIM D18&10.3T0.5 |
4/5. | [1] | 154321-1500 | BUSHING |
4/6. | [1] | 154327-4100 | COILED SPRING |
4/7. | [1] | 154322-0100 | CAP |
4/8. | [1] | 029311-0220 | SHIM D18&10.3T0.2 |
4/9. | [1] | 154324-2700 | LEVER SHAFT |
4/10. | [1] | 029631-0030 | O-RING &9.8W2.3 |
4/11. | [1] | 154353-3701 | BEARING PIN |
4/12. | [1] | 014010-6140 | PLAIN WASHER D13&6.5T1 |
4/12B. | [0] | 029310-6040 | SHIM |
4/13. | [1] | 016010-0540 | LOCKING WASHER |
9. | [1] | 154350-6000 | PLATE |
10. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
10. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
10. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
12. | [1] | 154010-1100 | FLAT-HEAD SCREW |
13. | [1] | 029240-6010 | UNION NUT M6P1.0H5* |
14. | [2] | 154011-0100 | HEXAGON NUT |
14. | [2] | 154011-0100 | HEXAGON NUT |
35. | [1] | 154513-6020 | GOVERNOR COVER |
35/2. | [1] | 154321-1800 | BUSHING |
35/3. | [1] | 029621-0080 | PACKING RING |
38. | [1] | 154031-3500 | FLAT-HEAD SCREW |
39. | [1] | 154011-1600 | UNION NUT |
47. | [1] | 154036-0300 | CAPSULE |
47. | [1] | 154036-0300 | CAPSULE |
48. | [1] | 154010-5500 | BLEEDER SCREW M10P1.25L42 |
49. | [1] | 154011-2100 | UNION NUT |
50. | [1] | 155615-1100 | FLAT-HEAD SCREW M6P1.0L37 |
51. | [4] | 020106-3840 | BLEEDER SCREW |
52. | [2] | 020106-5040 | BLEEDER SCREW |
53. | [1] | 154010-1100 | FLAT-HEAD SCREW |
65. | [1] | 153021-2220 | STOPPING DEVICE |
66. | [1] | 026524-3040 | GASKET |
80. | [1] | 154060-7300 | COVER |
82. | [1] | 029020-6210 | BLEEDER SCREW |
83. | [1] | 029020-6240 | BLEEDER SCREW |
84. | [1] | 010006-3840 | BLEEDER SCREW |
85. | [1] | 014110-6440 | LOCKING WASHER |
86. | [1] | 020006-1840 | BLEEDER SCREW M6P1L18 |
100. | [1] | 154100-9520 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1310 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-2320 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-6200 | GOVERNOR SPRING |
132. | [1] | 154154-4000 | COILED SPRING |
140. | [1] | 154180-0120 | HEADLESS SCREW |
141. | [1] | 029201-6220 | UNION NUT |
150. | [1] | 154200-3701 | SWIVELLING LEVER |
151. | [1] | 154204-2001 | BUSHING |
151. | [1] | 154204-2001 | BUSHING |
152. | [2] | 029631-8020 | O-RING |
152. | [2] | 029631-8020 | O-RING |
153. | [2] | 154354-3900 | LOCKING WASHER |
153. | [2] | 154354-3900 | LOCKING WASHER |
154. | [1] | 139611-0000 | PACKING RING |
155. | [1] | 139411-0000 | SHIM |
156/1. | [0] | 029311-1110 | SHIM D17&11T0.1 |
156/1. | [0] | 029311-1120 | SHIM D17&11T0.2 |
156/1. | [0] | 029311-1130 | SHIM D17&11T0.3 |
157. | [1] | 154204-3400 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
170. | [1] | 154216-4120 | FORK LEVER |
173. | [1] | 016010-0540 | LOCKING WASHER |
174. | [1] | 154230-4920 | STRAP |
179. | [1] | 154238-0301 | BEARING PIN |
180. | [1] | 016010-0540 | LOCKING WASHER |
180. | [1] | 016010-0540 | LOCKING WASHER |
181. | [1] | 154236-7220 | TENSIONING LEVER |
182. | [1] | 154237-0900 | BEARING PIN |
183. | [2] | 154237-0600 | BUSHING |
190. | [1] | 154360-2700 | CONTROL LEVER |
191. | [1] | 154340-2220 | CONTROL LEVER |
192. | [1] | 020006-1670 | BLEEDER SCREW M6P1L16 7T |
193. | [1] | 154361-7020 | CONTROL LEVER |
194. | [2] | 020006-1240 | BLEEDER SCREW M6P1L12 4T |
195. | [2] | 154314-8900 | COILED SPRING |
196. | [2] | 154156-0900 | TUBE |
203/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
203/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
203/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
203/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
203/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
203/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
203/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
203/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
203/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
203/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
203/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
205. | [1] | 154324-3000 | LEVER SHAFT |
207. | [1] | 154326-6223 | CONTROL LEVER |
211. | [1] | 016010-0840 | LOCKING WASHER |
220. | [1] | 154050-3520 | HEADLESS SCREW |
221. | [1] | 029201-2140 | UNION NUT |
222. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
223. | [1] | 154159-1200 | CAP NUT |
236. | [1] | 154371-5600 | GASKET |
237. | [1] | 154390-0300 | GASKET |
238. | [1] | 029635-2020 | O-RING |
255. | [1] | 154213-7220 | BRACKET |
331. | [1] | 154179-3020 | HEADLESS SCREW |
332. | [1] | 029201-6010 | UNION NUT |
335. | [1] | 154352-2600 | CAPSULE |
336. | [1] | 029331-6030 | GASKET |
350. | [1] | 154354-3500 | BRACKET |
351. | [2] | 010010-1240 | BLEEDER SCREW M10P1.5L12 4T |
352. | [2] | 014111-0440 | LOCKING WASHER |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
Include in #1:
106672-3045
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
105488-7870
F 019 Z1E 320
223002602A HINO
GOVERNOR
* K
* K
