Information governor
BOSCH
9 420 612 909
9420612909
ZEXEL
105488-1481
1054881481
ISUZU
1157703850
1157703850

Rating:

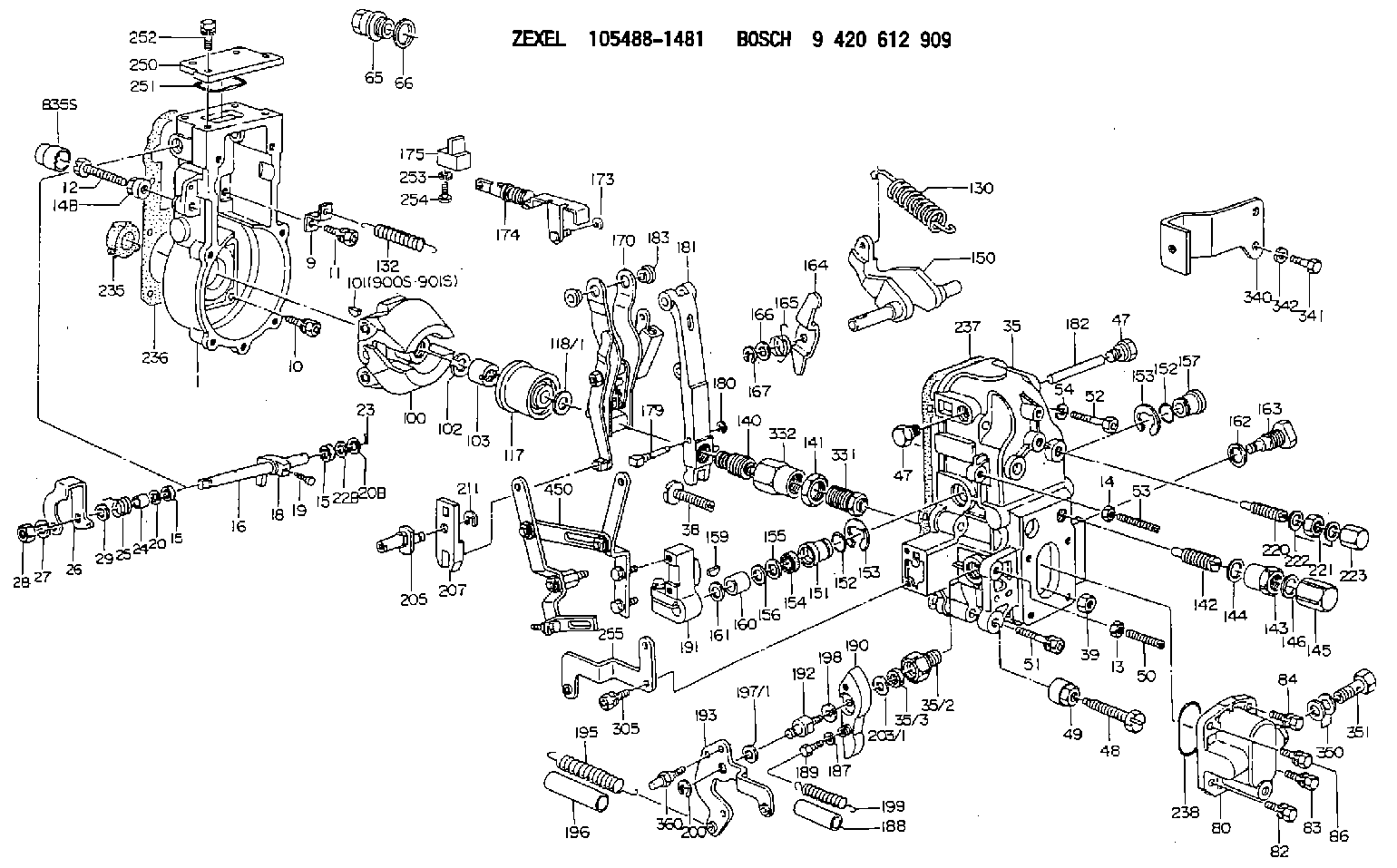

Scheme ###:
1. | [1] | 154004-4621 | GOVERNOR HOUSING |
9. | [1] | 154353-5601 | PLATE |
10. | [4] | 020106-2040 | BLEEDER SCREW M6P1L20 |
11. | [4] | 020106-1840 | BLEEDER SCREW M6P1L18 |
12. | [1] | 154010-7200 | BLEEDER SCREW M8P1.25L62 |
13. | [1] | 013020-6040 | UNION NUT M6P1H5 |
14. | [1] | 154011-0100 | HEXAGON NUT |
14B. | [1] | 154011-2300 | UNION NUT |
15. | [2] | 139608-0100 | PACKING RING |
15. | [2] | 139608-0100 | PACKING RING |
16. | [1] | 155004-3600 | LEVER SHAFT |
18. | [1] | 155003-2101 | CONTROL LEVER |
19. | [1] | 155006-0700 | BLEEDER SCREW |
20. | [1] | 139308-0900 | PLAIN WASHER D16&8T1 |
20B. | [1] | 139308-1000 | PLAIN WASHER D16&8T1.5 |
22B. | [0] | 029310-8050 | SHIM D13.5&8T0.5 |
22B. | [7] | 139408-1500 | SHIM |
23. | [1] | 025520-1210 | SPLIT PIN |
24. | [1] | 154206-2000 | BUSHING |
25. | [1] | 154327-3600 | COILED SPRING |
26. | [1] | 154365-6500 | CONTROL LEVER |
27. | [1] | 014110-8440 | LOCKING WASHER |
28. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
29. | [1] | 139408-1400 | SHIM |
29B. | [0] | 139408-1400 | SHIM |
29C. | [0] | 139408-1500 | SHIM |
35. | [1] | 154515-2320 | GOVERNOR COVER |
35/2. | [1] | 154321-2000 | BUSHING |
35/3. | [1] | 139610-0600 | PACKING RING |
38. | [1] | 154031-3401 | FLAT-HEAD SCREW |
39. | [1] | 029201-0160 | UNION NUT |
47. | [2] | 154036-1800 | CAPSULE |
47. | [2] | 154036-1800 | CAPSULE |
48. | [1] | 154010-7100 | BLEEDER SCREW M10P1.25L47 |
48B. | [1] | 154010-7700 | BLEEDER SCREW M10P1.25L51 |
49. | [1] | 154011-2200 | UNION NUT |
50. | [1] | 155615-2300 | FLAT-HEAD SCREW |
51. | [5] | 020106-4540 | BLEEDER SCREW M6P1.0L45 |
52. | [2] | 029010-6850 | BLEEDER SCREW |
53. | [1] | 154010-0100 | FLAT-HEAD SCREW |
54. | [2] | 014110-6440 | LOCKING WASHER |
65. | [1] | 153021-5000 | CAP |
66. | [1] | 139524-0000 | GASKET |
80. | [1] | 154063-5620 | COVER |
82. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
83. | [1] | 029020-6210 | BLEEDER SCREW |
84. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
86. | [1] | 029020-6210 | BLEEDER SCREW |
100. | [1] | 154100-9220 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1310 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 139212-0000 | UNION NUT |
117. | [1] | 154123-2320 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-9400 | GOVERNOR SPRING |
132. | [1] | 154154-3700 | COILED SPRING |
140. | [1] | 154183-6020 | HEADLESS SCREW |
141. | [1] | 139218-0100 | UNION NUT |
142. | [1] | 154242-3320 | HEADLESS SCREW |
143. | [1] | 154242-3200 | UNION NUT |
144. | [1] | 139516-0100 | GASKET |
145. | [1] | 154159-1800 | CAP NUT |
146. | [1] | 139516-0100 | GASKET |
150. | [1] | 154200-5801 | SWIVELLING LEVER |
151. | [1] | 154200-5501 | BUSHING |
152. | [2] | 139719-0000 | O-RING |
152. | [2] | 139719-0000 | O-RING |
153. | [2] | 154354-3900 | LOCKING WASHER |
153. | [2] | 154354-3900 | LOCKING WASHER |
154. | [1] | 139612-0000 | PACKING RING |
155. | [1] | 139411-0100 | SHIM D22.0&12.0T0.40 |
156. | [0] | 139411-0200 | SHIM D18.0&12.0T0.10 |
156B. | [0] | 139411-0300 | SHIM D18.0&12.0T0.20 |
156C. | [0] | 139411-0400 | SHIM D18.0&12.0T0.30 |
157. | [1] | 154204-3500 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
160. | [1] | 154206-2300 | BUSHING |
161. | [0] | 154206-2400 | PLAIN WASHER D20.5&12.2T1 |
162. | [1] | 139516-0100 | GASKET |
163. | [1] | 154401-3201 | BLEEDER SCREW |
164. | [1] | 154243-0820 | CONTROL LEVER |
165. | [1] | 154327-6100 | COILED SPRING |
166. | [1] | 029310-8320 | SHIM D16.5&8T0.2 |
167. | [1] | 154356-3600 | LOCKING WASHER |
170. | [1] | 154217-2020 | FORK LEVER |
173. | [1] | 016010-0540 | LOCKING WASHER |
174. | [1] | 154234-3220 | STRAP |
175. | [1] | 154232-1821 | CONNECTOR |
179. | [1] | 154238-0201 | BEARING PIN |
180. | [1] | 016010-0540 | LOCKING WASHER |
181. | [1] | 154236-9321 | TENSIONING LEVER |
182. | [1] | 154237-1200 | BEARING PIN |
183. | [2] | 154237-1300 | BUSHING |
187. | [1] | 014110-6440 | LOCKING WASHER |
188. | [1] | 154156-1500 | TUBE |
189. | [1] | 154357-6320 | BLEEDER SCREW |
190. | [1] | 154360-2700 | CONTROL LEVER |
191. | [1] | 154340-1920 | CONTROL LEVER |
192. | [1] | 154371-8300 | BLEEDER SCREW |
193. | [1] | 154362-9920 | CONTROL LEVER |
195. | [1] | 154317-1000 | COILED SPRING |
196. | [1] | 154156-1300 | TUBE |
197/1. | [0] | 029310-8610 | SHIM D10.5&8.5T0.1 |
197/1. | [0] | 029310-8620 | SHIM D10.5&8.5T0.15 |
197/1. | [0] | 029310-8630 | SHIM D10.5&8.5T0.2 |
197/1. | [0] | 029310-8650 | SHIM D10.5&8.5T0.5 |
198. | [1] | 014110-8440 | LOCKING WASHER |
199. | [1] | 154317-2000 | COILED SPRING |
200. | [1] | 016010-0740 | LOCKING WASHER |
203/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
203/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
203/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
203/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
203/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
203/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
203/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
203/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
203/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
203/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
203/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
205. | [1] | 154324-3400 | LEVER SHAFT |
207. | [1] | 154326-0300 | CONTROL LEVER |
211. | [1] | 016010-0840 | LOCKING WASHER |
220. | [1] | 154050-7720 | HEADLESS SCREW |
221. | [1] | 029201-2130 | UNION NUT M12P1.0H6 |
222. | [2] | 139512-0000 | GASKET D17.2&12.2T1.0 |
223. | [1] | 154159-1200 | CAP NUT |
235. | [1] | 155412-5200 | IMPELLER WHEEL |
236. | [1] | 154371-5600 | GASKET |
237. | [1] | 154390-0200 | GASKET |
238. | [1] | 139756-0200 | O-RING |
250. | [1] | 154063-9800 | COVER |
251. | [1] | 154419-2500 | SEAL RING |
252. | [4] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
253. | [1] | 029320-5020 | LOCKING WASHER |
254. | [1] | 010535-1040 | FLAT-HEAD SCREW M5P0.8L10 |
255. | [1] | 154359-4820 | BRACKET |
305. | [2] | 020118-1240 | BLEEDER SCREW M8P1.25L12 |
331. | [1] | 154179-7420 | HEADLESS SCREW |
332. | [1] | 139218-0500 | UNION NUT |
340. | [1] | 154357-6621 | BRACKET |
341. | [2] | 010038-1440 | BLEEDER SCREW M8P1.25L14 |
342. | [2] | 014110-8440 | LOCKING WASHER |
350. | [2] | 139512-0000 | GASKET D17.2&12.2T1.0 |
351. | [1] | 139812-0100 | EYE BOLT |
360. | [1] | 154357-7000 | BEARING PIN |
450. | [1] | 154399-5420 | LEVER GROUP |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
