105488-1182 ZEXEL 9 420 612 896 BOSCH GOVERNOR 9420612896 1054881182 1157701431

Information governor

BOSCH 9 420 612 896 9420612896

ZEXEL 105488-1182 1054881182

ISUZU 1157701431 1157701431

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105488-1182 zexel genuine, new aftermarket engine parts with delivery

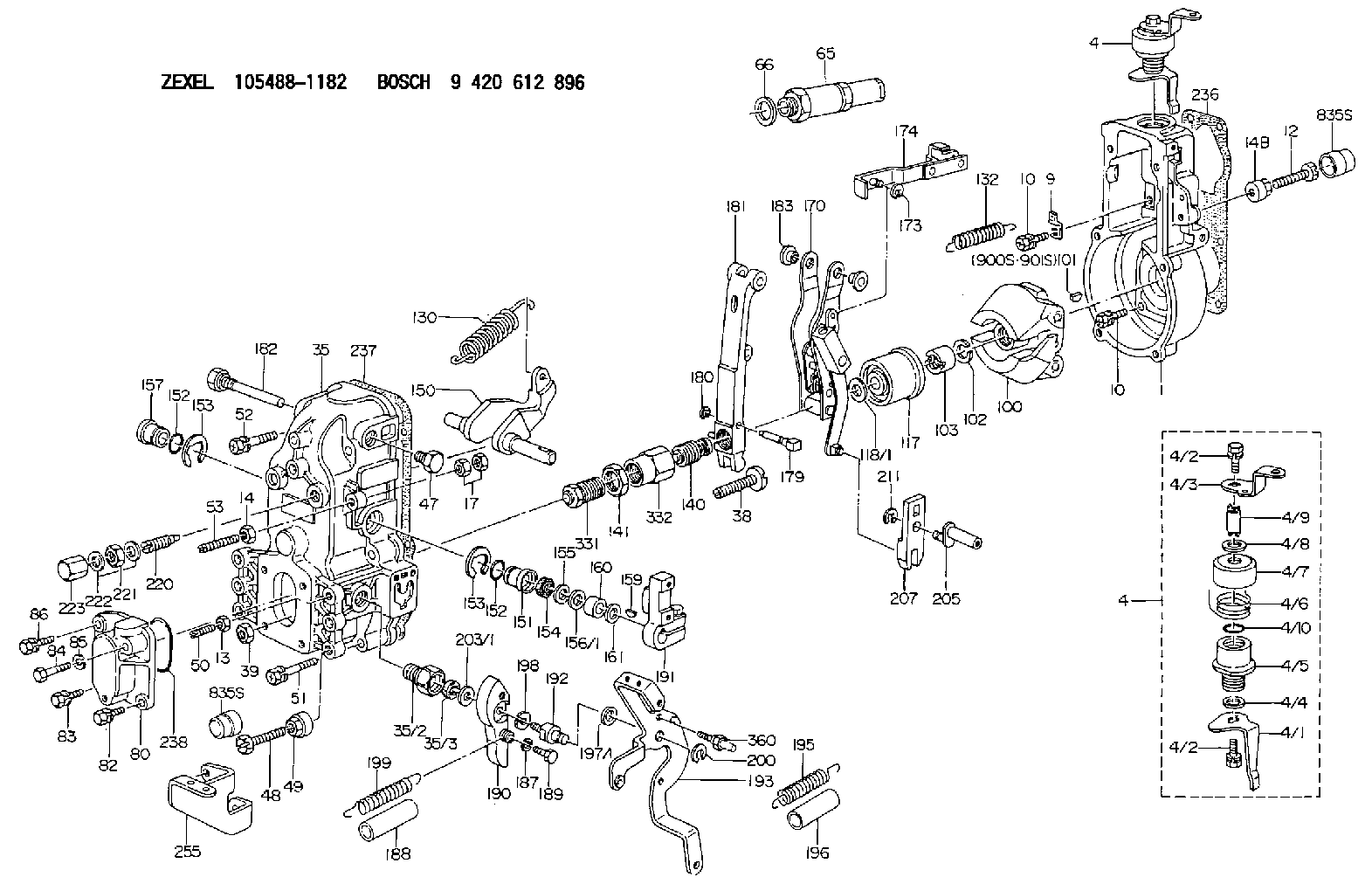

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
4.	[1]	154364-8820	CONTROL LEVER
4.	[1]	154364-8820	CONTROL LEVER
4/1.	[1]	154304-6200	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154364-8800	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-2901	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
13.	[1]	029240-6010	UNION NUT M6P1.0H5*
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
17.	[2]	154011-1100	UNION NUT
35.	[1]	154513-1420	GOVERNOR COVER
35/2.	[1]	154321-1800	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3500	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
47.	[1]	154036-0300	CAPSULE
48.	[1]	154010-7100	BLEEDER SCREW M10P1.25L47
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-1100	FLAT-HEAD SCREW M6P1.0L37
51.	[4]	020106-3840	BLEEDER SCREW
52.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
65.	[1]	153043-4320	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154060-7900	COVER
82.	[1]	029020-6240	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	020506-3540	BLEEDER SCREW
85.	[1]	014110-6440	LOCKING WASHER
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0420	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7200	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154175-1520	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-3801	SWIVELLING LEVER
151.	[1]	154204-2001	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156/1.	[0]	029311-1110	SHIM D17&11T0.1
156/1.	[0]	029311-1120	SHIM D17&11T0.2
156/1.	[0]	029311-1130	SHIM D17&11T0.3
157.	[1]	154204-3400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-0900	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-7720	GUIDE LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-4920	STRAP
179.	[1]	154238-0301	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5300	TENSIONING LEVER
182.	[1]	154237-0900	BEARING PIN
183.	[2]	154237-0600	BUSHING
187.	[1]	014110-6440	LOCKING WASHER
188.	[1]	154156-1500	TUBE
189.	[1]	154357-6320	BLEEDER SCREW
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154340-2020	CONTROL LEVER
192.	[1]	154371-8300	BLEEDER SCREW
193.	[1]	154368-9620	CONTROL LEVER
195.	[2]	154317-5300	COILED SPRING
196.	[2]	154156-0600	TUBE
197/1.	[0]	029310-8610	SHIM D10.5&8.5T0.1
197/1.	[0]	029310-8620	SHIM D10.5&8.5T0.15
197/1.	[0]	029310-8630	SHIM D10.5&8.5T0.2
197/1.	[0]	029310-8650	SHIM D10.5&8.5T0.5
198.	[1]	014110-8440	LOCKING WASHER
199.	[1]	154317-2000	COILED SPRING
200.	[1]	016010-0740	LOCKING WASHER
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3000	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6820	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	139512-0000	GASKET D17.2&12.2T1.0
223.	[1]	154159-1200	CAP NUT
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
255.	[1]	154371-8520	BRACKET
331.	[1]	154179-2620	HEADLESS SCREW
332.	[1]	029201-6220	UNION NUT
360.	[1]	154357-6900	BEARING PIN
835S.	[2]	154062-1700	CAP
835S.	[2]	154062-1700	CAP
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106693-1822 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105488-1182
105488-1183

9 420 612 896

1157701431 ISUZU

GOVERNOR
* K

Information:

1. Disconnect two fuel lines (1) from the transfer pump.2. Disconnect three lines (2) from the fuel injection pump housing and air-fuel ratio control. 3. Remove bolt (3) from the governor linkage.4. Remove three bolts (5) from the brackets that hold the fuel injection pump housing to the cylinder block.5. Remove four bolts (4). 6. Fasten a hoist to fuel injection pump housing and governor (6). Slide the fuel injection pump housing to the rear and remove it. The weight of the fuel injection pump housing is 110 lb. (49.5 kg). 7. Remove two O-ring seals (8) and O-ring seal (7).Install Fuel Injection Pump Housing And Governor
Make sure the outer surface of the fuel system and the surfaces that come in contact with it are clean.
1. Inspect the O-ring seals for wear or damage. Make a replacement if necessary. 2. Install O-ring seals (1) and (2) on the fuel injection pump housing. 3. Fasten a hoist to fuel injection pump housing and governor (3) and lower it into position. Install the four bolts that hold the fuel system to the cylinder block. 4. Install three bolts (5).5. Connect governor linkage (4) to the governor. 6. Connect line (6) to the air-fuel ratio control.7. Connect two lines (7) to the transfer pump.8. Connect two lines (8) to the fuel injection pump housing.end by:a) install fuel injection linesb) install automatic timing advance
