105488-0981 ZEXEL F 019 Z4E 923 BOSCH GOVERNOR f019z4e923 1054880981 me726594

Information governor

BOSCH F 019 Z4E 923 f019z4e923

ZEXEL 105488-0981 1054880981

MITSUBISHI ME726594 me726594

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105488-0981 zexel genuine, new aftermarket engine parts with delivery

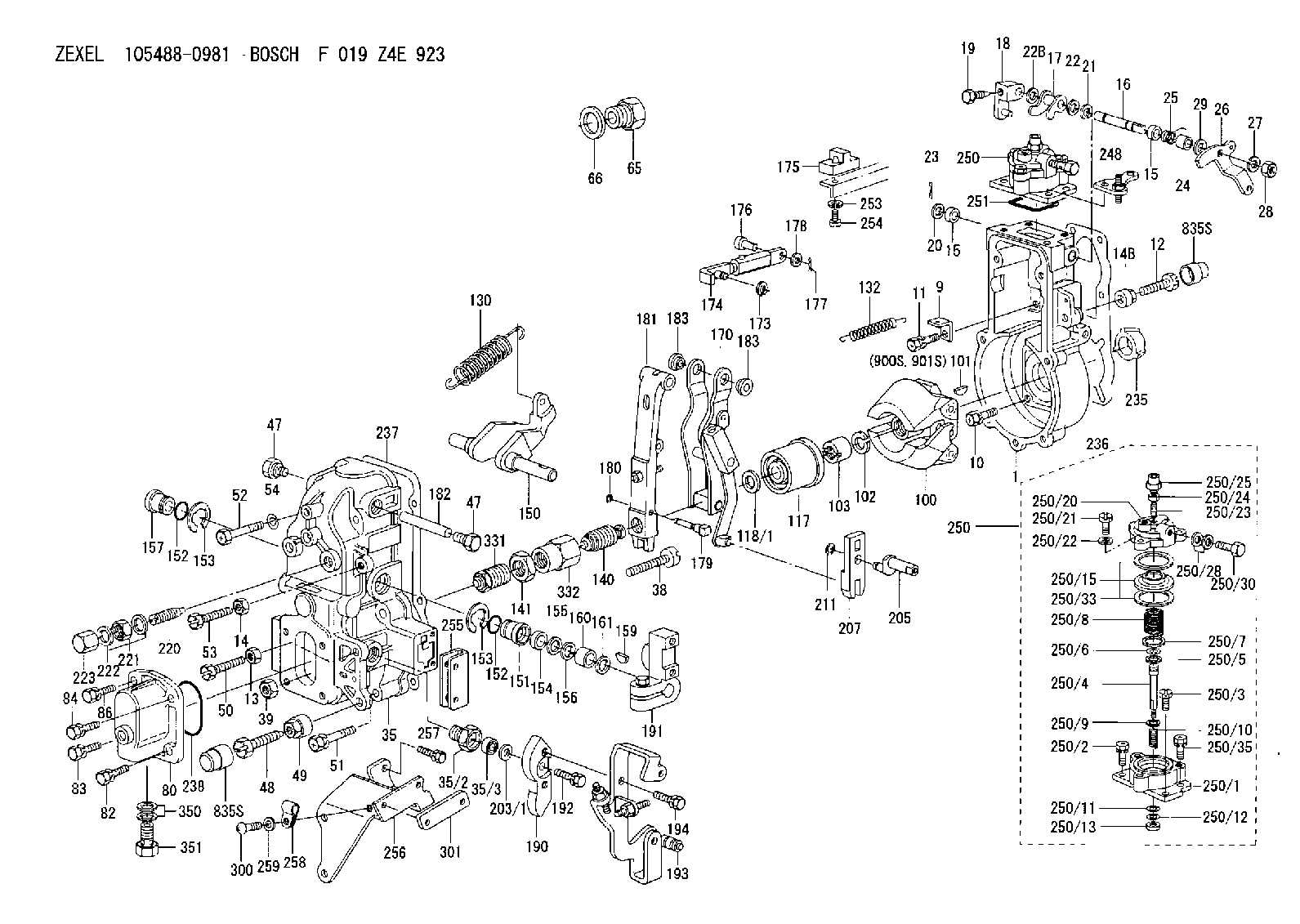

Scheme ###:

1.	[1]	154004-1022	GOVERNOR HOUSING
9.	[1]	154350-6000	PLATE
10.	[4]	020106-2040	BLEEDER SCREW M6P1L20
11.	[4]	020106-1840	BLEEDER SCREW M6P1L18
12.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	013020-8040	UNION NUT M8P1.25H7
14B.	[1]	154011-2300	UNION NUT
15.	[2]	029620-8050	PACKING RING
15.	[2]	029620-8050	PACKING RING
16.	[1]	155004-3301	LEVER SHAFT
17.	[1]	154408-1520	CONTROL LEVER
18.	[1]	155003-1920	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
21.	[1]	016010-0740	LOCKING WASHER
22.	[0]	029310-8040	SHIM D13.5&8T0.2
22.	[7]	139408-1400	SHIM
22B.	[0]	029310-8050	SHIM D13.5&8T0.5
22B.	[7]	139408-1500	SHIM
23.	[1]	025520-1210	SPLIT PIN
24.	[1]	154206-2000	BUSHING
25.	[1]	154327-5200	COILED SPRING
26.	[1]	154365-2400	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER
28.	[1]	013020-8040	UNION NUT M8P1.25H7
29.	[1]	139408-1400	SHIM
29B.	[0]	139408-1400	SHIM
29C.	[0]	139408-1500	SHIM
35.	[1]	154514-4920	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1800	CAPSULE
47.	[2]	154036-1800	CAPSULE
48.	[1]	154010-7100	BLEEDER SCREW M10P1.25L47
48B.	[1]	154010-8200	BLEEDER SCREW
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-1900	BLEEDER SCREW
51.	[5]	020106-4540	BLEEDER SCREW M6P1.0L45
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-7300	BLEEDER SCREW M8P1.25L60
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	153021-2720	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154063-6121	COVER
82.	[1]	029020-6240	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	029020-6240	BLEEDER SCREW
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7900	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154183-1020	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
150.	[1]	154200-5401	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM D22.0&12.0T0.40
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2300	BUSHING
161.	[0]	154206-2400	PLAIN WASHER D20.5&12.2T1
170.	[1]	154216-1920	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154234-0320	STRAP
175.	[1]	154232-1720	PLATE
176.	[1]	159231-4900	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
178.	[1]	029310-5170	SHIM D8&5.3T0.5
179.	[1]	154238-0201	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5200	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1300	BUSHING
183.	[2]	154237-1300	BUSHING
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154340-1920	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154368-3920	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-2900	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6220	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT M12P1.0H6
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	139700-0100	O-RING
248.	[1]	154356-9320	BRACKET
250.	[1]	154418-0621	MANIFOLD-PRESSURE COMP.
250.	[1]	154418-0621	MANIFOLD-PRESSURE COMP.
250/1.	[1]	154408-6220	DIAPHRAGM HOUSING
250/2.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
250/3.	[1]	029020-6260	BLEEDER SCREW
250/4.	[1]	154400-5800	STOP PIN
250/5.	[1]	153400-0900	SLOTTED WASHER
250/6.	[1]	016010-0740	LOCKING WASHER
250/7.	[0]	029312-0180	SHIM D25.5&20T0.5
250/7B.	[0]	029312-0210	SHIM D25.5&20T0.2
250/8.	[1]	154403-8400	COILED SPRING
250/9.	[0]	154355-3900	SHIM D18&12.5T0.10
250/9B.	[0]	154355-4000	SHIM D18&12.5T0.20
250/9C.	[0]	154355-4100	SHIM D18&12.5T0.30
250/10.	[1]	154411-2200	COILED SPRING
250/11.	[1]	153400-0800	SPRING SEAT
250/12.	[1]	014110-5440	LOCKING WASHER
250/13.	[1]	013030-5240	UNION NUT M5P0.8H3.2
250/15.	[1]	154400-9320	DIAPHRAGM
250/20.	[1]	154404-5100	COVER
250/21.	[3]	029010-6310	BLEEDER SCREW
250/22.	[3]	014110-6440	LOCKING WASHER
250/23.	[1]	154404-5300	FLAT-HEAD SCREW
250/24.	[1]	023040-6040	UNION NUT
250/25.	[1]	154406-7800	CAP NUT
250/28.	[2]	026510-1340	GASKET D13.4&10.2T1
250/30.	[1]	029731-0180	EYE BOLT
250/33.	[2]	154413-2600	GASKET
250/35.	[1]	020106-2040	BLEEDER SCREW M6P1L20
251.	[1]	154358-2500	SEAL RING
253.	[1]	029320-5020	LOCKING WASHER
254.	[1]	010535-1040	FLAT-HEAD SCREW M5P0.8L10
255.	[1]	154359-4400	BRACKET
256.	[1]	154359-4520	BRACKET
257.	[1]	020106-1040	BLEEDER SCREW M6P1L12
258.	[1]	154604-0200	CLAMPING BAND
259.	[1]	014010-4140	PLAIN WASHER D10&4.5T0.8
300.	[1]	012154-0640	FLAT-HEAD SCREW M4P0.7L6
301.	[1]	154359-7700	PLATE
331.	[1]	154179-6520	HEADLESS SCREW
332.	[1]	139218-0200	UNION NUT
350.	[2]	026512-1840	GASKET D17.9&12.2T1.50
351.	[1]	153556-4800	EYE BOLT
835S.	[2]	154062-1700	CAP D20L32
835S.	[2]	154062-1700	CAP D20L32
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-7531 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105488-0981

F 019 Z4E 923
NP-EP/RFD200/1300PF10DZR

ME726594 MITSUBISHI

GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV

Information:

December 9, 2005
U-389
A-289
D-306
O-325
Partsstock action only PRODUCT IMPROVEMENT PROGRAM FOR REMOVINGCERTAIN FUEL INJECTORS FROM DEALERS PARTS STOCK
7750 PI70111
The information supplied in this serviceletter may not be valid after the termination date of this program. Donot perform the work outlined in this Service Letter after the terminationdate without first contacting your Caterpillar product analyst.TERMINATION DATE
March 31, 2006PROBLEM
A machining error can cause the valve body tocrack through the high-pressure line. This crack can result in fuel inthe engine oil.ACTION REQUIRED
All 10R-0957 unit injectors within serial numberrange 848368-850132 should be removed from parts stock. All 10R-0960, 10R-0961,and 10R-0963 within serial number range 188029-188914 should be removedfrom parts stock.SERVICE CLAIM ALLOWANCES
Submit one claim for all 10R0957, 10R0960, 10R0961,and 10R0963 Injectors removed from parts stock.PARTS DISPOSITION
All dealers are to make sure the outsideof the shipping container is marked PI70111.***** U.S. and Canadian Dealers *****Return all 10R0957, 10R0960, 10R0961, and 10R0963Injectors that are removed from parts stock and a copy of the claim to:Caterpillar Inc.
Attn: Supplier Recovery PI70111
Service Claims Room
8201 N. University
Peoria, IL 61615***** All Other Dealers *****Handle the parts in accordance with your WarrantyBulletin on warranty parts handling.
