105488-0522 ZEXEL 9 420 612 003 BOSCH GOVERNOR 9420612003 1054880522 1910196715

Information governor

BOSCH 9 420 612 003 9420612003

ZEXEL 105488-0522 1054880522

NISSAN-DIESEL 1910196715 1910196715

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105488-0522 zexel genuine, new aftermarket engine parts with delivery

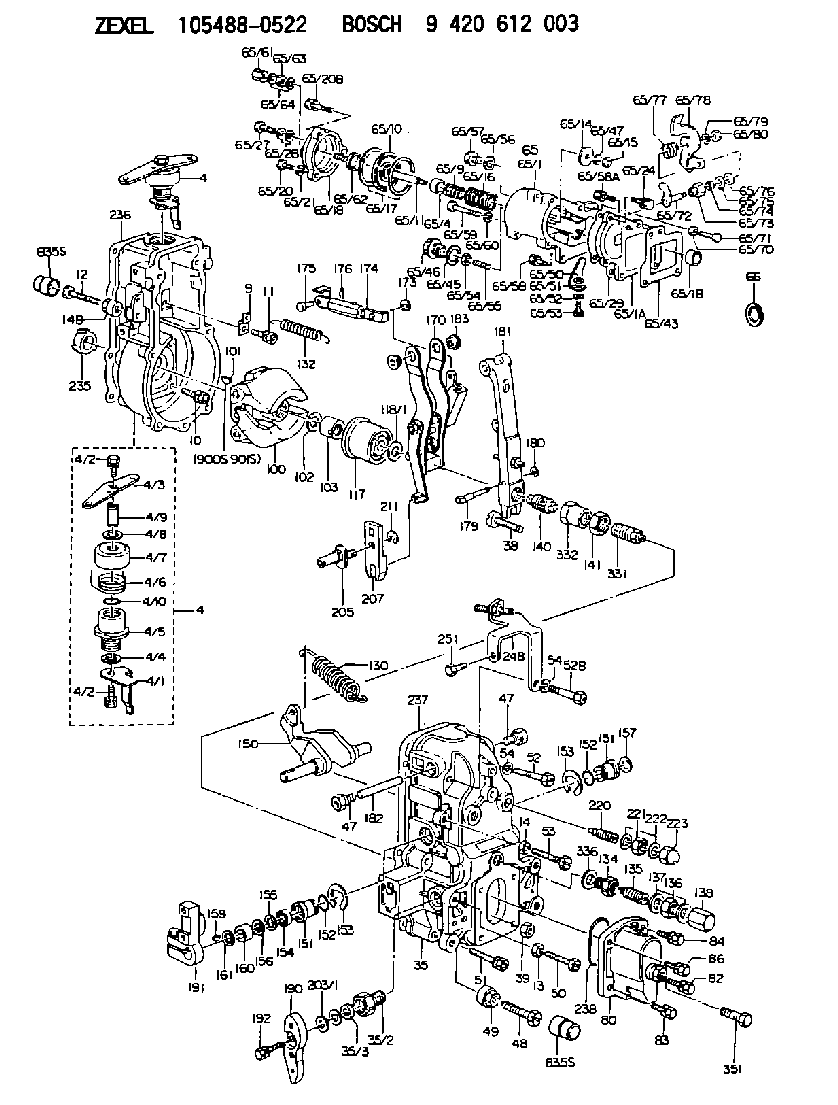

Scheme ###:

1.	[1]	154004-0100	GOVERNOR HOUSING
4.	[1]	154365-3120	CONTROL LEVER
4.	[1]	154365-3120	CONTROL LEVER
4/1.	[1]	154304-6200	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154304-0900	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-2901	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
9.	[1]	154350-6000	PLATE
10.	[4]	020106-2040	BLEEDER SCREW M6P1L20
11.	[4]	020106-1840	BLEEDER SCREW M6P1L18
12.	[1]	154010-7500	BLEEDER SCREW M8P1.25L50
13.	[1]	029240-6010	UNION NUT M6P1.0H5*
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
35.	[1]	154514-1320	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1900	CAPSULE
47.	[2]	154036-1900	CAPSULE
48.	[1]	154010-6000	BLEEDER SCREW M10P1.25L55
48B.	[1]	154010-7900	BLEEDER SCREW M10P1.25L58
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-1900	BLEEDER SCREW
51.	[5]	020106-4540	BLEEDER SCREW M6P1.0L45
52.	[1]	029010-6850	BLEEDER SCREW
52B.	[1]	010006-6040	BLEEDER SCREW
53.	[1]	154010-3100	BLEEDER SCREW
54.	[2]	014110-6440	LOCKING WASHER
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	154419-1520	MANIFOLD-PRESSURE COMP.
65/1.	[1]	154412-9520	GOVERNOR HOUSING
65/1A.	[1]	154412-0201	SPACER BUSHING
65/1B.	[1]	134009-0000	SPACER BUSHING
65/4.	[1]	154413-0500	BUSHING
65/9.	[1]	154403-9700	COILED SPRING
65/10.	[1]	154400-8220	DIAPHRAGM
65/11.	[1]	154412-4101	STOP PIN
65/14.	[1]	154406-5500	SLOTTED WASHER
65/15.	[1]	013020-6040	UNION NUT M6P1H5
65/16.	[1]	154402-7500	COILED SPRING
65/17.	[2]	154413-2600	GASKET
65/18.	[1]	154404-5000	COVER
65/20.	[2]	029010-6310	BLEEDER SCREW
65/20B.	[1]	020106-4540	BLEEDER SCREW M6P1.0L45
65/21.	[2]	014110-6440	LOCKING WASHER
65/24.	[2]	020106-2040	BLEEDER SCREW M6P1L20
65/27.	[1]	029731-0180	EYE BOLT
65/28.	[2]	026510-1340	GASKET D13.4&10.2T1
65/29.	[1]	154390-2200	GASKET
65/43.	[1]	154390-2300	GASKET
65/45.	[1]	029331-8040	GASKET
65/46.	[1]	154406-5800	FLAT-HEAD SCREW
65/47.	[1]	014110-6440	LOCKING WASHER
65/50.	[1]	154406-6800	PLAIN WASHER
65/51.	[1]	154412-9800	CONTROL LEVER
65/52.	[1]	014110-4440	LOCKING WASHER
65/53.	[1]	010234-0820	HEX-SOCKET-HEAD CAP SCREW
65/54.	[1]	013030-6040	UNION NUT M6P1H3.6
65/55.	[1]	154404-1500	FLAT-HEAD SCREW L22.00
65/55B.	[1]	154404-1600	FLAT-HEAD SCREW L26.00
65/56.	[1]	029331-2130	GASKET
65/57.	[1]	154406-6500	FLAT-HEAD SCREW
65/58.	[2]	020106-2840	BLEEDER SCREW
65/58A.	[1]	020106-1440	BLEEDER SCREW M6P1.0L14
65/59.	[1]	010006-7040	BLEEDER SCREW M6P1L70
65/60.	[1]	014110-6440	LOCKING WASHER
65/61.	[1]	154035-1600	CAP NUT
65/62.	[1]	154404-4400	FLAT-HEAD SCREW
65/63.	[1]	013030-6040	UNION NUT M6P1H3.6
65/64.	[2]	026506-1040	GASKET D9.9&6.2T1
65/70.	[1]	029240-6010	UNION NUT M6P1.0H5*
65/71.	[1]	029000-6290	BLEEDER SCREW M6P1.0L19
65/72.	[1]	154413-0021	LEVER SHAFT
65/73.	[1]	154413-0100	BUSHING
65/74.	[1]	139608-0000	PACKING RING
65/75.	[1]	154413-0200	PLAIN WASHER
65/76.	[0]	029310-8030	SHIM D13.5&8T0.1
65/76B.	[0]	029310-8040	SHIM D13.5&8T0.2
65/77.	[1]	154413-0301	COILED SPRING
65/78.	[1]	154413-0400	CONTROL LEVER
65/79.	[1]	014110-8440	LOCKING WASHER
65/80.	[1]	013020-8140	UNION NUT M8P1.25H6.5
66.	[1]	026524-3040	GASKET
80.	[1]	154063-8620	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	029020-6210	BLEEDER SCREW
100.	[1]	154100-9220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-9400	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
134.	[1]	154370-3000	ADAPTOR
135.	[1]	154158-3320	HEADLESS SCREW
136.	[1]	029201-2290	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154183-2420	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
150.	[1]	154200-5601	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM D22.0&12.0T0.40
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2300	BUSHING
161.	[0]	154206-2400	PLAIN WASHER D20.5&12.2T1
170.	[1]	154216-1820	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154234-5120	STRAP
175.	[1]	159231-4900	BEARING PIN
176.	[1]	155402-3800	SAFETY PIN
179.	[1]	154238-0201	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5200	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1300	BUSHING
190.	[1]	154363-3500	CONTROL LEVER
191.	[1]	154340-5120	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3400	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-1220	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	139700-0100	O-RING
248.	[1]	154359-6620	BRACKET
251.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
331.	[1]	154179-3220	HEADLESS SCREW
332.	[1]	139218-0500	UNION NUT
336.	[1]	029331-6030	GASKET
351.	[1]	029731-2040	EYE BOLT
835S.	[2]	154062-1700	CAP D20L32
835S.	[2]	154062-1700	CAP D20L32
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-0361 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105488-0522

9 420 612 003
NP-EP/RFD200/1300PF28DZR

1910196715 NISSAN-DIESEL

GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV
